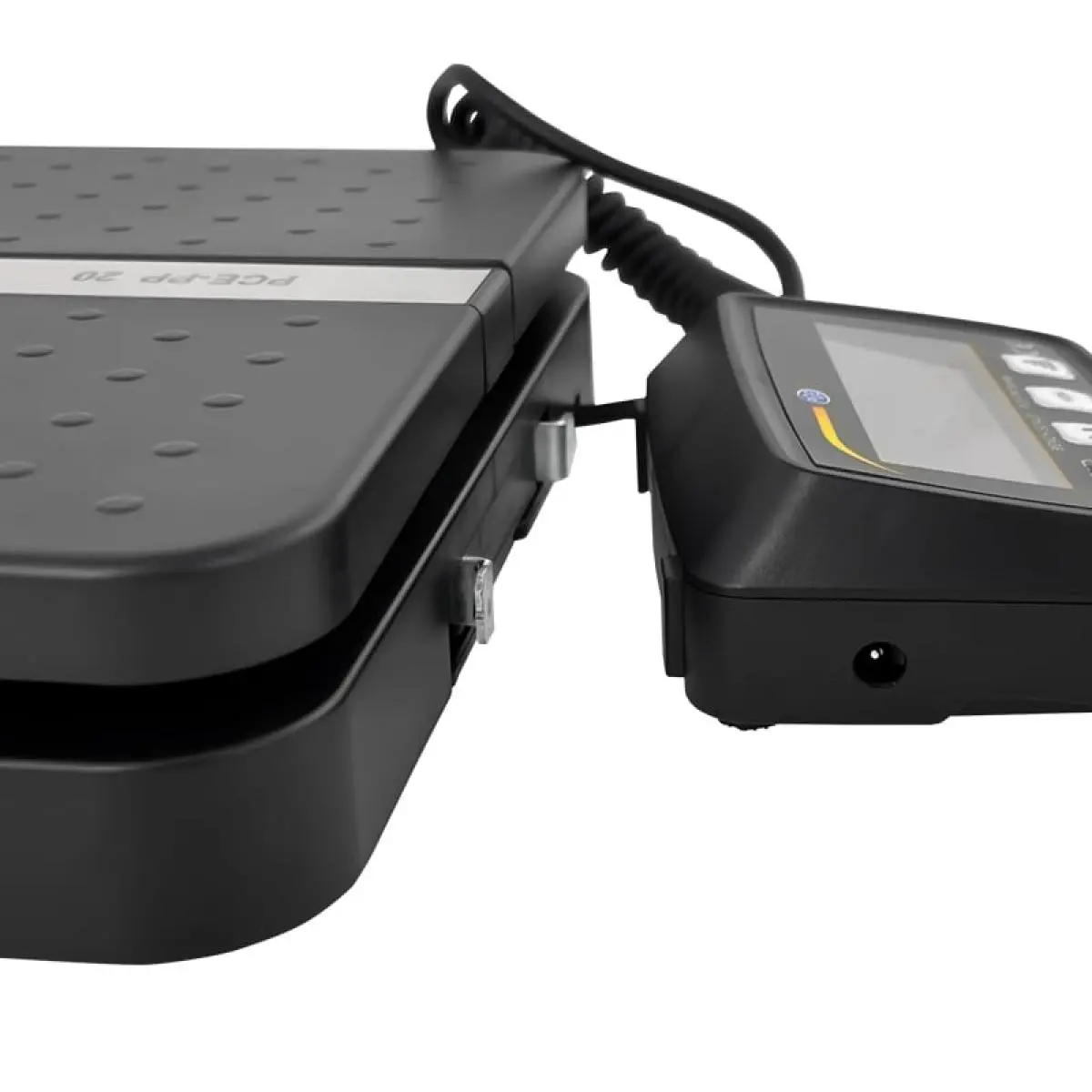

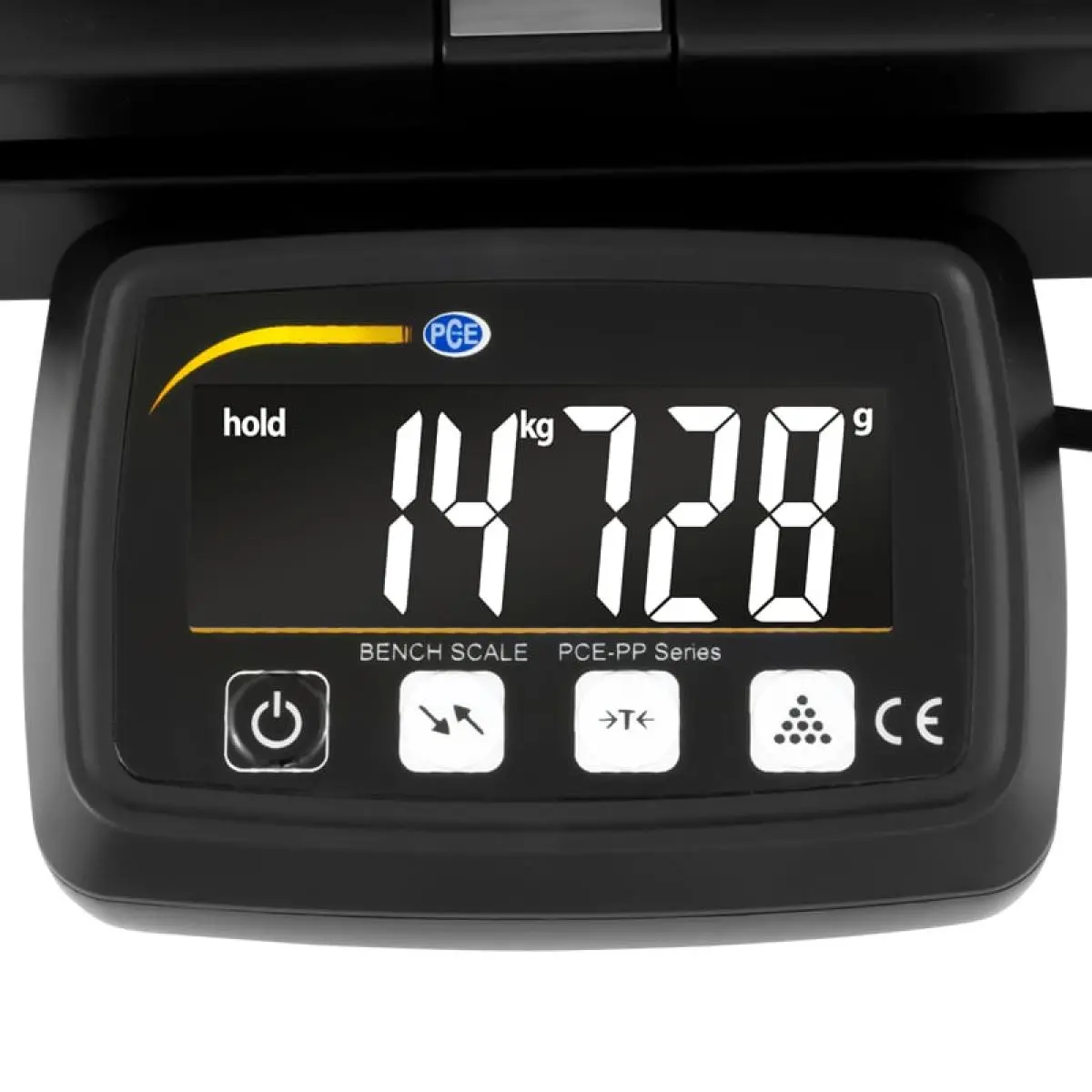

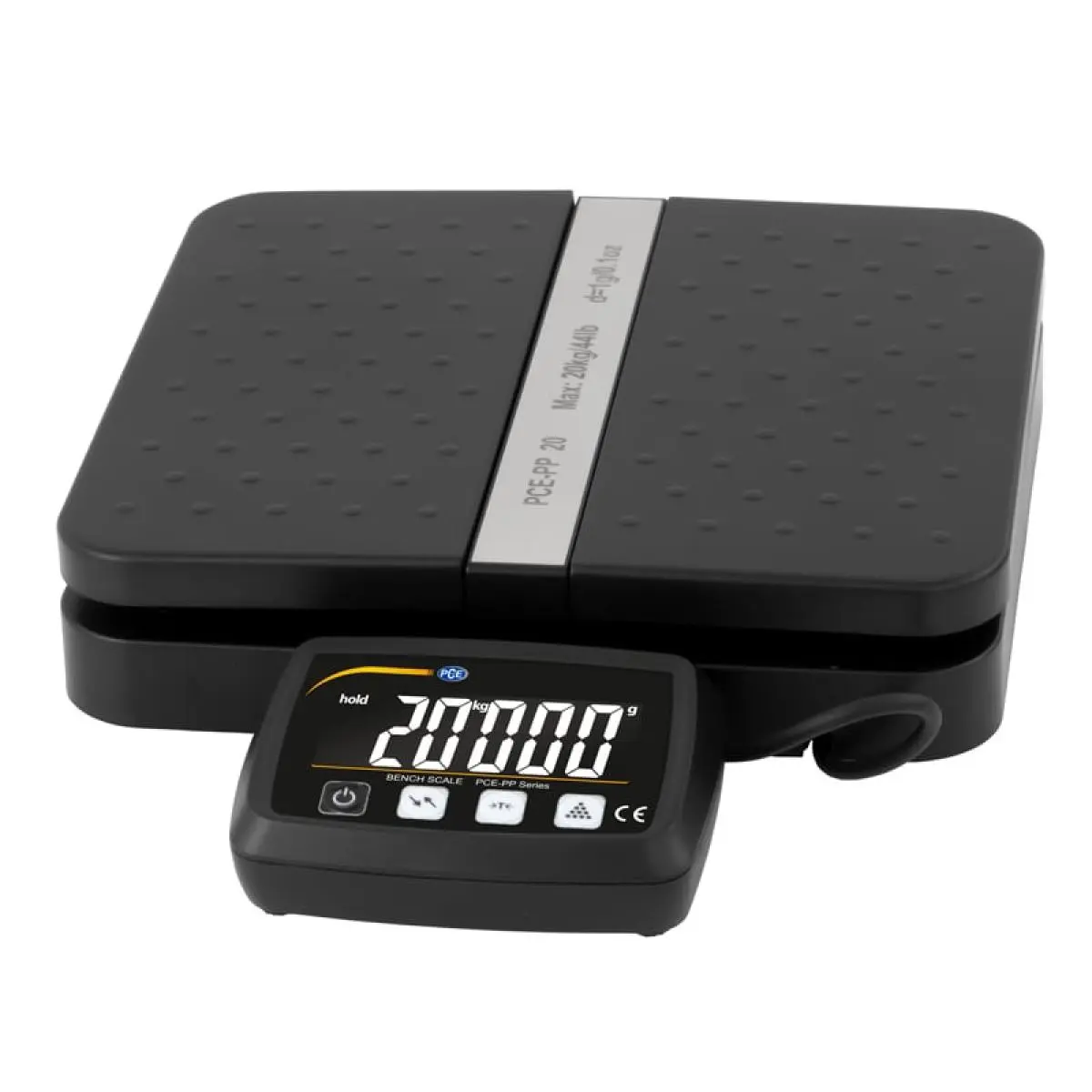

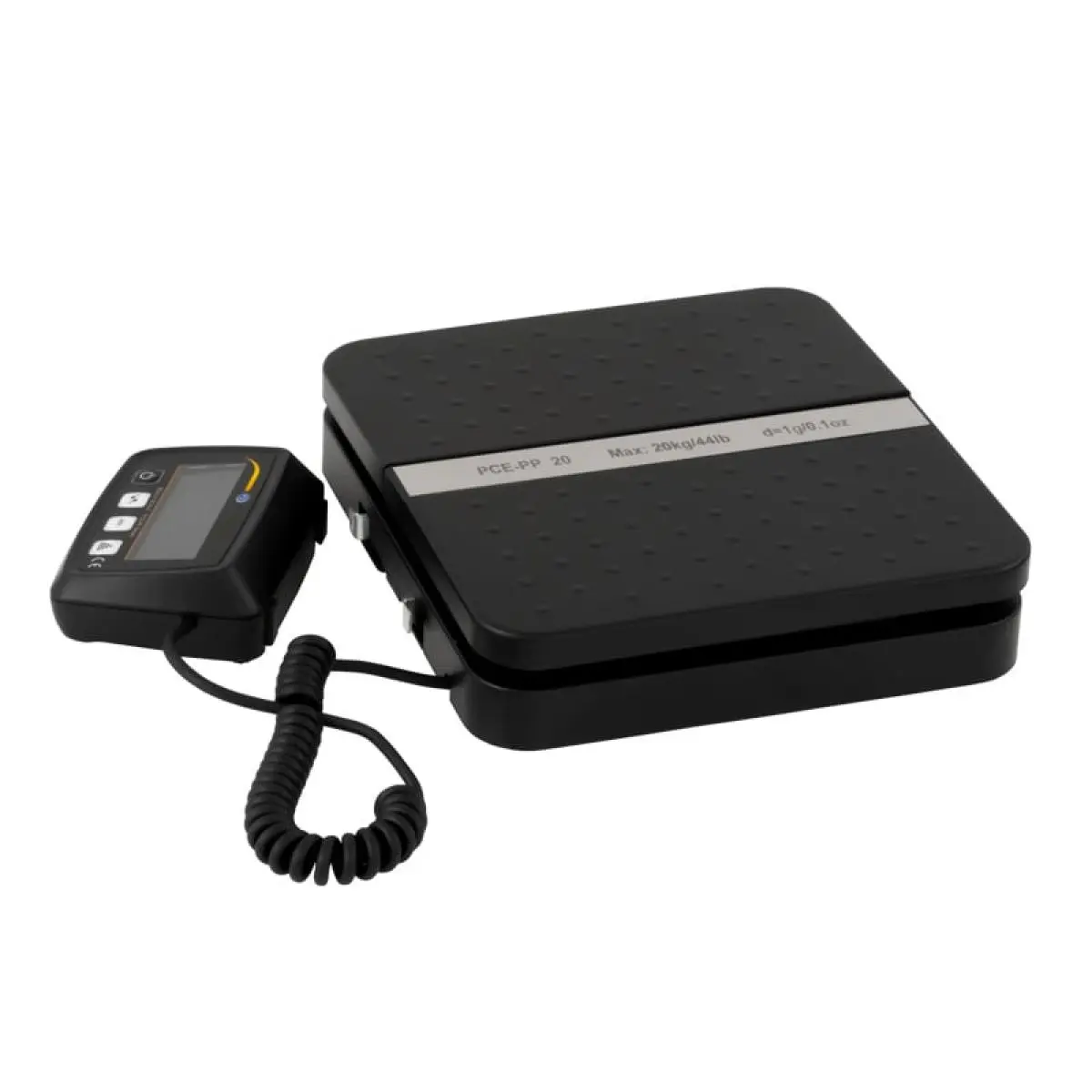

The Laboratory Balances are very precise measuring devices for determining weights due to the resolution of 1 g and an accuracy of ± 0.1% of measuring range. The display units available on the Laboratory Balances are lb / oz, kg / g, kg, g, lb, oz. The illuminated LC display of the Laboratory Balances is sized in such a way that the measured value can be read easily even in very bright ambient conditions. In addition, the display of the Laboratory Balances can be removed and can be positioned freely because of the spiral cable.

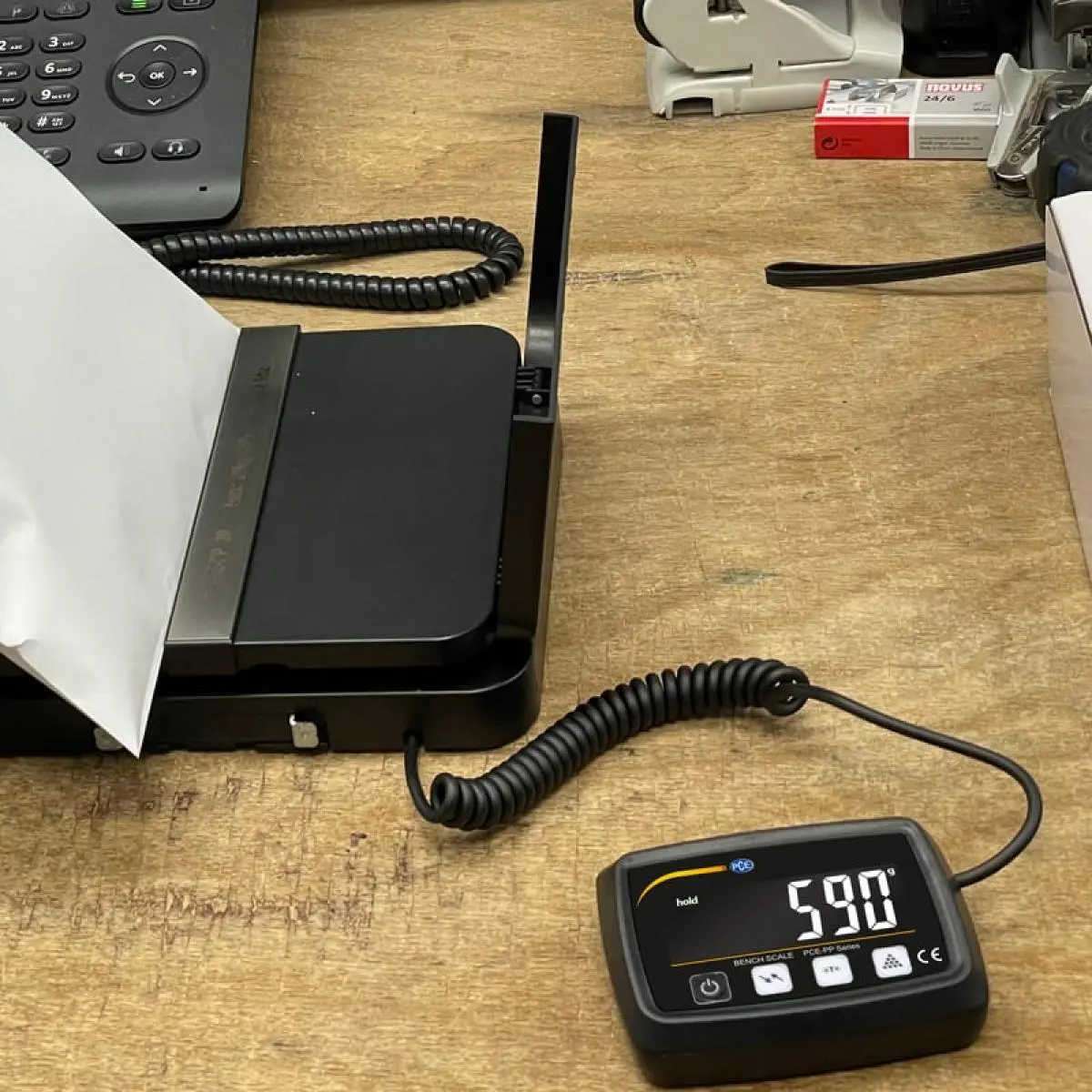

With the piece counting function, the Laboratory Balances can determine the number of objects, such as screws. For this purpose, a reference measurement is first carried out on the Laboratory Balances. The piece counting function is then started by pressing a button. As an extension of the piece counting function, the weighing surface of the Laboratory Balances can be opened to the side. In this way, for example, stacked envelopes or similar can be weighed with the Laboratory Balances without them falling off the weighing surface.
The Laboratory Balances are supplied with power via a 6 V DC mains power adapter. In addition, the Laboratory Balances can be operated with three 1.5 V batteries. This means that the Laboratory Balances can be used both stationary and mobile. The automatic switch-off ensures that the Laboratory Balances switches itself off within 5 minutes of inactivity. PCE Instruments optionally offers an ISO calibration certificate for the Laboratory Balances.
| Weighing range | |
| Measurement range up to [Max] | 20 kg |
| Resolution [d] | 1 g |
| Accuracy | ±0.1% FS |
| General technical data | |
| Type of cable | Coiled cable |
| Cable length | 1,1 m |
| Measuring functions (additional information) | Piece counting function |
| Units | kg, g, lb, oz, g/kg, Ib/oz |
| Display type | LCD |
| Automatic power-off | 5 min |
| Overload protection | Measurement range exceeded: "O-Ld" |
| Dimensions | Platform 198 x 180 x 120 mm / 7.8 × 7.1 × 4.7 in (unfolded) Display 92 x 68 x 30 mm / 3.6 × 2.7 × 1.2 in |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240 V AC | 50/60 Hz |
| Connector type | Device-europlug |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 5 ... 35 °C , 0 ... 90 % RH |
| Storage conditions | 5 ... 35 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 198 x 180 x 44 mm |
| Weight | 794 g |
