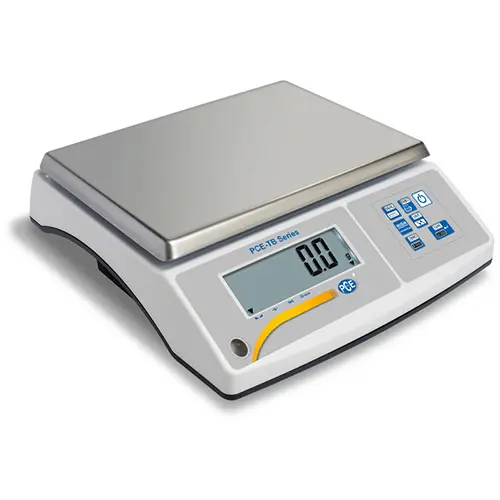

The LAB scale PCE-TB series stands out due to its multifunctional range of application. But not only the large range of functions of the LAB scale is outstanding, the communication options of the LAB scale are interesting as well. The LAB scale features a bi-directional RS-232 interface and USB interface. Thus the LAB scale provides a very good foundation for every programmer (description of interface in instruction manual). The LAB scale sends the information via keypress automatically to a computer either every time the weighing value is stable, continuously (approx. 10 values per second) or on demand. Another option to integrate the LAB scale into a system would be the optionally purchasable interfaces, e.g. LAN-, WiFi-, analogue output 4 ... 20 mA or 0 ... 10 V as well as the weightlimit function with three potential-free contacts.
Interesting functions of the LAB scale are item-counting, percentage - calculation, formulation weighing, animal weighing, statistical weighing, summation function, threshold function, various weighing functions etc. The LAB scale can operate by battery as well as via adapter, and is also applicable for mobile weighing tasks. Via the optional ProCell software you can import the weighing data of the LAB scale into any system, where the data can be fed-in by keypress, such as Excel, Word, DHL, SAP etc. since the software simulates a manual data feed-in.
| |||||||||||||||||||
Tare Range | covering the whole weighing range | ||||||||||||||||||
Settling Time | approx. 3 sec. | ||||||||||||||||||
Display | LCD with background lights | ||||||||||||||||||
Digit height | Approx. 30 mm | ||||||||||||||||||
Weighing unit | ct / g / kg / lb / oz / ozt / gr / dwt | ||||||||||||||||||
Interface | bi-directional RS-232 and USB | ||||||||||||||||||
Calibration | external via any M1 weight standard | ||||||||||||||||||
Operation temperature | -10 °C ... +40 °C | ||||||||||||||||||
Power Supply | ~230
V 50 Hz 12 V 1.2 A adapter or CE 6 V / 4.5 Ah battery (not included in delivery) | ||||||||||||||||||
Battery life time | approx. 50 hrs. / 100 hrs. ( with / without background lights) | ||||||||||||||||||
IP Code | IP 54 | ||||||||||||||||||

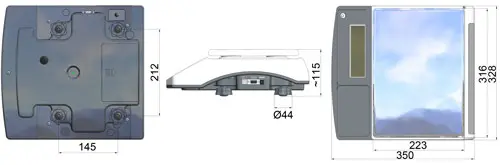

Diameter platform | 316 x 223 mm | ||||||||||||||||||
Diameter system scale | 350 x 328 x 115 mm | ||||||||||||||||||
Weight of system scale | approx. 3.5 kg |
