Inventory Scales PCE-SD 33C

Inventory Scale PCE-SD 33C

Order no.: PCE-SD 33C
GTIN (EAN): 4250348712912
£ 783.00
£ 939.60
price ex. (VAT / delivery)
:
4250348712912
PCE-SD 33C
Delivery time:1-2 working days

Description

Calibratable inventory scale / platform 400 x 500 mm or 500 x 600 mm  / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional

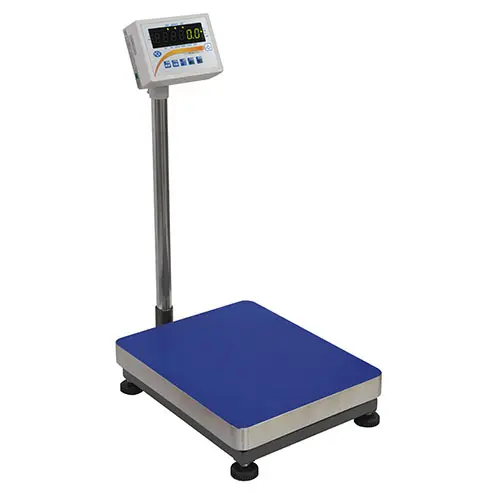

The calibratable inventory scale is a solid calibratable platform scale that is reasonably priced. The calibration of the inventory scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable inventory scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable inventory scale also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the inventory scale is placed on a stand mounted within a reachable height and fixed to the inventory scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable inventory scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable inventory scale are: e.g. analogue output 4 ... 20 mA or 0 ...  10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Weighing range
Measurement range up to [Max]  30 kg
Resolution [d]  10 g
Accuracy  10 g
Verification value [e]  10 g

General technical data
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units  kg, g, lb, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Repeatability  2 g
Minimum load [min]  200 g
Tare range  Multiple tare over the full measurement range
Calibration  external

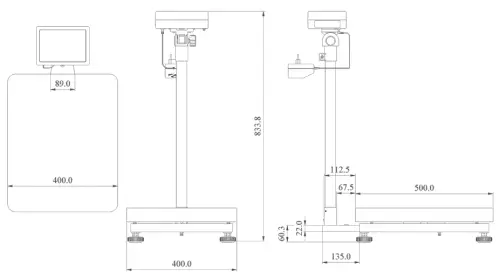

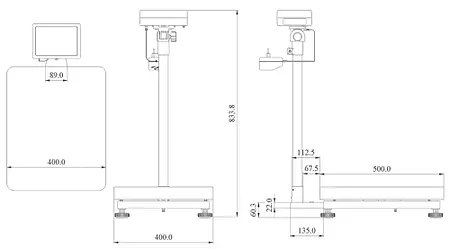

Dimensions  Display 190 x 140 x 65 mm
Platform 500 x 600 x 150 mm
Verification class [e]  M III
Settling time  < 3 s
Linearity  3 g
Menu language  English, English (GB)
Protection class (device)  IP54, IP65
Power supply  230V AC | 50 Hz, 8V A 12V DC, 850 mA
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V Button cell , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  510 x 730 x 870 mm
Weight  25000 g

Delivery Scope

Delivery content of the Calibratable Inventory Scales PCE-SD 33C
1 x calibratable Inventory Scales PCE-SD 33C incl. calibration, adapter and
instruction manual
