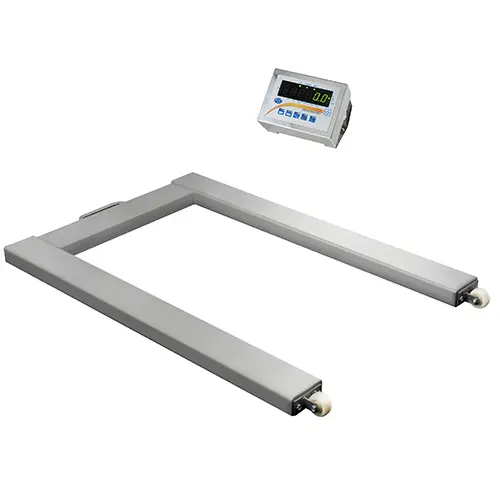

The U-shaped industrial scale will be already calibrated before delivery. The measurements of the U-shaped industrial scale are exactly accordant to serial EU palettes. The U-shape of the platform scale allows quick and easy loading of the scale even by means of forklift scales. The four load cells of the U-shaped industrial scale are IP68 protected and are embedded at the corners of the U-shaped industrial scale. The weighing frame is made of massive stainless steel that is resistant to acids.
The display of the U-shaped industrial scale is IP65 protected and can be mounted either on a wall or placed on a table. There is also an option to extend the U-shaped industrial scale with interfaces, e.g. RS-232, USB, LAN, 4-20 mA etc., although it should be considered that this would affect the IP protection. For more comfortable transport and moving from one location to another, the U-shaped industrial scale also features rollers at its pillars. Functions of the U-shaped industrial scale are automatic tare, unit counter, tare memory, gross / net weighing, percentage calculation, threshold measurement etc.
|*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.|
|Calibration Class||M III (is calibrated before delivery)|
|Unit Counter||Counting by reference values|
|Tare function||Multiple taring for the whole measurement range|
RS-232 / LAN / USB|
Description of interface
(please consider IP code)
|Display||LED with 20 mm digit height|
|Power Source||~230V, 50Hz, 8VA|
|Protection Class||Load Cells IP 68 / Display IP 65|
|Operational temperature||- 10 °C ... + 40 °C|
|Weight||approx. 70 kg|
