  5. Hanging Scales PCE-DDM 20WI-ICA Incl. ISO Calibration
Order no.: PCE-DDM 20WI-ICA

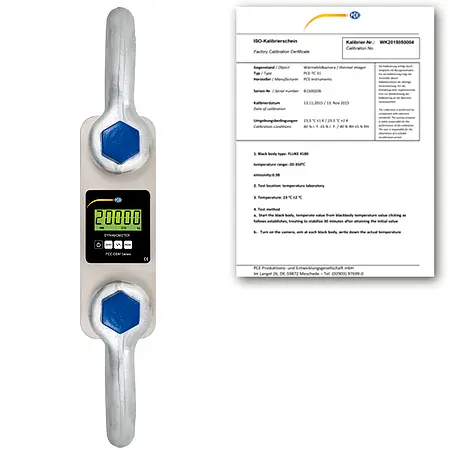

Hanging Scales PCE-DDM 20WI-ICA Incl. ISO Calibration

ISO Calibration
£ 2,470.00
£ 2,964.00
PCE-DDM 20WI-ICA
price ex. (VAT / delivery)
20 t
10 kg
–
Delivery time: 10 - 14 days

Description

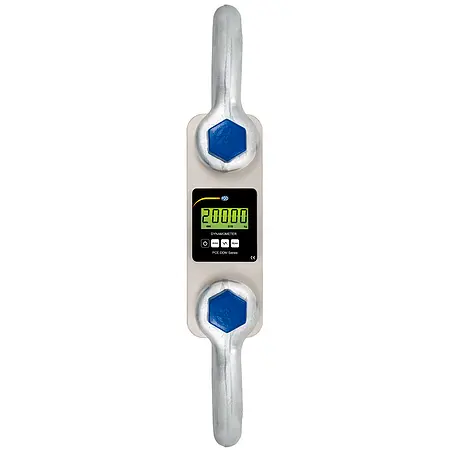

 Hanging Scale
Measurement range up to 20 t / Peak hold function / Includes shackles and protective carrying case

The PCE-DDM 20WI Hanging Scale is the ideal tool for weighing big loads and for measuring strong tensile forces. The PCE-DDM 20WI Hanging Scale is delivered in a protective carrying case and includes two shackles made of heavy-duty steel. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Crane Scale is a compact portable device with a low net weight. Interesting functions of the Hanging Scale are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.


Highlights

- High capacity
- Compact and portable
- Long battery life
- Peak hold function
- Summation function
- Selectable units of measurement: kg / t / lb / N / kN
- Adjustable gravitation range
- Remote control indicator, shackles and carrying case included

Specification
Measuring range 20000 kg / 200 kN / 44092 lbs
Resolution 10 kg / 100 N / 22 lbs
Min. range 200 kg / 440 lbs
Weight (with shackle)
18 kg / 39 lbs
(49 kg / 108 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement       kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
420 mm
16.5 in		 128 mm
5.0 in		 74 mm
2.9 in		 260 mm
10.2 in		 127 mm
5 in		 54 mm
2.1 in		 71 mm
2.8 in		 660 mm
26.0 in		 Steel

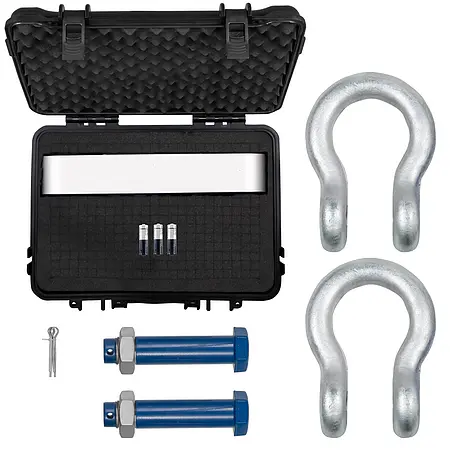

Delivery Scope

1 x PCE-DDM 20WI-ICA Hanging Scale
2 x shackles
1 x carrying case
3 x batteries
1 x user manual
1 x ISO calibration certificate
