Hanging Scales PCE-CS 1000N-ICA

Hanging Scales PCE-CS 1000N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CS 1000N-ICA
GTIN (EAN): 4250348727923
£ 325.00
£ 390.00
price ex. (VAT / delivery)
:
4250348727923
PCE-CS 1000N-ICA
Delivery time:5-7 working days
1 t
1 t
0.2 kg

Description

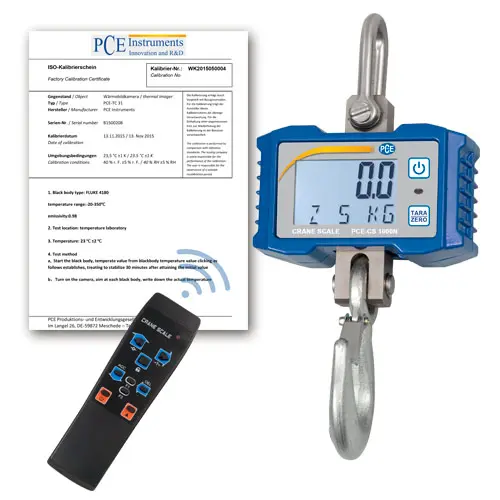

PCE-CS 1000N-ICA Hanging Scales incl. ISO Calibration Certificate
Zero, tare, sum, hold and gross-net weighing functions / Metric, imperial and freely adjustable units / 1000 kg or 2200 lbs ≈ 1 Ton weighing capacity

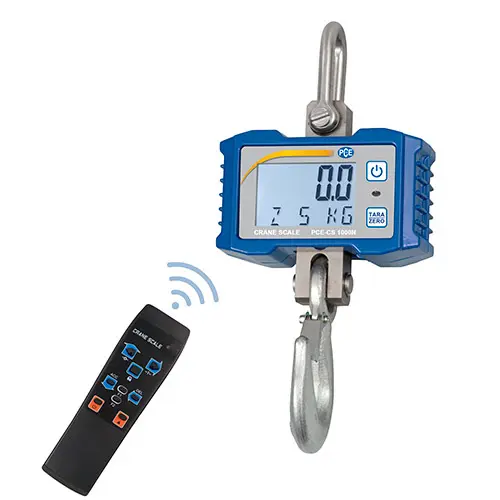

PCE-CS 1000N-ICA are digital, electronic, battery-powered hanging scales that display measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scales include a hook / shackle, remote control and ISO calibration certificate.

The robust aluminum housing of this hanging crane scales allow weighing in even the harshest indoor industrial environments. The hanging scales are operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the hanging scales is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the hanging scales' display can be adjusted to extend the operating time.

Other functions of the hanging scales are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the hanging scales, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the hanging scales feature a linear calibration to ensure high accuracy.


Highlights

- Weighing capacity up to 1000 kg / 2200 lbs ≈ 1 Ton
- Measuring deviation of max. 1% possible
- Zero, sum and hold functions
- Gross/net weighing
- Full scale tare
- Displays measurements in kilograms (kg), pounds (lbs) and freely adjustable
units
- LCD display with large, easy-to-read digits
- Battery operation up to 65 hours
- Compact dimensions
- Linear calibration possible
- Includes hook / shackle and remote control
- incl. ISO-Calibration Certificate

Specification

Weighing range
Measurement range up to [Max]  1000 kg
Resolution [d]  0,2 kg
Accuracy  ±1% of range

General technical data
Measuring functions (additional information)  Totalising function, gross, net, weighing
Display type  LCD with backlight
Digit size [WxH]  Height: 20 mm
Response time  1 s
Operating time  65 h
Minimum load [min]  10 kg
Tare range  Multiple tare over the entire range
Calibration  linear calibration possible
Dimensions  Shackle opening: 20 mm
Hook: H 43 mm x W 21 mm
(Rechargeable) battery  5 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 % RH
Storage conditions  -10 ... 40 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  270 x 130 x 80 mm
Weight  1366 g

Delivery Scope

1 x PCE-CS 1000N-ICA Hanging Scales
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries for scale
1 x user manual
1 x ISO-Calibration Certificate
