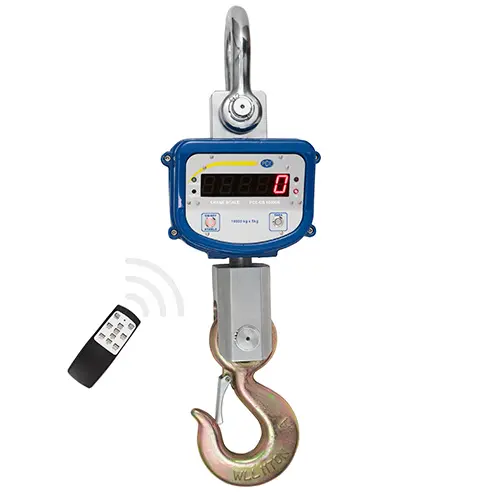

Hanging Scales PCE-CS 10000N

Hanging Scales PCE-CS 10000N [zoom]
Hanging Scales PCE-CS 10000N

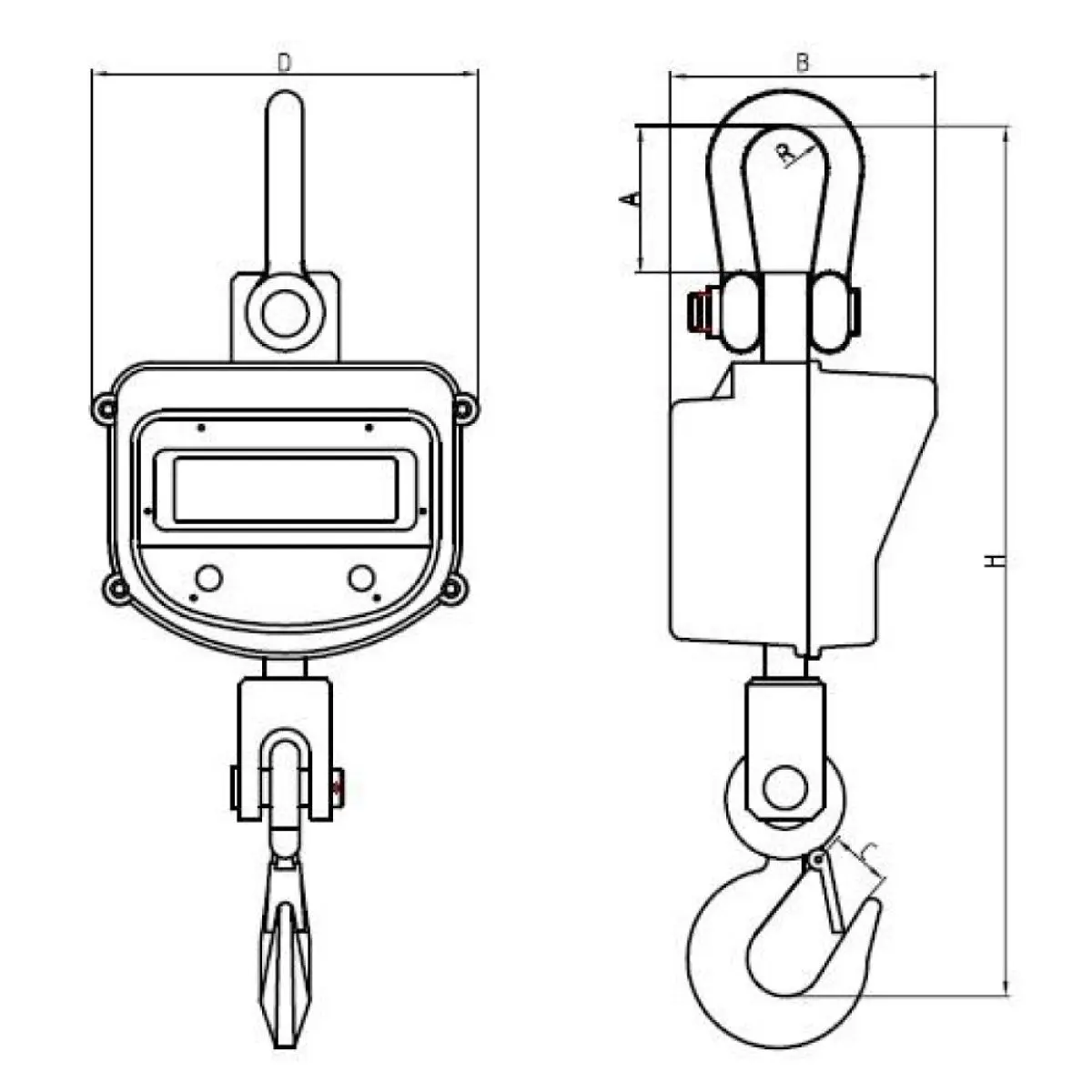

Hanging Scales Technical drawing

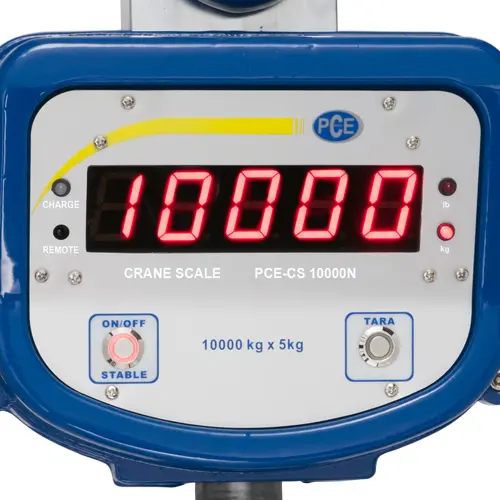

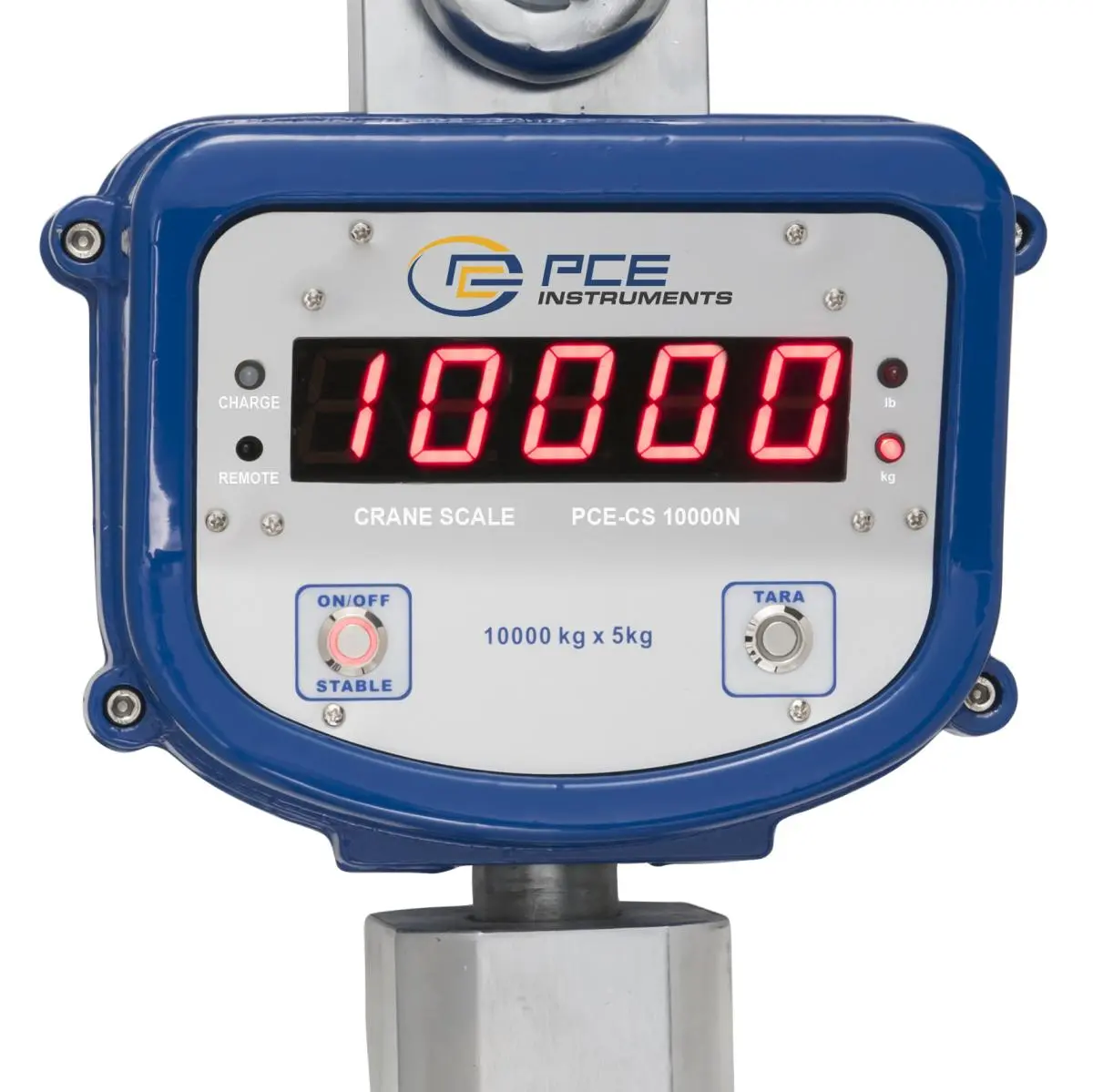

Hanging Scales Display

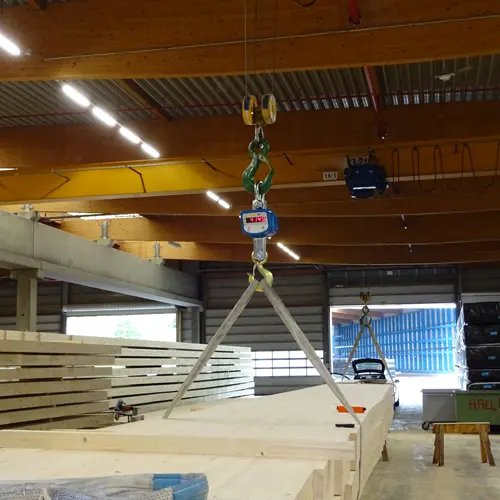

Hanging Scales Application picture

Hanging Scales PCE-CS 10000N

Order no.: PCE-CS 10000N
GTIN (EAN): 4250348714084
£ 1,050.00
£ 1,260.00
price ex. (VAT / delivery)
:
4250348714084
PCE-CS 10000N
Delivery time:1-2 working days
10 t
20 t
5 kg
–

Accessory

Description


PCE-CS 10000N are a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scales, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The scales are delivered factory calibrated and include a hook, shackle and remote control. For an additional fee, the scales can be calibrated according to ISO standards.



Highlights

- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)
- Includes hook, shackle and remote control
- Features zero, tare, hold, sum / accumulation, battery voltage indication and
adjustable brightness
functions

Specification

Weighing range
Measurement range up to [Max]  10000 kg
Resolution [d]  5 kg
Accuracy  15 kg

General technical data
Measuring functions  HOLD
Measuring functions (additional information)  Summing function
Display type  LED
Digit size [WxH]  Height: 30 mm
Operating time  50 h
Overload protection  100 % of the weighing range + 9e
Minimum load [min]  100 kg
Tare range  100 % of the weighing range
Verification class [e]  M III
Settling time  ≤10 s
Max. overload  400 % of weighing range
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Battery: 6V / 7 Ah
Power supply: 9V DC / 1000 mA
(Rechargeable) battery  1 x 6 V internal , Lead gel battery
Capacity  4500 mAh
Operating conditions  -10 ... 40 °C , 0 ... 85 % RH
Storage conditions  -10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  745 x 264 x 206 mm
Weight  30000 g

Delivery Scope

1 x PCE-CS-10000N Hanging Scales with weighing hook, shackle and battery
1 x battery charger
1 x remote control with batteries
1 x user manual
