Order no.: PCE-DMS 200-ICA

Paper Basis Weight Balance PCE-DMS 200-ICA Incl. ISO Calibration Certificate

Question / Callback

Delivery time: 10 - 14 days

Description

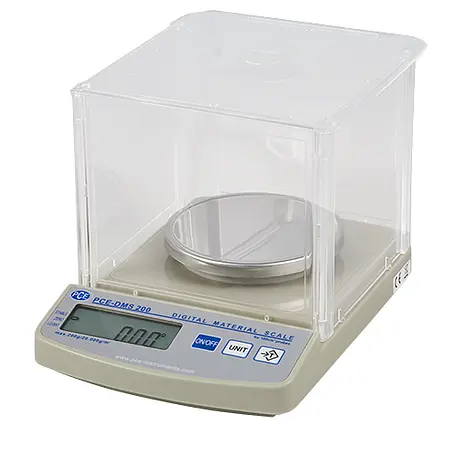

Paper Basis Weight Balance PCE-DMS 200-ICA incl. ISO calibration certificate

10 cm round pan for weighing 11 cm circle cut samples

PCE-DMS 200 is a paper basis weight balance or scale used to accurately determine the GSM basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

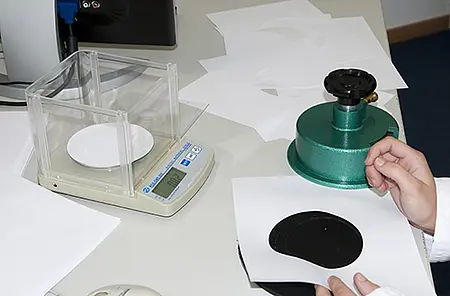

The PCE-DMS 200 paper basis weight scale is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm round circular sample of paper or fabric. The PCE-DMS 200 paper basis weight scale makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)
- Incl. ISO calibration certificate

Specification


Weighing ranges	0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87 oz/yd²
Readability	1 g/m² or 0.01 g
Repeatability	0.02 g
Linearity	± 0.02 g
Stabilization time	3 seconds
Calibration	Automatic function (using external weight - not included)
Display	15 mm (0.6") LCD / backlit
Power supply	230 V / 50 Hz (via 12 V net adaptor) or 6 x AA batteries
Housing	ABS plastic
Wind shield	Plastic / Approx. 145 x 145 x 120 mm (5.7 x 5.7 x 4.7")
Pan size	Round, 10 cm (Approx. 4") diameter
Overall dimensions	Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net weight	Approx. 1 kg (2.3 lb)

Delivery Scope

1 x PCE-DMS 200 paper basis weight balance
1 x Wind screen
1 x Power supply
6 x AA batteries
1 x User manual
1 x ISO calibration certificate

Downloads

Manual

Datasheet

Accessories

GSM Balances

GSM Balance Sample Cutter MPC-3

£ 174.00

Price excl. VAT &. delivery
2 year Warranty

This round sample cutter features four internal blades for quick, easy and clean cutting of paper, leather, cotton, textiles, cork and more by hand.

Maximum sample thickness: 3 mm / 0.12"
Sample cut: 11.3 cm diameter /100 cm² / 15.5 in²
Stainless steel blades housed in cast steel casing

ISO Calibration Certificate for PCE-DMS Series

GSM Balances

ISO Calibration Certificate for PCE-DMS Series

£ 103.00

Price excl. VAT &. delivery
2 year Warranty

ISO calibration certificate for the scales of the PCE-DMS series certifies the accuracy and is often required to comply with DIN ISO 9000.

N.B. calibration certificates are issued especially for the customer and are exempt from the right of return.
