Order no.: PCE-DDM 50

Crane Scale PCE-DDM 50

£ 3,907.00
£ 4,688.40
:
4250348713018
PCE-DDM 50
price ex. (VAT / delivery)
>20 t
20 kg
Delivery time: 1-2 working days

Description

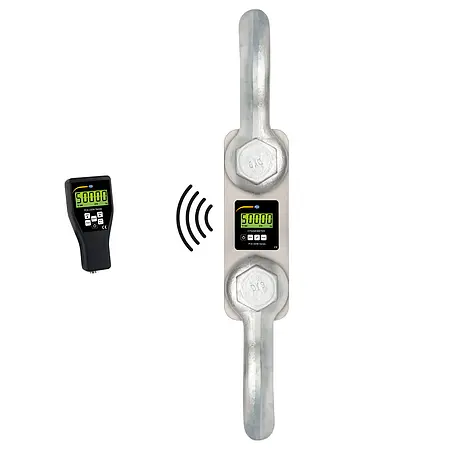

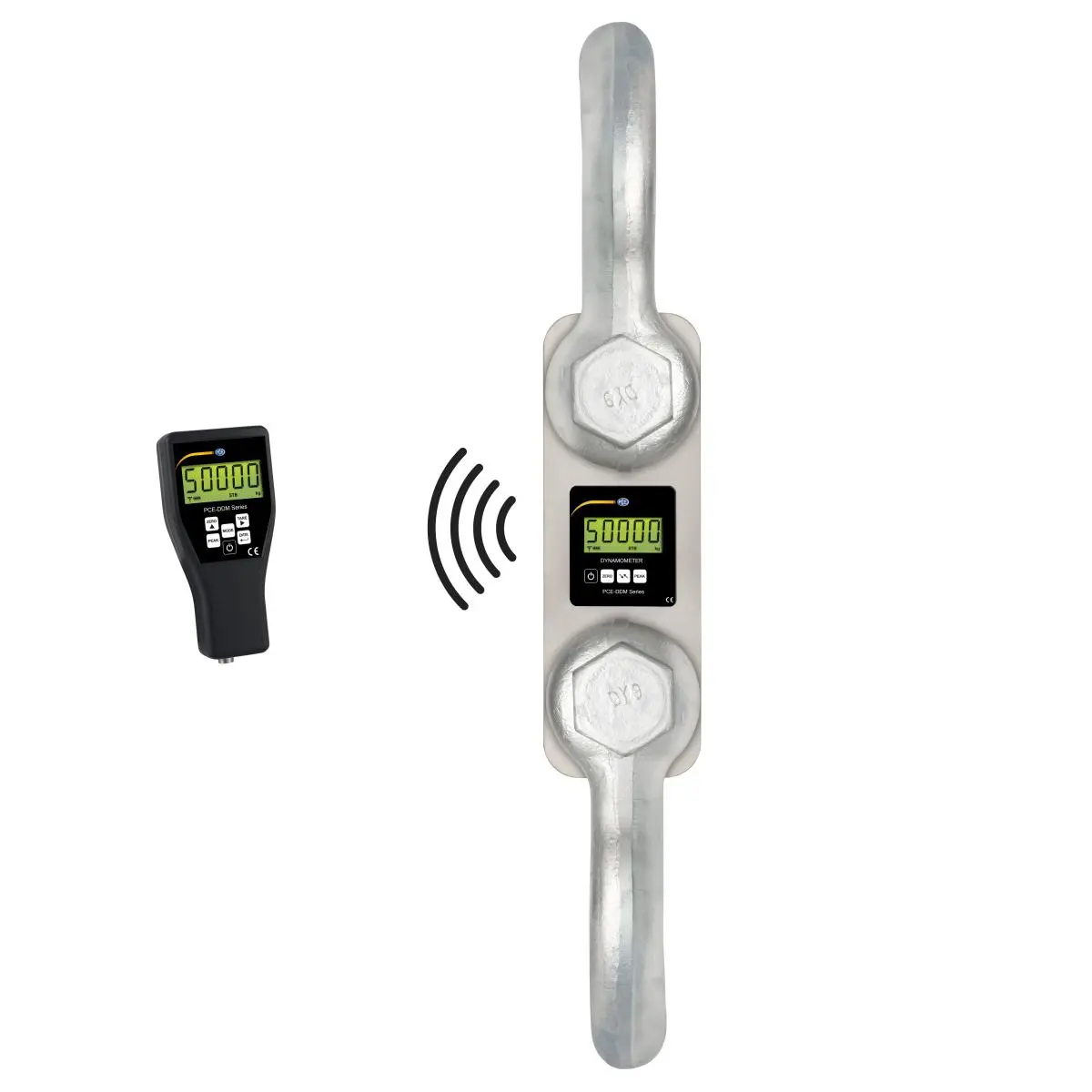

PCE-DDM 50 Crane Scale
Measurement range up to 50 t / Peak hold function / Includes remote control indicator, shackles and protective carrying case

The PCE-DDM 50 Crane Scale is the ideal tool for measuring strong tensile forces. The PCE-DDM 50 Crane Scale is delivered in a protective carrying case and includes two shackles made of heavy-duty steel. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Crane Scale is a compact portable device with a low net weight. Interesting functions of the Crane Scale are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.


Highlights

- High capacity
- Compact and portable
- Long battery life
- Peak hold function
- Summation function
- Selectable units of measurement: kg / t / lb / N / kN
- Adjustable gravitation range
- Remote control indicator, shackles and carrying case included

Specification

Measuring range 50000 kg / 500 kN / 110231 lbs
Resolution 20 kg / 200 N / 44 lbs
Min. range 400 kg / 881 lbs
Weight (with shackle)
39 kg / 86 lbs
(128 kg / 282 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement     kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
465 mm
18.3 in
150 mm
5.9 in
104 mm
4.1 in
305 mm
12 in
184 mm
7.2 in
74 mm
2.9 in
101 mm
4.1 in
930 mm
36.6 in
Steel

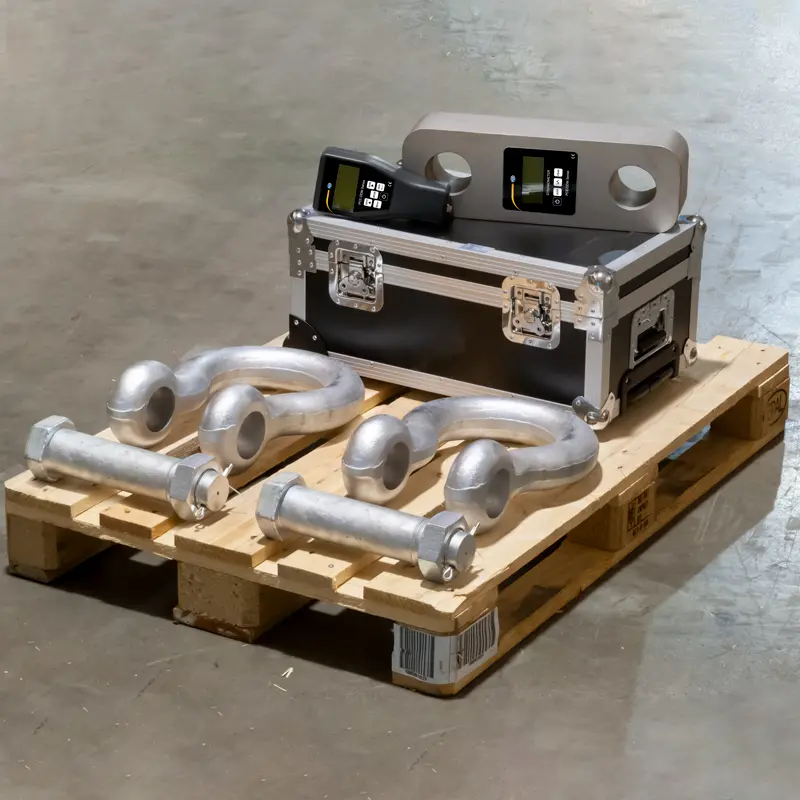

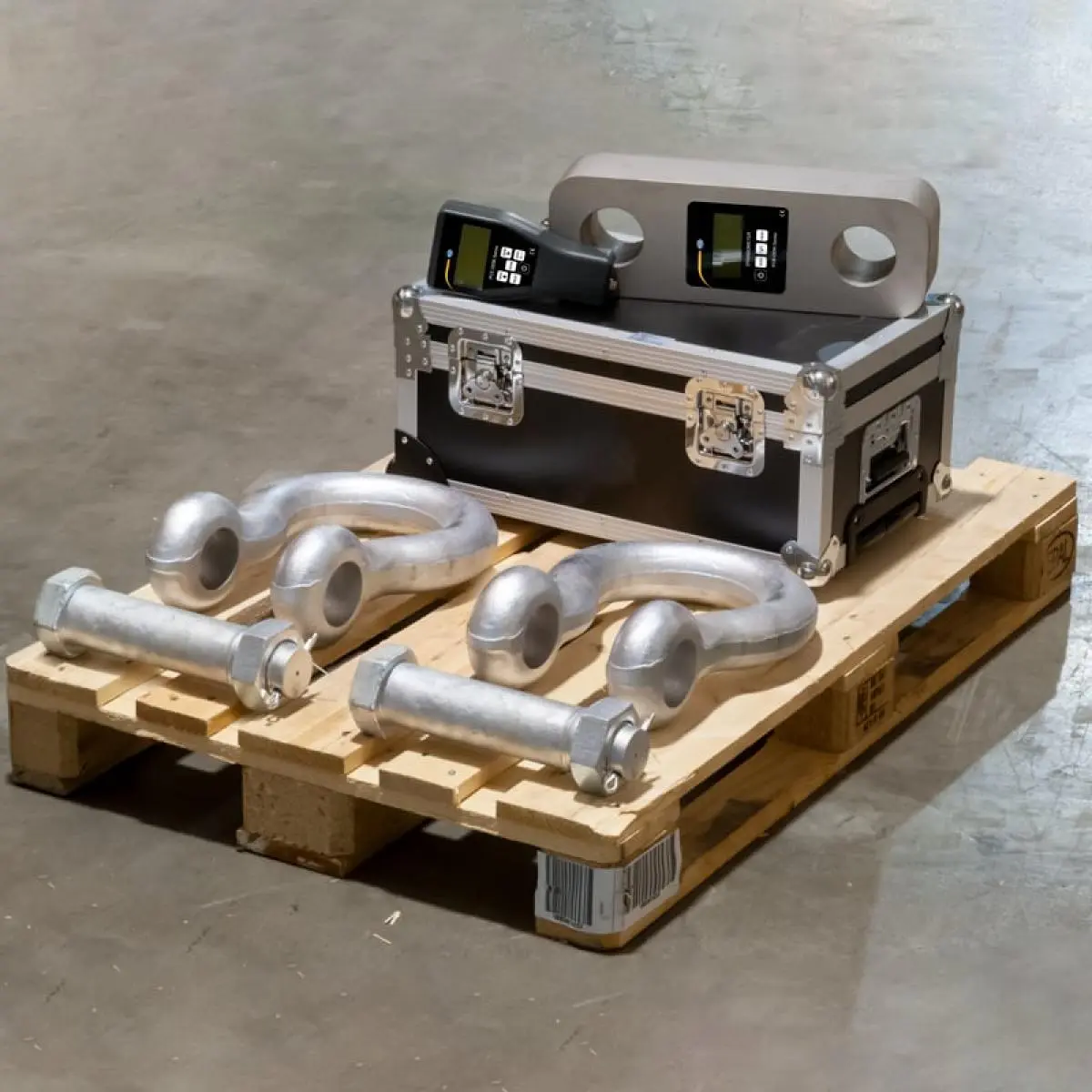

Delivery Scope


1 x PCE-DDM 50 Crane Scale
1 x remote control indicator
2 x shackles
1 x carrying case
7 x AA 1.5 V batteries
1 x user manual
