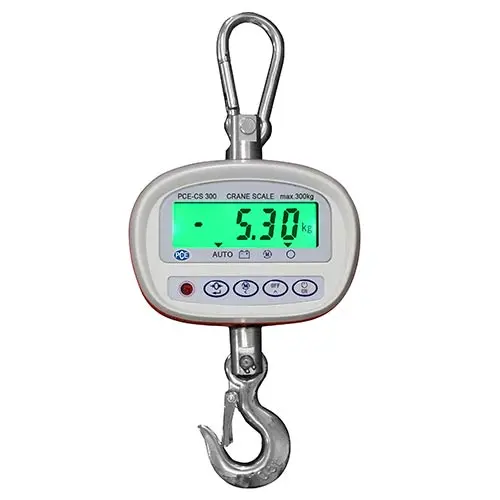

PCE-CS 300 Crane Scale
hanging hook / shackle / remote control
PCE-CS 300 is a digital, battery-powered Crane Scale for indoor use. The rugged design of the Crane Scale accommodates applications in rough industrial conditions as well as in fields such as food and hygiene. A stainless-steel, carabiner-style shackle, a zinc-coated hook, and an infrared remote control are included with the Crane Scale, as are six 1.5 V AA batteries.
| Weighing range | |
| Measurement range up to [Max] | 300 kg |
| Resolution [d] | 0,05 kg |
| Accuracy | 0.015 kg |
| General technical data | |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |
| Automatic power-off | 15 min |
| Overload protection | maximum overload: 150 % |
| Reproducibility | 0.1 kg |
| Minimum load [min] | 2 kg |
| Tare range | over the full range |

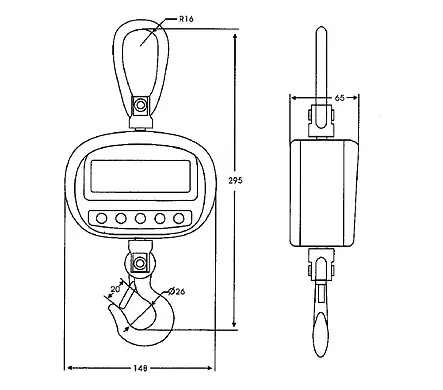

| Dimensions | Shackle opening: 18 mm Hook opening: 16 mm |
| Settling time | <10 s |
| Max. overload | 50 % |
| Protection class (device) | IP54 |
| (Rechargeable) battery | 4 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 40 °C , 30 ... 90 % RH |
| Storage conditions | -10 ... 40 °C , 30 ... 90 % RH |
| Dimensions ( L x W x H ) | 325 x 152 x 67 mm |
| Weight | 1038 g |
