Counting Scale PCE-SD 300C

Order no.: PCE-SD 300C

Verification for Trade / conformity assessment

Question / Callback

Delivery time: up to 10 working days

Calibratable counting scale / platform 400 x 500 mm or 500 x 600 mm / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional

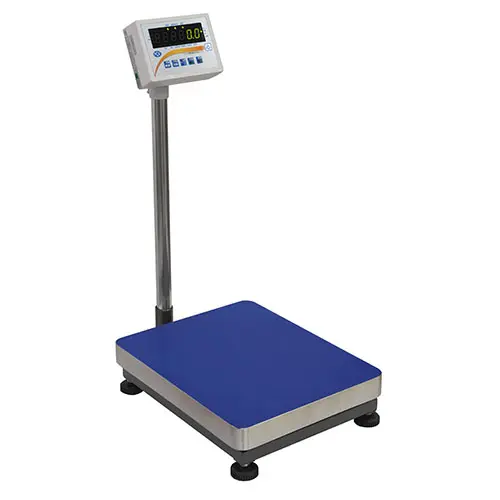

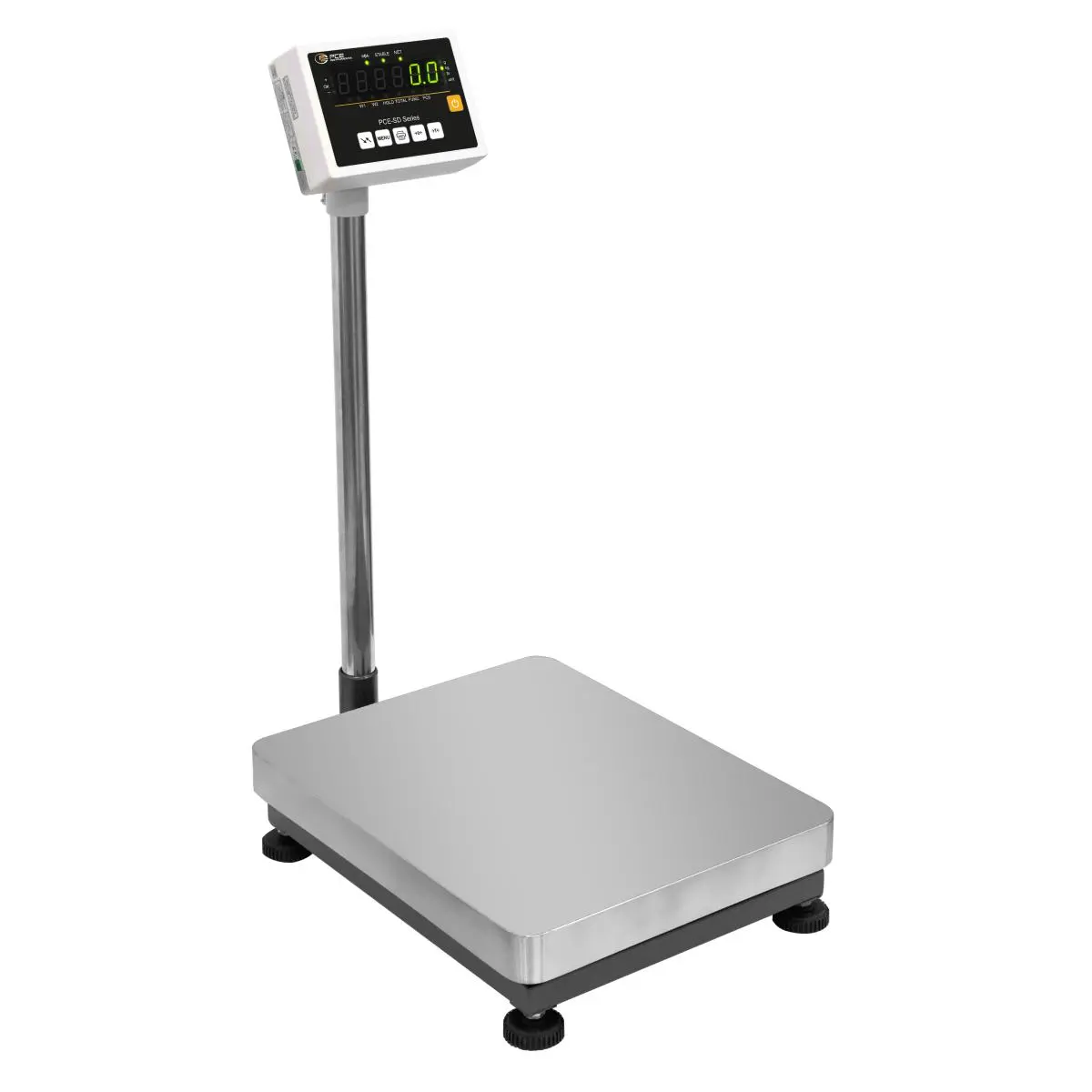

The calibratable counting scale is a solid calibratable platform scale that is reasonably priced. The calibration of the counting scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable counting scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable counting scale also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the counting scale is placed on a stand mounted within a reachable height and fixed to the platform scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable counting scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable counting scale are: e.g. analogue output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing

- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Edition	Measurement range	Accuracy	Calibration value	minimal load*	platform size
PCE-SD 30C	30 kg	10 g	10 g	200 g	400 x 500 mm
PCE-SD 60C	60 kg	20 g	20 g	400 g	400 x 500 mm
PCE-SD 150C	150 kg	50 g	50 g	1 kg	400 x 500 mm
PCE-SD 300C	300 kg	100 g	100 g	2 kg	400 x 500 mm
PCE-SD 33C	30 kg	10 g	10 g	200 g	500 x 600 mm
PCE-SD 63C	60 kg	20 g	20 g	400 g	500 x 600 mm
PCE-SD 153C	150 kg	50 g	50 g	1 kg	500 x 600 mm
PCE-SD 303C	300 kg	100 g	100 g	2 kg	500 x 600 mm

* the minimal load is defined here as the load above which the calibration authorities test their accuracy. The calibratable scale shows even lower weights, but these are not allowed to be used for custody transfer.

Calibration Class

M III (is delivered calibrated)

Unit Counter

through counting by reference value

Tare function

Multiple tare function for whole measurement range

Interface

RS-232 bi-directional
Description of interface
RS-485, LAN and USB optional

Display

LED with 20 mm digit height

Power Supply

12 V / 1.4 A incl. adapter

IP Code

IP 54

Operational temperature

- 10 °C ... + 40 °C

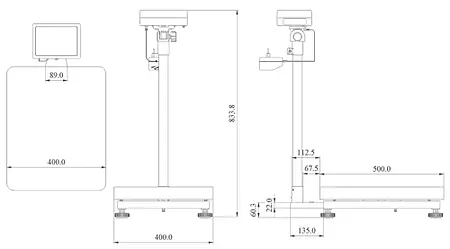

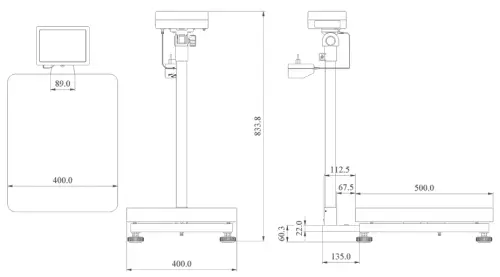

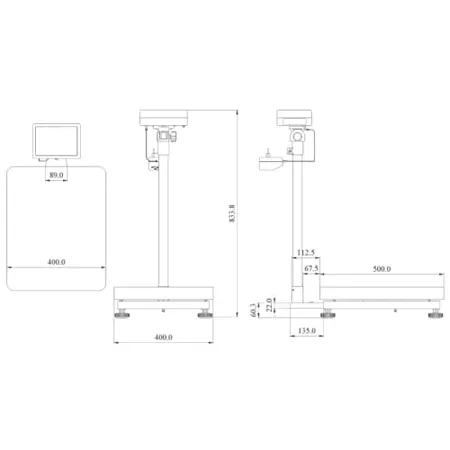

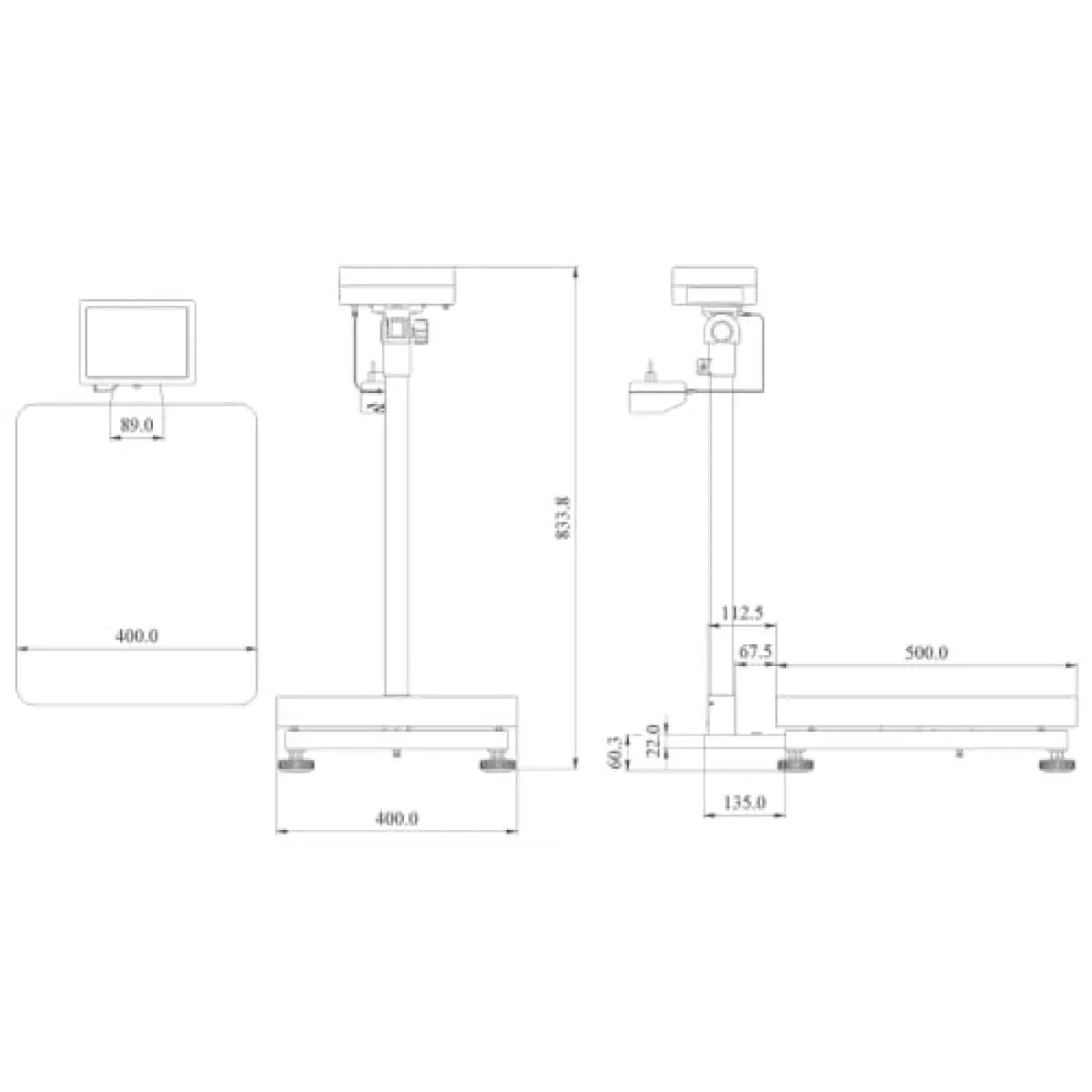

Diameters

400 x 620 x 850 - 870 mm

Weight

approx. 12 kg

1 x calibratable counting scale PCE-SD 300C incl. calibration, adapter and instruction manual

Datasheet

Accessories

Order no.: PCE-SOFT-SC-Pro

Scale Software PCE-SOFT-SC-Pro

The multilingual scale software offers the possibility of transferring the weighing data of the various PCE scales to the PC. Depending on the software license, the values of several scales can be recorded simultaneously.

- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function

Pro = PC scale software / 1 license for simultaneous use of multiple scales
