Approved - calibrated counting scales up to 6,000 kg / Resolution from 0.1 kg
/
Bidirectional RS-232 interface / Tare weight storable / Piece counting function
/
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, etc.

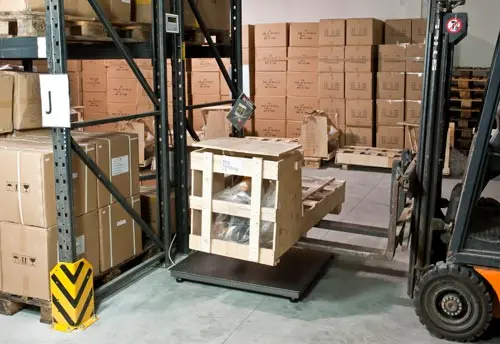

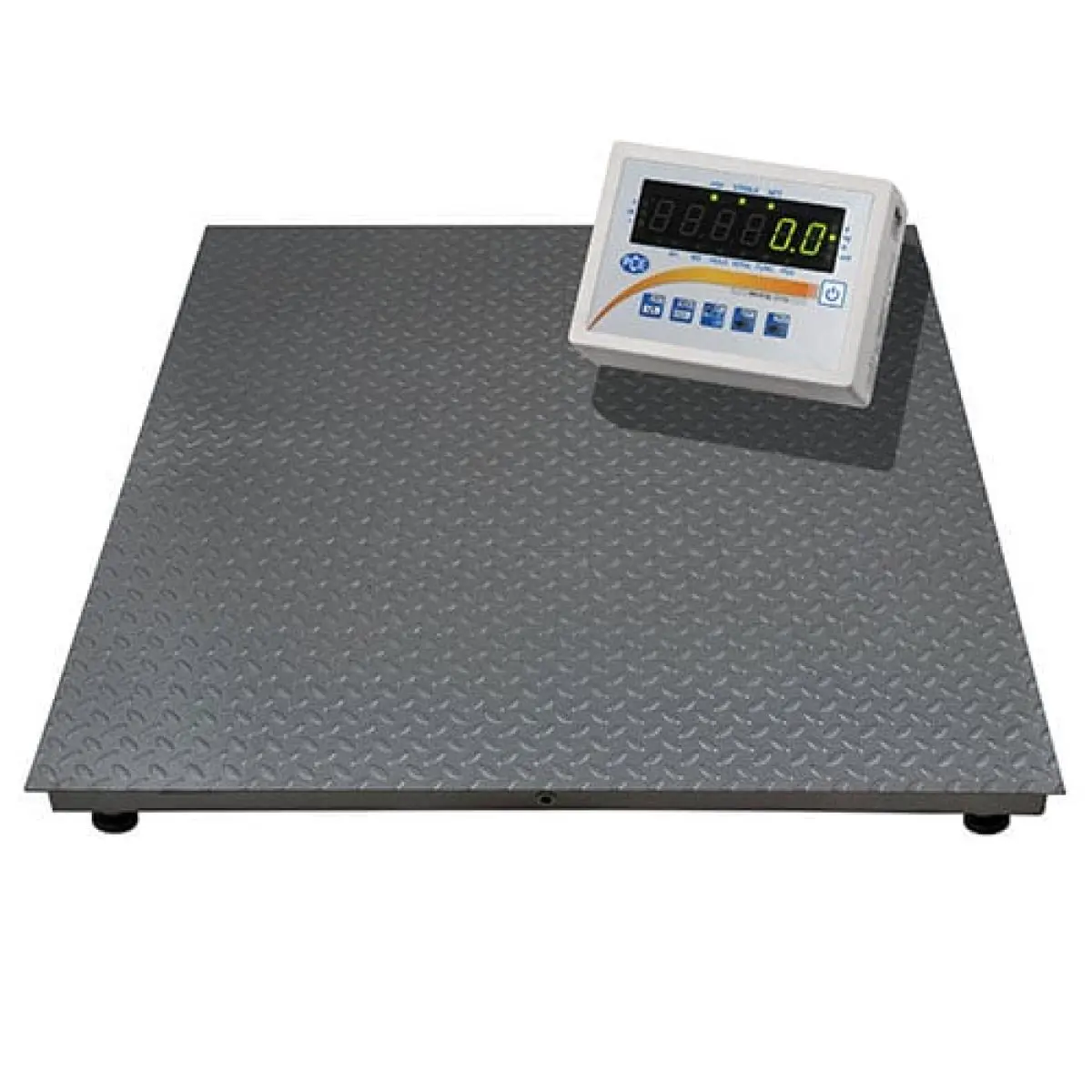

The counting scale is supplied calibrated and is intended for stationary use with its solid
construction. Due to the robust design and the large platform, this calibrated weighing platform is
particularly suitable for weighing large objects. The verifiable / calibrated floor scale is made of painted steel and available in different platform sizes depending on the weighing capacity.
As an option, ramp-on ramps are available for the legal-for-trade / calibrated floor scales, allowing for driving on or passing through.
The display unit can be placed on a table or fixed to the wall, optionally a stainless steel tripod can be ordered.
The integrated RS-232 interface allows bi-directional data transport from the calibratable / calibrated floor scale to the PC and provides programmers with a versatile system integration.
With an optional adapter, the weighing data can also be stored on a USB stick.
Further system integration is possible with the optionally available 4-20 mA analogue output or the limit value function with OC switching contacts.
Direct printer connection is also possible via the RS-232 interface. Functions such as auto-tare, piece counting function, the storage of a fixed tare weight makes the workload a great deal easier.
