The calibratable Compact Scales / Compact Balances is a solid, calibratable Compact Scales / Compact Balances that is reasonably priced. The calibration of the Compact Scales / Compact Balances is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable Compact Scales / Compact Balances is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable Compact Scales / Compact Balances also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the Compact Scales / Compact Balances is placed on a stand mounted within a reachable height and fixed to the Compact Scales / Compact Balances. In order to assure an ideal readability of the display at all times, the display can be alternated in its angle. Functions that the calibratable Compact Scales / Compact Balances features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable Compact Scales / Compact Balances are: e.g. analogue output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.
| Weighing range | |
| Measurement range up to [Max] | 150 kg |
| Resolution [d] | 50 g |
| Accuracy | 50 g |
| Verification value [e] | 50 g |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function |
| Units | kg, g, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | H: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Repeatability | 10 g |
| Minimum load [min] | 1 kg |
| Tare range | Multiple tare over the full measurement range |

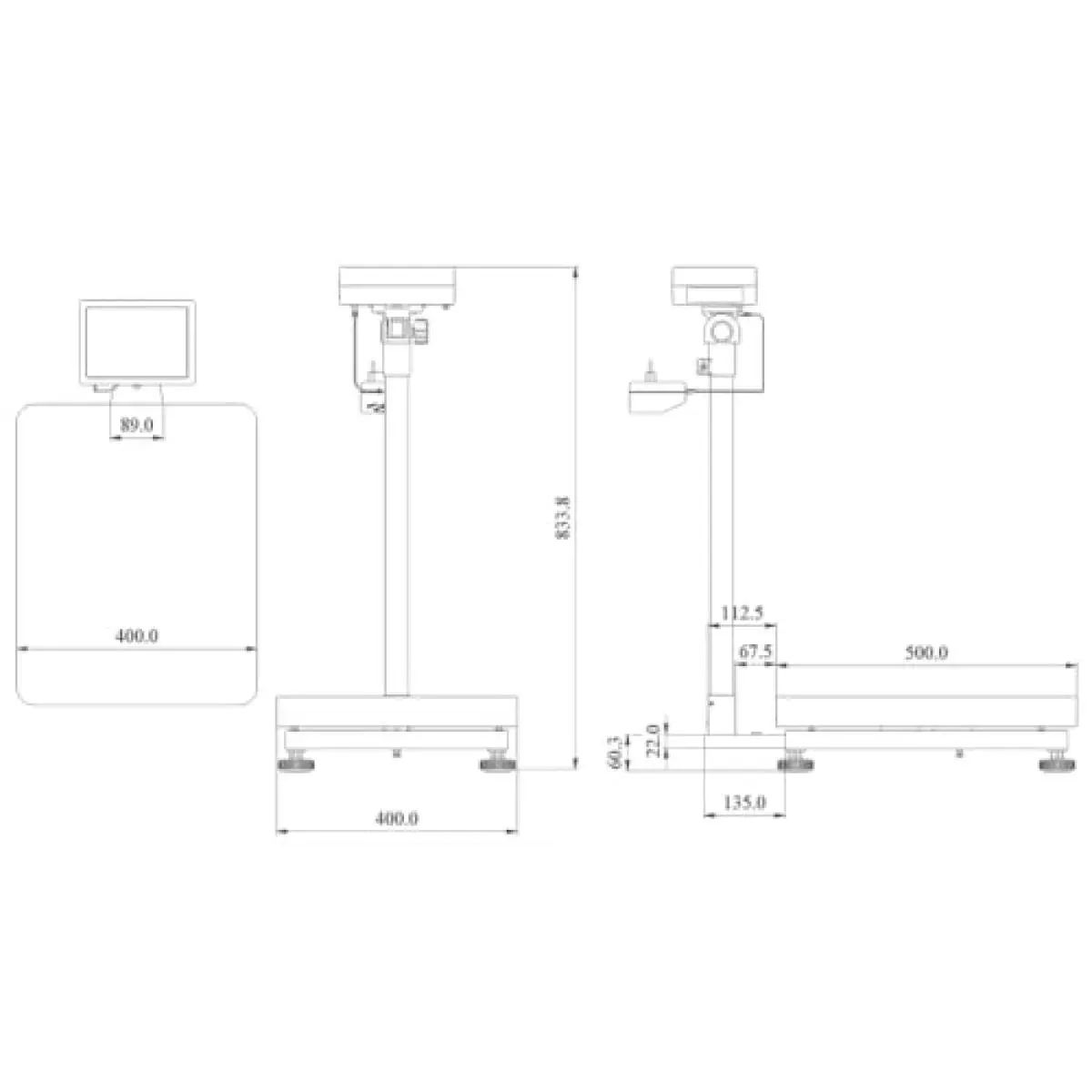

| Dimensions | Display 190 x 140 x 65 mm Platform 500 x 600 x 150 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Linearity | 20 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP54, IP65 |
| Power supply | 230V AC | 50 Hz 6V A / 12V DC 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 730 x 510 x 870 mm |
| Weight | 25000 g |
