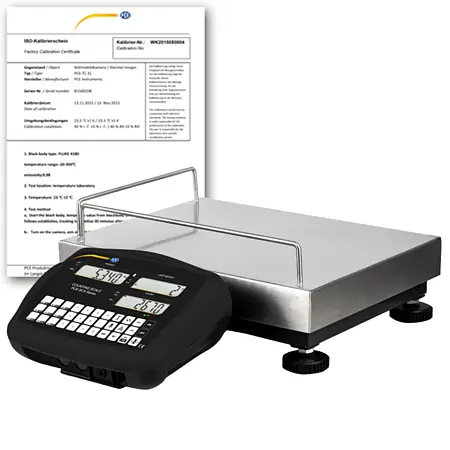

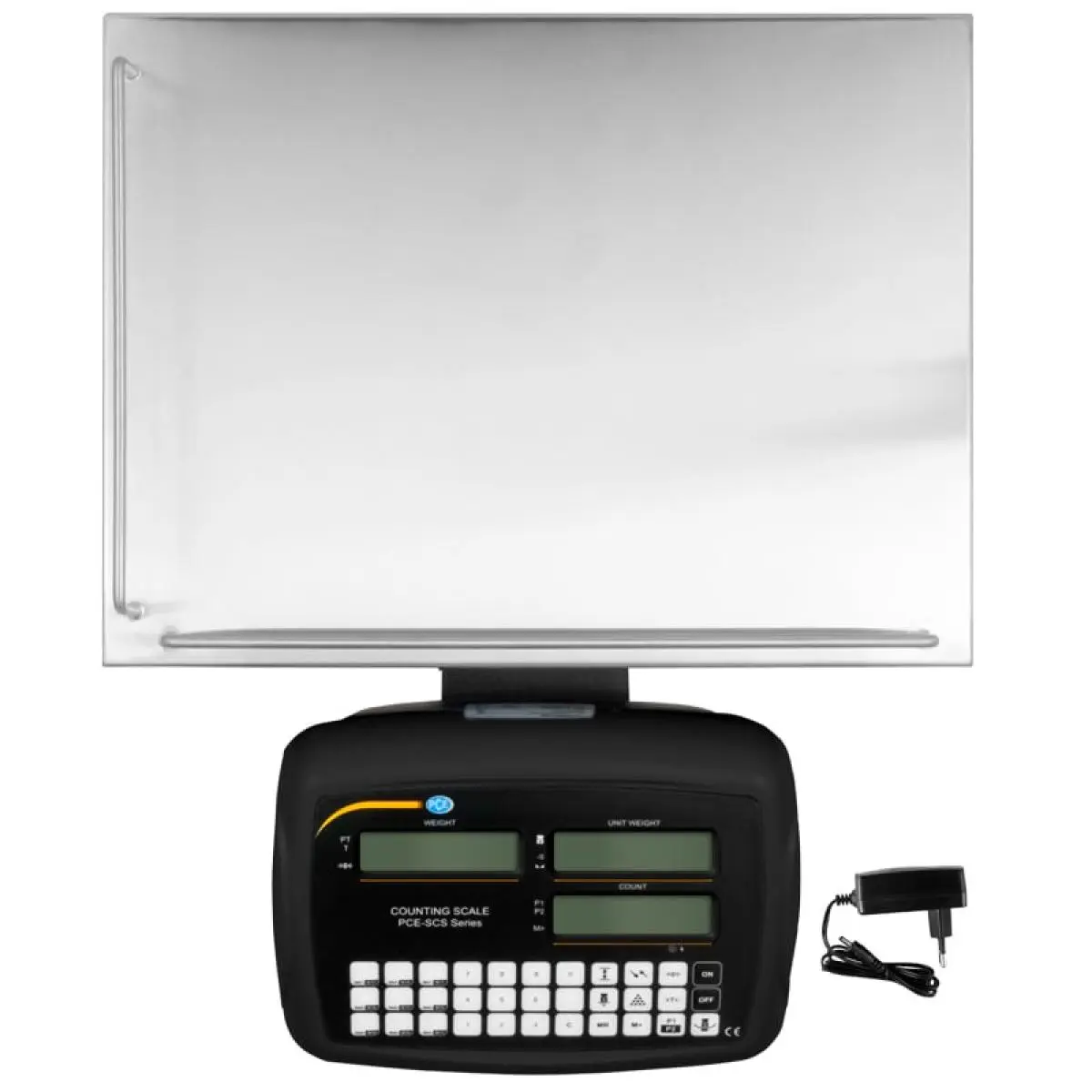

The Compact Scales / Compact Balances have a 300 x 400 mm stainless steel platform that can be removed for cleaning. Flexible use of the mobile Compact Scales / Compact Balances is made possible not only by the light weight and compact dimensions, but also by the independent power supply, which is possible with the 6V4Ah rechargeable battery.

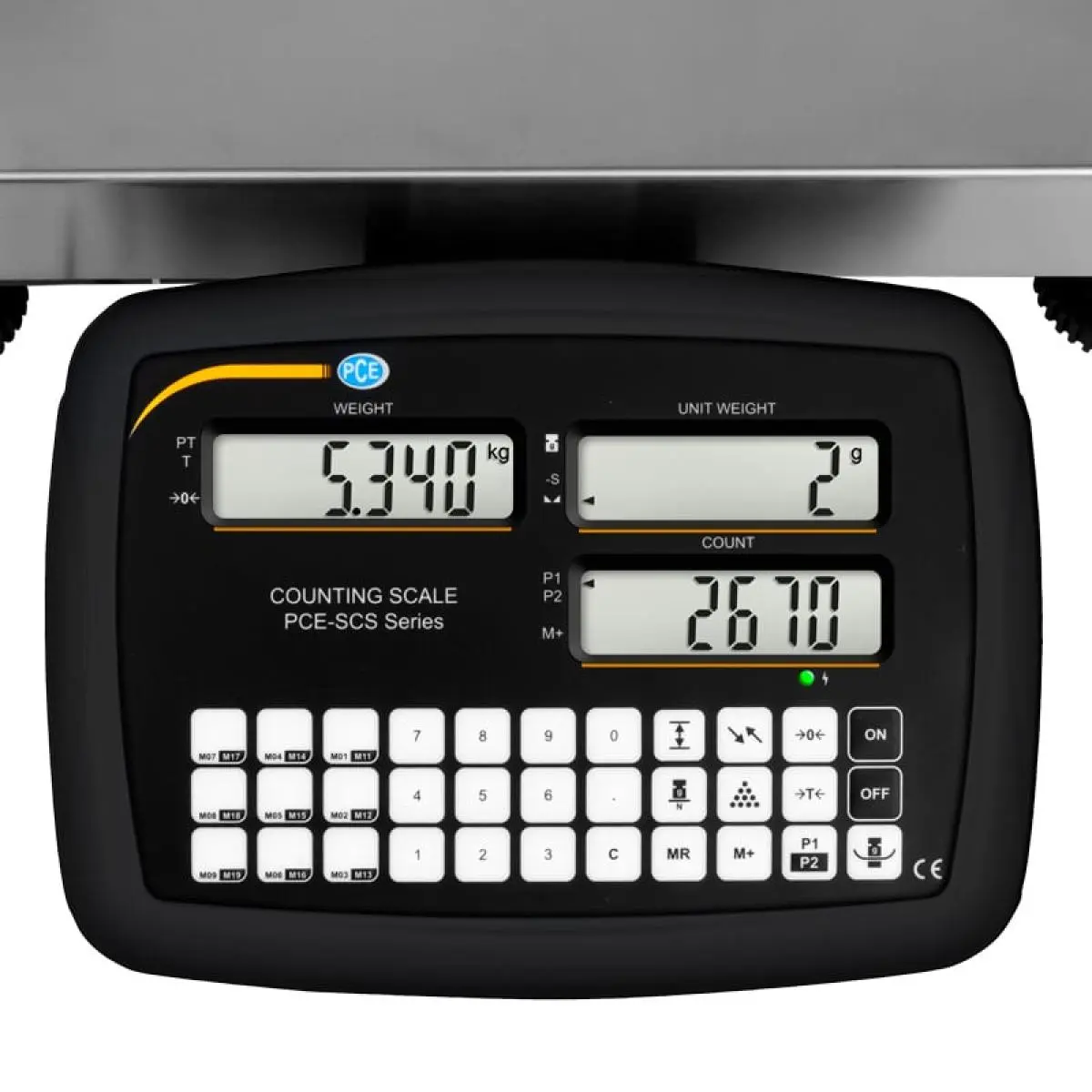

If the 4 load cells of the Compact Scales / Compact Balances with a weighing capacity of 30 kg and a resolution of only 2 g require an adjustment, this can be done quickly and easily using external weights (optional) in the calibration function of the Compact Scales / Compact Balances. Thanks to the key operation, the fast response time of the Compact Scales / Compact Balances and the easy-to-read 20 mm LCD display, this Compact Scales / Compact Balances is ideally suited for mobile and fast weighing applications.
| Weighing range | |
| Measurement range up to [Max] | 30 kg |
| Resolution [d] | 2 g |
| Accuracy | 6 g |
| General technical data | |
| Inputs | 0.6 mV/V, 3 mV/V |
| Units | kg, lb |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |
| Measuring rate | 30 x per second |
| Storage capacity | 18 Values |
| Interface | RS232 |
| Operating time | 130 h |
| Housing | Plastic |
| Tare range | over the full range |
| Weighing plate dimensions | 300 x 400 mm |
| Weighing plate material | Stainless steel |
| Calibration | With external adjustment weight (optional) |
| Settling time | Adjustable |
| Linearity | 0.01 % of range. |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery: 6V, 4 Ah 100 ... 240V | 50 / 60 Hz |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 6 V internal , Lead gel battery |
| Capacity | 4000 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 80 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 80 (non-condensing)% RH |
| Dimensions ( L x W x H ) | 480 x 560 x 150 mm |
| Weight | 8000 g |
