The compact balance stands out due to its multifunctional range of application. But not only the large range of functions of the compact balance is outstanding, the communication options of the compact balance are interesting as well. The compact balance features a bi-directional RS-232 interface and USB interface. Thus the compact balance provides a very good foundation for every programmer (description of interface in instruction manual). The compact balance sends the information via keypress automatically to a computer either every time the weighing value is stable, continuously (approx. 10 values per second) or on demand. Another option to integrate the compact balance into a system would be the optionally purchasable interfaces, e.g. LAN-, analogue output 4 ... 20 mA or 0 ... 10 V as well as the weightlimit function with three potential-free contacts.
Interesting functions of the compact balance are item-counting, percentage - calculation, formulation weighing, animal weighing, statistical weighing, summation function, threshold function, various weighing functions etc. The compact balance can operate by battery as well as via adapter, and is also applicable for mobile weighing tasks. Via the optional ProCell software you can import the weighing data of the compact balance into any system, where the data can be fed-in by keypress, such as Excel, Word, DHL, SAP etc. since the software simulates a manual data feed-in.
| Weighing range | |
| Measuring range from | 0 kg |
| Measurement range up to [Max] | 1,5 kg |
| Resolution [d] | 0,05 g |
| Accuracy | ±0.2 g |
| General technical data | |
| Measuring functions | MIN, MAX |
| Measuring functions (additional information) | Piece counting function, percentage % comparison weighing, statistics function, totalisation function, animal weighing function |
| Units | kg, g, lb, oz, ct, ozt, gr, dwt, mg |
| Display type | LCD with backlight |
| Digit size [WxH] | Height 30 mm |
| Interface | USB, RS232C |
| Automatic power-off | 5 min |
| Repeatability | 0,1 g |
| Tare range | over the full weighing range |
| Weighing plate dimensions | B 300 x T 210 mm |
| Calibration | external |
| Settling time | < 3 s |
| Linearity | 0.15 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| Power supply | 230V AC | 50 Hz, 6 VA 12V DC 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 15 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 15 ... 85 % RH |

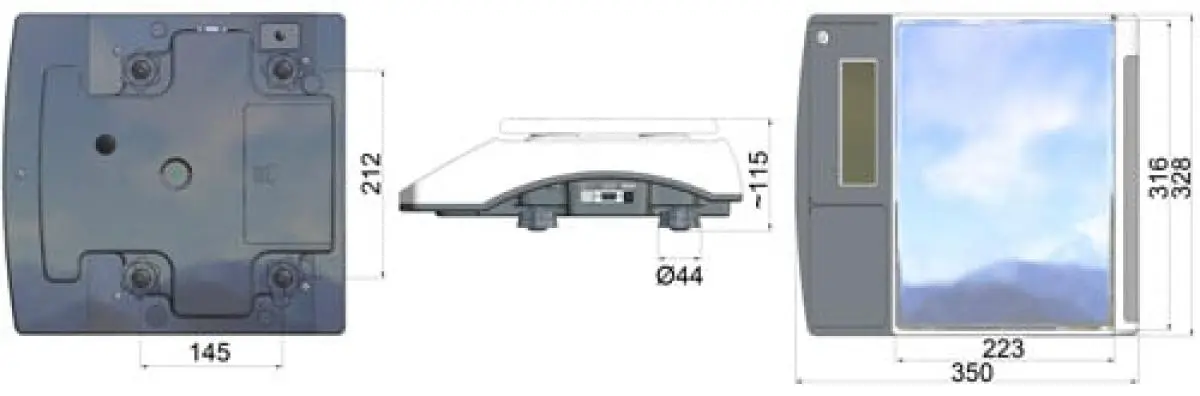

| Dimensions ( L x W x H ) | 350 x 328 x 115 mm |
| Weight | 3500 g |
