Compact Scales / Compact Balances PCE-BT 200-ICA

Compact Balance PCE-BT 200-ICA incl. ISO Calibration Certificate

Order no.: PCE-BT 200-ICA
GTIN (EAN): 4250348728685
£ 598.00
£ 717.60
price ex. (VAT / delivery)
:
4250348728685
PCE-BT 200-ICA
Delivery time:5-7 working days

Description

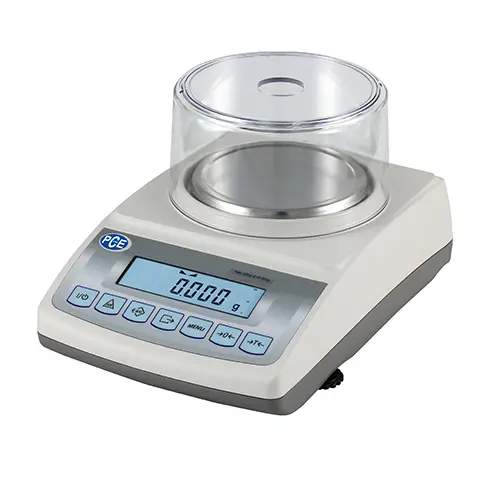

Affordable Compact Balance PCE-BT 200-ICA incl. ISO Calibration Certificate
It can be calibrated with  (210 g), weighing units can also be selected, with piece counting function

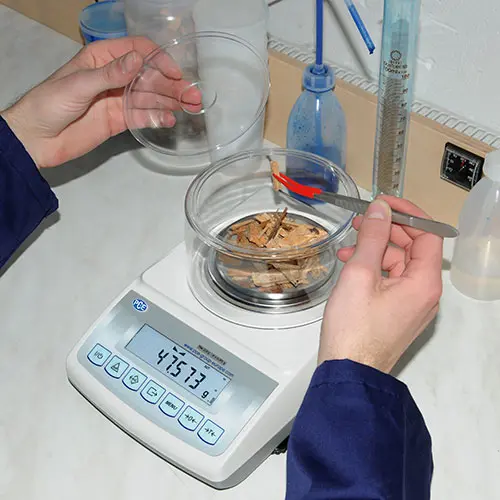

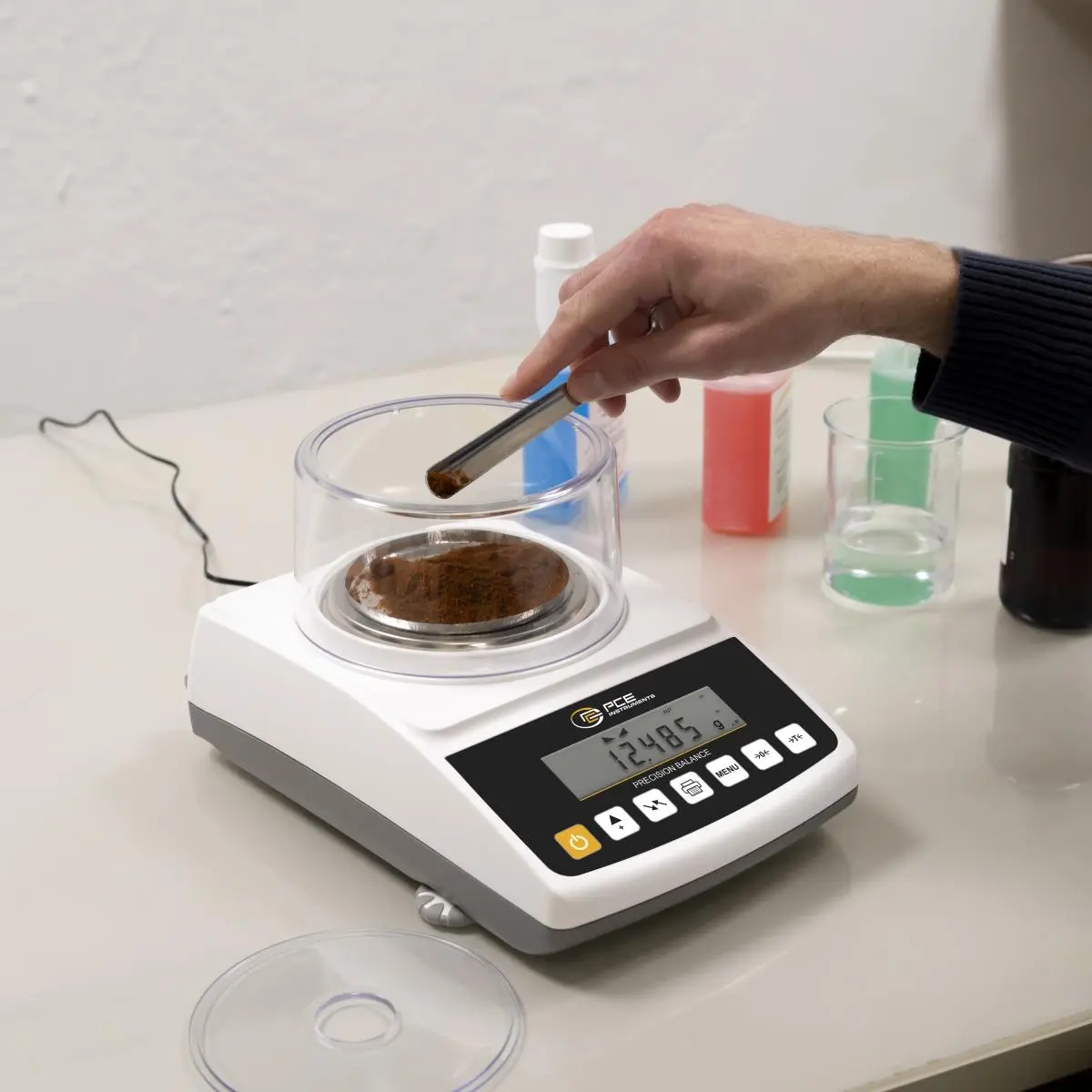

Compact balance to be used in Laboratories, production, quality controls, etc. Some important aspects of the compact balance are both its design consisting on a flat surface and also it is very easy to use. It small size together with its high resolution in wider weighing ranges are other advantages of the compact balance. This balance has different functions: automatic tarring, piece counting function, selection of different weighing units function, previous tarring discount, etc.. The compact balance is powered by 230 V (processor is included) however it is also possible to be powered by standard batteries to place the balance whenever.

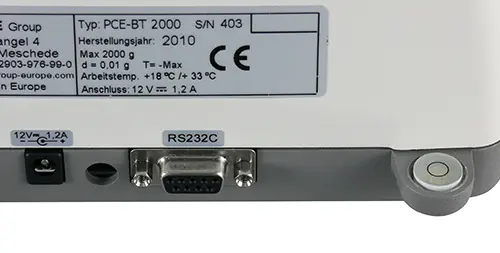

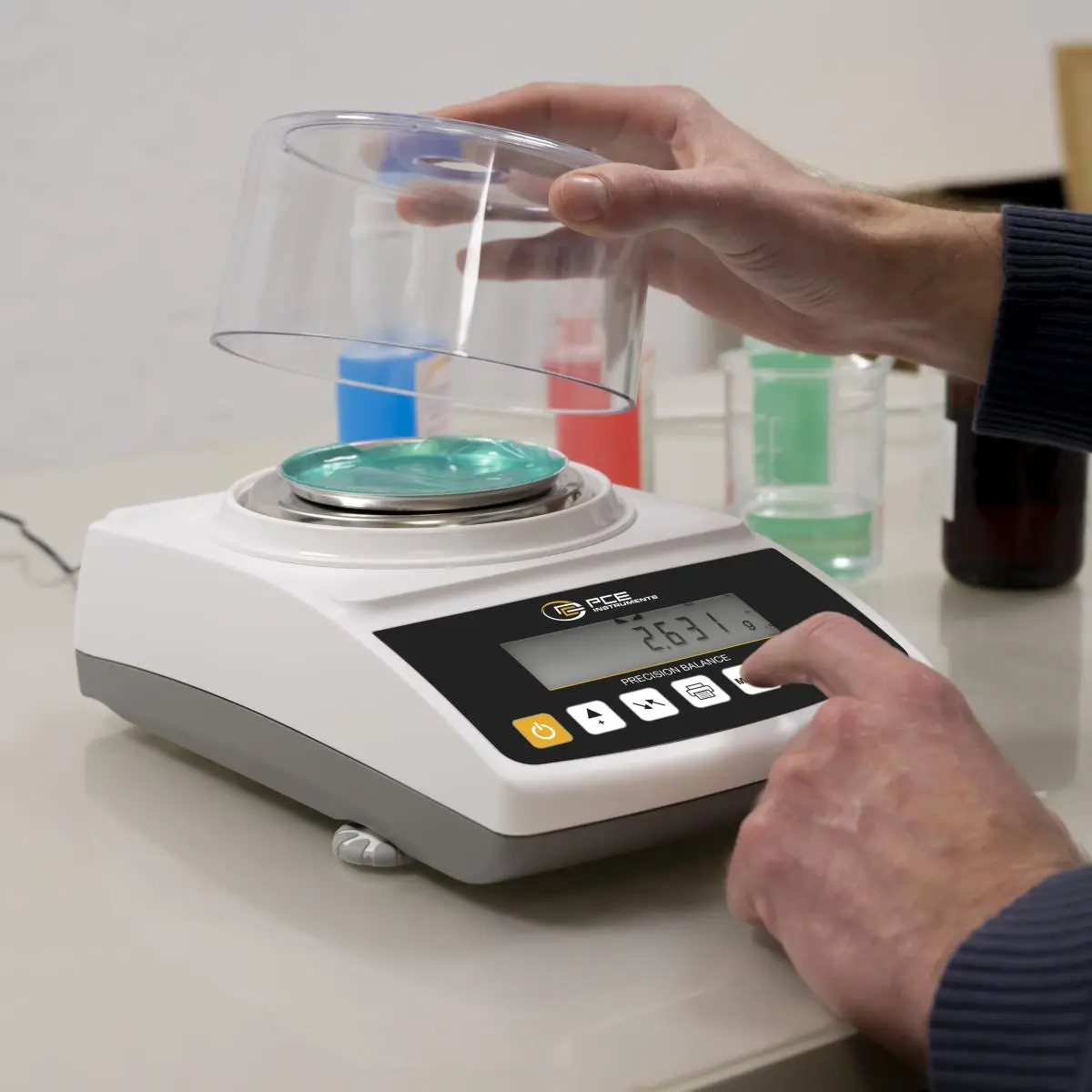

For levelling, the entire range of the compact balance comes with adjusting feet to fix them as well as a water level integrated in the case. It is included in the delivery a plastic protection against wind together with the compact balance. With the adjusting weights which can be ordered optionally you can check and adjust your compact balance. The port allows the compact balance to be connected to a printer or to a computer


Highlights

- Adjustment program: to adjust accuracy be means of the optional control
weights.
- Piece counting function with reference to choose between 10, 20, 50 or 100
pieces,
- Tarring function in the middle of the range (it can be used several times)

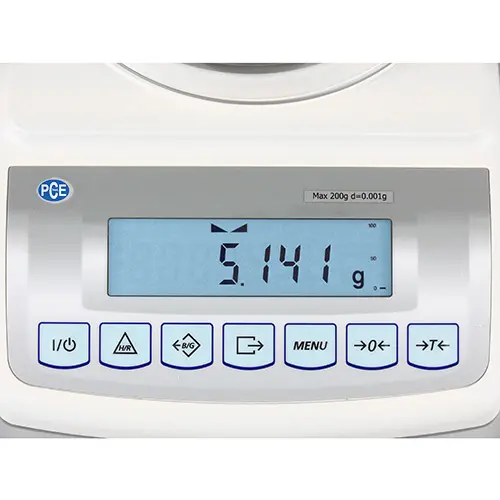

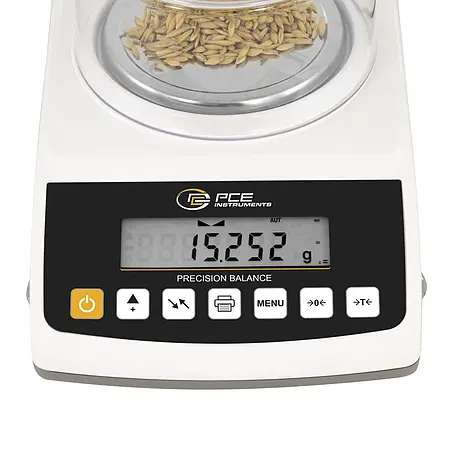

- Automatic display lighting (if the compact scale is firm, a stability
indicator
appears on display and the light is intensified.
- Different weighing units can be selected through the keypad (g, kg, lb, oz)
- Dust and water splash protection IP 54.
- Series mains adapter 230 V de in the shipping.

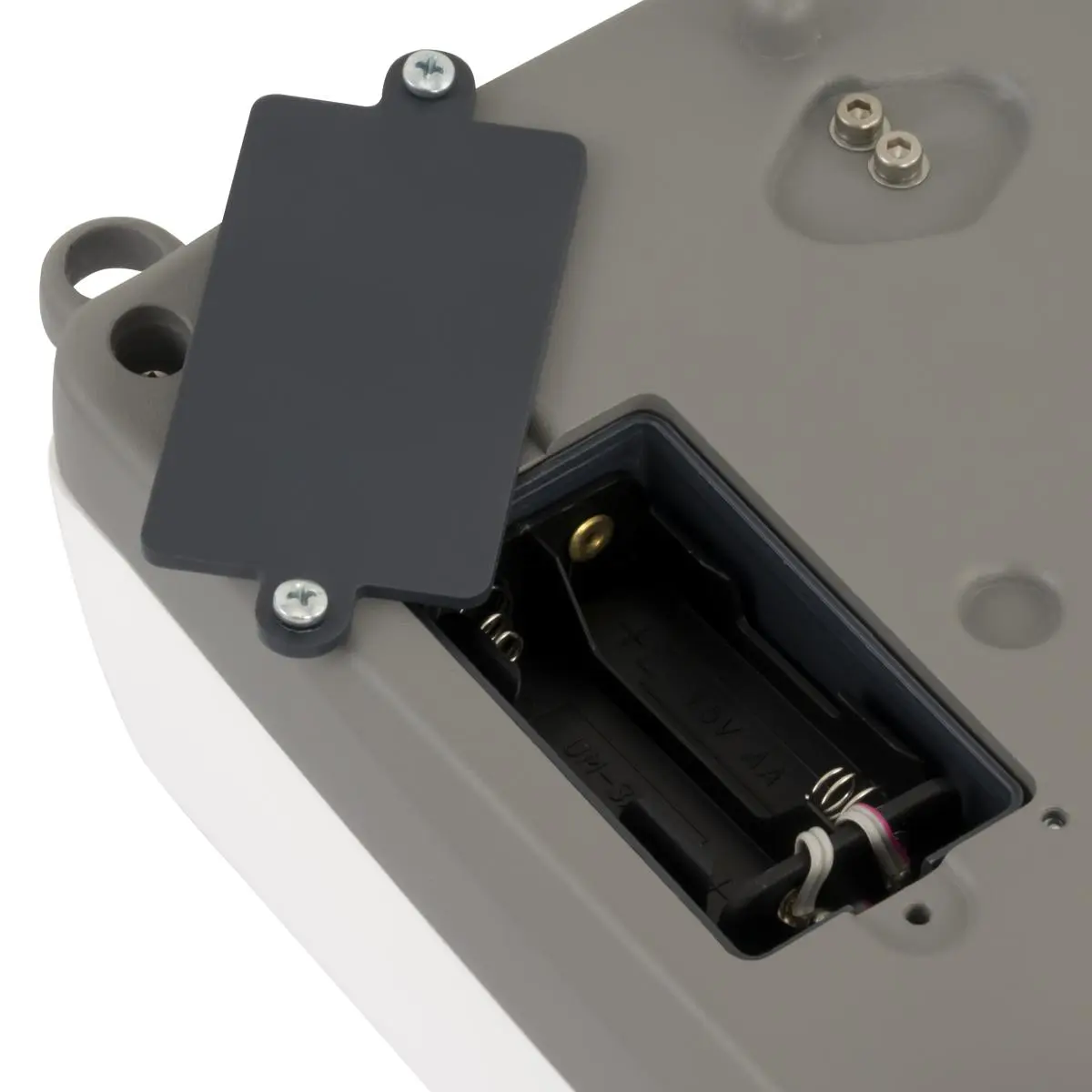

- Possibility of being battery powered.
- Battery indicator
- Removable stainless steel weighing pan (on a plastic support)
- Optional ISO Certificate for Compact Scale (i.e. to meet with DIN ISO 9000
standard)

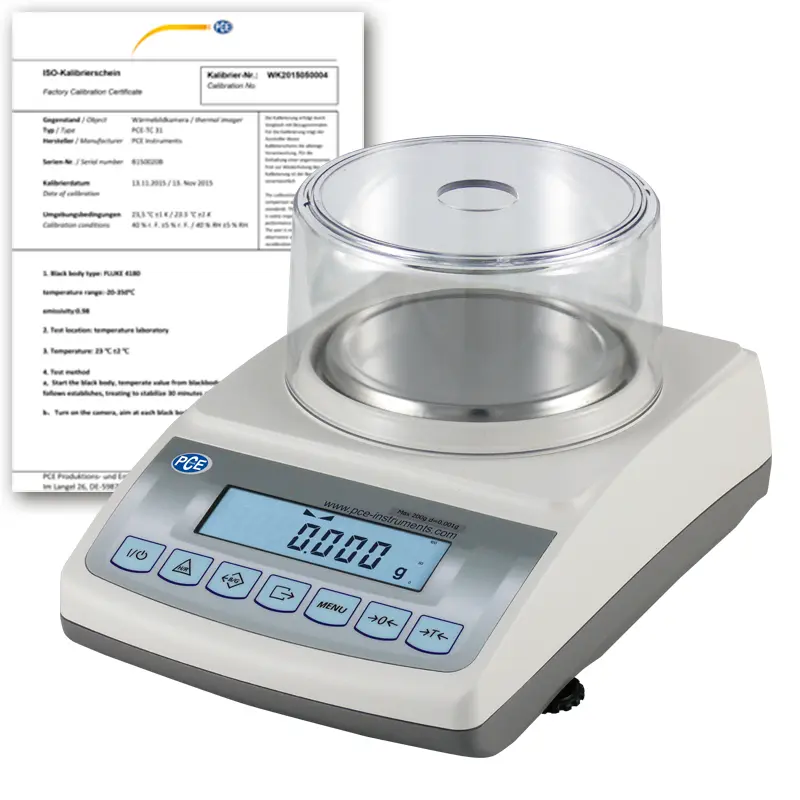

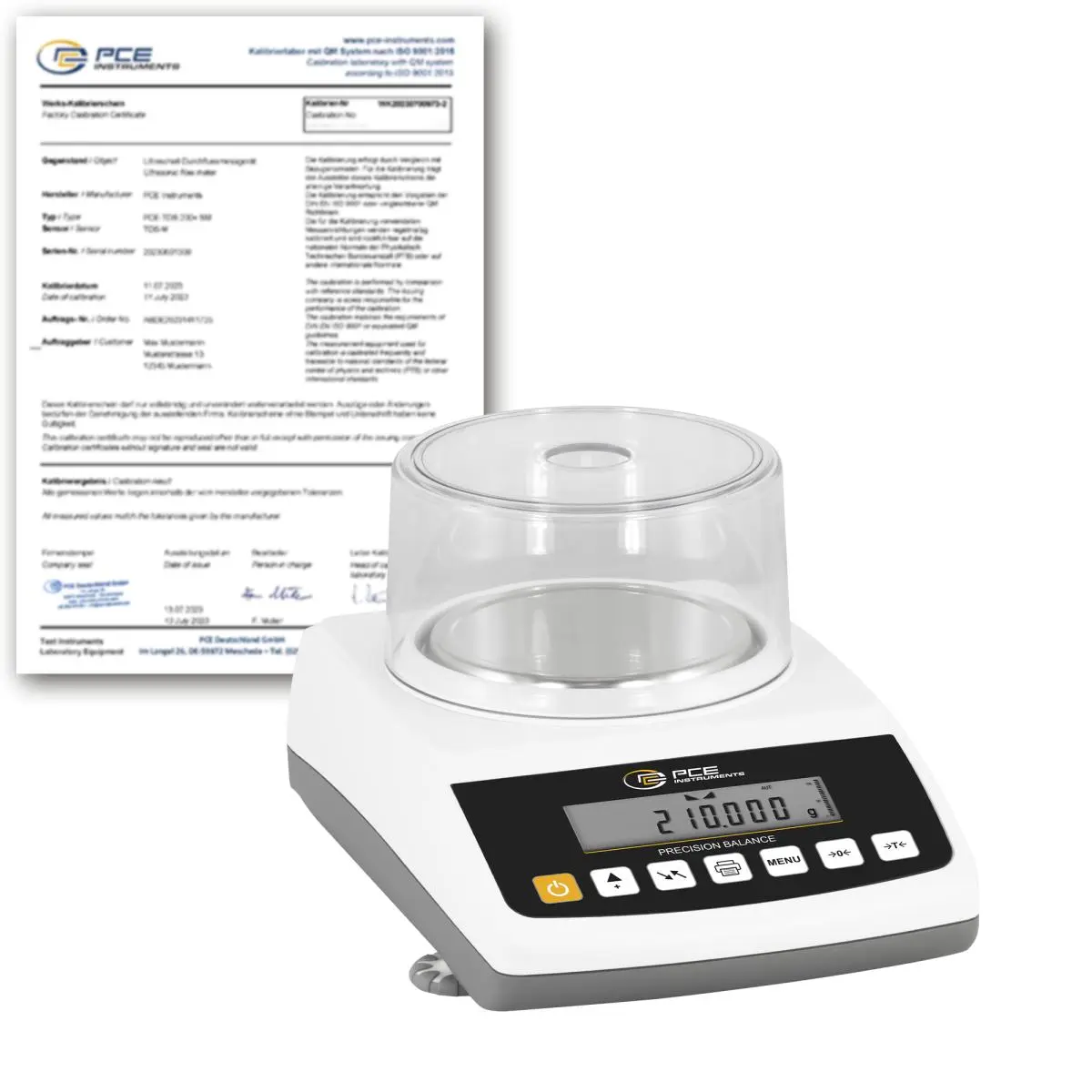

- incl. ISO-Calibration Certificate

Specification

Weighing range
Measurement range up to [Max]  210 g
Resolution [d]  0,001 g
Accuracy  0.003 g

General technical data

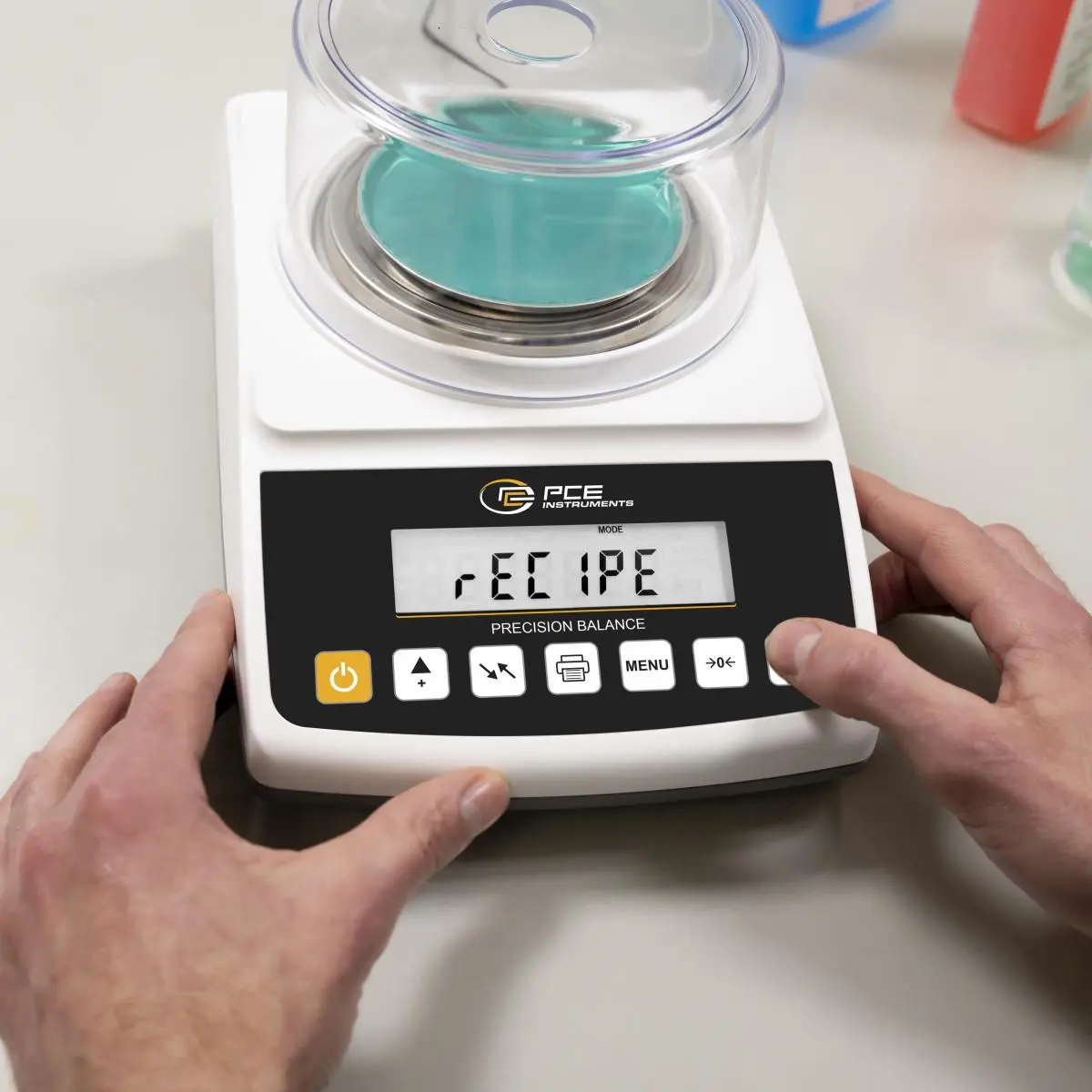

Measuring functions (additional information)  Piece counting function, recipe weighing, percentage weighing
Units  kg, g, mg, lb, oz, ct, ozt, gr, dwt
Display type  LCD with backlight

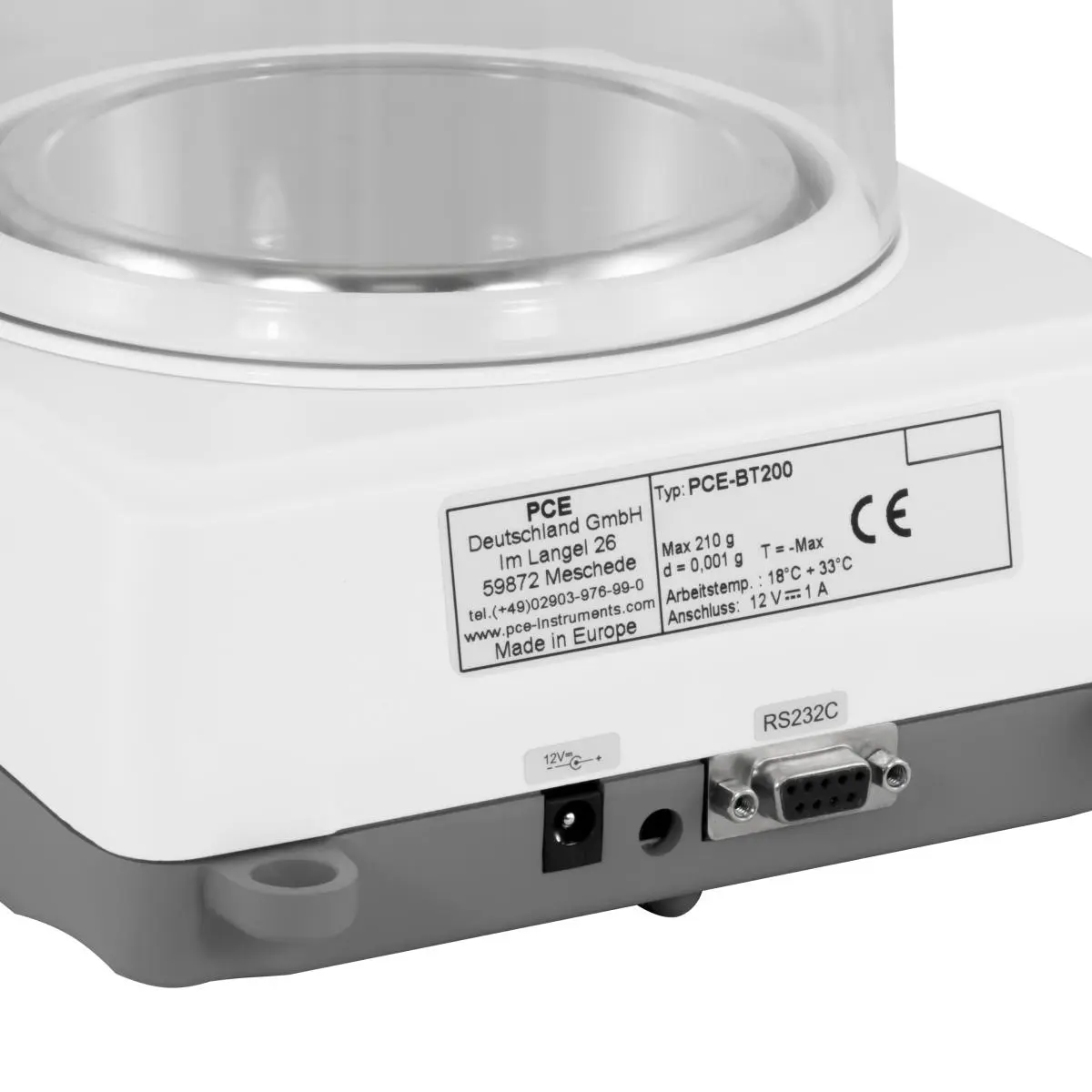

Interface  RS232
Automatic power-off  5 min
Housing  Plastic
Repeatability  0.003 g
Minimum load [min]  0,004 g
Tare range  over the full range
Calibration  50% of the weighing range due to external calibration weight
Dimensions  Weighing plate: Ø 115 mm
Settling time  < 3 s
Linearity  ±0.003 g
Menu language  English, English (GB)
Protection class (device)  IP54
Power supply  230V AC | 50 Hz 6 VA
12V DC / 1.2 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V Button cell , lithium
Capacity  220 mAh
Operating conditions  18 ... 33 °C , 40 ... 80 % RH
Storage conditions  -10 ... 50 °C , 40 ... 80 % RH
Dimensions ( L x W x H )  185 x 290 x 90 mm
Weight  1300 g

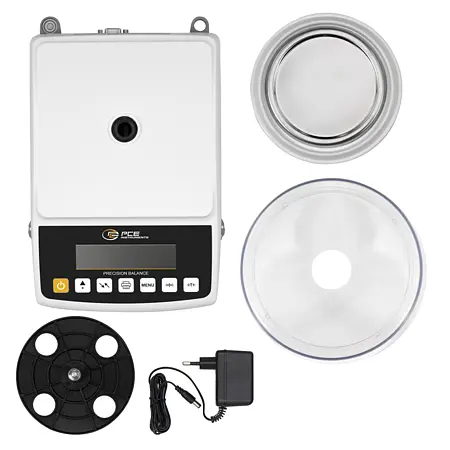

Delivery Scope

1 x Compact Scales / Compact Balances PCE-BT 200-ICA
1 x weighing plate
1 x mains component
1 x protection against wind
1 x user's manual.
1 x ISO-Calibration Certificate
