Reasonably priced Checkweighing Scale up to 30 kg / accuracy down to 0.05 g / operation by battery possible / bi-directional RS232 interface / platform size 300 x 210 mm / optionally purchasable: LAN, 4-20 mA, 0-10 V or 3 potential-free contacts
The checkweighing scale stands out due to its multifunctional range of application. But not only the large range of functions of the checkweighing scale is outstanding, the communication options of the checkweighing scale are interesting as well. The checkweighingscale features a bi-directional RS-232 interface and USB interface. Thus the checkweighing scale provides a very good foundation for every programmer (description of interface in instruction manual). The checkweighing scale sends the information via keypress automatically to a computer either every time the weighing value is stable, continuously (approx. 10 values per second) or on demand. Another option to integrate the checkweighing scale into a system would be the optionally purchasable interfaces, e.g. LAN-, analogue output 4 ... 20 mA or 0 ... 10 V as well as the weightlimit function with three potential-free contacts.
Interesting
functions of the checkweighing scale are item-counting, percentage -
calculation, formulation weighing, animal weighing, statistical
weighing, summation function, threshold function, various weighing
functions etc. The checkweighing scale can operate by battery as well as via
adapter, and is also applicable for mobile weighing tasks. Via the
optional ProCell software you can import the weighing data of the checkweighing scale into any system, where the data can be fed-in by
keypress, such as Excel, Word, DHL, SAP etc. since the software
simulates a manual data feed-in.
| Weighing range | |
| Measurement range up to [Max] | 1,5 kg |
| Resolution [d] | 0,05 g |
| Accuracy | ±0.2 g |
| General technical data | |
| Measuring functions | MIN, MAX |
| Measuring functions (additional information) | Piece counting function, percentage % comparison weighing, statistics function, totalisation function, animal weighing function |
| Units | kg, g, lb, oz, ct, ozt, gr, dwt, mg |
| Display type | LCD with backlight |
| Digit size [WxH] | Height 30 mm |
| Interface | USB, RS232C |
| Automatic power-off | 5 min |
| Repeatability | 0,1 g |
| Tare range | over the full weighing range |
| Weighing plate dimensions | B 300 x T 210 mm |
| Calibration | external |
| Settling time | < 3 s |
| Linearity | 0.15 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| Power supply | 230V AC | 50 Hz, 6 VA 12V DC 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 15 ... 85 % RH |
| Storage conditions | -10 ... 40 °C , 15 ... 85 % RH |

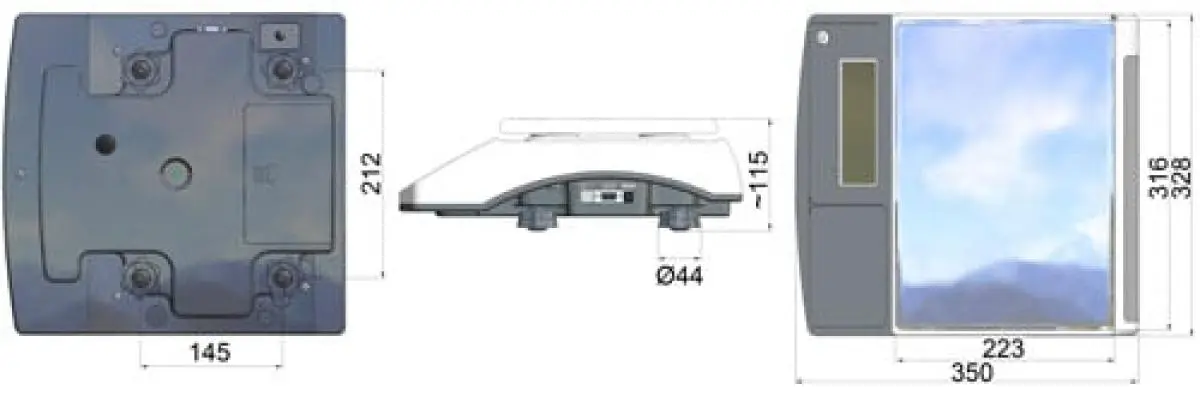

| Dimensions ( L x W x H ) | 350 x 328 x 115 mm |
| Weight | 3500 g |
