Checkweighing Scales PCE-PB 75N

Checkweighing Scale PCE-PB 75N

Order no.: PCE-PB 75N
GTIN (EAN): 4250348723147
£ 80.00
£ 96.00
price ex. (VAT / delivery)
:
4250348723147
PCE-PB 75N
Delivery time:1-2 working days

Description

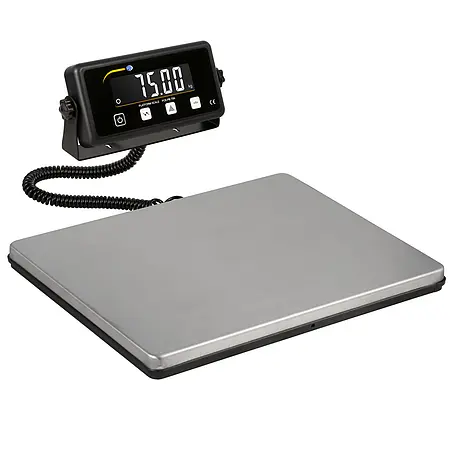

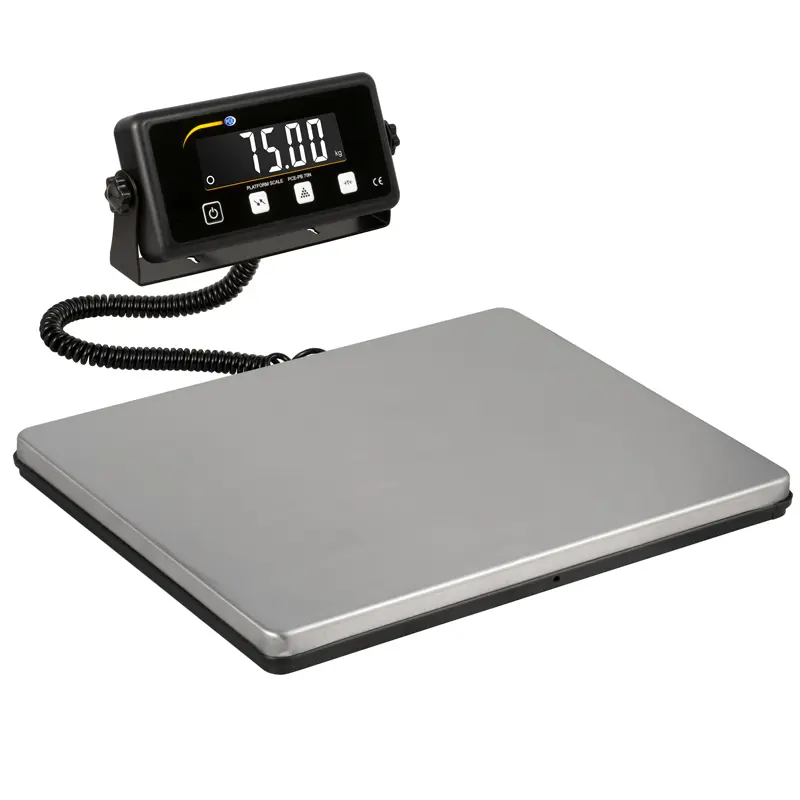

Checkweighing Scale with external display / Max. weighing range up to 75 kg / LC display /
Large and flat weighing surface of 350 x 390 x 40 mm / Battery and mains operation

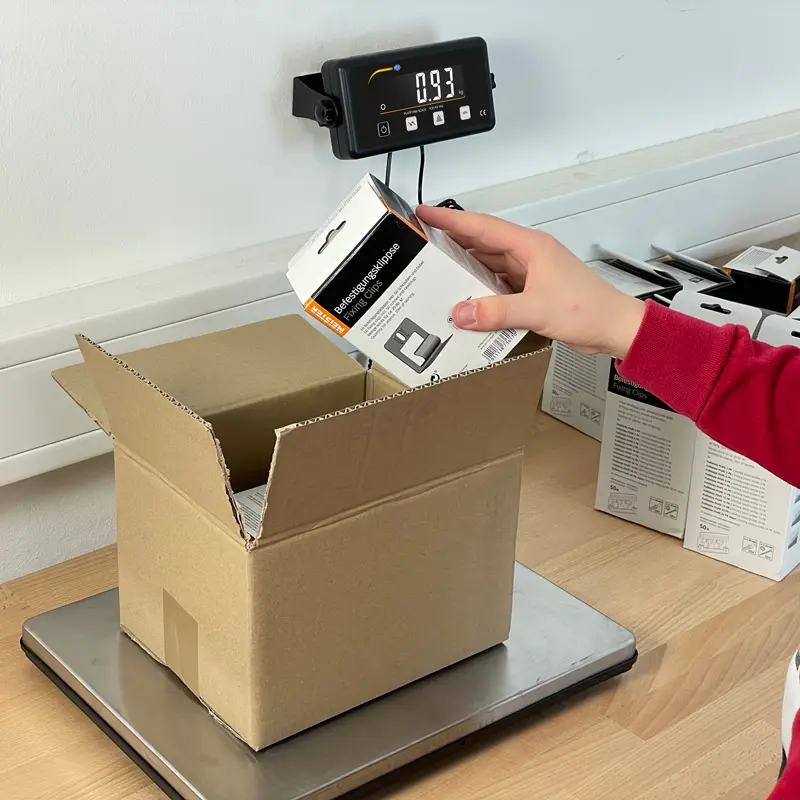

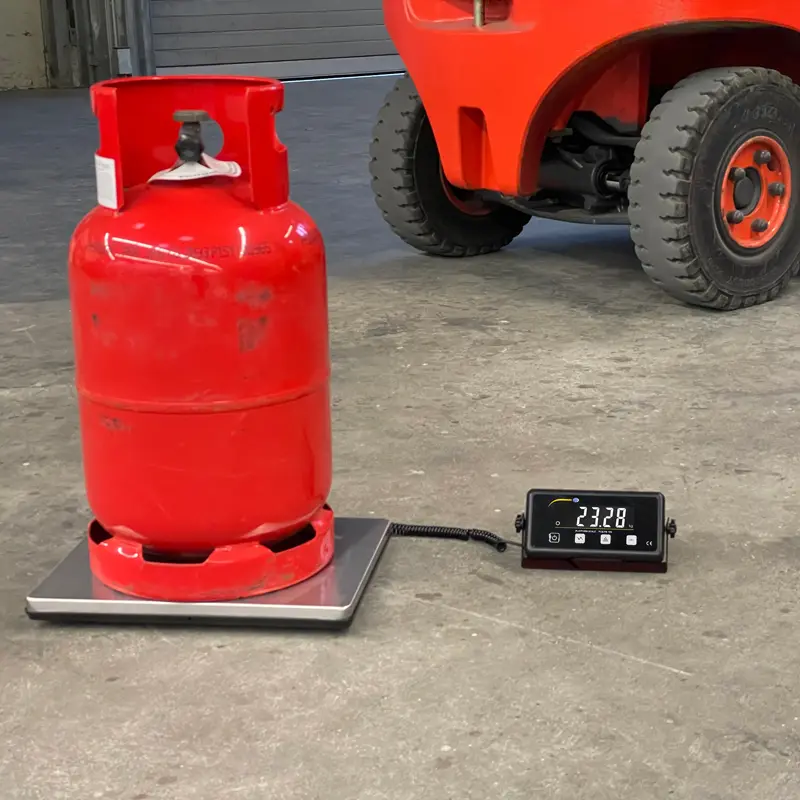

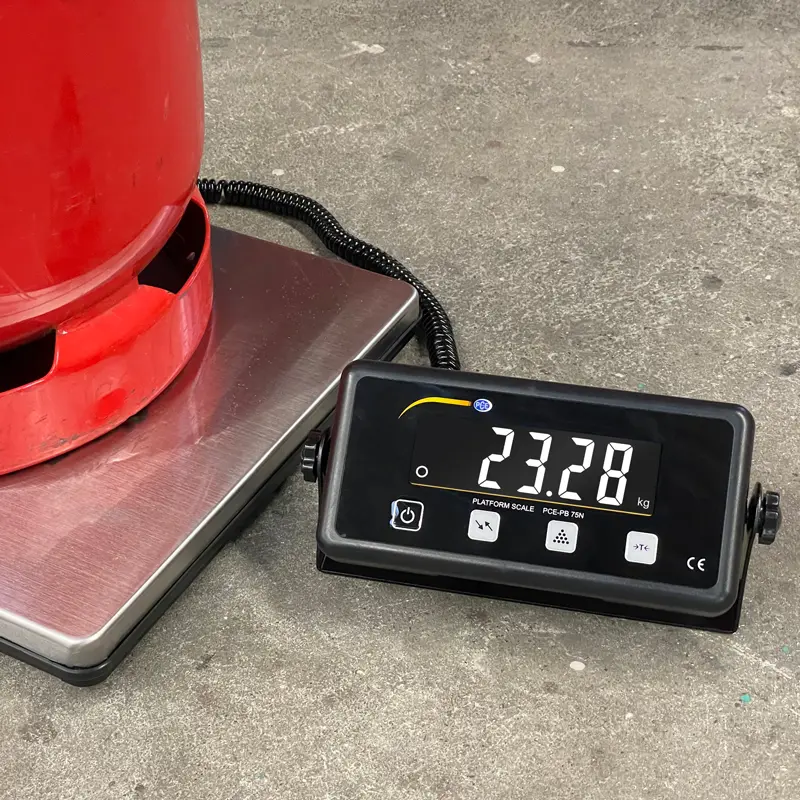

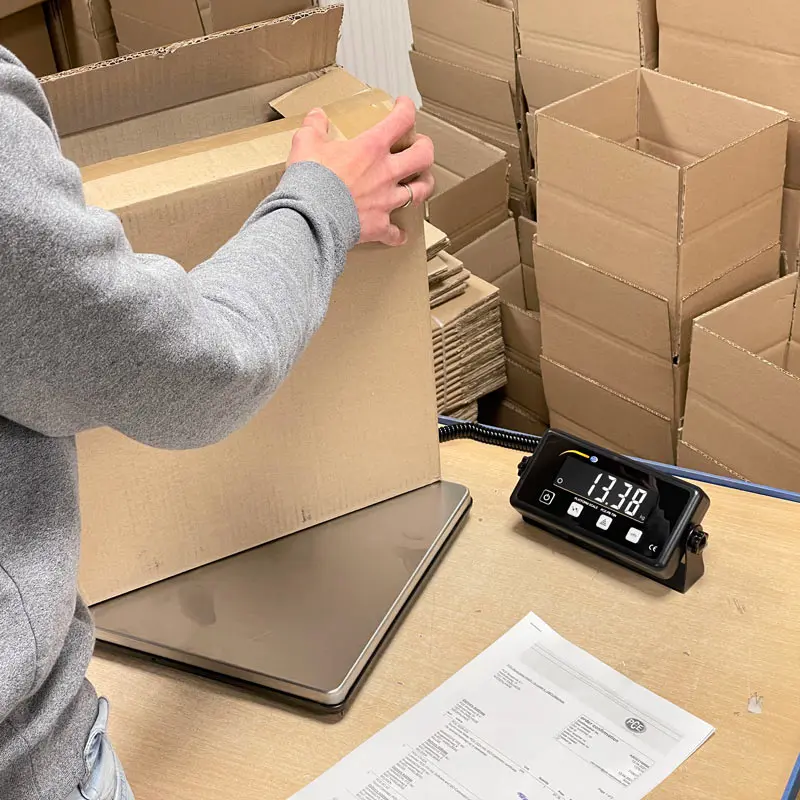

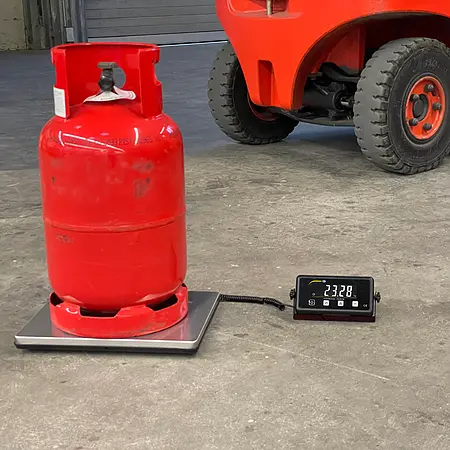

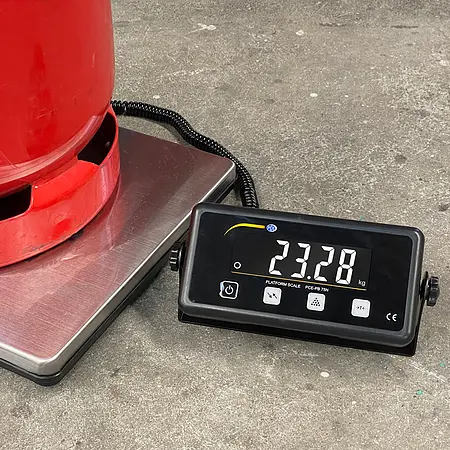

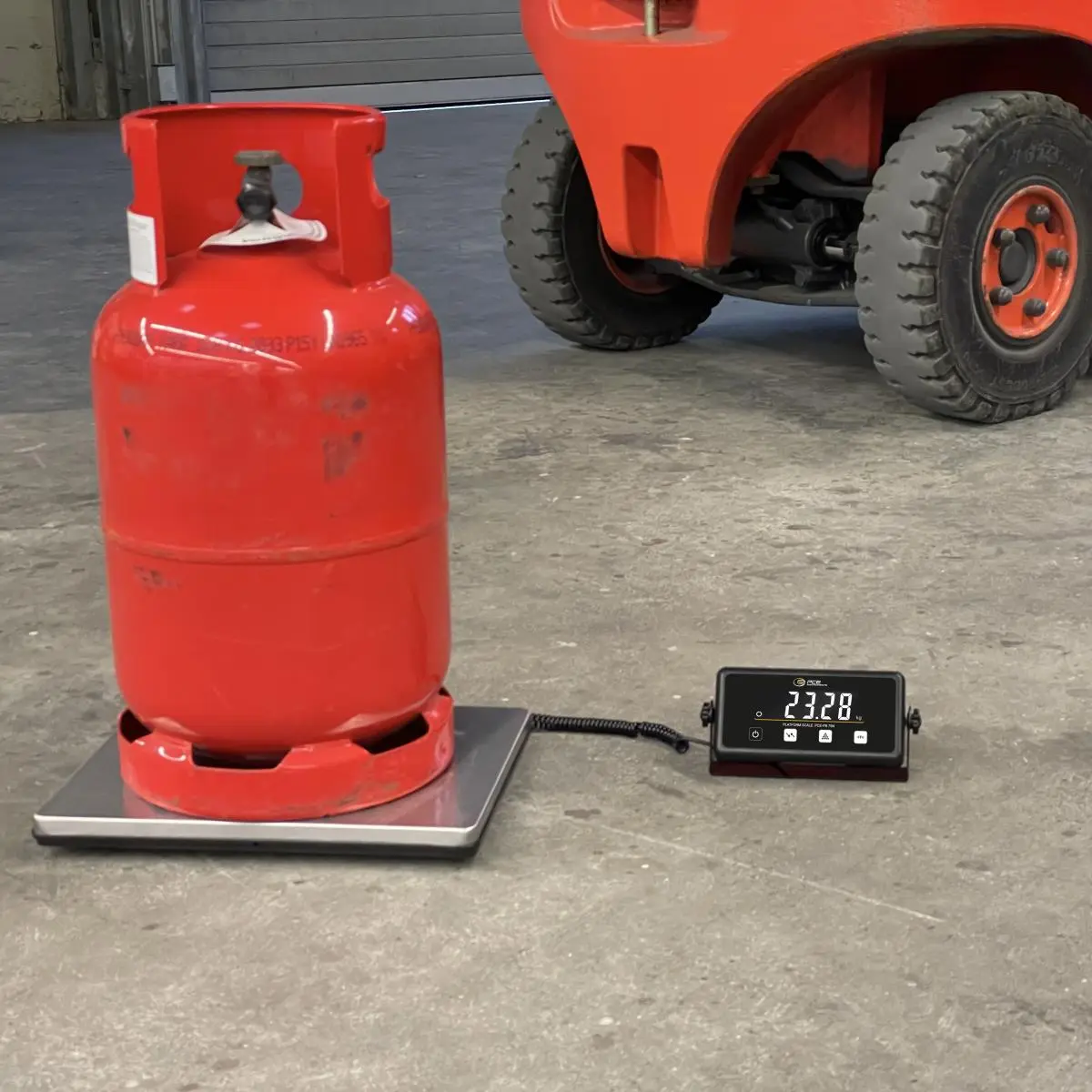

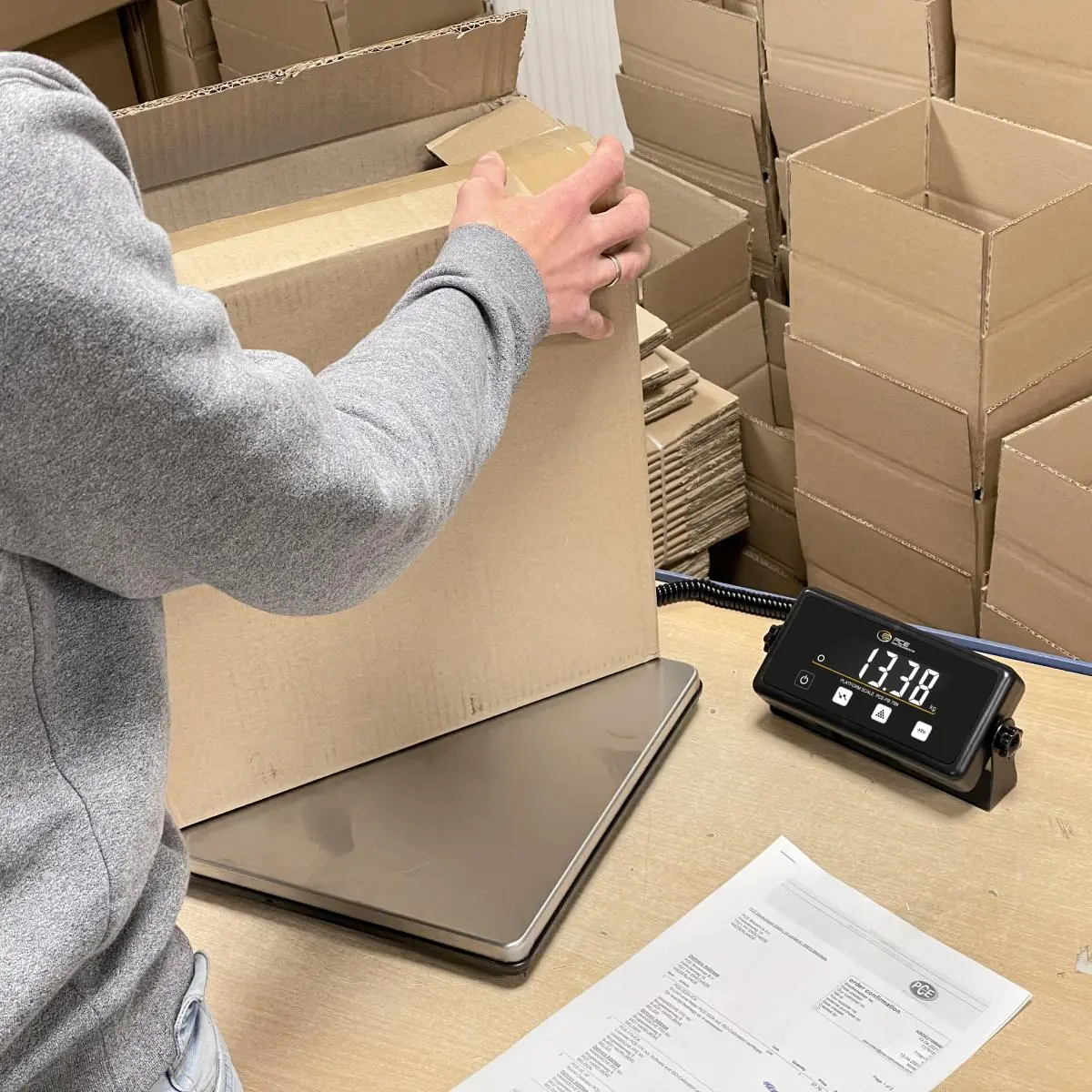

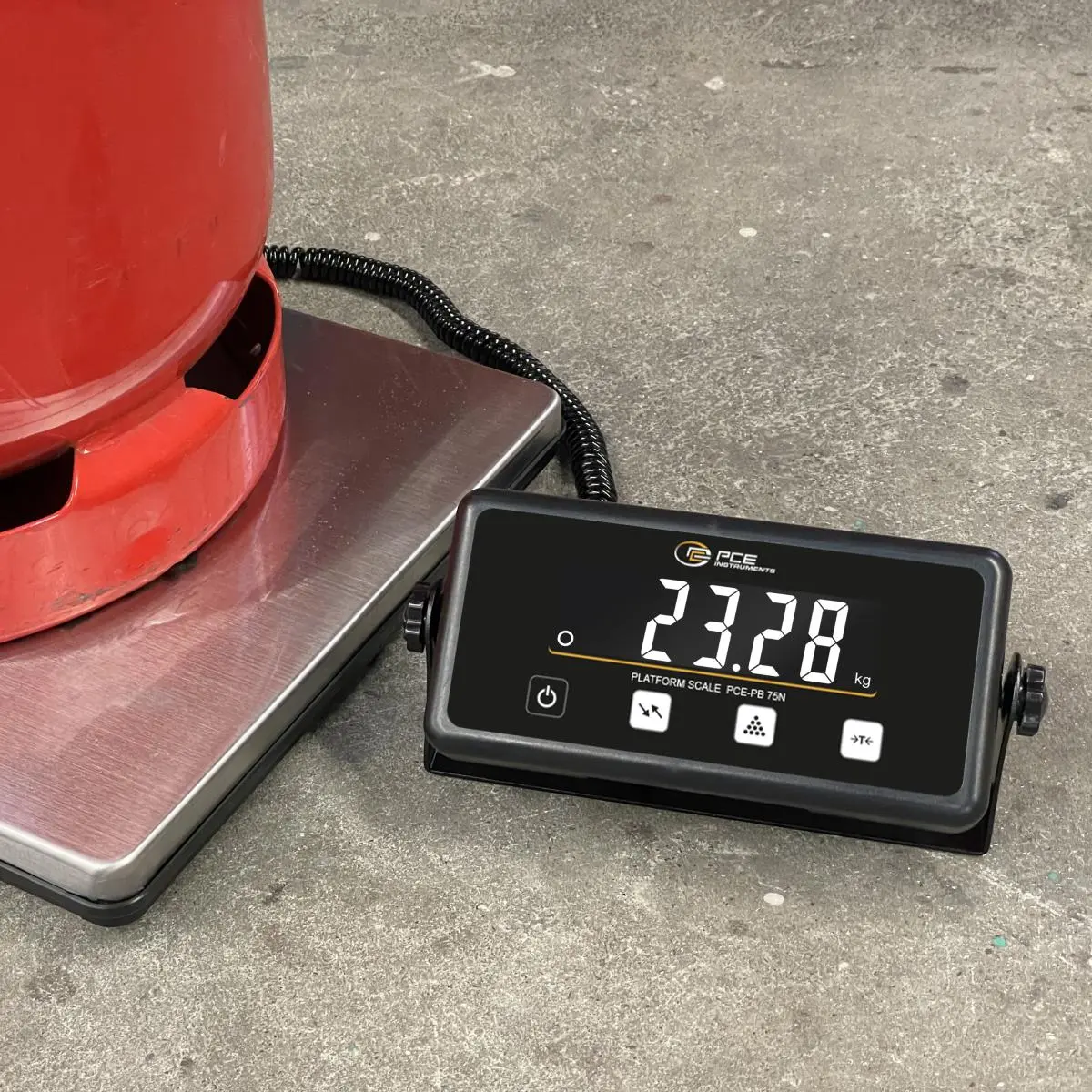

The checkweighing scale with a maximum weighing range of up to 75 kg and a weighing surface of 350 x 390 mm is the ideal measuring device for determining the weight of parcels or the contents of propane gas bottles. With an accuracy of ± 0.06 kg, the checkweighing scale is a precise measuring device. Furthermore, the checkweighing scale can be used for the dosing of paints. This makes the checkweighing scale a universally applicable test device in production, warehouse and logistics.

In addition to the normal measuring mode, the checkweighing scale has a counting function. With the counting function, the checkweighing scale determines, for example, the number of batteries in a package. Another function is the automatic zeroing, with which the checkweighing scale sets the zero point again after switching on. This function can also be deactivated in order to resume a measurement with the checkweighing scale. The tare key can be used to manually reset the measured value to zero at any time, for example to hide the weight of trays, boxes or other packaging materials.

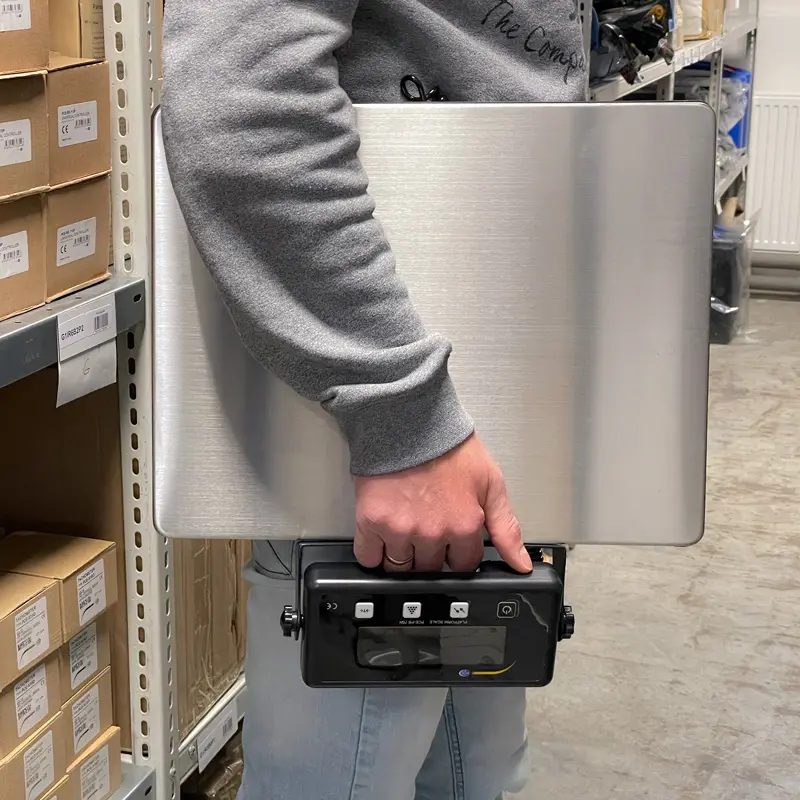

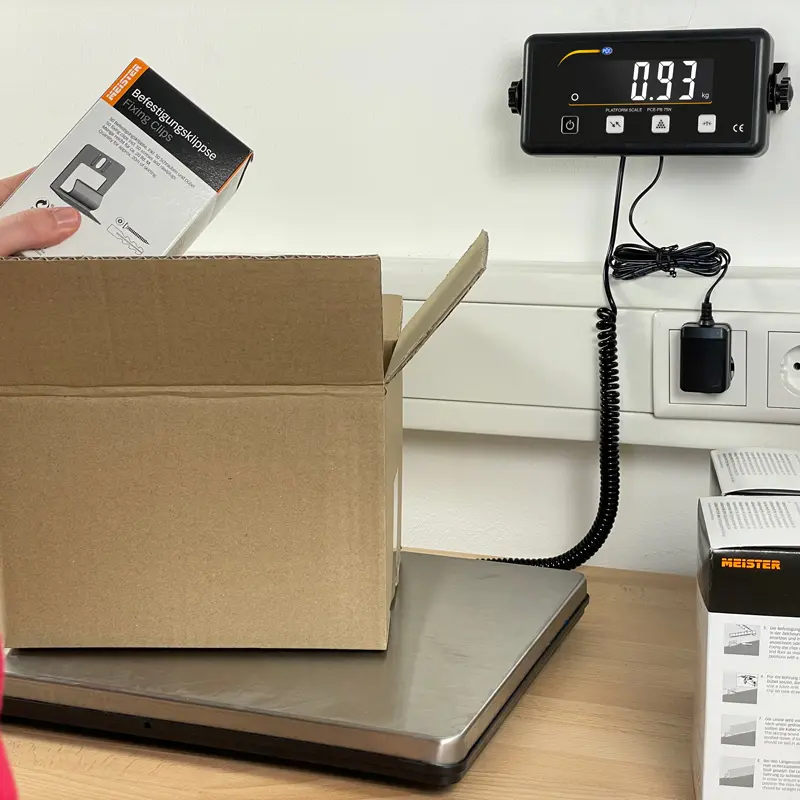

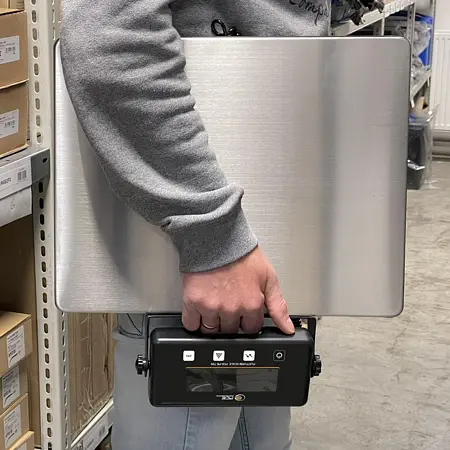

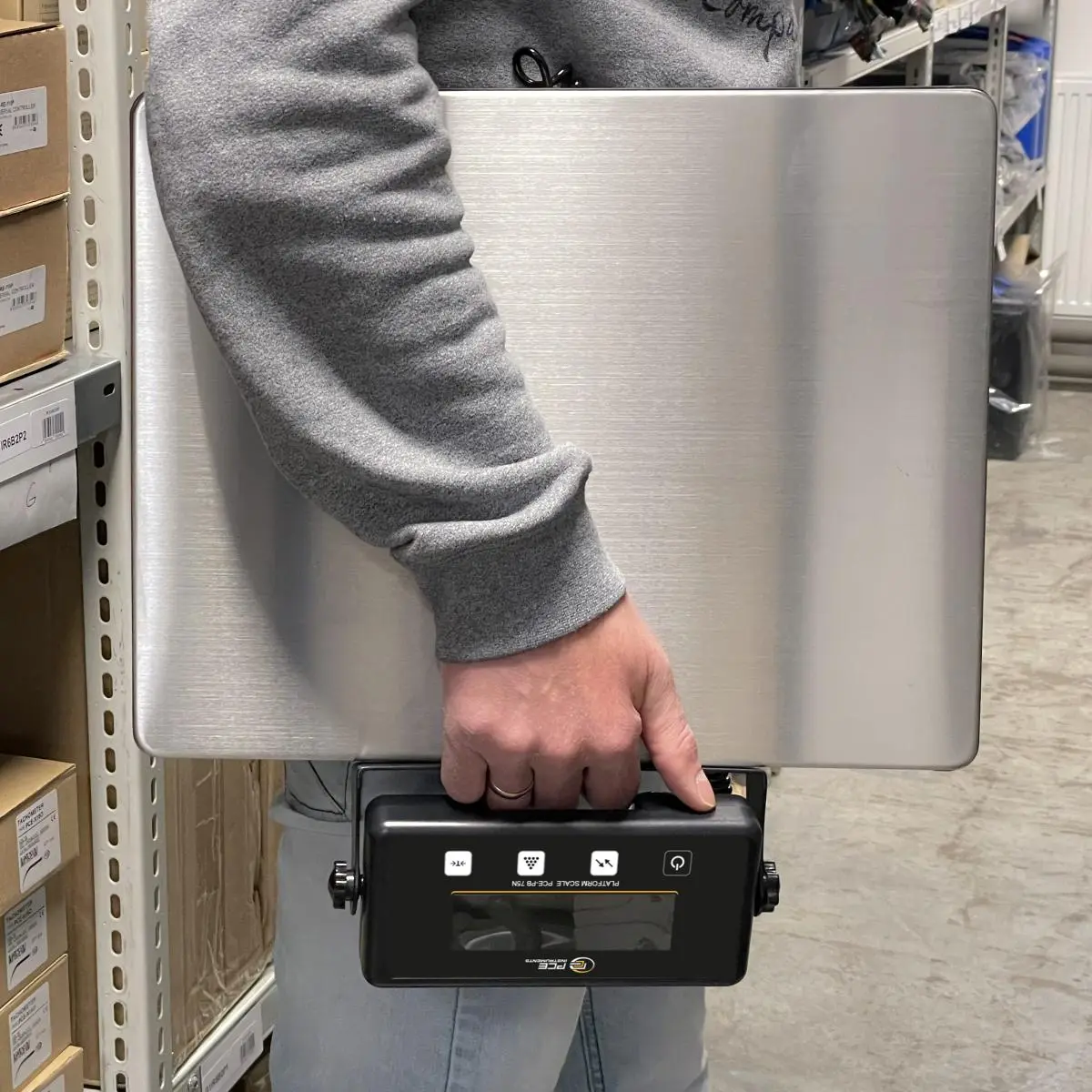

The checkweighing scale can be used stationary because of the power supply unit and the wall bracket included in the scope of delivery to attach the display. With the additional option of battery operation, the checkweighing scale can also be used on the move. The checkweighing scale has an automatic switch-off function to save the batteries used. This will automatically turn off the checkweighing scale after five minutes of inactivity.

Highlights

- Optionally with ISO calibration
- Counting function
- Weighing units kg, lb, oz/lb
- Weighing surface of 350 x 390 mm / 13.7 x 15.3"

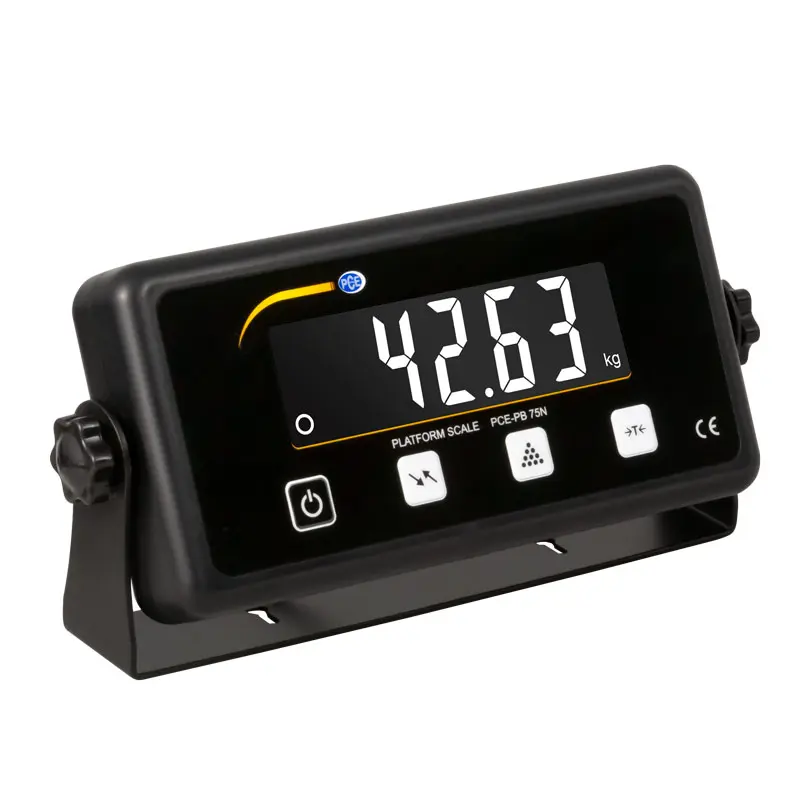

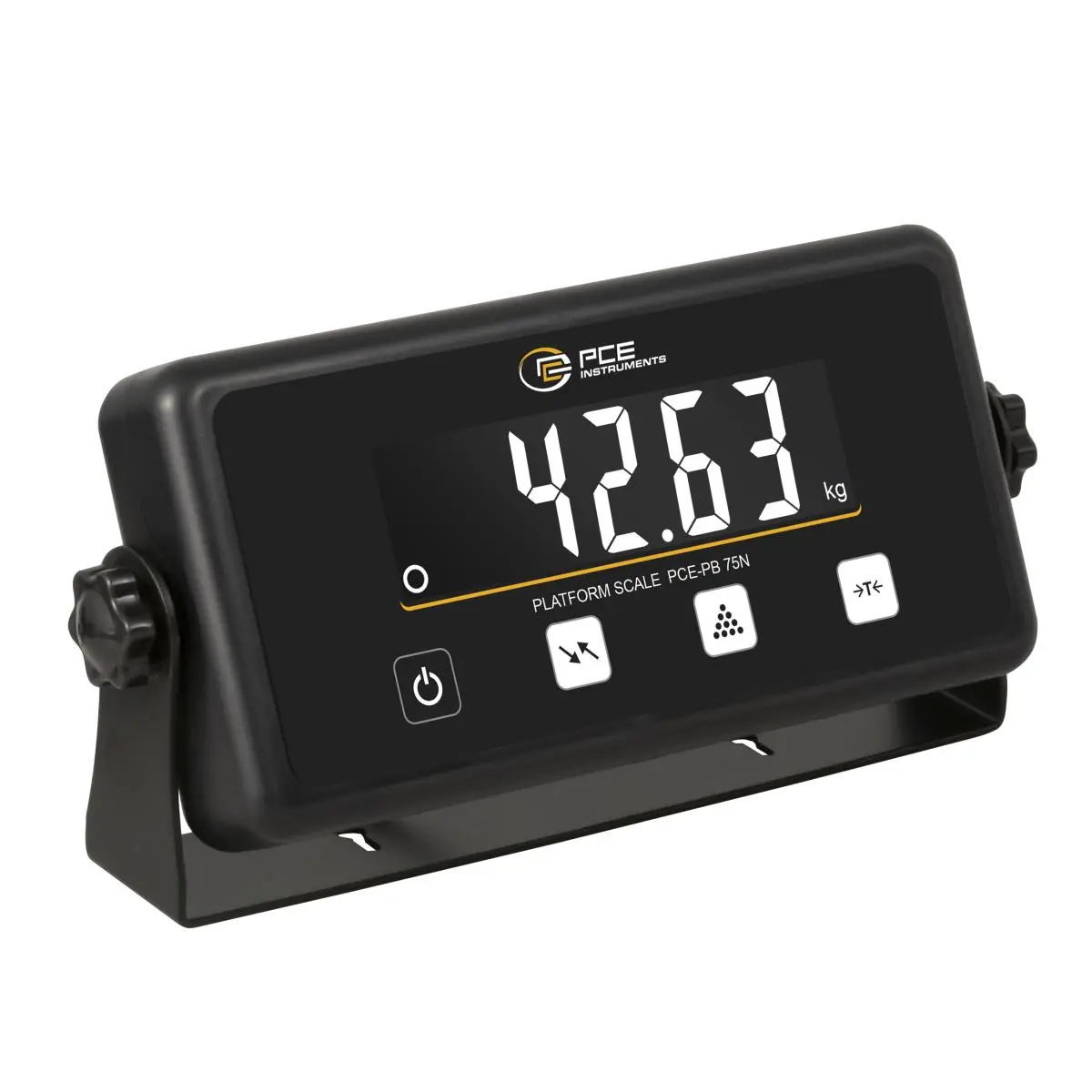

- Wall mounting bracket for the display
- Automatic shutdown when inactive

Specification

Weighing range
Measurement range up to [Max]  75 kg
Resolution [d]  0,2 kg
Accuracy  ±0.06 kg

General technical data
Measuring functions (additional information)  Counting function
Units  kg, g, lb, oz
Display type  LCD
Automatic power-off  5 min
Overload protection  Display when measurement range is exceeded: "O_Ld"
Minimum load [min]  0,06 kg
Dimensions  Display: 180 x 88 x 33 mm / 7.1 × 3.5 × 1.3 in Platform: 350 x 390 x 40 mm / / 13.8 × 15.4 × 1.6 in
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50/60 Hz, 0.3 A
Connector type  Device-europlug
(Rechargeable) battery  4 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  5 ... 35 °C , 0 ... 85 % RH
Storage conditions  5 ... 35 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  350 x 390 x 40 mm
Weight  3000 g

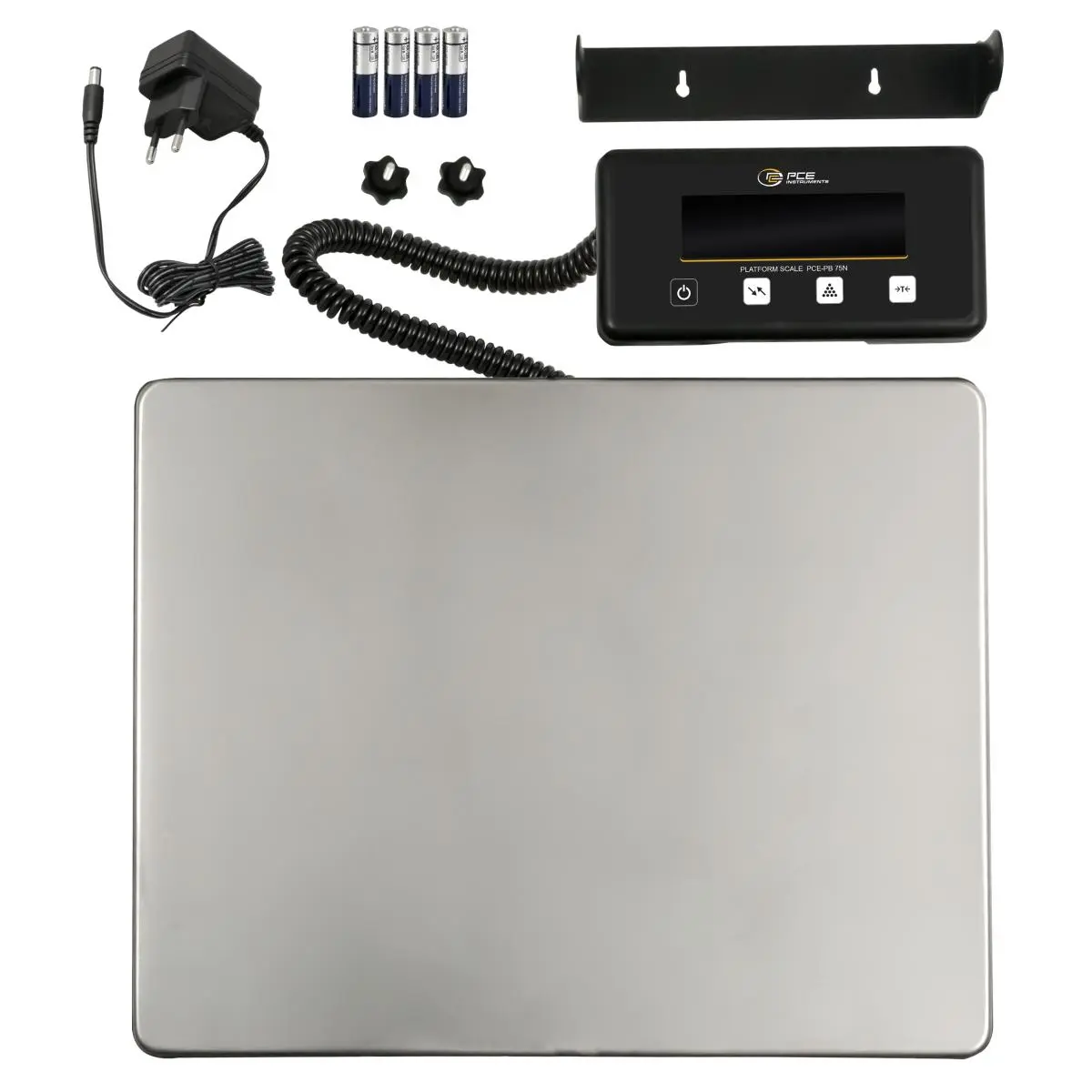

Delivery Scope

1 x Checkweighing Scales PCE-PB 75N
4 x 1.5 V AA batteries
1 x 6 V DC / 1 A mains power adapter
1 x Wall mounting bracket
1 x Instruction manual
