Checkweighing Scale PCE-MS U1,5T-1-M

Checkweighing Scale PCE-MS U1,5T-1-M [zoom]
Checkweighing Scale PCE-MS U1,5T-1-M
Icons for the Checkweighing Scale PCE-MS U1,5T-1-M

Checkweighing Scale PCE-MS U1,5T-1-M

Order no.: PCE-MS U1,5T-1-M
GTIN (EAN): 4250348729392
£ 712.00
£ 854.40
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348729392
PCE-MS U1,5T-1-M
Delivery time:10 - 14 days
0.5 kg
Yes

Description

Checkweighing Scale PCE-MS U1,5T-1-M / Verifiable / Max. capacity 1500 kg / Verification value: 0.5 kg / Incl. verification (conformity assessment)

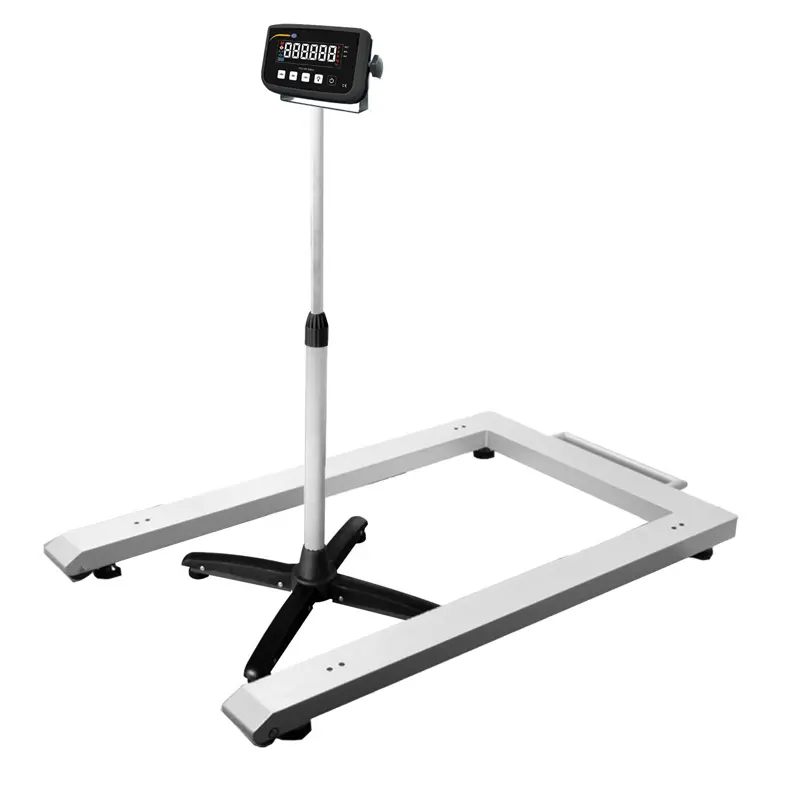

The checkweighing scale consists of the U-shaped weighing platform and the display unit connected via a 5 m long cable. The U-shape makes it easy to load with an ant or hand pallet truck. The dimensions of the inner surface of the U-shape are designed for the size of Euro pallets with 120 x 80 cm.

Thanks to the long connection cable, the display unit can also be placed at a greater distance from the weighing surface, on a tripod, on a wall or on a table. The checkweighing scale has wheels and a carrying handle for easy transport. The plug connection of the connection cable can be easily removed for transport.

The checkweighing scale can be operated by the internally installed battery or by the power pack included in the scope of delivery. In battery mode, operating times of up to 25 hours can be achieved. The inverted display and the 28 mm digit height make it easier to read the weighing values.

Specification

Scale type single-range scale
Weighing range [Max] 1500 kg / 3306 lb
Resolution [d] 0.5 kg / 1.1 lb
Weighing unit kg
Verification value [e] 0.5 kg / 1.1 lb
Verification class [e] M III
Minimum load [Min] 10 kg / 22 lb
Taring range Multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing surface [WxD]   U-shape 800 x 1250 mm / 31.5 x 49.2"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 5.9 x 11.0"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 4x 750 kg / 1653 lb / IP68
Operating temperature -10 ... +40 °C / 14 ... 104 °F
Weight 65 kg / 143 lb

Delivery Scope

1 x Checkweighing Scale PCE-MS U1,5T-1-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with ZIP / LOCATION / country must be specified
