Benchtop Scale PCE-BSK 5100

Order no.: PCE-BSK 5100
£ 128.00
£ 153.60
4250348722027
PCE-BSK 5100
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Benchtop scale PCE-BSK 5100
Benchtop scale with piece counting function / Usable batteries for mobile operation / RS-232 interface / Level for aligning the scale / For mobile use

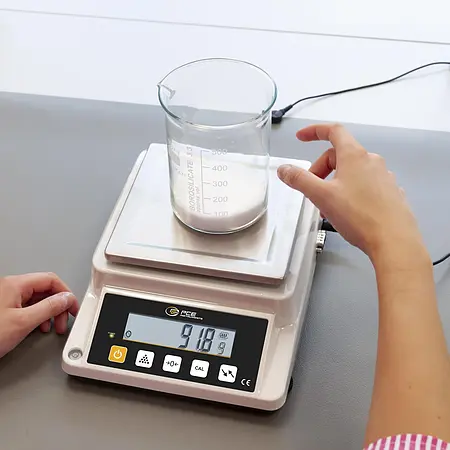

The benchtop scale is a scale for daily laboratory use. Another function besides the normal measuring function of the benchtop scale is the piece counting function. This function allows the benchtop scale to determine the number of screws, for example. Thus, the benchtop scale can also be used in logistics, for example. So that the display is readable even in low light conditions, the display of the benchtop scale has a backlight.

In addition to the measuring functions, the benchtop scale also has an RS 232 interface. Thanks to this interface, the measured values ​​can be transferred to a PC, for example. This benchtop scale can be used for stationary as well as for mobile use. For mobile use, the benchtop scale requires 3 x 1.5V AA batteries, which can be used quickly and easily.

- Piece counting function
- RS-232 interface

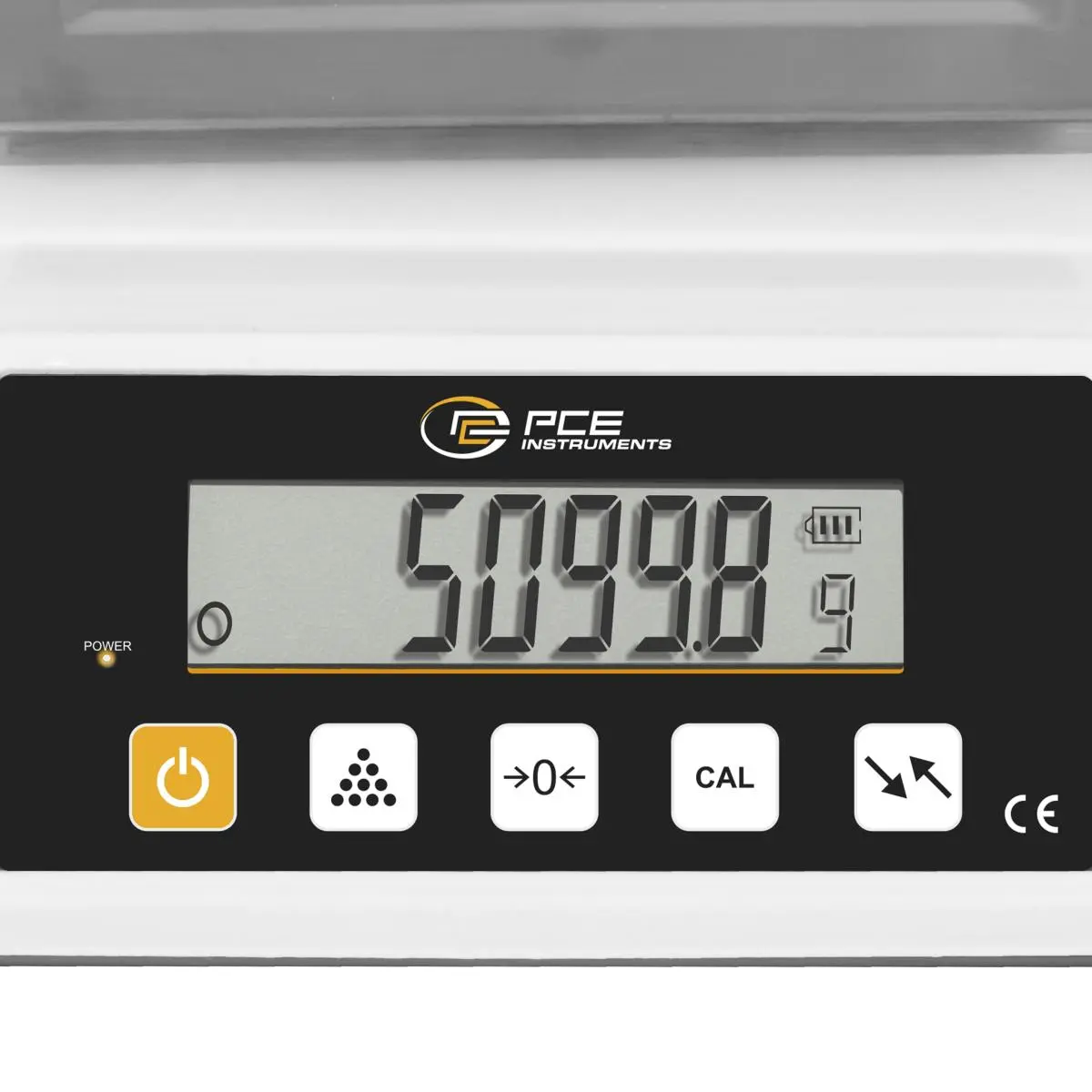

- Backlight
- Battery operation for mobile use

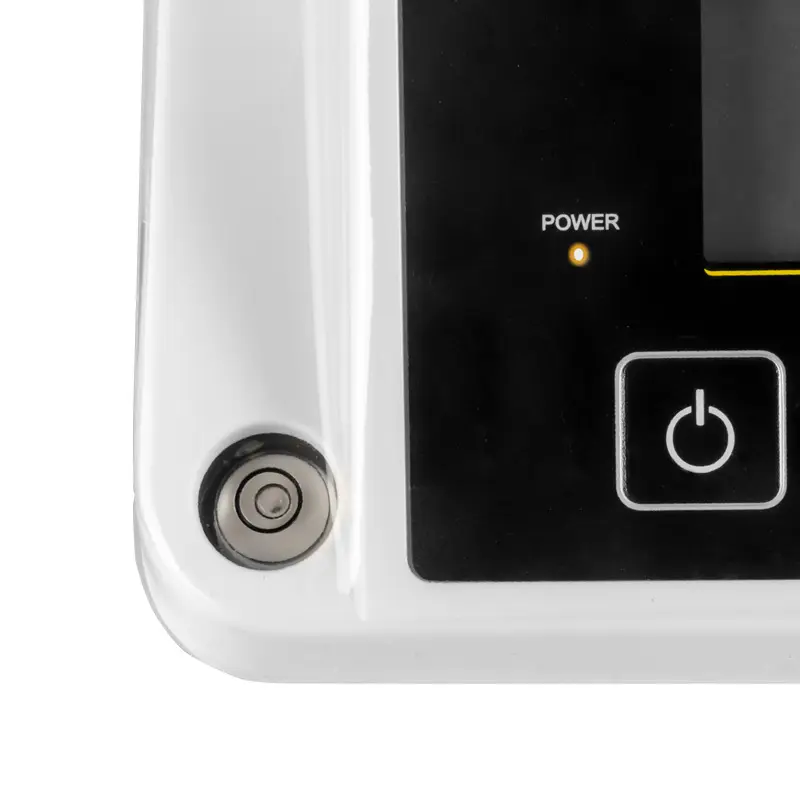

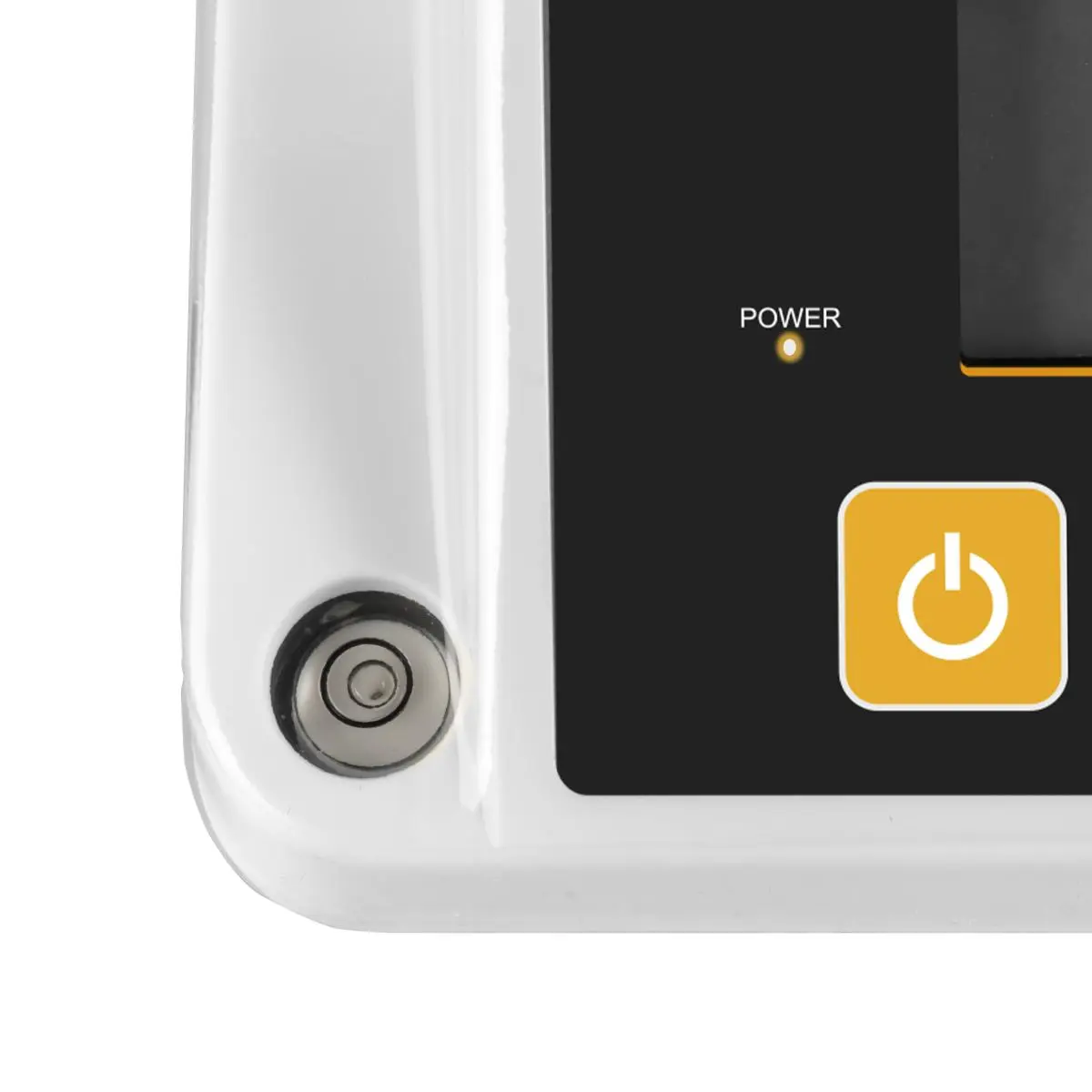

- Level to align the scale
- High precision
Measuring range0 ... 5100 g
Resolution0.1 g
Repeatability± 0.2 g
Linearity± 0.3 g
CalibrationExternal
Dimensions Weighing plate         160 x 160 mm / 6.3 x 6.3 in
Dimensions270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in
Weight2 kg / 4.4 lbs
Operating conditions17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
InterfaceRS232
Power supplyBattery / 3 x 1.5V AA
Power supplyPower adapter
 Primary: 100 ... 240V, 50/60 Hz
 Secondary: 6V, 500-mA

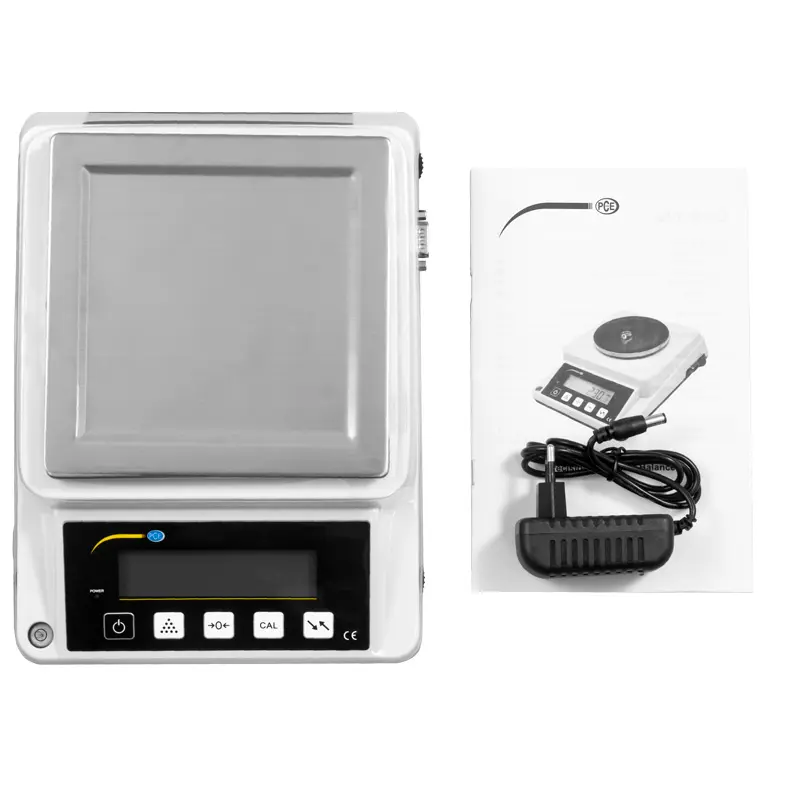

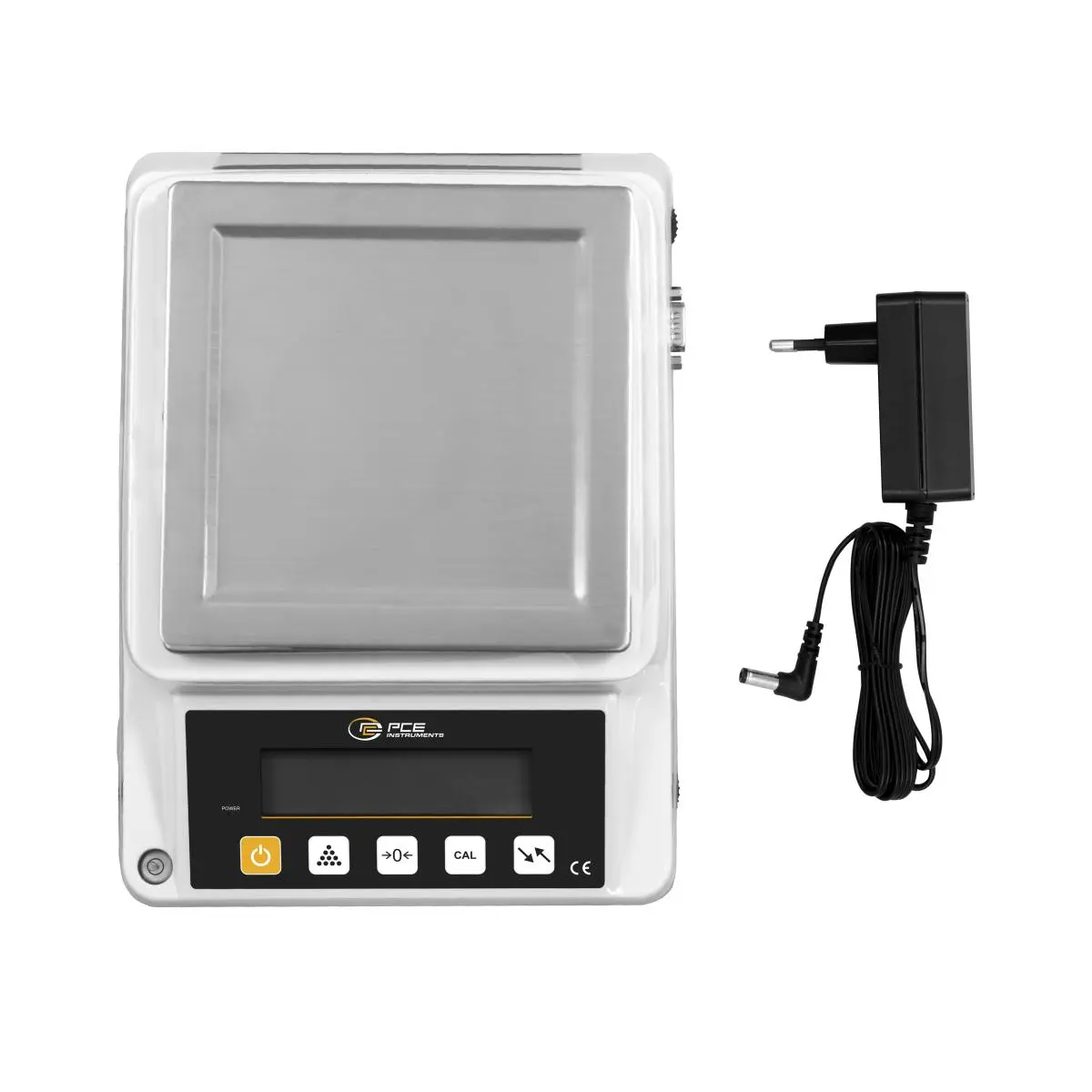

1 x Benchtop scale PCE-BSK 5100
1 x Power supply
1 x User manual
