Industrial Measurement Products and Solutions

Transducer

Order no.: PCE-SCI-U
The current signal converter converts an analog input signal into a corresponding analog output signal. The input and output signals from the current signal converter are completely galvanically isolated.

- Over 100 combinations pre-selected
- Converts analogue input range
- Completely galvanic isolation
- Power supply 18 ... 265V AC / DC
£ 143.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-SCI-U
The thermo transducer converts an analog input signal into a corresponding analog output signal. The input and output signals from the thermo transducer are completely galvanically isolated.

- Over 100 combinations pre-selected
- Converts analogue input range
- Completely galvanic isolation
- Power supply 18 ... 265V AC / DC
£ 143.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-SCI-U
The voltage signal converter converts an analog input signal into a corresponding analog output signal. The input and output signals from the voltage signal converter are completely galvanically isolated.

- Over 100 combinations pre-selected
- Converts analogue input range
- Completely galvanic isolation
- Power supply 18 ... 265V AC / DC
£ 143.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-SCI-E
The current signal transducer has an adjustable measuring range of 0… 600 V AC/DC and can therefore measure a wide variety of voltages. For example, it is possible to connect the transmitter to the supply line in order to monitor the applied voltage.

- Measuring range 0 ... 600 V AC/DC
- Active and passive output signal
- Display and keypad for configuration
- Frequency measurement
- DIN rail mounting
- Display
£ 177.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-SCI-E
The voltage signal converter has an adjustable measuring range of 0… 600 V AC/DC and can therefore measure a wide variety of voltages. For example, it is possible to connect the transmitter to the supply line in order to monitor the applied voltage.

- Measuring range 0 ... 600 V AC/DC
- Active and passive output signal
- Display and keypad for configuration
- Frequency measurement
- DIN rail mounting
- Display
£ 177.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-IR 50

With the Thermo Transducer PCE-IR 50, surface temperatures can measured quickly and easily. The measuring range of the thermo transducer is 0 ... 500 °C / 32 ... 932 °F. The measured temperature is output as a 4 ... 20-mA standard signal which means that the thermo transducer can be easily integrated into different monitoring systems, including those in different production processes or food storage as well as the monitoring of electronic systems.


- Measurement range: 0 ... 500 °C / 32 ... 932 °F
- Accuracy: ± 1.5 °C or ± 1 %
- Optical resolution: 15:1
- Output signal: 4 ... 20-mA standard signal
- For fixed installation (mounting bracket incl.)

£ 245.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DMU 10

The pressure transmitter PCE-DMU 10 can be used for gases, water as well as fuels and oils. The pressure transmitter can be used for relative and absolute pressure measurements.



- max. 400 Bar
- Media: gases, water as well as fuels and oil
- Output: 4 ... 20 mA / 0 ... 10 V (selectable)
- Pressure type: Absolute or Relative (selectable)
- Membrane: ceramic
- Accuracy: 0.5 % FSO

£ 289.00

Price excl. VAT &. delivery
2 year Warranty

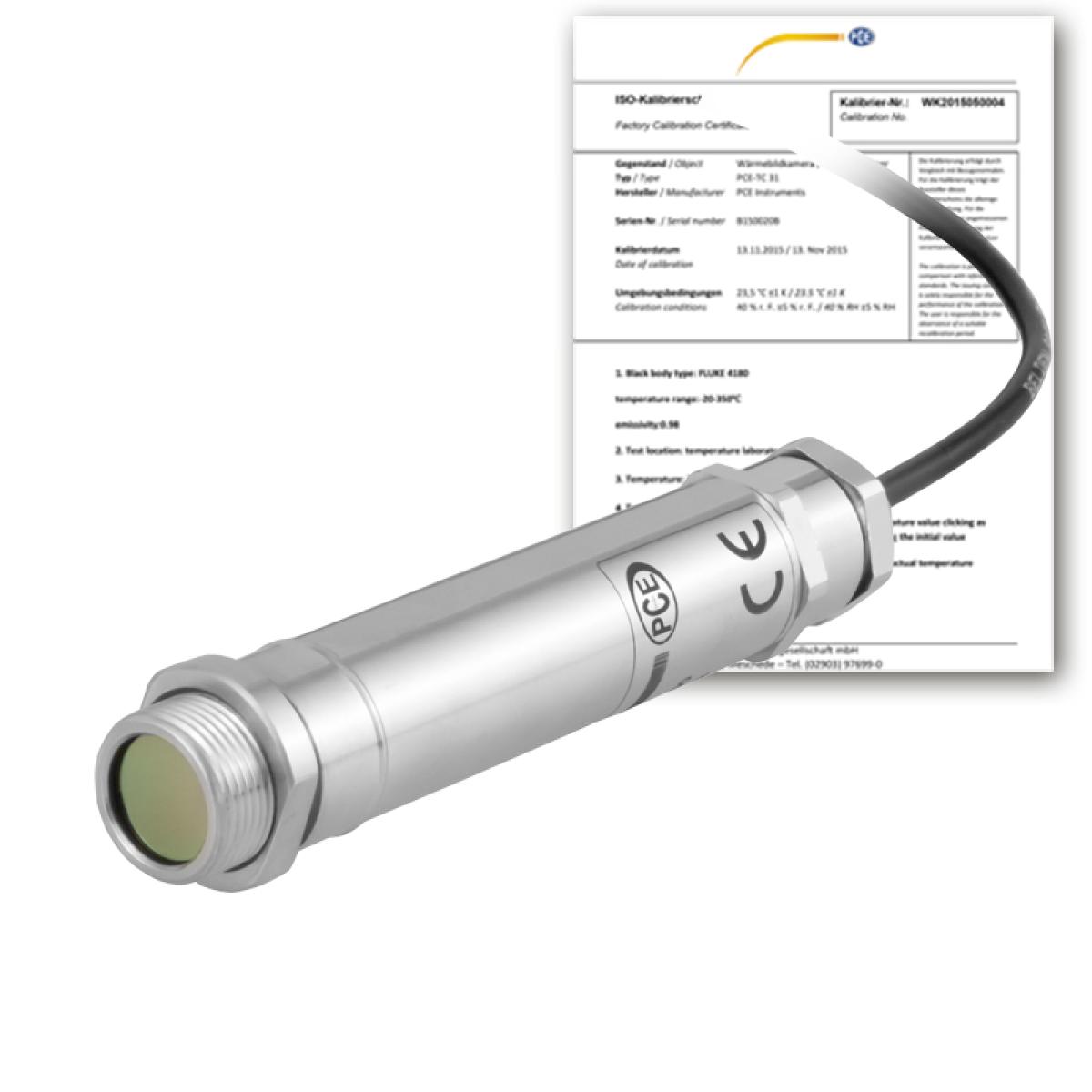

Order no.: PCE-IR 50-ICA

With the Thermo Transducer PCE-IR 50-ICA, surface temperatures can measured quickly and easily. The measuring range of the thermo transducer is 0 ... 500 °C / 32 ... 932 °F. The measured temperature is output as a 4 ... 20-mA standard signal which means that the thermo transducer can be easily integrated into different monitoring systems, including those in different production processes or food storage as well as the monitoring of electronic systems.


- Measurement range: 0 ... 500 °C / 32 ... 932 °F
- Accuracy: ± 1.5 °C or ± 1 %
- Optical resolution: 15:1
- Output signal: 4 ... 20-mA standard signal
- For fixed installation (mounting bracket incl.)
- incl. ISO Calibration Certificate

£ 365.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DDMU 10
The pressure transmitter PCE-DDMU 10 can be used for gases and air. The pressure transmitter can be used for relative and differential pressure.

- Max. ± 0.5% accuracy
- Optional display
- Switching outputs
- Radiated output signal
£ 406.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DMU 40

The pressure transmitter PCE-DMU 40 can be used for relative and absolute pressure measurements. The pressure transmitter can be used for gases, water as well as fuels and oils.



- max. 600 Bar
- Media: gases, water as well as fuels and oil
- Output: 4 ... 20 mA / 0 ... 10 V (selectable)
- Pressure type: Absolute or Relative (selectable)
- Membrane: stainless steel
- Accuracy: 0.1 % / 0.25 % FSO

£ 507.00

Price excl. VAT &. delivery
2 year Warranty
