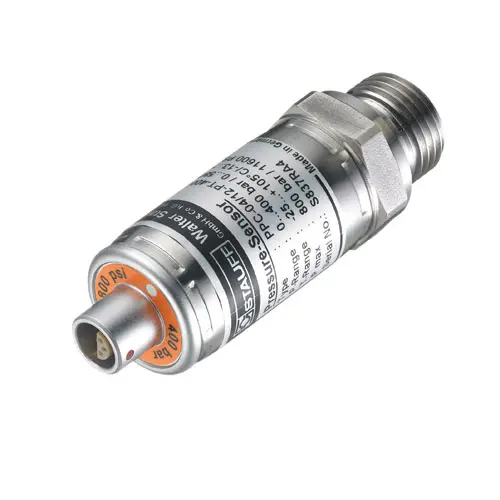

PPC-04/12-PT Pressure & Temperature Sensor

Order no.: PPC-04/12-PT

GTIN (EAN):

Accessory

PPC-04/12-CAB5-EXT Extension cable

£ 111.00

PPC-04/12-CAB3 Sensor connection cable

£ 82.00

Description

Pressure and temperature sensor for PPC04 / different print areas / for gases and liquids

With their 5-pin connection, the pressure and temperature sensors PPC-04/12-P can be used with all analog measuring devices of the PPC series. The pressure sensors for the PPC are a safe and flexible solution due to their robust stainless steel design, fast response times (<1 ms) and high accuracy (± 0.25% FS * type) with automatic sensor detection.

Note: A cable PPC-04/12-CAB3 (3 m / 9.84 ft) is required to connect the pressure sensor to a current measuring device. An extension cable PPC-04/12-CAB5-EXT (5 m / 16.40 ft) is available as an option.

Highlights

- suitable for gases and liquids (for aggressive media only after consultation)
- 5-pin connector
- robust stainless steel housing (1.4301)
- seal FPM (Viton®)
- pressure connection G1 / 2 (without adapter)

Specification

Technical Specification
Sensor type	Measuring range	Measurement Type	Overload pressure	Burst pressure	Accuracy (± % FS) typ.	Accuracy (± % FS) max.
015 /2	-1 ... 15 Bar -14.5 ... 217 psi	Relative pressure	30 Bar 435 psi	150 Bar 2175 psi	0.25	0.5
060 /2	0 ... 60 Bar 0 ... 870 psi	Absolute pressure	120 Bar 1740 psi	500 Bar 7251 psi	0.25	0.5
150 /2	0 ... 150 Bar 0 ... 2175 psi	Absolute pressure	300 Bar 4351 psi	900 Bar 17404 psi	0.25	0.5
400 /2	0 ... 400 Bar 0 ... 5801 psi	Absolute pressure	800 Bar 11603 psi	1200 Bar 17404 psi	0.25	0.5
600 /2	0 ... 600 Bar 0 ... 8702 psi	Absolute pressure	1200 Bar 17404 psi	1800 Bar 26106 psi	0.25	0.5
601 /2	0 ... 600 Bar 0 ... 8702 psi	Absolute pressure	1200 Bar 17404 psi	2500 Bar 36259 psi	0.25	0.5
Technical Specification Temperature Measurement
Measuring range			-25 ... 105 °C
Accuracy			± 1.5 % FS
General Technical Data
Medium temperature			-25 ... 105 °C
Operating temperature			-25 ... 85 °C
Storage temperature			-25 ... 85 °C
Input voltage			7 ... 12 V DC
Output signal			0 ... 3 V DC
Response time			1 ms
Long-term stability			< 0.2 % FS
Vibration load			according to IEC 60068-2-6 (20 g)
Shock load			according to IEC 60068-2-27 (50 g)

Delivery Scope

Delivery contents

1 x pressure and temperature sensor PPC-04/12-PT
