Teststand PCE-TF 4

Teststand PCE-TF 4

Order no.: PCE-TF 4
GTIN (EAN):
£ 2,982.00
£ 3,578.40
price ex. (VAT / delivery)
PCE-TF 4

Description

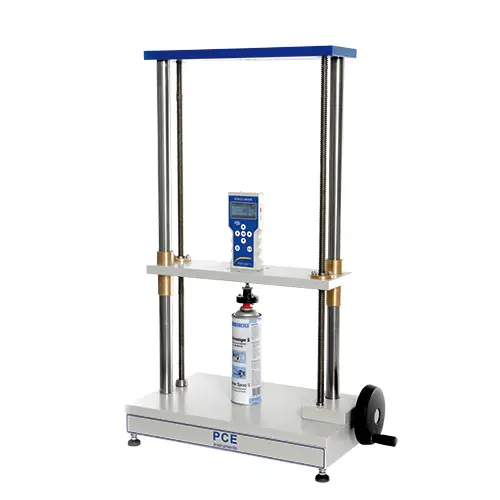

Manual material test stand for tensile and compressive force up to 5000 N / manual operation (hand crank) / two columns
The two-column manual material test stand PCE-TF 4 is suitable for manual testing of tensile and compressive forces of up to 5000 N. It is frequently used for occasional material and component tests or in production monitoring. The manual material test stand PCE-TF 4 ensures a high degree of stability and enables the user to carry out various testing tasks due to its ample working space. The crossbeam of the material test stand is moved by means of a hand crank and makes a precise traverse distance possible which makes testing very easy.

Highlights

- manually operated (hand crank)
- up to 5000 N
- for tensile and compressive force
- two columns
- ample working space
- for hand-held force gauges and force transducers


Specification

Technical specifications

Force range

≤5000 N

Overall height

870 mm

Overall width

590 (485) mm

Overall depth

310 mm

Overall stroke

590 mm

Working space width / depth

341 / 310 mm

Radius of action around force axis

163 mm

Crossbeam borehole
Baseplate borehole

M12
M12

Weight
Measuring path indication

~32 kg
path measuring rod (optional)

Drive

manually via hand crank


Delivery Scope

Delivery content

1 x material test stand PCE-TF 4, 1 x crossbeam, 1 x instruction manual

Optional accessories
- fixing material
