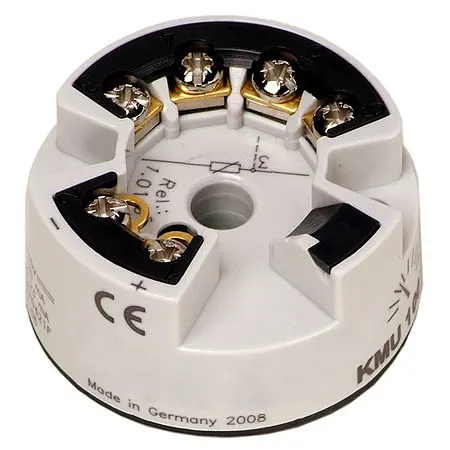

Temperature Transducer KMU 100

Order no.: KMU 100
£ 46.00
£ 55.20
KMU 100
price ex. (VAT / delivery)
Delivery time: 1-2 working days
for Pt100 sensors / 2, 3 or 4 wire connections / 4 - 20 mA output / aluminium or stainless steel connections

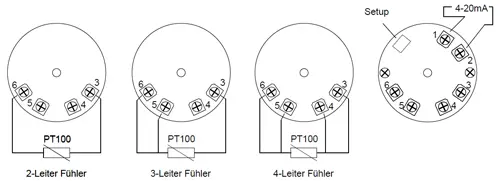

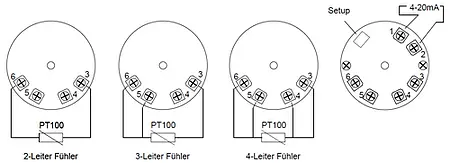

The KMU 100 temperature transducer is designed to detect temperature from Pt100 sensors and transform it into a normalized signal. The KMU 100 temperature transducer is distinguished by its compact dimensions which allow usage with almost any sensor type. The KMU 100 temperature transducer is set online through an interface, however it can also be delivered with default parameters set. The KMU 100 temperature transducer can be used as a universal transducer and it can also be connected to 2, 3 or 4 wire Pt100 sensors. When the KMU 100 temperature transducer is connected to a 2-wire sensor, there is an automatic compensation of ducts to prevent inaccurate temperature readings due to duct resistance. The KMU 100 temperature transducer can be connected to any other device (for instance to a bar-graph indicator for a quick detection of temperature changes) through 4-20 mA input.

- For Pt100 sensors
- Installation in aluminium and stainless steel heads
- Powered supply loop (4 - 20 mA)
- High accuracy
- Optional interface cable and software
- Measurement range up to 650 ºC
- Suitable for WTR resistance sensors
- Universal Power supply up to 35 V

Technical specifications
CasePC plastic
Diameter: 44 mm x height: 22.5 mm
Central hole: 7 mm
2 M4 screws for DIN B case
Input2, 3 or 4 wire Pt100 sensors
Output4 ... 20 mA
Maximum load 21 mA
Minimum load 3.5 mA
Measurement Range-200 ... 650 ºC
Intervalmin. 10 K
Accuracy<±0.1 % of the final value
Operating temperature-40 ... 85 ºC
Electrical connectionscrew terminal 1.5 mm2
Power supply10 ... 35 V DC
Max. residual voltage ±5 %

Delivery content
1 x KMU 100 temperature transducer and user manual
