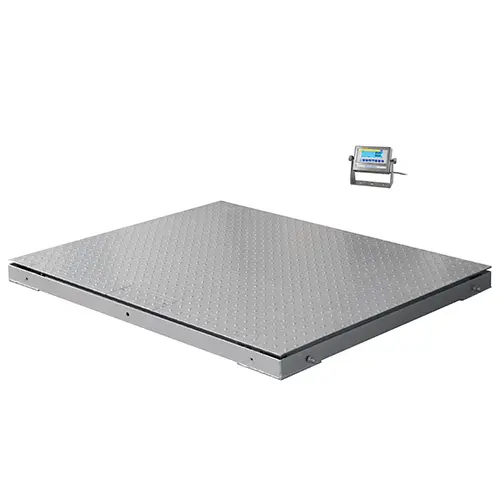

Floor Scale PCE-EP 3000F1

Order no.: PCE-EP 3000F1
GTIN (EAN):

£ 364.00
£ 436.80
price ex. (VAT / delivery)
PCE-EP 3000F1
Delivery time: 1-2 working days

Description

non-approved floor scale / floating load cells / incl. protection framework / measuring range up to 5 t / ramps optional / summing / bidirectional RS-232 Interface / 25 mm height / suitable for container andmachineweighing

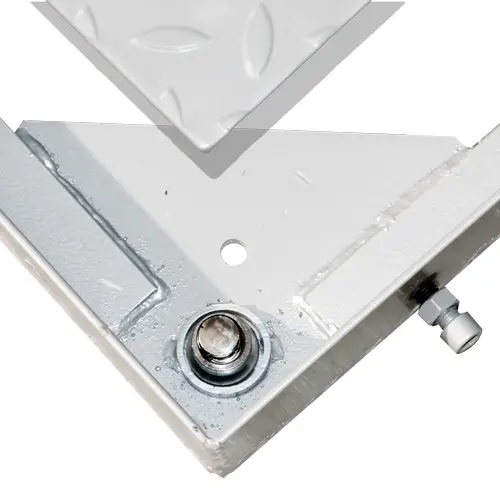

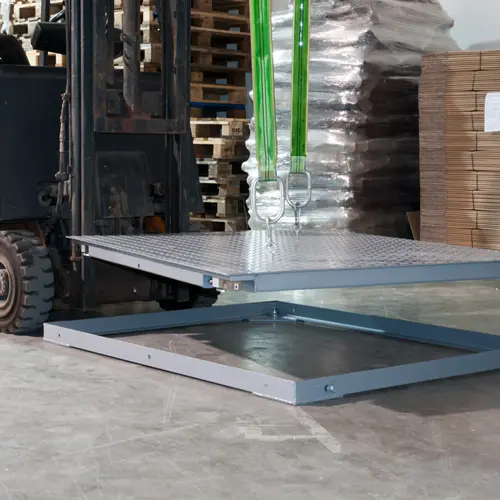

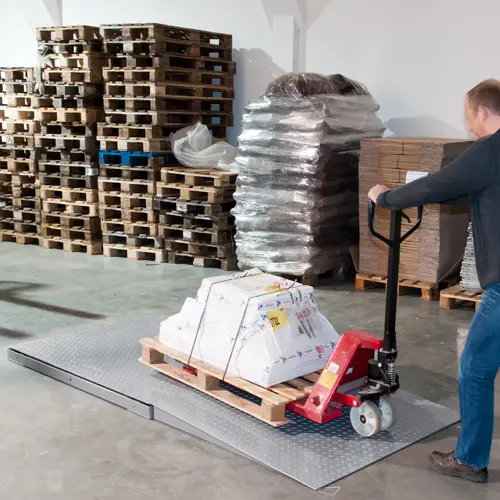

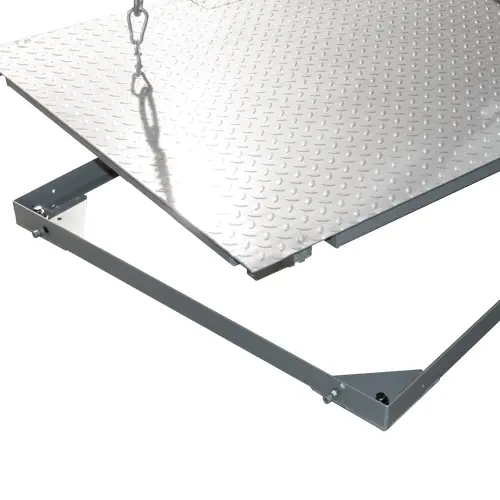

The non-approved floor scale PCE-EP F series is supplied complete with protective frame, display and interface cables. The floor scale is better protected against lateral forces due to the floating load cells and mechanically (weighing limit) can also be backed up. For this purpose, the protective frame of the noncertified floor scale is fixed to the floor and the weighing plate simply placed on the four mounting points. Optionally, the matching 1200 mm ramps on this floor scale are available. The display of the floor balance is connected by a plug connection with the platform and can thus be easily passed through a cable duct. The display consists of stainless steel and is IP54 protected while the cells of floor scales are IP65 protected. The non-approved floor scale can add several weighings and calculatea grand total, as well as perform the counts of the same heavy parts or to draw attention to the user in achieving freely adjustable weight limits. The floor scale is especiallysuitable for weighing containers. Here, the zero weight of the empty container can be stored on the floor scale, so that the balance after the restart can view the current contents of the container. Thanks to the floating structure complete productionmachinescan be monitored during production.

Highlights

- Measuring range up to 3,000 kg
- Platform size up to 1200 x 1500 mm
- 4 floating load cells

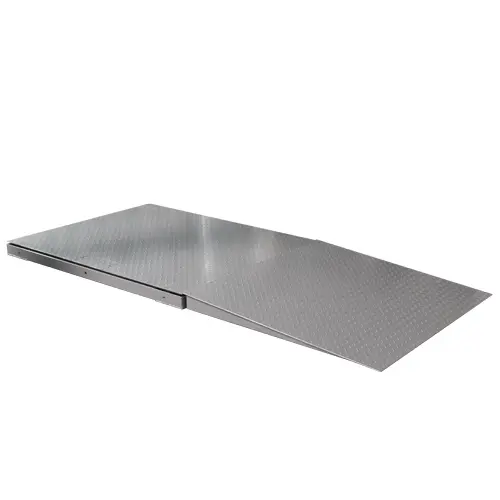

- Drive-on ramps optional
- Stainless steel display with screw connection
- LC display with 25 mm height
- Summing function
- Counting function
- Limit weighing function
- RS-232 Interface (bidirectional)

Specification

Technical Data

Weighing range 3,000 kg
Resolution 1 kg
Tolerance ± 4 kg
Platform size

1200 x 1500 mm

Weight 150 kg
Tare Multipletareover the entire weighing range
Display LCD with 25 mm height

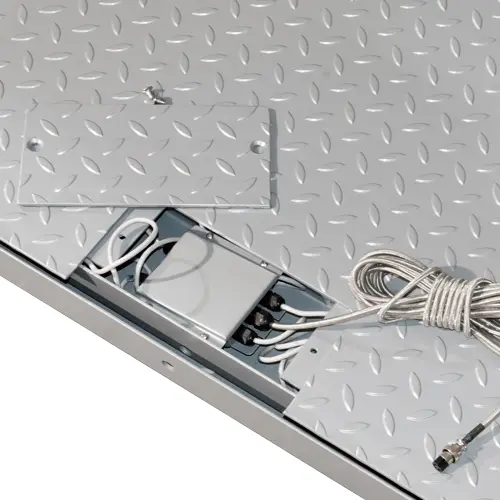

Cable length to display ca. 5 m with plug connection
Interface RS-232 bidirectional
Power supply AC adaptor
Housing Platform: painted steel / Display: stainless Steel
Environmental conditions 0 ... +40 °C / 10 ... 80 % RH

Delivery Scope

Scope of delivery
1 x Floor Scale PCE-EP 3000F1, 1 x Display, 1 x Frame protection, 1 x Power supply and manual
