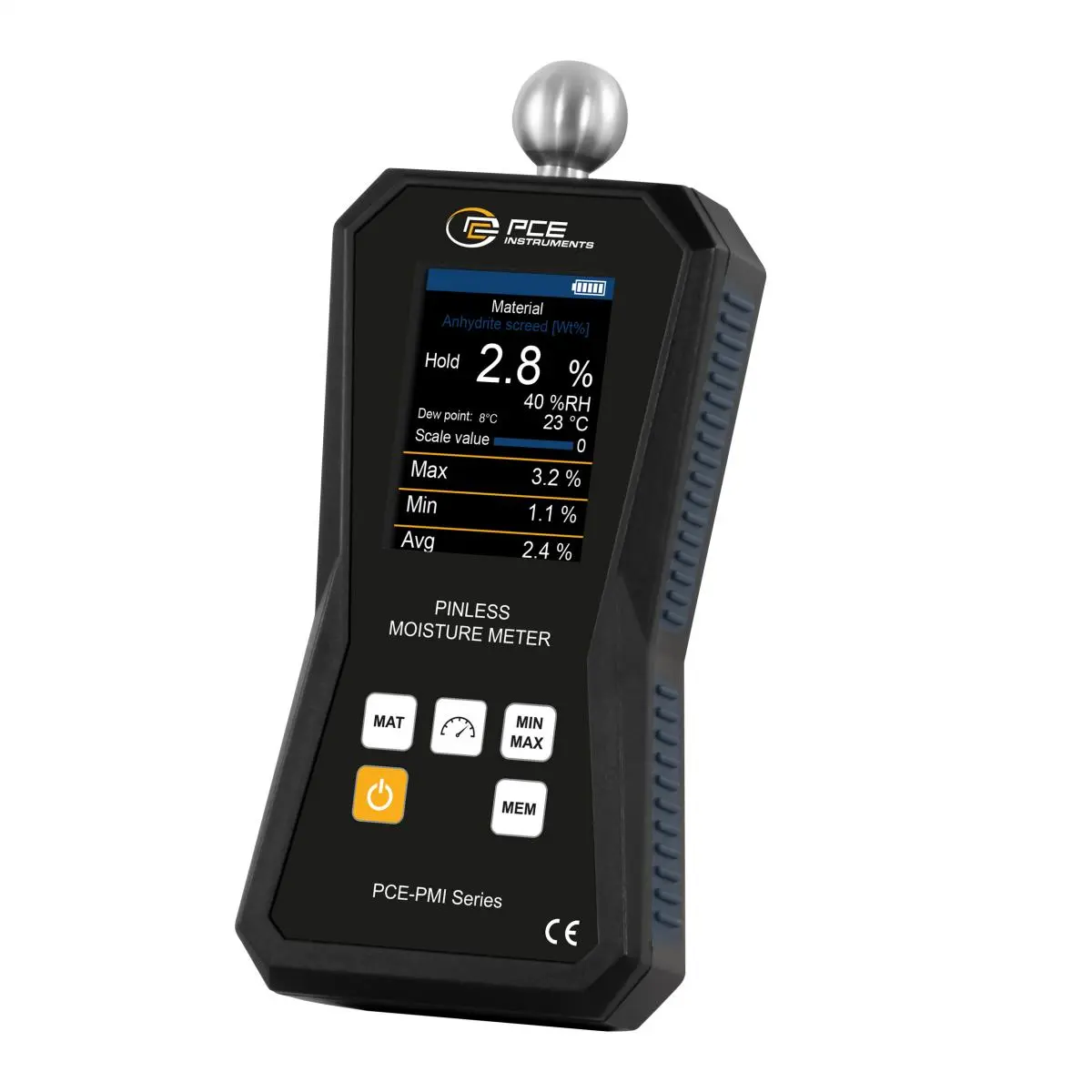

The Wood Moisture Meter is a versatile measuring instrument for non-destructive moisture detection in various building materials and types of wood. The Wood Moisture Meter can be used to precisely determine moisture values in screed, concrete, plaster, hardwood and softwood. In addition, the Wood Moisture Meter measures the ambient temperature, relative humidity and dew point, thus providing a comprehensive climate analysis for construction and renovation projects.

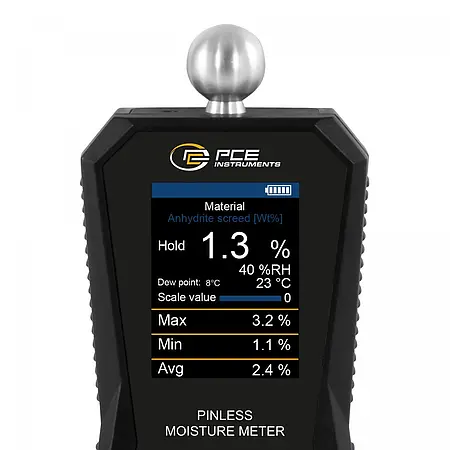

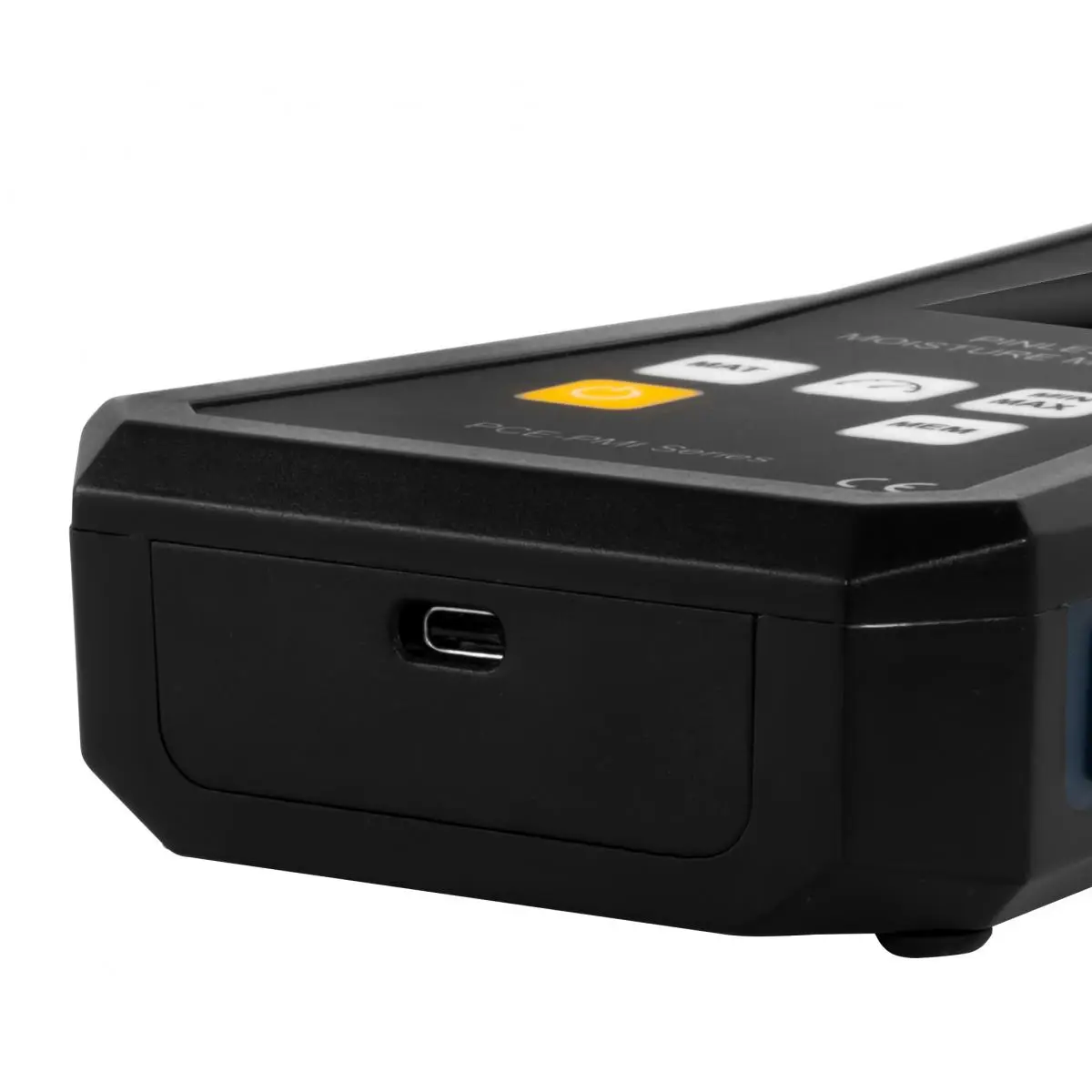

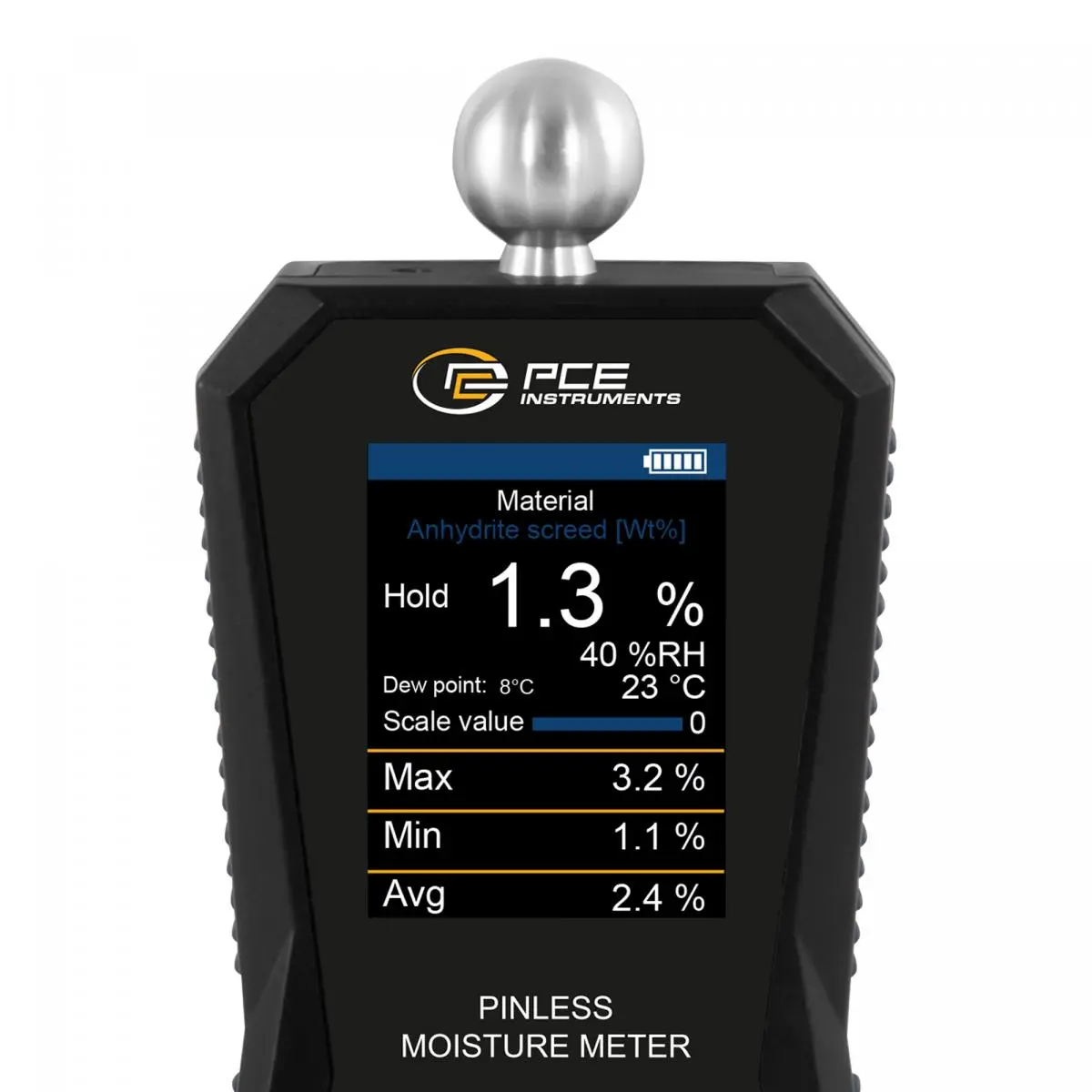

The 2.8-inch TFT color display ensures a clear presentation of all measured values. The Wood Moisture Meter has an internal memory with a capacity of 32 GB, which can store up to 10 million measurement points. Data can be easily read out and the device charged via the USB-C interface. The menu navigation is multilingual and allows for convenient operation. Statistical functions, hold mode and a data logger support professional documentation and evaluation of the measurements. The Wood Moisture Meter is ideal for site managers, surveyors, craftsmen and anyone who needs precise moisture and climate measurements on construction sites, in building diagnostics or in woodworking.
| Relative humidity | |
| Measurement range up to | 0 ... 100 % RH |
| Resolution | 1 % RH |
| Accuracy | 3% r.F. |
| Dew point | |
| Measurement range up to | -33 ... +65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| Humidity | |
| Material | Anhydrite screed (% by weight) |
| Measurement range up to | 0 ... 3,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Anhydrite screed (CM%) |
| Measurement range up to | 0 ... 1,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (% by weight) |
| Measurement range up to | 0 ... 4,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (CM%) |
| Measurement range up to | 0 ... 4 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Concrete |
| Measurement range up to | 0 ... 6 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Gypsum screed |
| Measurement range up to | 0 ... 10 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Hardwood |
| Measurement range up to | 0 ... 37 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Softwood |
| Measurement range up to | 0 ... 51 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Relative Scale |
| Measurement range up to | 0 ... 99,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Temperature | |
| Measurement range up to | 0 ... 65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| General technical data | |
| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Interface | USB-C |
| Operating time | 18 h |
| Menu language | English (GB), English |
| Protection class (device) | IP52 |
| Power supply | 5 V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
| Capacity | 2500 mAh |
| Operating conditions | -20 ... 60 °C , 35 ... 85 % RH |
| Storage conditions | -20 ... 45 °C , 35 ... 85 % RH |
| Dimensions ( L x W x H ) | 190 x 85 x 32 mm |
| Weight | 263 g |
