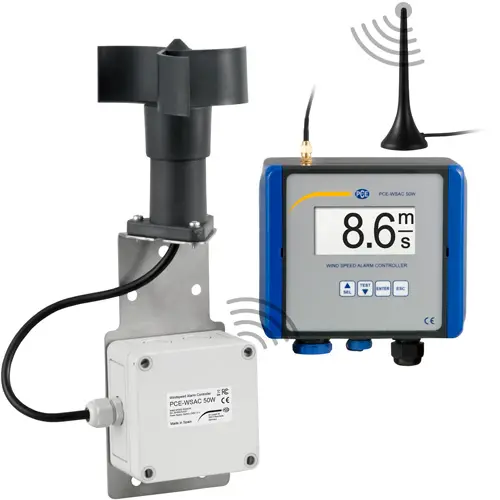

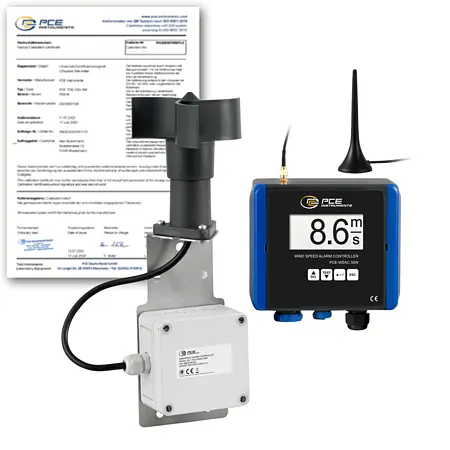

Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50W 24-ICA

Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50W 24-ICA [zoom]
Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50W 24-ICA

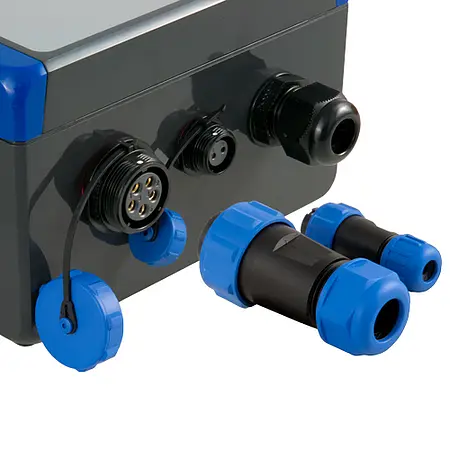

Wind Speed Alarm / Wind Alarm Controller Connections

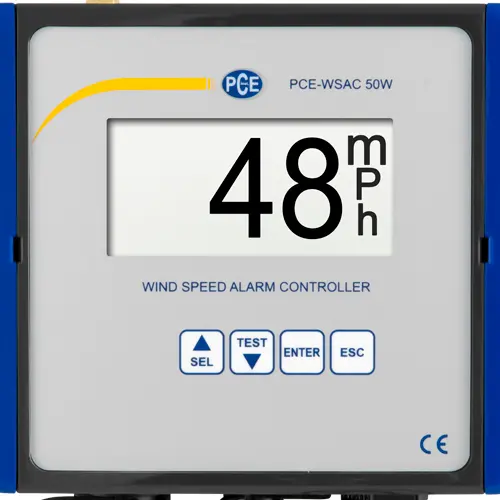

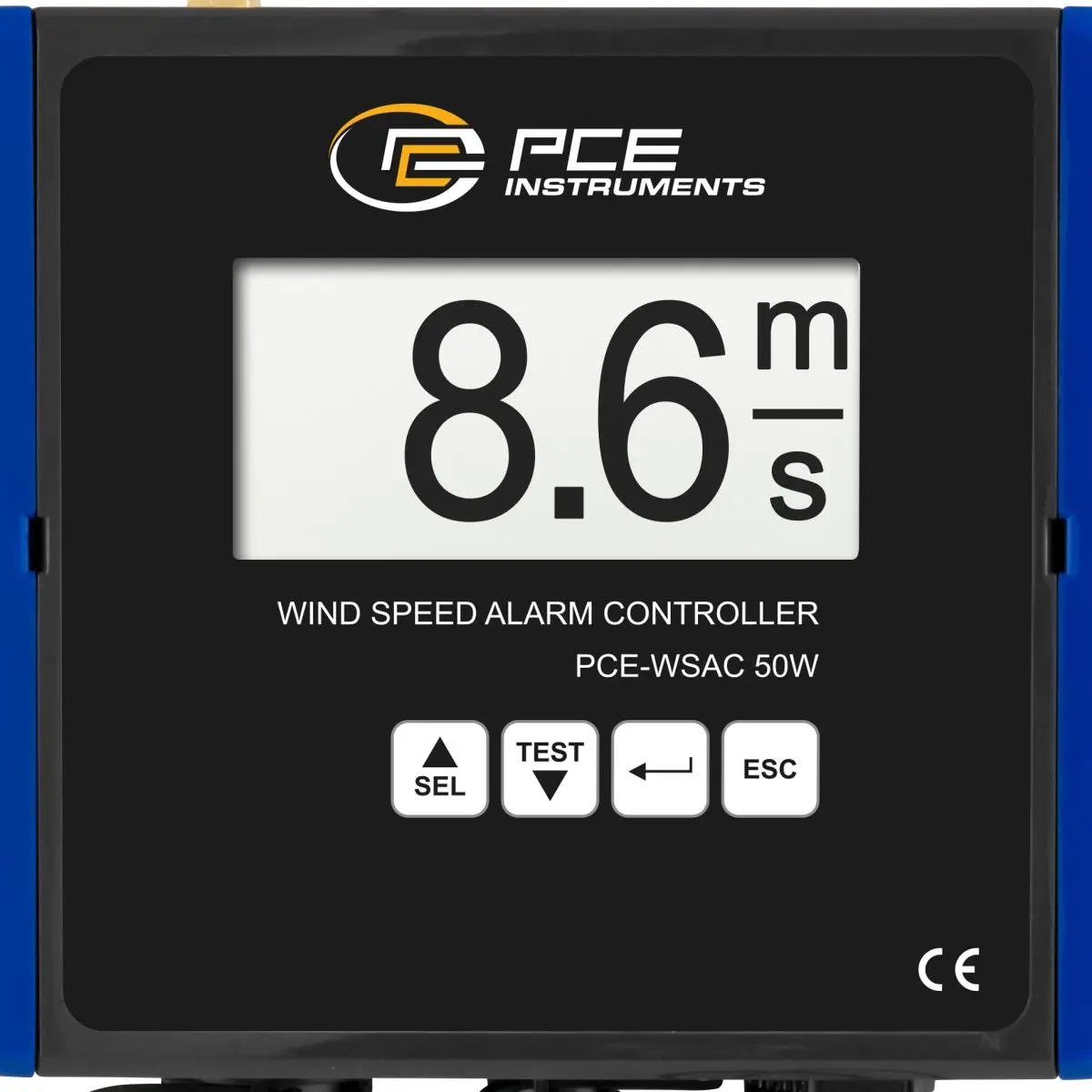

Wind Speed Alarm / Wind Alarm Controller Display

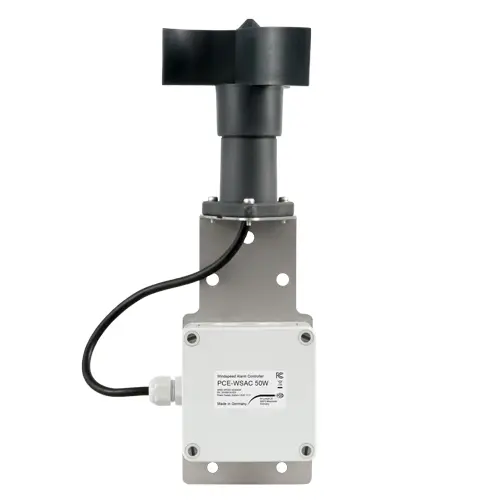

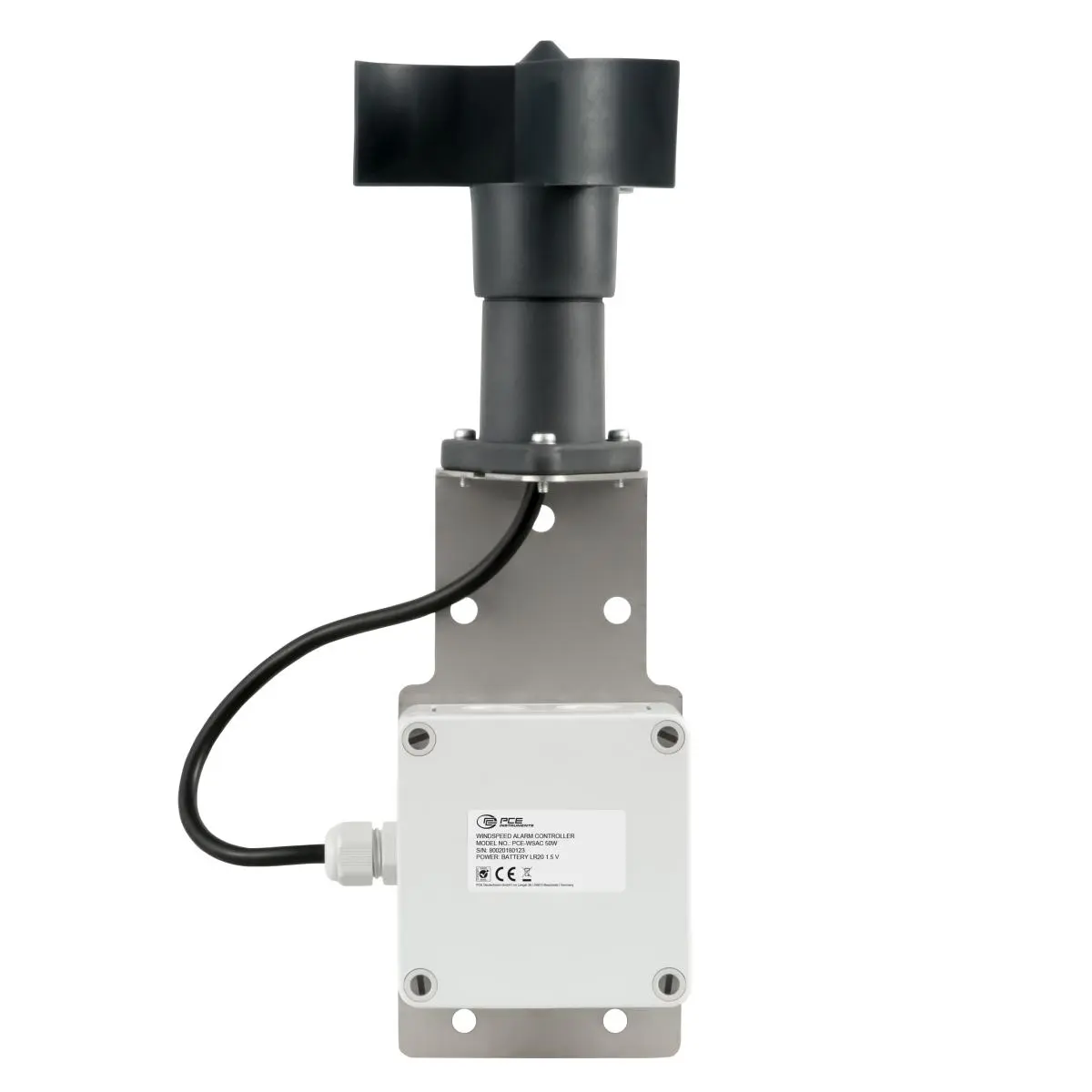

Wind Speed Alarm / Wind Alarm Controller Sensor

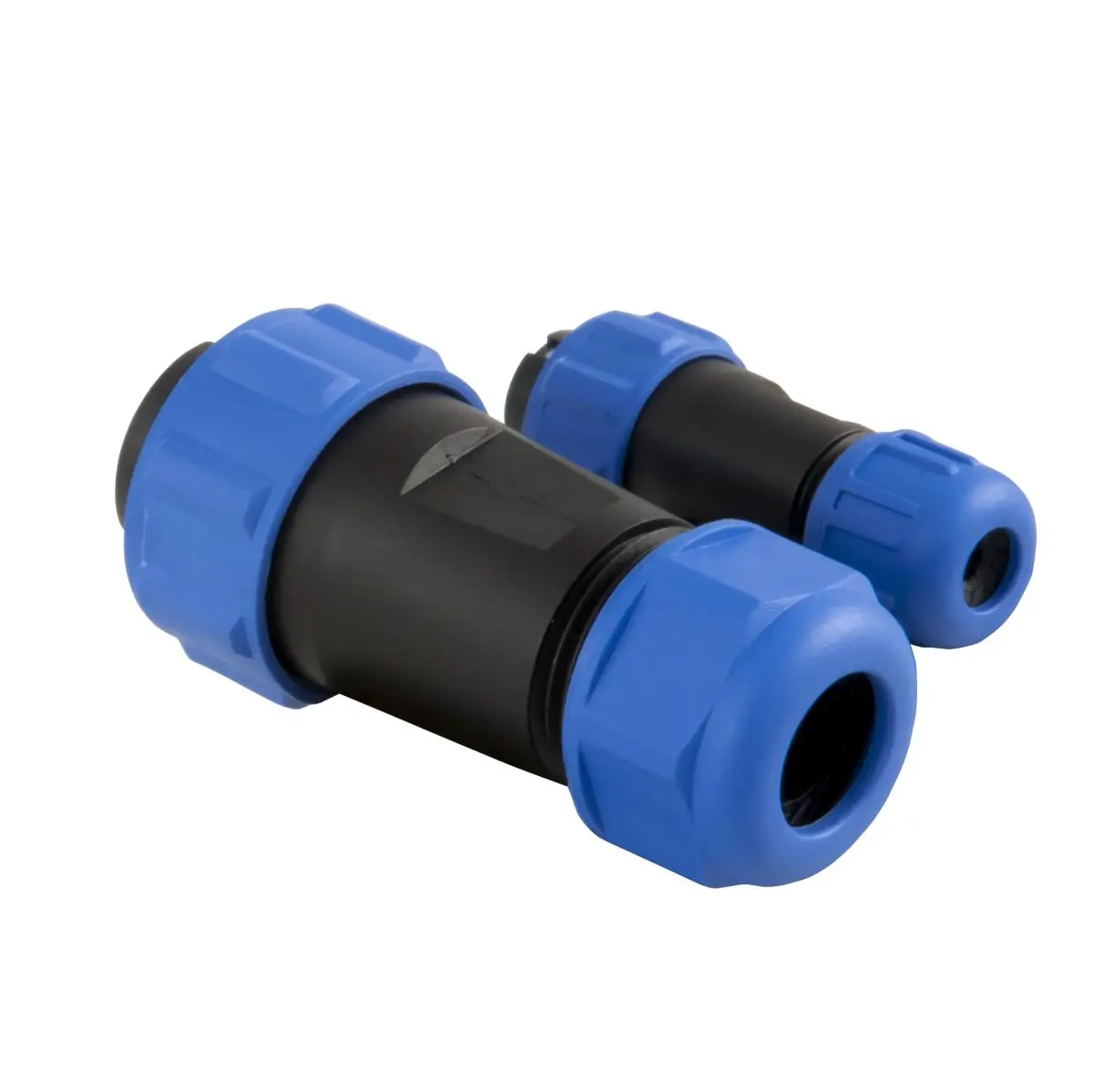

Wind Speed Alarm / Wind Alarm Controller Adaptor

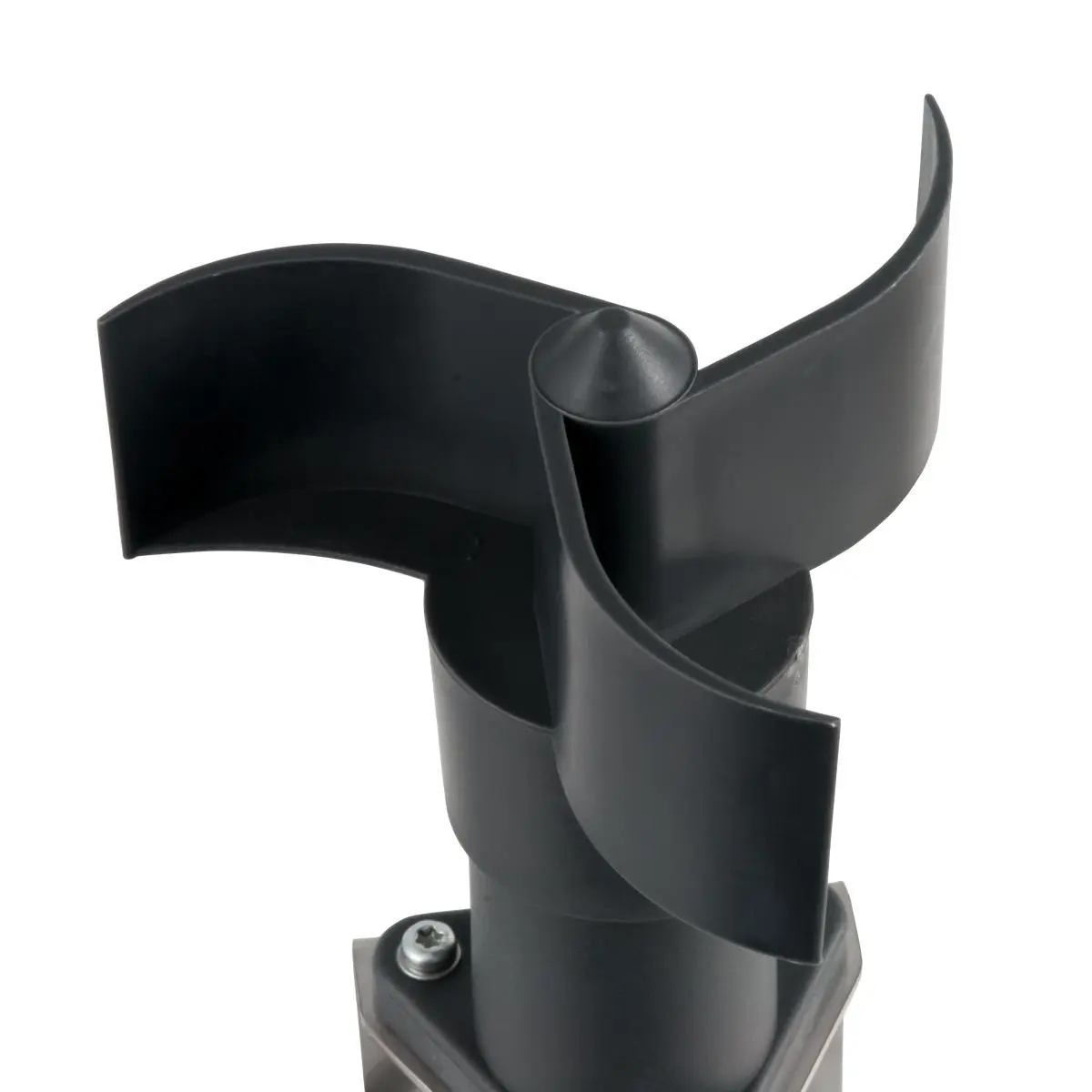

Wind Speed Alarm / Wind Alarm Controller Sensor

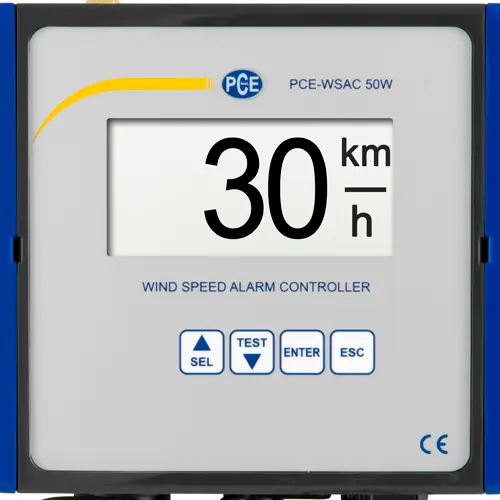

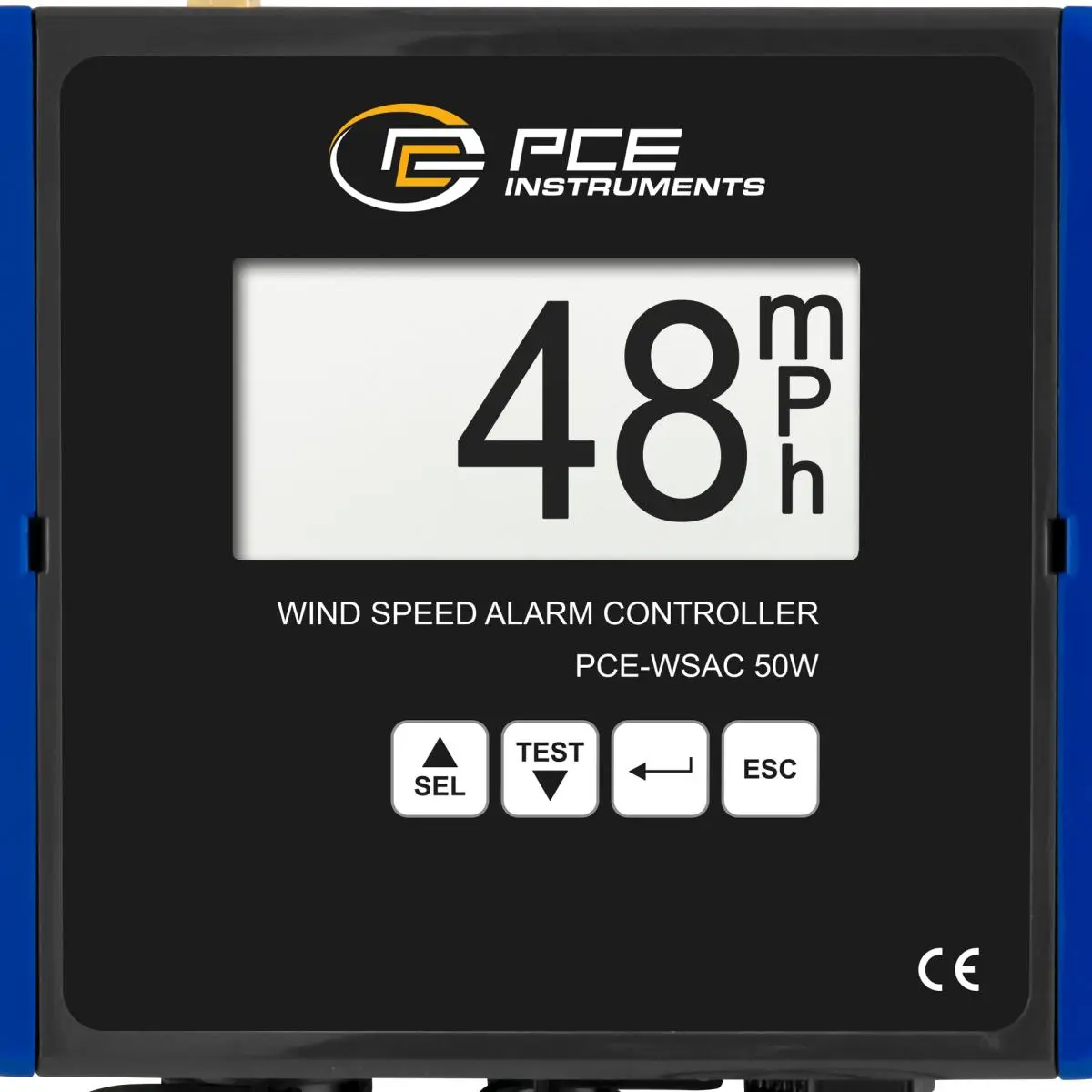

Wind Speed Alarm / Wind Alarm Controller Display
Wind Speed Alarm / Wind Alarm Controller Sensor

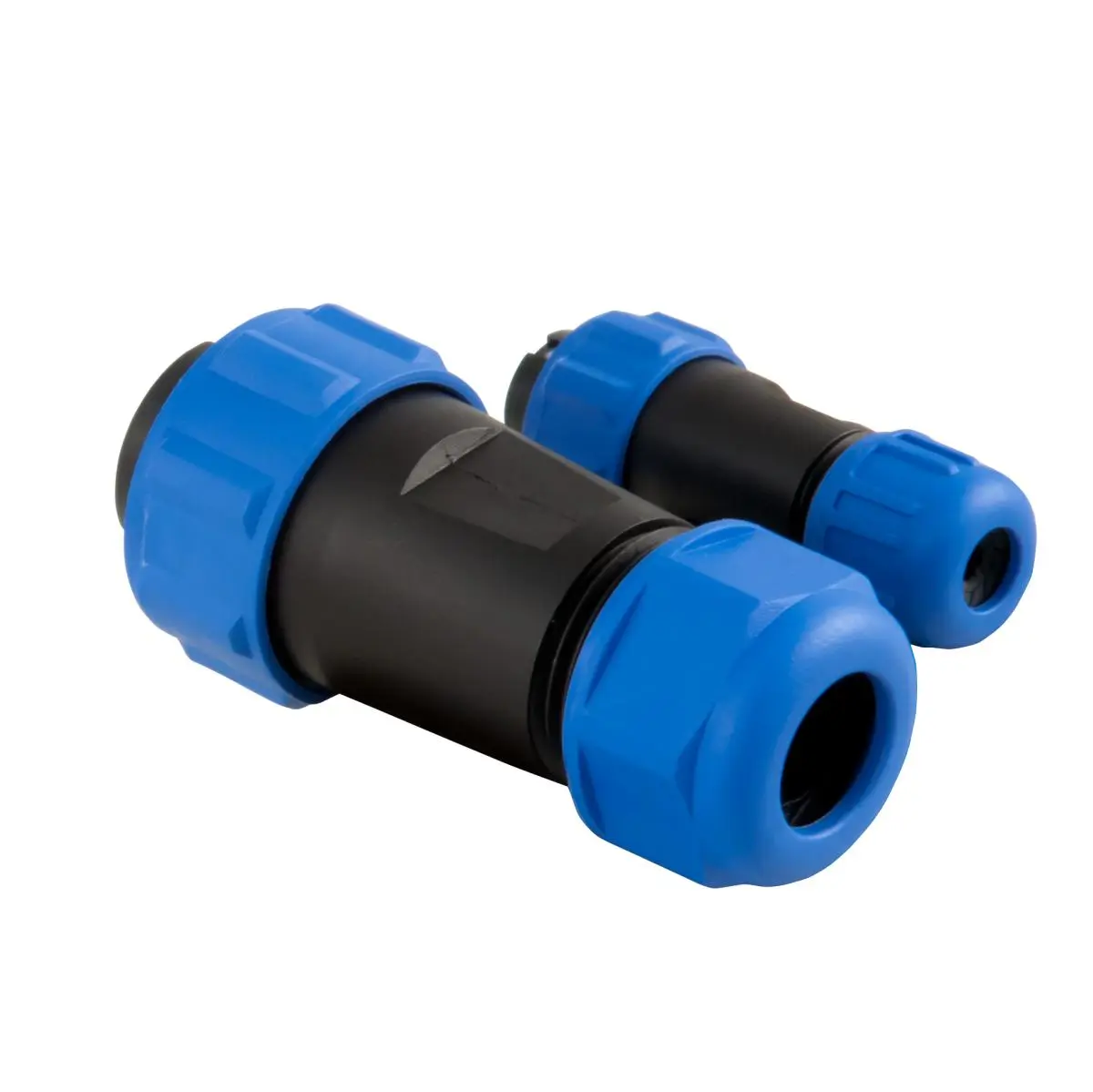

Wind Speed Alarm / Wind Alarm Controller Adaptor

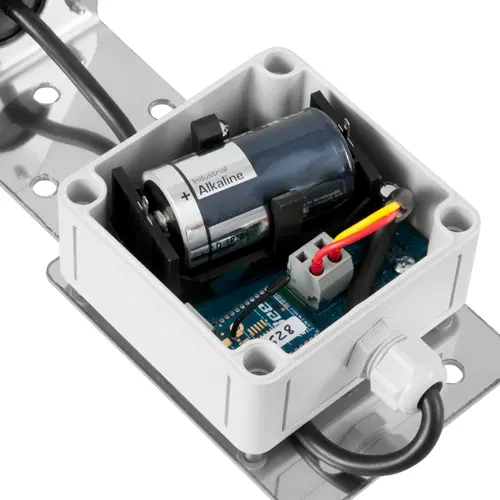

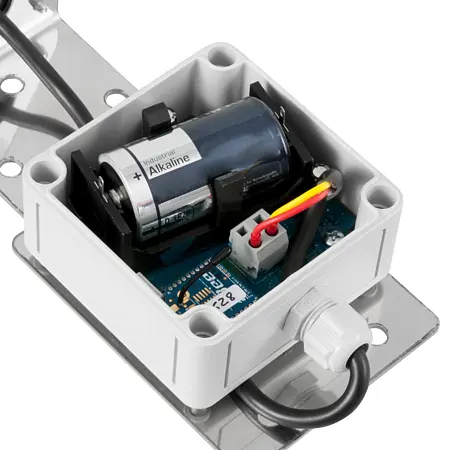

Wind Speed Alarm / Wind Alarm Controller Battery compartment

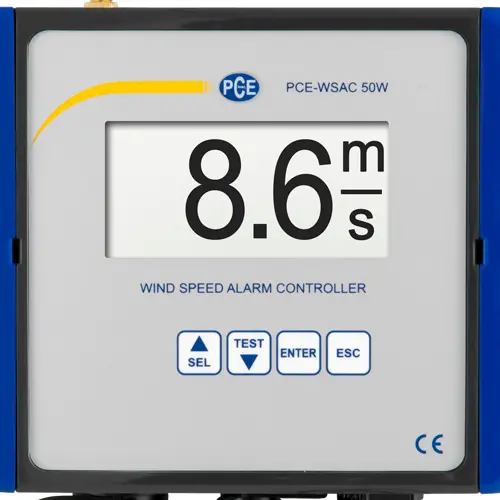

Wind Speed Alarm / Wind Alarm Controller Display

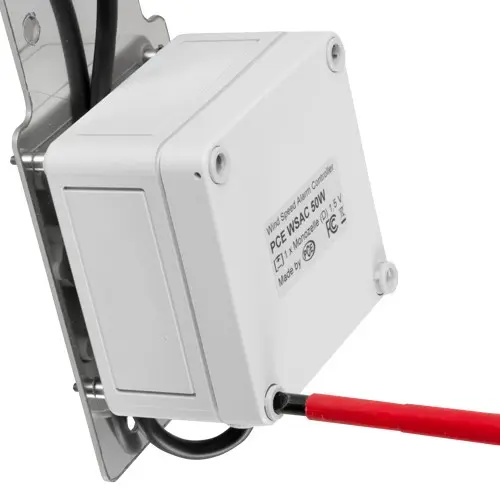

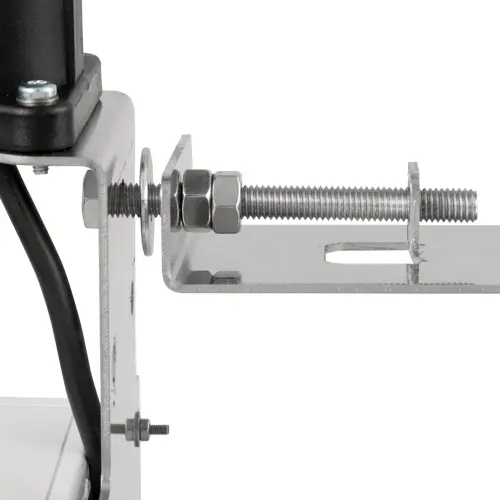

Wind Speed Alarm / Wind Alarm Controller Bracket

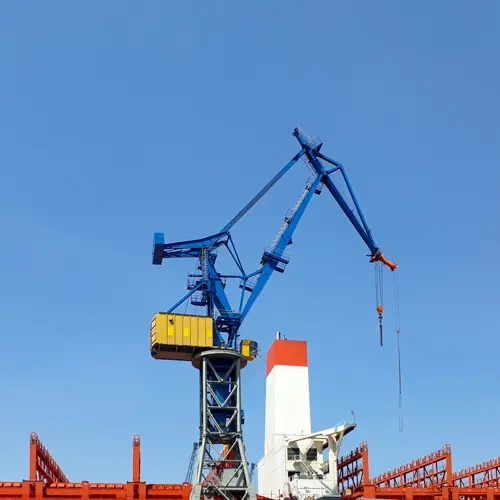

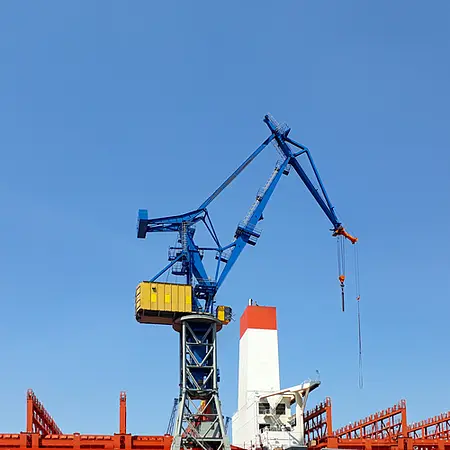

Wind Speed Alarm / Wind Alarm Controller Application picture

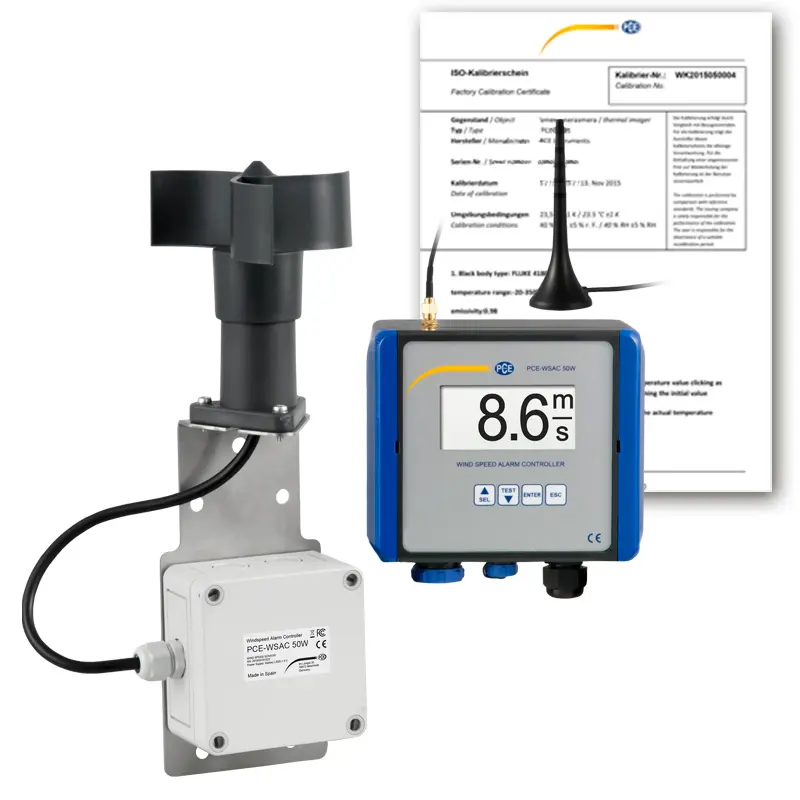

Wind Speed Alarm PCE-WSAC 50W 24-ICA incl. ISO Calibration Certificate

Order no.: PCE-WSAC 50W 24-ICA
GTIN (EAN): 4250348727138
£ 1,424.00
£ 1,708.80
price ex. (VAT / delivery)
:
4250348727138
PCE-WSAC 50W 24-ICA
Delivery time:5-7 working days

Description

 PCE-WSAC 50W 24-ICA Wind speed alarm incl. ISO calibration certificate
Radio Wind Warning System / Wind Monitoring on Construction Cranes / 4 ... 20-mA analog output / Power supply 110 ... 230V AC or +24V DC

The wind speed alarm PCE-WSAC 50W is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The wind speed alarm  PCE-WSAC 50W is equipped with alarm relay for a pre-alarm or main alarm.

Due to the high measuring range of up to 50 m / s of the wind speed alarm , stormy gusts can also be monitored. The radio range of the wind speed alarm  is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind alarm PCE-WSAC 50W in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.

Highlights

- Robust plastic housing
- Units: km / h, mph, m / s
- 4 ... 20-mA analog output
- 128 x 64 pixel LC display
- Alarm relay
- Measuring range up to 180 km / h
- Durable stainless steel ball bearings
- Ambient temperature -20 ... 70°C / -4 ... 158°F
- Radio transmission
- incl. ISO-Calibration Certificate

Specification

Speed
Measuring range  4 ... 180 km/h
Resolution  1 km/h
Accuracy  ±1 km/h within the range 4 ... 15 km/h, ±3 % within the range 16 ... 180 km/h

Speed
Measuring range  1,11 ... 50 m/s
Resolution  0.1 m/s
Accuracy  0.28 m/s in the range 1.11 ... 4.17 m/s, ±3 % in the range 4.44 ... 50 m/s

Sensor
Temperature range  -20 ... 70 °C
Housing  PA + FG
Additional description  Energy consumption: approx. 0.3 W at 1.5 V DC power supply
Protection class  IP65
Dimension  L 145 x Ø 128 mm

General technical data
Inputs  4 ... 20 mA, Pulse, Radio IEEE 802.15.4 ISM 2.4 GHz
Outputs  max. 250 V AC, 8 A, 4 ... 20 mA
Cable length  3 m
Units  m/s, km/h, mph
Display type  LCD
Display resolution  128 x 64 pixels
Housing  PC (polycarbonate)
Sensor supply  Battery monocell D 1.5 V DC
max. input impedance  500 Ω
Protection class (device)  IP65
Power supply  Display: 24 V DC
(Rechargeable) battery  1 x 1,5 V D Mono , Alkali-manganese
Capacity  5478 mAh
Performance  8,217 Wh
Operating conditions  -20 ... 70 °C , 0 ... 95 % RH
Storage conditions  -35 ... 70 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  150 x 160 x 93 mm
Weight  570 g
Other weights  Sensor 680 g (with standard bracket), 900 g (with self-levelling bracket)

Delivery Scope

1 x Display of Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50W 24-ICA
1 x Wind sensor of the Wind Speed Alarm / Wind Alarm Controller
1 x Self-leveling additional bracket

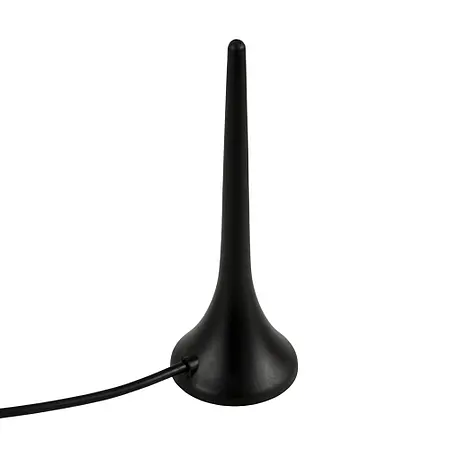

1 x Radio antenna
1 x Battery Monocell D 1.5V DC
1 x User manual
1 x ISO-Calibration Certificate
