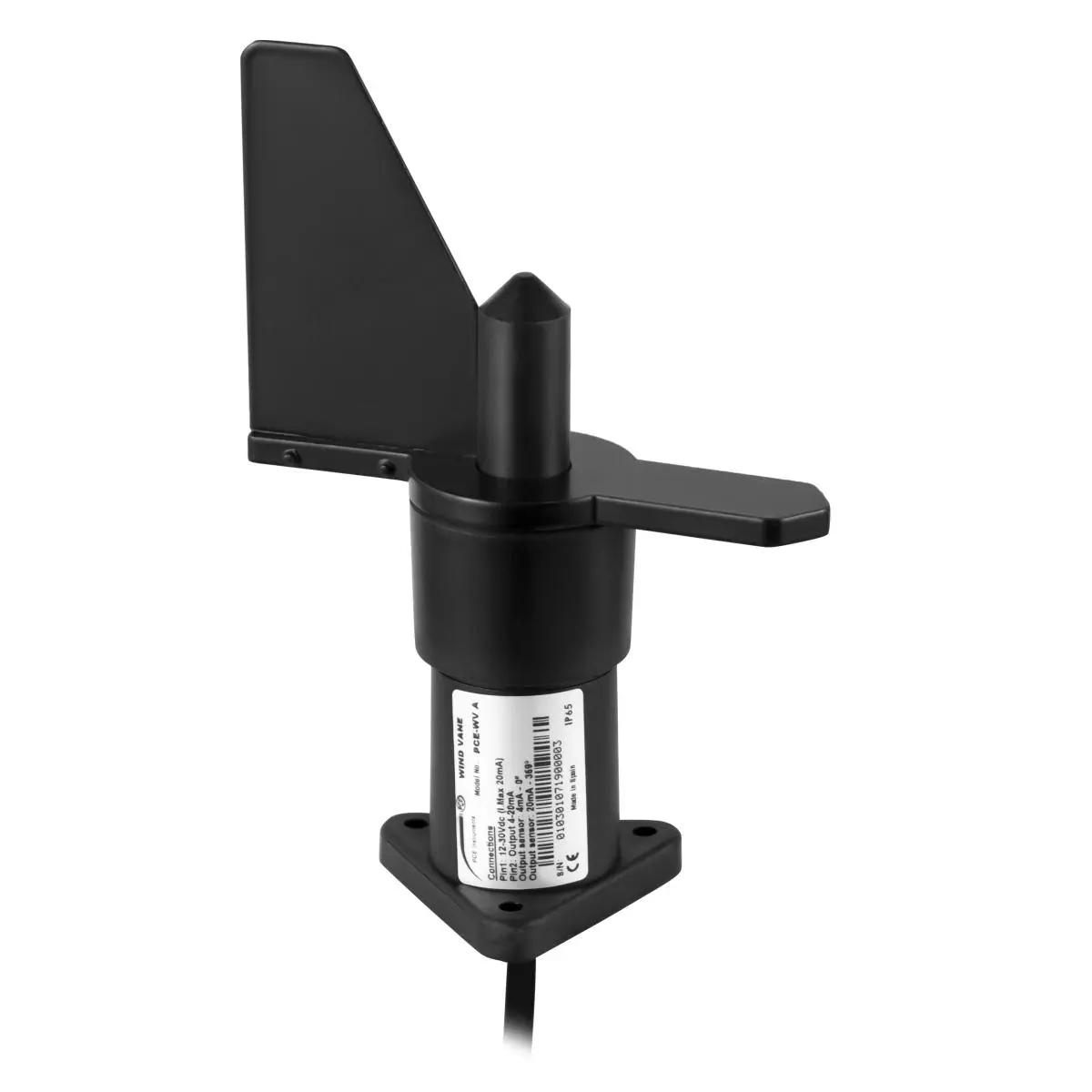

Wind Measurement Device PCE-WV A

Order no.: PCE-WV A
£ 142.00
£ 170.40
4250348722416
PCE-WV A
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Robust Wind Measurement Device for permanent installation / 4 ... 20 mA output /
for wind warning systems, building services and building automation

The Wind Measurement Device was developed to measure the wind direction in the industrial environment. This Wind Measurement Device can be connected to data loggers, process control systems, displays. A 4 ... 20 mA signal is available as an output signal on the Wind Measurement Device. The Wind Measurement Device has no dead center in the north and measures the wind direction from 0 ... 360 °. In order to protect the Wind Measurement Device from external weather influences, it is protected according to IP65.

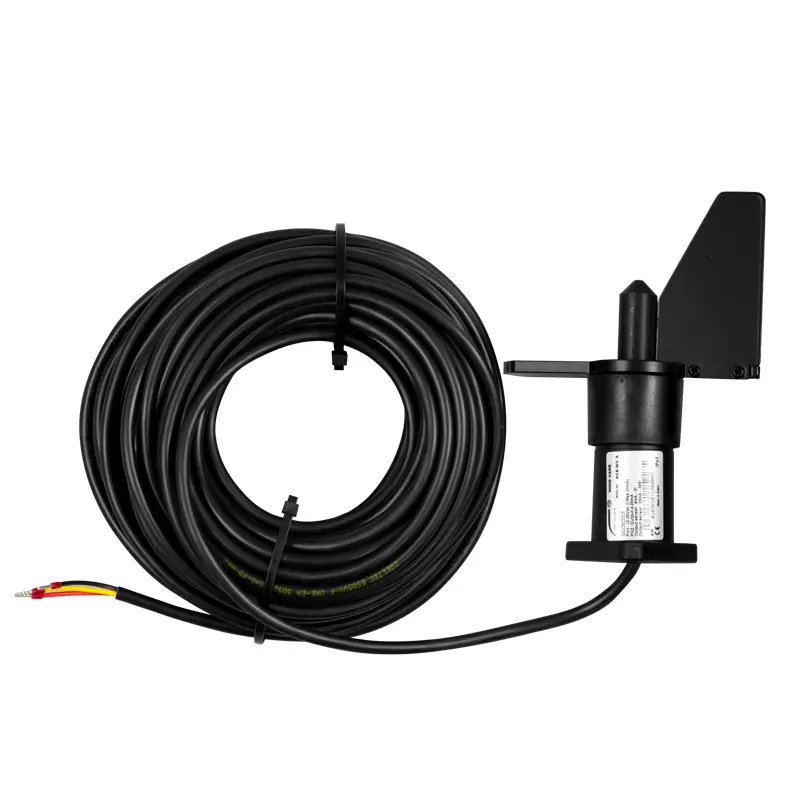

In order to connect the Wind Measurement Device to an evaluation, a 65ft, 20 m cable is installed on the wind direction sensor. The Wind Measurement Device can be used for irrigation control, automation in greenhouses, on solar trackers, cable cars in ski areas, cranes, wind turbines, weather stations and wherever the wind or wind direction must be observed precisely.

- Robust PA plastic housing
- IP 65 protection
- 4 ... 20 mA output
- Long lifetime
- 0 ... 360 ° measuring range
- Measurement from 2.62 ft/s, 0.8 m / s

Measuring range 0 ... 360 °
Measurement from ≤2.62 ft/s, 0.8 m / s
Output 4 ... 20 mA
Accuracy ± 3 °
Resolution ± 25.5 °
Maximum wind speed    123 mph, 180 ft/s, 55 m / s
Operating temperature range  -4 ... +176 ° F, -20 ... +80 ° C at ≤95% rel. humidity

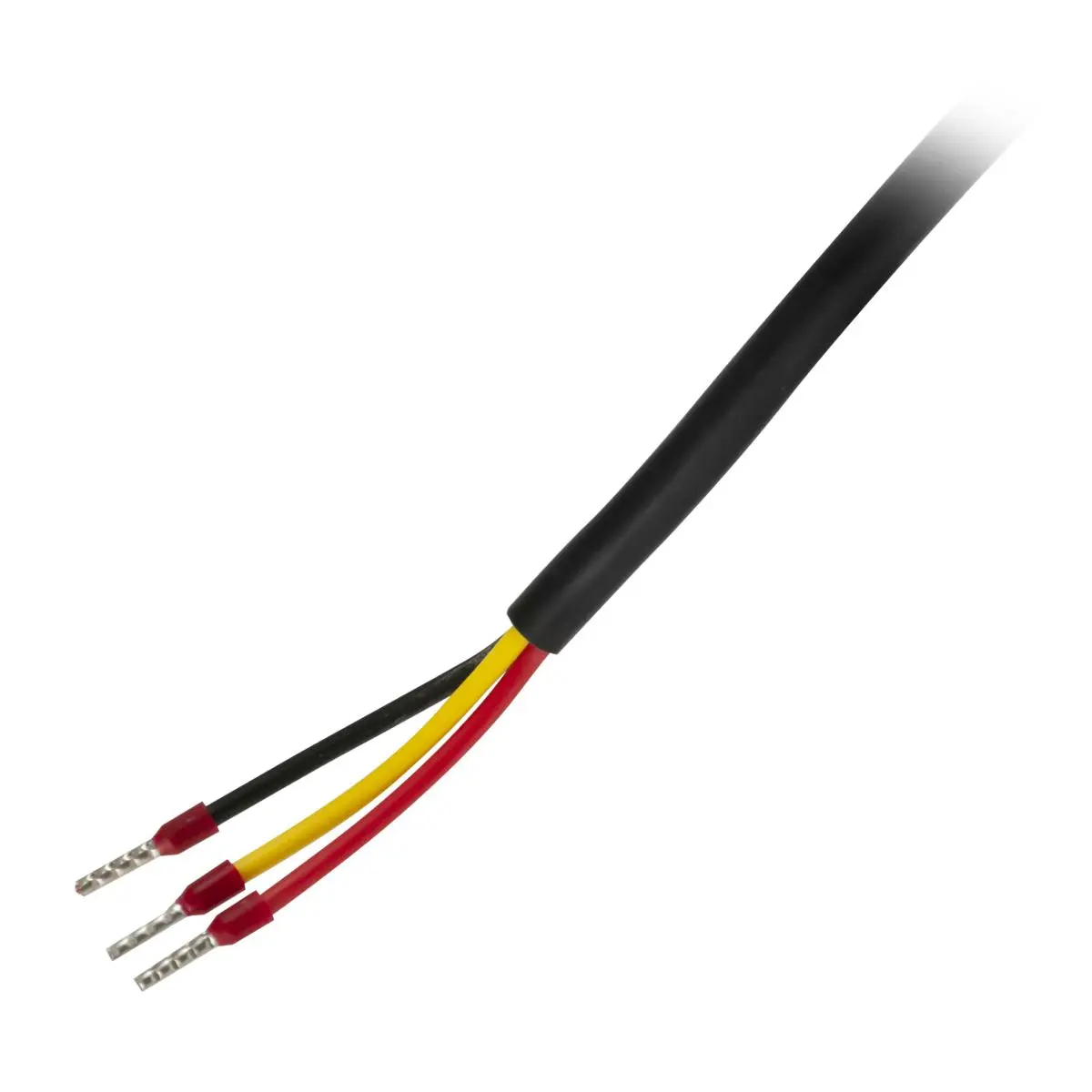

Electrical connection 65.6 ft, 20 m connection cable
Operating voltage 12 ... 30 V DC
Protection class IP65

1 x Wind Measurement Device PCE-WV A
1 x instruction manual
