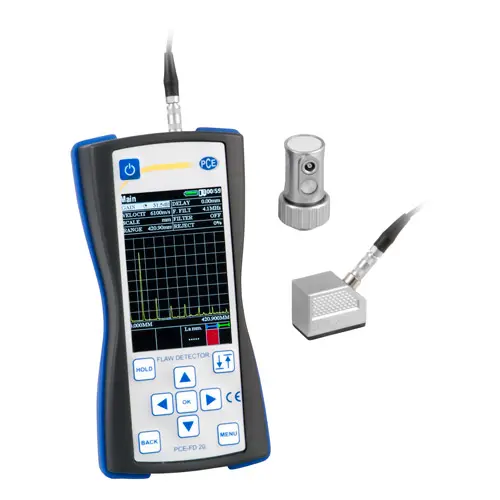

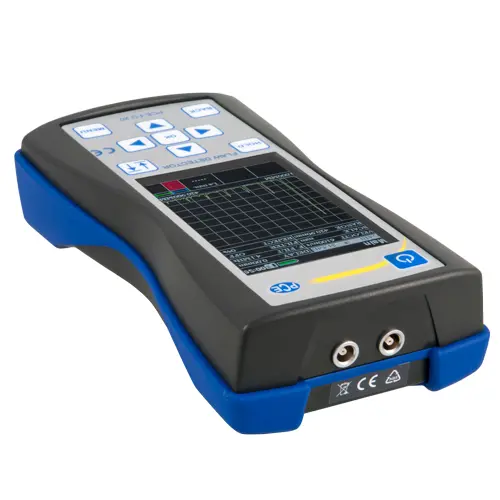

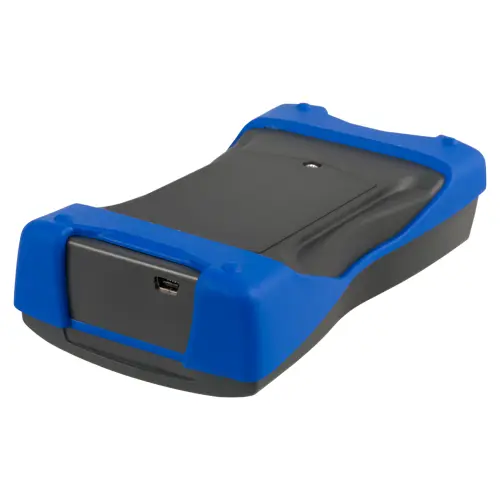

Technical specifications |
Operating frequency range | 1 ... 10 MHz |
Measure time interval range (scan duration) | 6 ... 1000 microseconds (µs) |
Sound velocity range | 1000 ... 9999 m/s |
Deviation of measurement of time intervals | Not exceed ± 0.025 µs |
Max. deviation of amplitude of signals at receiver input in 0 ... 110 dB range | Not exceed ± 0.5 dB |
Testing gain region | 125 dB |
Averaging over the quantity of starts | 1 ... 16 |
Range of time-variable gain (TVG) / Number of control points TVG | 40 dB / 15 |
Duration of excitation pulse to load | 0 ... 0.5 µs |
Amplitude of excitation pulse to 50 Ohm load, not less | 100, 200, 300 |
Operating frequency range of receiver at -3 dB | 1 ... 10 MHz |
Deviation of amplitudes of input signals in 10 ... 100% range of screen height | Not more than 1 dB |
Scanning | 1 ... 1000 µs |
Scanning delay | 0 ... 2000 µs |
Measurement range of time intervals | 0 ... 1000 µs |
Prism of probe delay | 0 ... 15 µs |
Automatic signaling of defects (AFS) | Dual-gate |
Setting range of AFS gates | 0 ... 2000 µs |
Adjusting thresholds of AFS gates | 0 ... 100% |
Detection of signals (receiver) | Positive half-wave, radio mode |
Dimensions of device (approx.) | 80 x 162 x 35 mm / 3.14 x 6.37 x 1.37" |
Dimensions display (approx.) | 48 x 74 mm / 1.88 x 2.91" |
Power supply | 100 ... 250 V AC or 3 x 1.5 V AA batteries |
Weight (approx.) | 250 g / 0.55 lb (without batteries) |
Calibration block PCE-USC-V1 for PCE-USC 20, PCE-USC 30, and PCE-FD 20. Distance, beam index, refracted angle, and sensitivity calibration. In accordance with ASTM E164 specifications. Dimensions are 1" thickness.
- Calibration block for training and test
Price excl. VAT &. delivery
2 year Warranty
Calibration block PCE-USC-V2 for PCE-USC 20, PCE-USC 30, and PCE-FD 20. Distance, beam index, refracted angle, and sensitivity calibration. Contains a 1.0" radius opposite a 2.0" radius, a 5/64" diameter x 0.750" deep flat-bottom hole. In accordance with ASTM E164 specifications. Dimensions are 1" thickness.
- Calibration block for training and test
Price excl. VAT &. delivery
2 year Warranty
