Industrial Measurement Products and Solutions

Viscometer / Viscosity Meter

Order no.: BDG 130

Ensure accurate, repeatable viscosity measurements with this flow cup viscometer test stand for use with PCE-125, PCE-127 and PCE-128 series flow cup viscometers. A must-have tool when conducting Ford, ISO or ASTM viscosity tests, this handy viscosity flow cup test stand:


- Affords hands-free viscosity measurement
- Allows for quick and easy height adjustment
- Features a built-in level for added convenience



Manufacturer: PCE Instruments
£ 57.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-125

The PCE-125 series Ford Flow Cup Viscometer uses gravity to measure the flow rate of a liquid. Under ideal conditions, flow rate is proportional to kinematic viscosity. Thus, a Ford cup is used to determine the kinematic viscosity of fluids. The structure of the Flow Cup Viscometer is standardized according to ASTM D1200 (Ford). This Flow Cup Viscometer series features:
- Orifice diameters (Ø inside) of 2.5 mm, 3.4 mm, 4.1 mm, or 5.2 mm / 0.10 in, 0.13 in, 0.16 in, or 0.20 in
- Viscosity ranges of 25 ... 120, 49 ... 220, 70 ... 370 or 215 ... 1,413 cSt / mm²/s
- Flow times of 40 ... 100, 25 ... 105 or 20 ... 105 seconds (s)

Manufacturer: PCE Instruments
£ 107.00

Price excl. VAT &. delivery
2 year Warranty

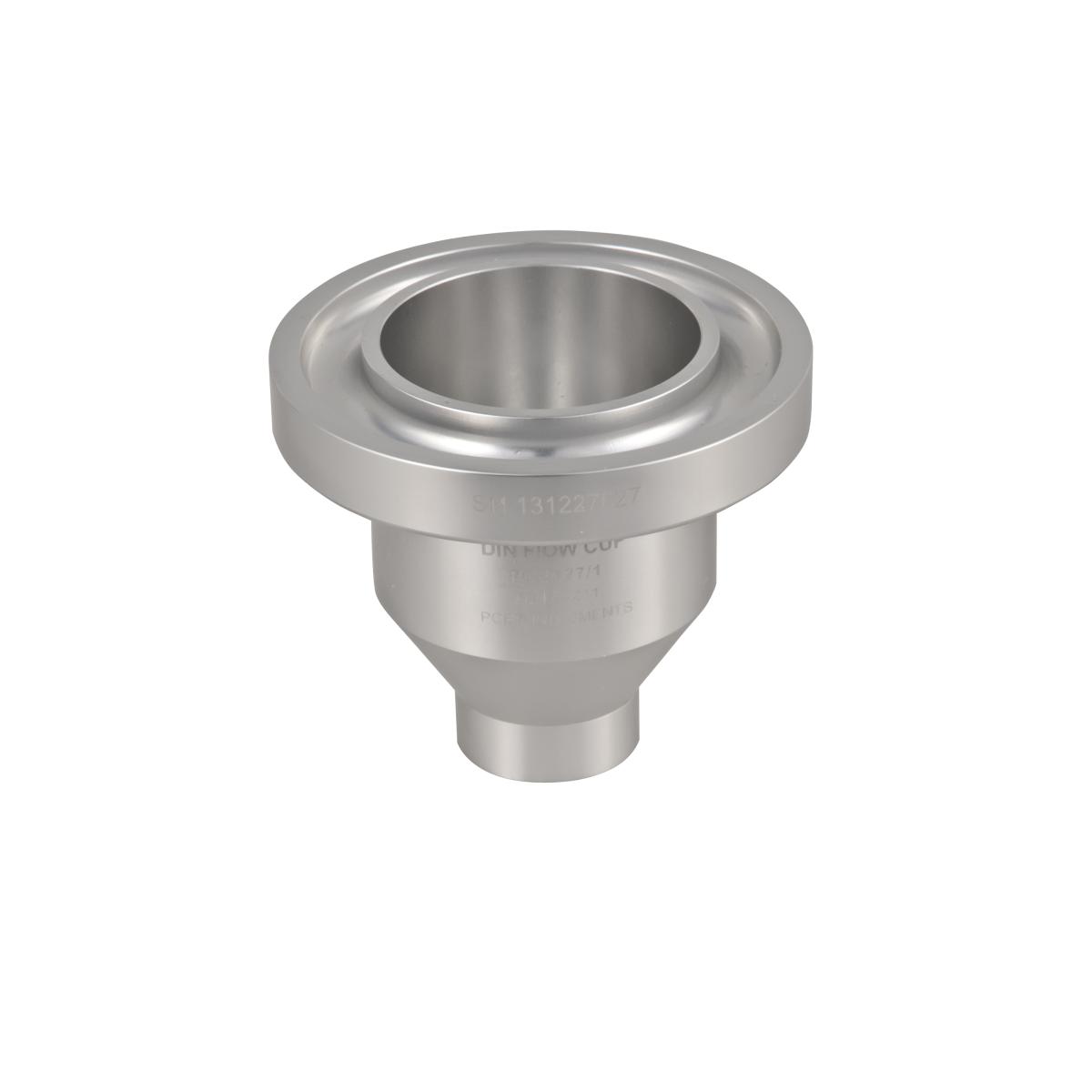

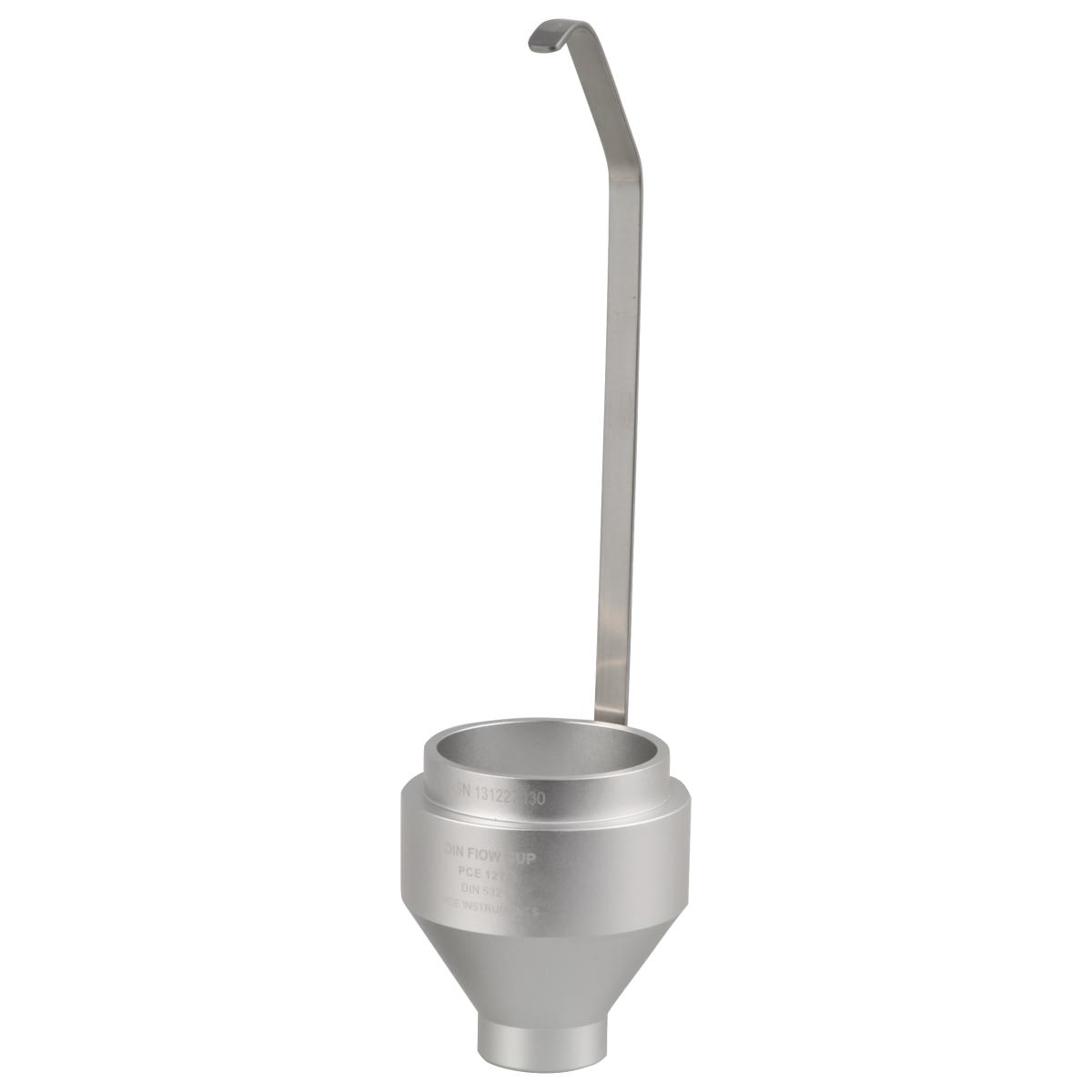

Order no.: PCE-127

The PCE-127 DIN flow cup viscometer or DIN immersion viscosity flow cup series uses gravity to measure the flow rate of a liquid. Under ideal conditions, flow rate is proportional to kinematic viscosity. Thus, a DIN flow cup is used to determine the kinematic viscosity of fluids. The structure of a DIN flow cup is standardized according to DIN 53211. Designed for use with Newtonian and near-Newtonian liquids, this viscosity cup series features:


- Orifice diameter (Ø) of 4 mm
- Viscosity range of 96.2 ... 680 mPa.s / cP
- Flow time of 25 ... 150 seconds

Manufacturer: PCE Instruments
£ 107.00

Price excl. VAT &. delivery
2 year Warranty

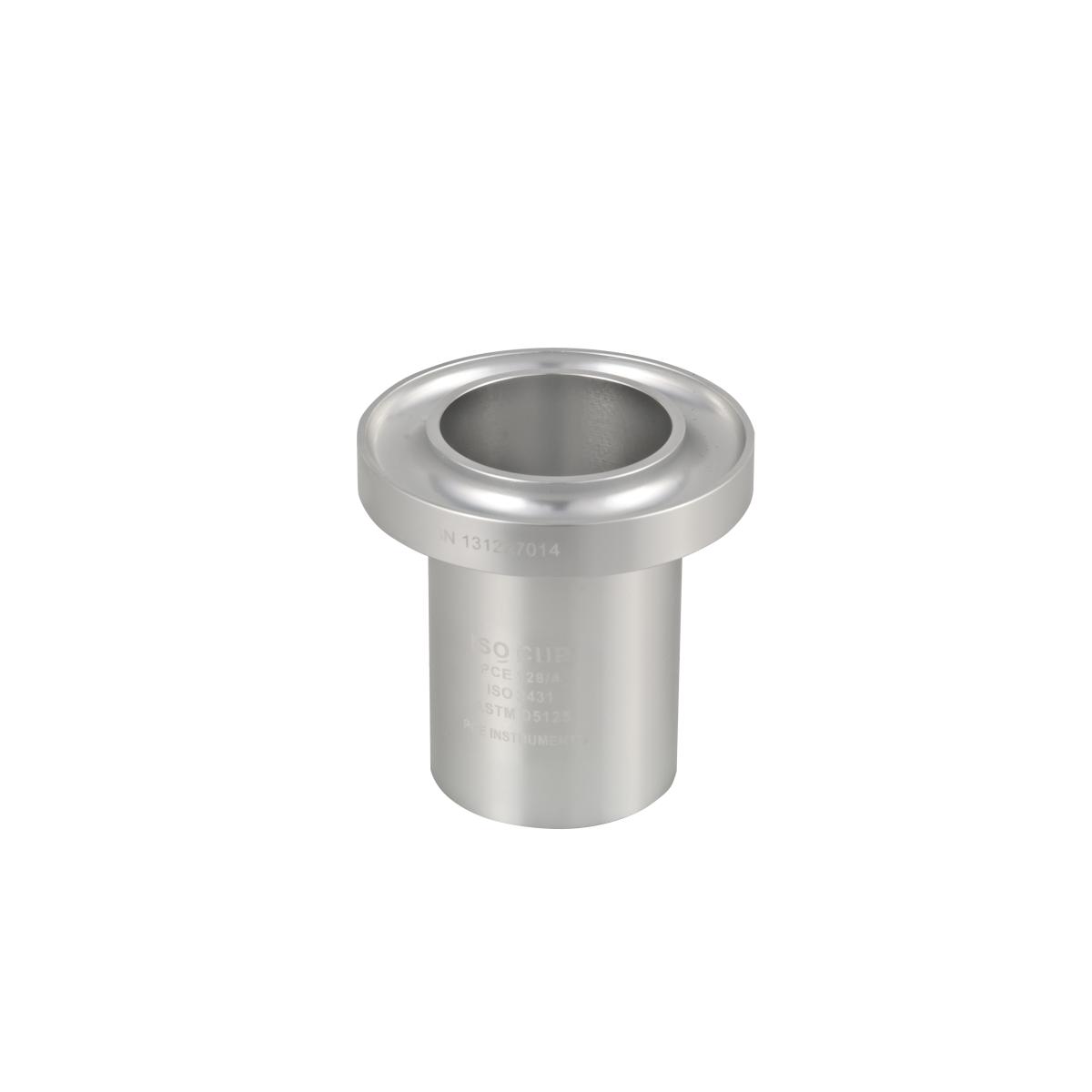

Order no.: PCE-128

The PCE-128 ISO / ASTM viscometer or ISO / ASTM Flow Cup Viscometer uses gravity to measure the flow rate of a liquid. Under ideal conditions, flow rate is proportional to kinematic viscosity. Thus, an ISO / ASTM cup is used to determine the kinematic viscosity of fluids. The structure of an ISO / ASTM Flow Cup Viscometer is standardized according to BS EN ISO 2431 / ASTM D5125. Designed for use with Newtonian and near-Newtonian liquids, this Flow Cup Viscometer series features:
- Orifice diameters (Ø) of 3 mm, 4 mm, 5 mm, 6 mm, or 8 mm / 0.12 in, 0.16 in, 0.20 in, 0.24 in, or 0.31 in
- Viscosity ranges of 7 ... 42, 34 ... 135, 91 ... 326, 188 ... 684 or 600 ... 2,000 cSt / mm²/s
- Flow times of 25 ... 150 or 30 ... 100 seconds (s)

Manufacturer: PCE Instruments
£ 107.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 1

PCE-RVI 1 is an analogue viscometer or dial reading viscometer used in industrial and research applications to measure the viscosity of fluids such as paints, lacquers, inks, pastes, adhesives, plastics, greases and liquid food products. Under identical conditions, test results from an analogue viscometer are as accurate and reproducible as results from a digital viscometer. Thus, the PCE-RVI 1 analogue viscometer offers an affordable solution for viscosity measurement during product and material testing, development, production and quality control.


- Rotational speed: 6, 12, 30, and 60 rpm
- Viscosity range: 10 ... 100,000 mPa.s / cP
- Accuracy: ±5 % full scale (FS) in Newtonian fluids

Manufacturer: PCE Instruments
£ 512.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 6

PCE-RVI 6 is a Krebs viscometer or Stormer viscometer used in industrial and research applications to measure Krebs Unit viscosity according to the ASTM D562, ASTM D1131 and ASTM D856 standards. Featuring a plug-and-play sensor for temperature control to help ensure accurate test results, this Krebs Stormer viscometer displays measurements in Krebs Units (KU), grams (g) and centipoise (cP).


- Rotational speed: 200 rpm
- Viscosity range: 40.2 ... 141.0 KU / 32 ... 1,099 g / 27 ... 5,250 cP (mPa.s)
- Accuracy: ±1.5 % full scale (FS)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 3 VP20

PCE-RVI 3 VP20 is a portable rotational viscometer used in industrial and research applications to measure viscosity according to the Brookfield method. Featuring an ergonomic design and up to 30 hours of battery life during continuous operation, this handheld viscometer is delivered with spindles R2, R3, R4, R5, R6 and R7 and displays measurements in millipascal-second (mPa.s).


- Rotational speed: 20 rpm
- Viscosity range: 200  ... 200,000 mPa.s / cP
- Accuracy: ±2 % reading (RD)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 3 VP60

PCE-RVI 3 VP60 is a portable rotational viscometer used in industrial and research applications to measure viscosity according to the Brookfield method. Featuring an ergonomic design and up to 30 hours of battery life during continuous operation, this handheld viscometer is delivered with spindles R2, R3, R4, R5, R6 and R7 and displays measurements in millipascal-second (mPa.s).


- Rotational speed: 60 rpm
- Viscosity range: 66  ... 66,600 mPa.s / cP
- Accuracy: ±2 % reading (RD)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 4 VP 20

PCE-RVI 4 VP20 is a rotational viscometer used in industrial and research applications to measure viscosity according to the Brookfield method. Featuring a simple, lightweight construction for ease of portability, this digital viscometer can be used in the laboratory or in the field. This viscometer is delivered with spindles R2, R3, R4, R5, R6 and R7 and displays measurements in millipascal-second (mPa.s).


- Rotational speed: 20 rpm
- Viscosity range: 200 ... 200,000 mPa.s / cP
- Accuracy: ±2% full scale (FS)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 4 VP 60

PCE-RVI 4 VP60 is a rotational viscometer used in industrial and research applications to measure viscosity according to the Brookfield method. Featuring a simple, lightweight construction for ease of portability, this digital viscometer can be used in the laboratory or in the field. This viscometer is delivered with spindles R2, R3, R4, R5, R6 and R7 and displays measurements in millipascal-second (mPa.s).


- Rotational speed: 60 rpm
- Viscosity range: 66 ... 66,600 mPa.s / cP
- Accuracy: ±2% full scale (FS)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 7

PCE-RVI 7 is a rotational viscometer used in industrial and research applications to measure viscosity according to the Brookfield method. Featuring 3 different viscosity measuring ranges, this viscometer is delivered with spindles R1, R2 and R3 and displays measurements in millipascal-second (mPa.s) and decipascal-second (dPa.s).


- Rotational speed: 62.5 rpm
- Viscosity range*: R3 = 30 ... 13,000 mPa.s / 0.3 ... 13 dPa.s; R1 = 300 ... 15,000
  mPa.s / 3 ... 150 dPa.s; R2 = 10,000 - 400,000 ... mPa.s / 100 ... 4000 dPa.s
- Accuracy: ±2 % full scale (FS)

* millipascal-second (mPa.s) = centipoise (cP)



Manufacturer: PCE Instruments
£ 1,372.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 5

PCE-RVI 5 is a Krebs viscometer or Stormer viscometer used in industrial and research applications to measure Krebs Unit viscosity according to the ASTM D562, ASTM D1131 and ASTM D856 standards. Featuring a unique automatic test mode for reliable, consistently repeatable and reproducible test results, this Krebs Stormer viscometer displays measurements in Krebs Units (KU), grams (g) and centipoise (cP). Used in the testing, development, manufacture and quality control of paints, coatings, lacquers, varnishes, adhesives, pastes, and liquid inks.


- Rotational speed: 200 rpm
- Viscosity range: 40.2 ... 141.0 KU / 32 ... 1,099 g / 27 ... 5,274 cP (mPa.s)
- Accuracy: ±1 % full scale (FS)



Manufacturer: PCE Instruments
£ 1,936.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 2 V1L

PCE-RVI 2 V1L is a rotational viscometer used in industrial and research applications to measure viscosity according to BS, ISO and ASTM standards. Featuring a plug-and-play sensor for temperature control to help ensure accurate test results, this digital viscometer is delivered with spindles L1, L2, L3 and L4 and displays measurements in millipascal-second (mPa.s) or centipoise (cP), depending on the rotational speed and the type of spindle used.


- Rotational speed: 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60,
  100, 200 rpm

- Viscosity range: 3  ... 2,000,000 mPa.s / cP
- Accuracy: ±1 % full scale (FS)



Manufacturer: PCE Instruments
£ 2,056.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RVI 2 V1R

PCE-RVI 2 V1R is a rotational viscometer used in industrial and research applications to measure viscosity according to BS, ISO and ASTM standards. Featuring a plug-and-play sensor for temperature control to help ensure accurate test results, this digital viscometer is delivered with spindles R2, R3, R4, R5, R6 and R7 and displays measurements in millipascal-second (mPa.s) or centipoise (cP), depending on the rotational speed and the type of spindle used.


- Rotational speed: 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60,
  100, 200 rpm

- Viscosity range: 20  ... 13,000,000 mPa.s / cP
- Accuracy: ±1 % full scale (FS)



Manufacturer: PCE Instruments
£ 2,056.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0024

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc.


- Material: phenolic resin
- Following DIN 53 211
- Different Flow nozzles available



£ 57.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0064

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc. The most highly accurate results are produced with liquids with Newtonian behaviour.


- Material: aluminum
- Following DIN 53 211
- Different Flow nozzles available



£ 134.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0060

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc. The most highly accurate results are produced with liquids with Newtonian behaviour.


- Material: aluminum
- Following ASTM D 1200
- Different Flow nozzles available



£ 145.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0061

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc. The most highly accurate results are produced with liquids with Newtonian behaviour.


- Material: aluminum
- Following DIN EN ISO 2431
- Different Flow nozzles available



£ 150.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0249.01.32

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc. The most highly accurate results are produced with liquids with Newtonian behaviour.


- Material: aluminum
- Following DIN 53 211, SIS 184115, SNV 37 110
- Flow nozzle 4 mm
- Official test certificate of the DKD included



£ 468.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: 0250

The flow viscometer is still the most important test instrument for quick determination of the viscosity of liquids in laboratories as well as in production. However, a flow viscometer is only suitable for low-viscosity liquids, not for high-viscosity substances such as pastes, etc. The most highly accurate results are produced with liquids with Newtonian behaviour.


- Material: aluminum
- Following DIN EN ISO 2431
- Different Flow nozzles are available
- Official test certificate of the DKD included



£ 468.00

Price excl. VAT &. delivery
2 year Warranty
