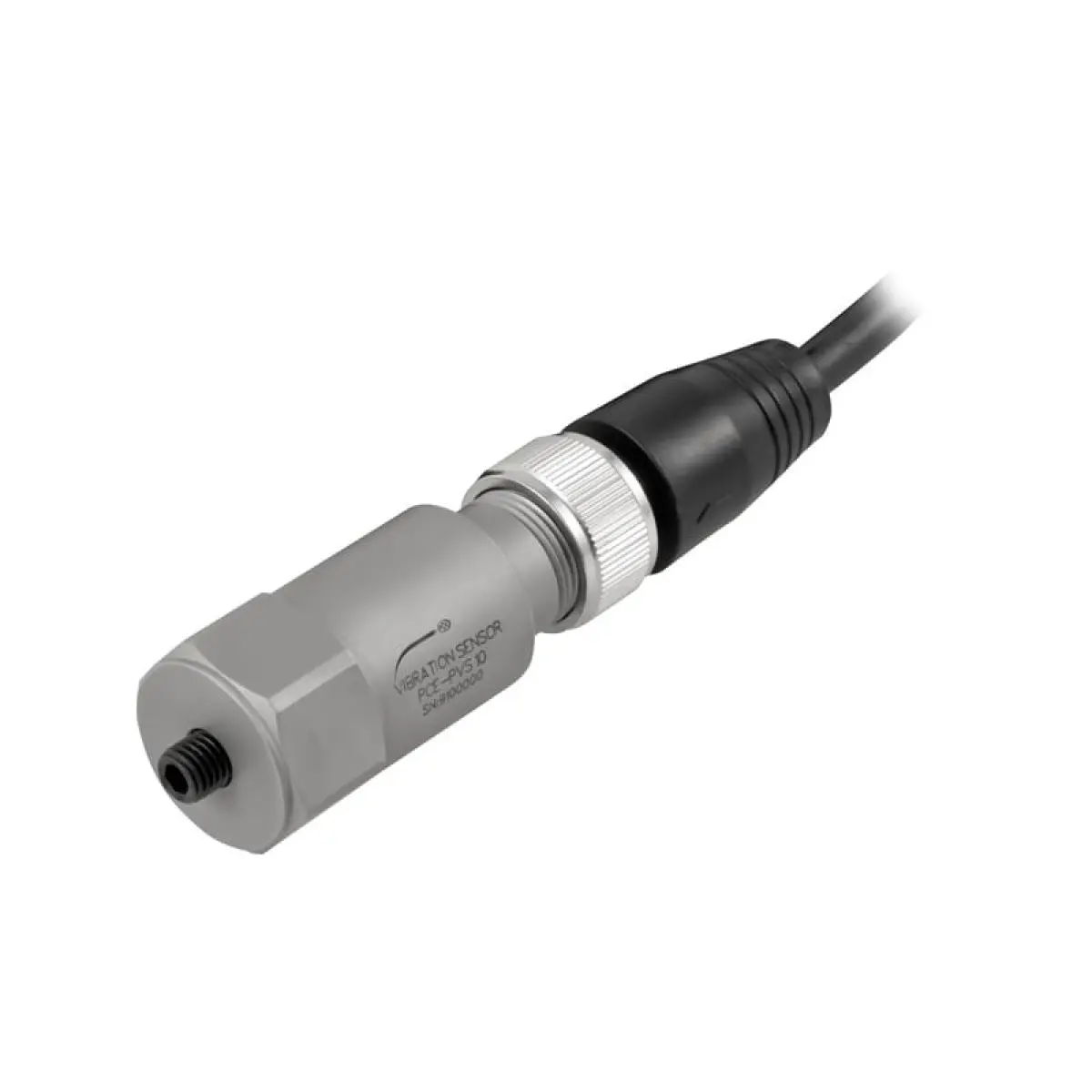

Vibration Meter / Vibration Tester Connections

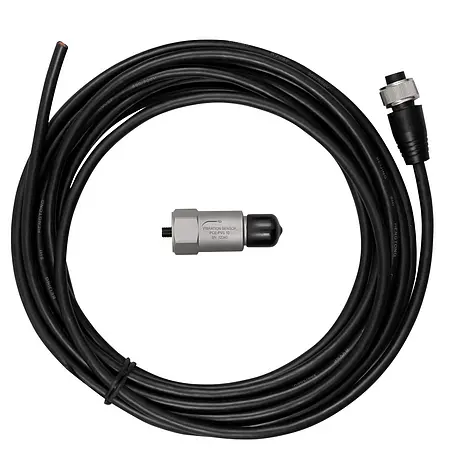

Vibration Meter / Vibration Tester Delivery scope

Vibration Sensor PCE-PVS 10

Order no.: PCE-PVS 10
GTIN (EAN): 4250348722584
£ 486.00
price ex. (VAT / delivery)
:
4250348722584
PCE-PVS 10
Delivery time:1-2 working days
Machine vibration

Accessory

Description

Vibration Sensor  for monitoring the vibration speed / 4 ... 20 mA output
MIL-C-5015 connection / 3 ... 1500 Hz bandwidth

The Vibration Sensor has been developed for the continuous monitoring of the vibration speed. The vibration sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Sensor measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.

The measured vibration speed is output as a 4 ... 20 mA process current. The Vibration Sensor is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Sensor can be operated with a voltage of 12 ... 24 V DC.

Highlights

- vertical installation
- Process signal output
- MIL-C-5015 connector
- M6 process connection
- different measuring ranges
- robust construction

Specification

Speed
Measuring range  0 ... 12,7 mm/s
Resolution  0.07 mm/s

General technical data
Outputs  4 ... 20 mA
Outputs  2 conductors 4 ... 20 mA
Cable length  5 m
Connections  2-pin MIL-C-5015
Frequency  3 ... 1500 Hz
Housing  Stainless steel
Bandwidth  3 ... 1500 Hz
Overload protection  ±1000 g (short-term shock)
Mounting  1/4-28 (female thread)
Sensitivity  <5%
Protection class (device)  IP65
Power supply  15 ... 30V DC
Operating conditions  -40 ... 85 °C , 10 ... 95 % RH
Storage conditions  -40 ... 85 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  55 x 22 x 22 mm
Weight  82 g

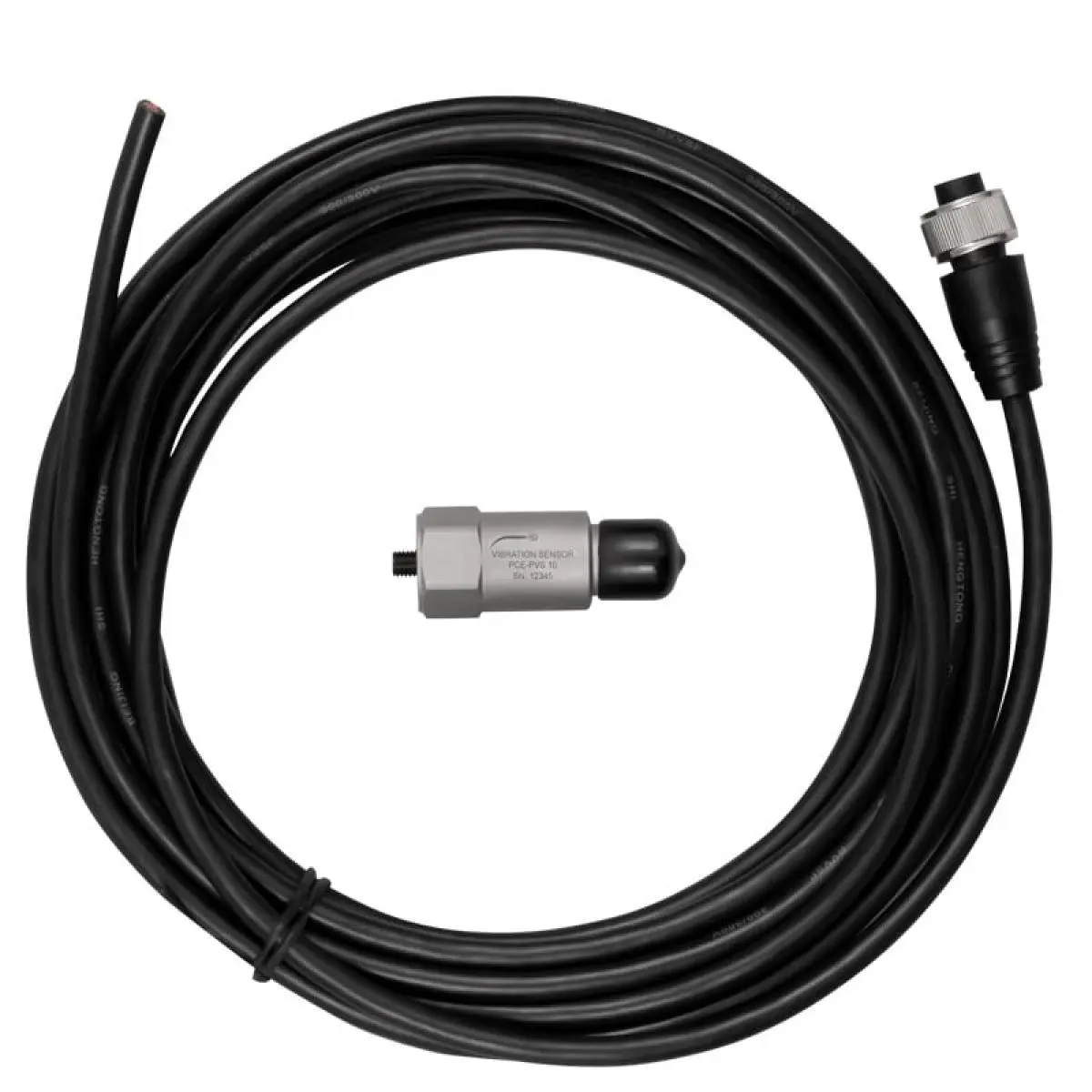

Delivery Scope

1 x Vibration Meter / Vibration Tester PCE-PVS 10
1 x MIL-C 5015 plug to 5 m cable
1 x instruction manual
