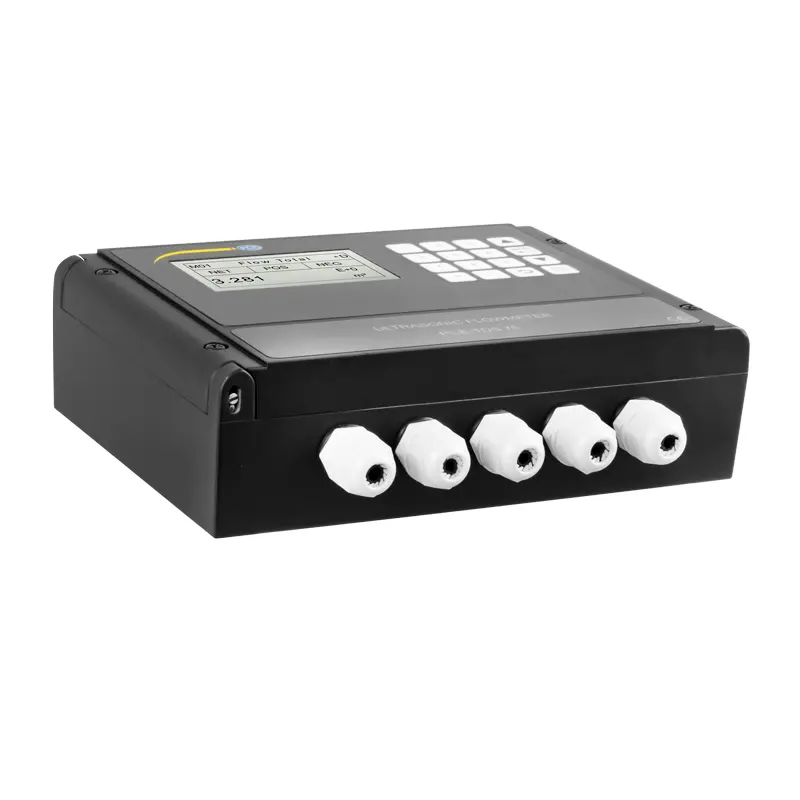

Ultrasonic testing device PCE-TDS 75-ICA connections

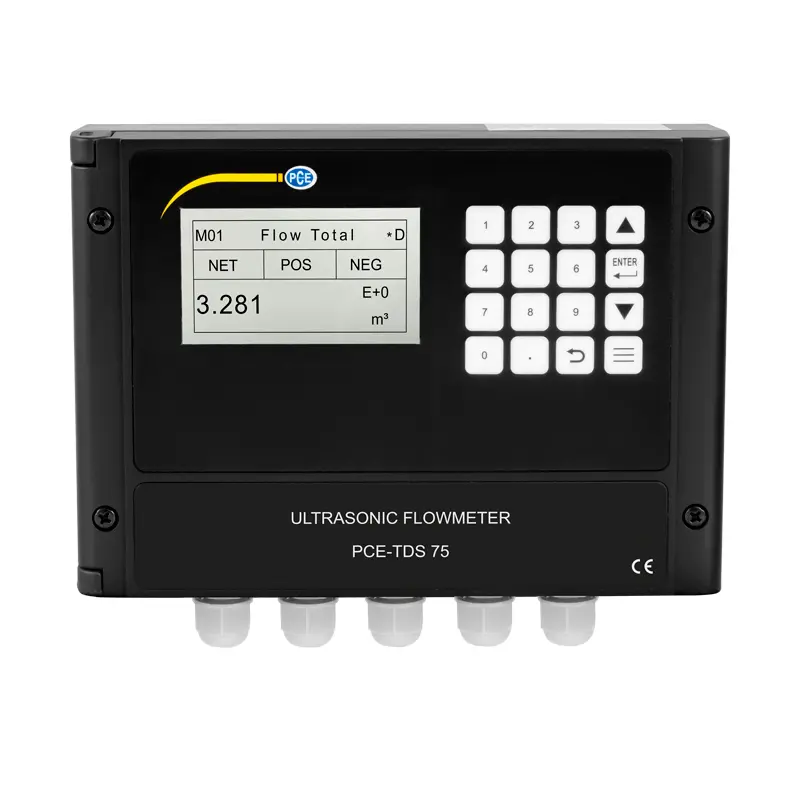

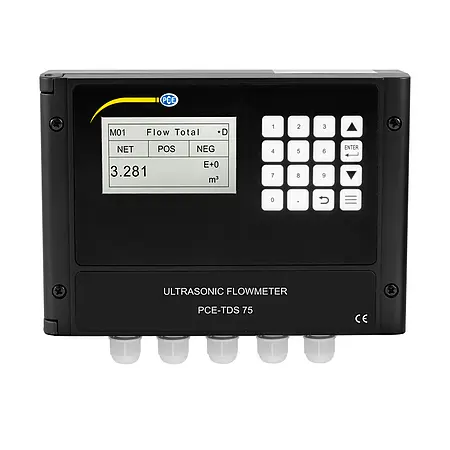

Ultrasonic testing device PCE-TDS 75-ICA display

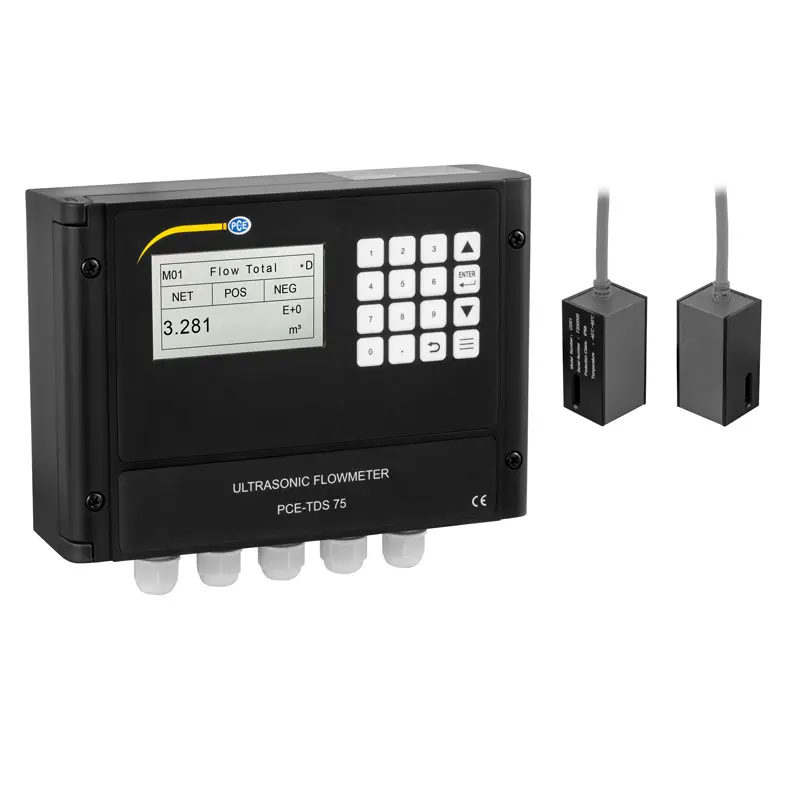

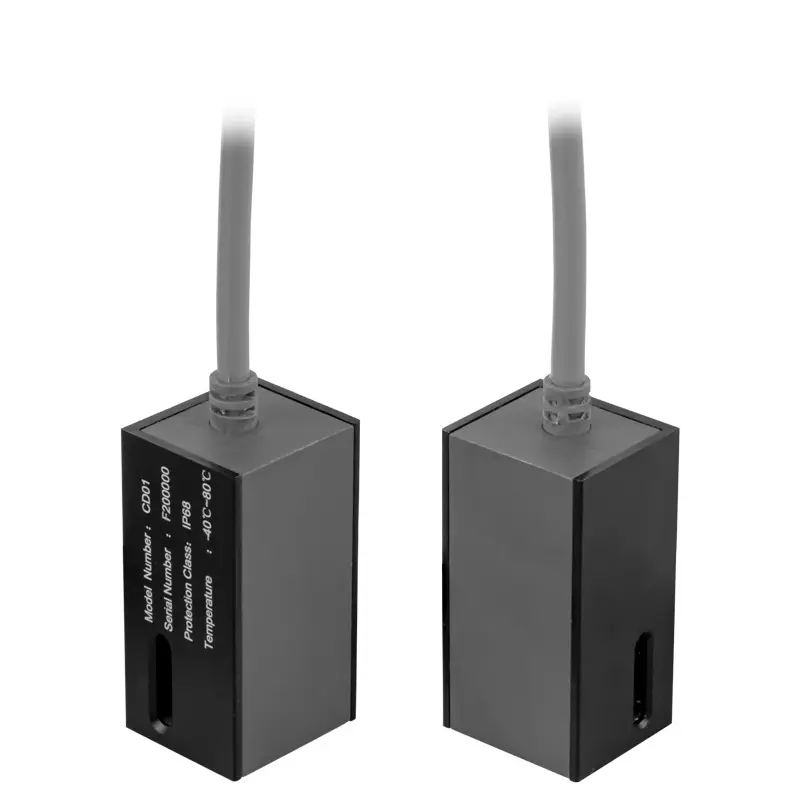

Ultrasonic testing device PCE-TDS 75-ICA sensors

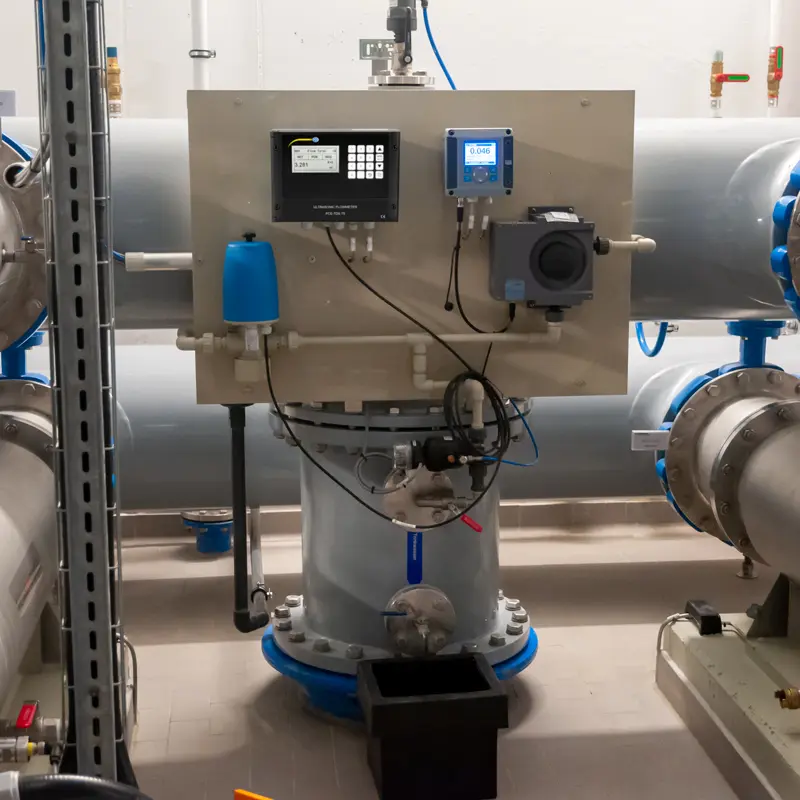

Ultrasonic testing device PCE-TDS 75-ICA application

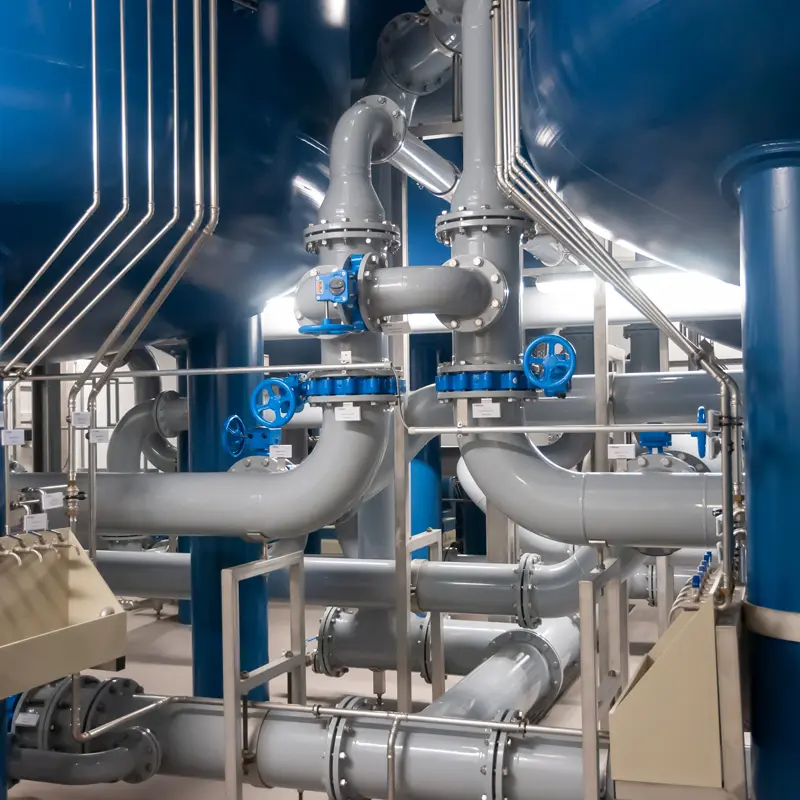

Ultrasonic testing device PCE-TDS 75-ICA application

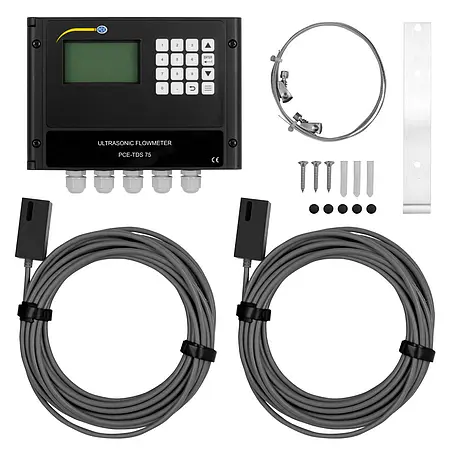

Ultrasonic testing device PCE-TDS 75-ICA delivery contents

Ultrasonic testing device PCE-TDS 75-ICA incl. ISO Calibration Certificate

Order no.: PCE-TDS 75-ICA
GTIN (EAN): 4250348726902
£ 1,706.00
£ 2,047.20
ISO Calibration
price ex. (VAT / delivery)
:
4250348726902
PCE-TDS 75-ICA
Delivery time: 10 - 14 days

Accessory

Description

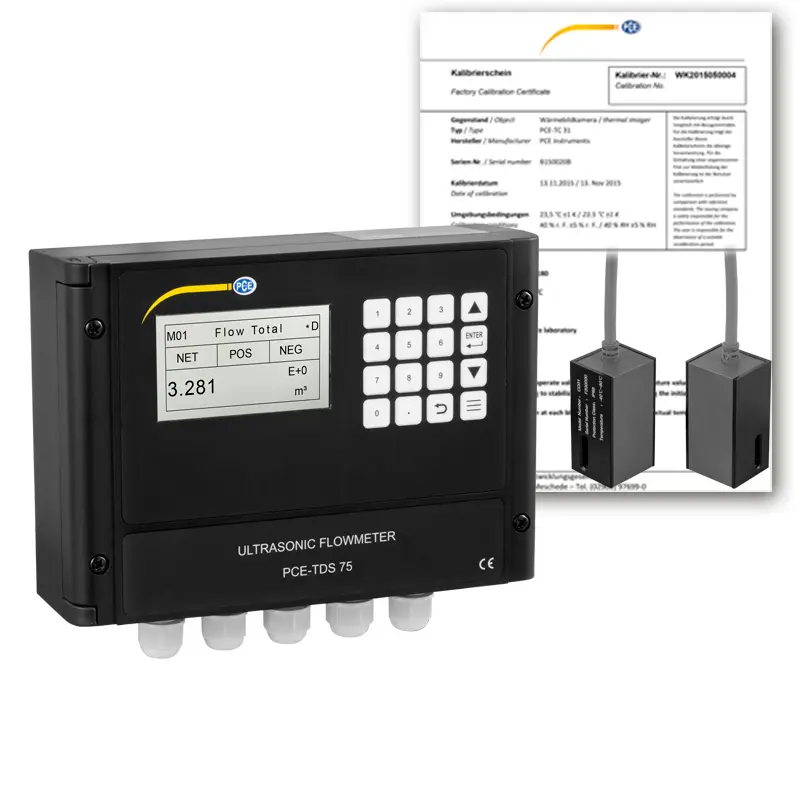

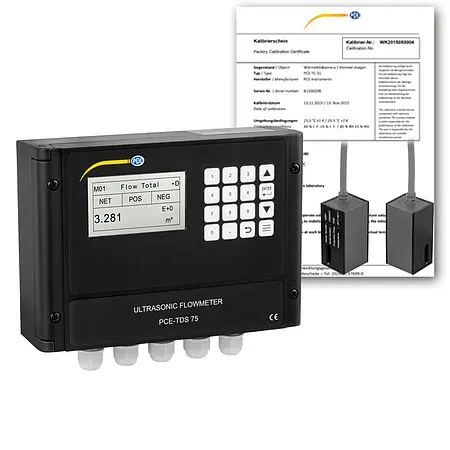

Ultrasonic testing device incl. ISO Calibration Certificate
Ultrasonic testing device for fixed installation / Various process connection options / Measurement accuracy of 1% / Up to a pipe diameter of 1200 mm (47.2 in) / Flow rate determination

The Ultrasonic testing device device is a measuring device for fixed installation. The flow rate of liquids in pipes can be determined with this Ultrasonic testing device. The sensors from the Ultrasonic testing device can be mounted directly on the pipes to be measured without having to cut them open. This enables the Ultrasonic testing device to be installed even during operation.

Another special feature of the Ultrasonic testing device are the different outputs. It is possible to get the flow rate converted by the Ultrasonic testing device into an analog 4… 20-mA signal. Any other measurement value can be transmitted via the pulse output (OCT) from the Ultrasonic testing device. It is also possible to receive the measured values ​​directly via the Modbus outputs RS232 and RS485. This allows the Ultrasonic testing device to be integrated directly into the process control.


Highlights

- Ultrasonic testing device for fixed installation
- Different outputs for process connection
- For fixed installation
- For pipe diameters 25 ... 1200 mm / 1 in ... 47.2 in
- incl. ISO Calibration Certificate

Specification

Measuring range           ± 0.03 ... ± 5 m / s (± 0.09 ... ± 16 ft / s)
Measurement accuracy± 1% of the measured value
Repeatability   0.2%


Pipe diameter25 ... 1200 mm (1 ... 48 in)
Analog output0/4 ... 20 mA (maximum load 750 Ω)
Pulse output0 ... 9999 Hz OCT
 (Frequency limits are adjustable)
Relay output1 A at 125V AC, 2 A at 30V DC
 Maximum frequency 1 Hz
Communication interface                RS232 & RS485
Power supply10 ... 36V DC
Power consumption   1 A
DisplayLCD, 256 x 128 pixels, with backlight
Ambient conditions base                              -40 ... 60°C / -40 ... 140°F
0 ... 99% RH non-condensing
Ambient conditions sensor -40 ... 80°C / -40 ... 176° F
0 ... 99% RH non-condensing
Housing material basePC / ABS
Protection class base  IP 65
Protection class sensorIP 68
Cable length9 m / 30 ft
Dimensions16 x 23 x 28 cm / 6.3 x 9.1 x 11
Weight3.2 kg / 7.1 lbs



Delivery Scope

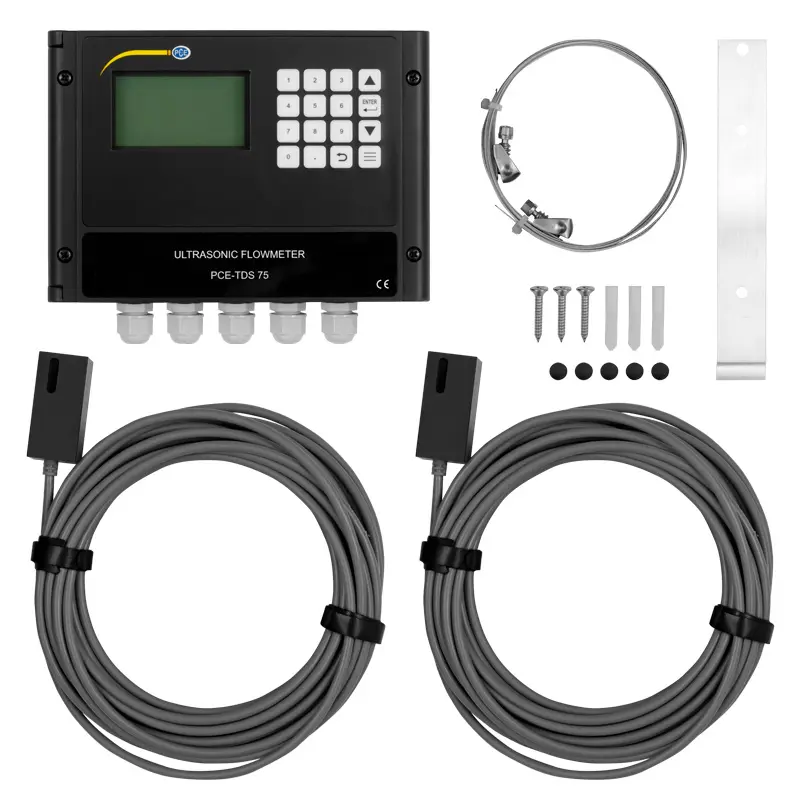

1 x Ultrasonic testing device PCE-TDS 75-ICA
2 x Flow sensors
1 x Wall mounting set
2 x Hose clamps
1 x Instruction manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
