Timber Absolute Moisture Meter PCE-WP24

Order no.: PCE-WP24

GTIN (EAN): 4250348707079

Description

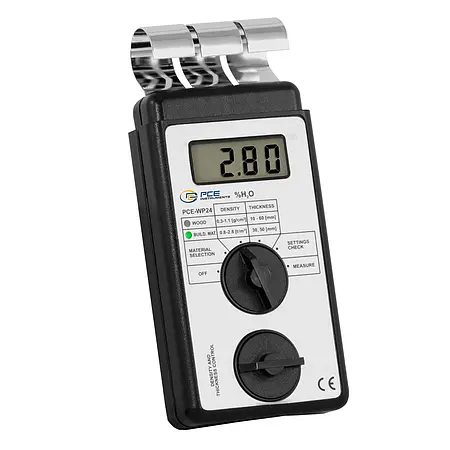

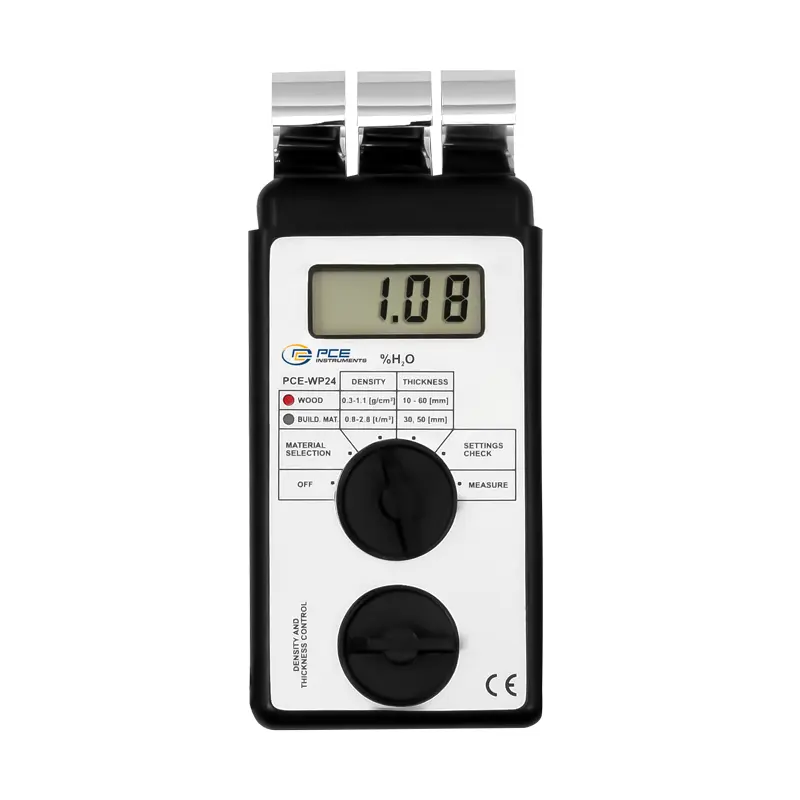

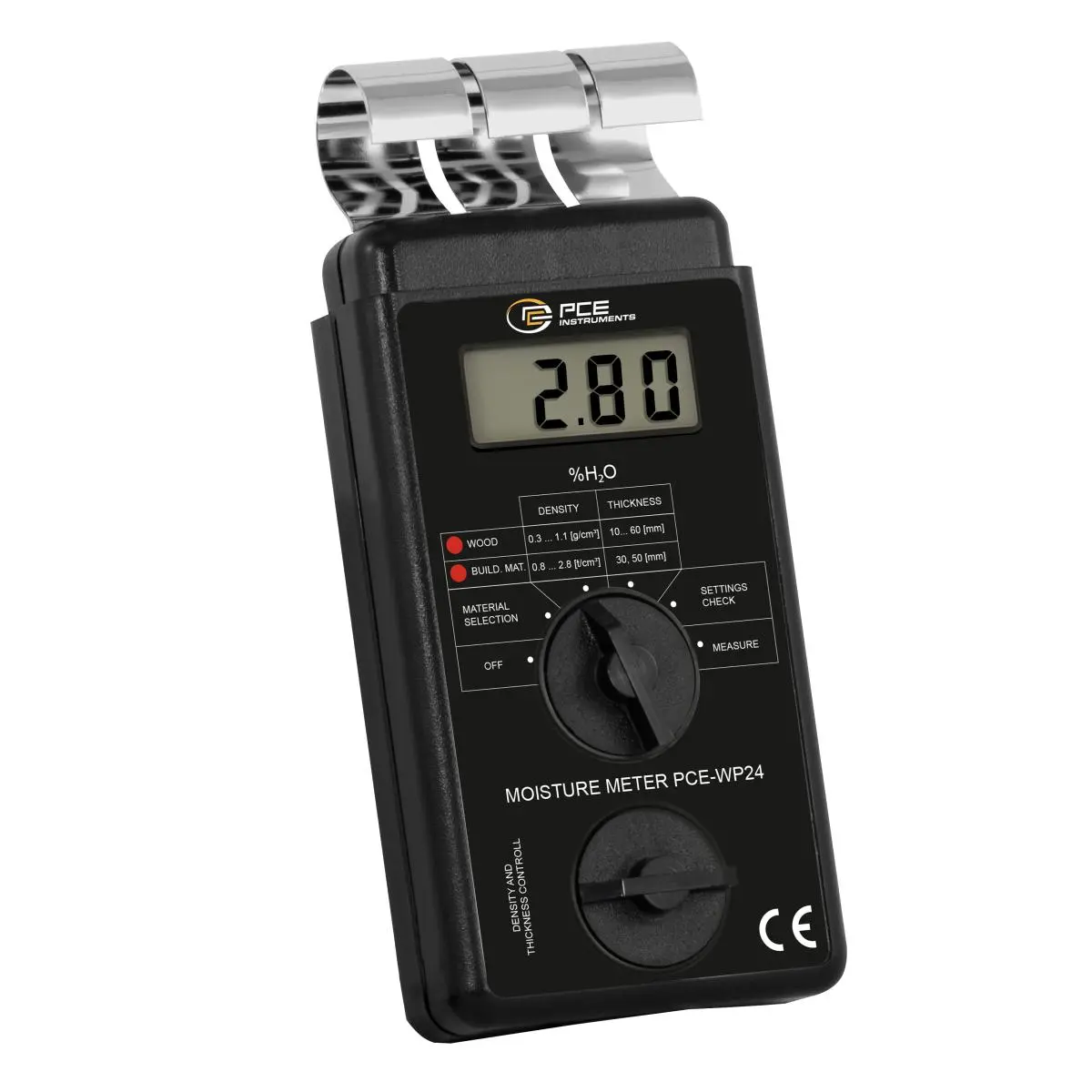

PCE-WP24 Timber Absolute Moisture Meter
For noninvasive, nondestructive moisture measurements of wood, timber, lumber and other construction or building materials

PCE-WP24 is a timber absolute moisture meter used to perform noninvasive, nondestructive moisture measurements of wood, timber and other construction or building materials. An ideal tool for assessing everything from lumber to floors and more, this moisture meter uses electromagnetic waves that penetrate approximately 50 mm / 1.96 inches to 60 mm / 2.36 inches deep (depending on substrate) to return a mean-value moisture content percentage.

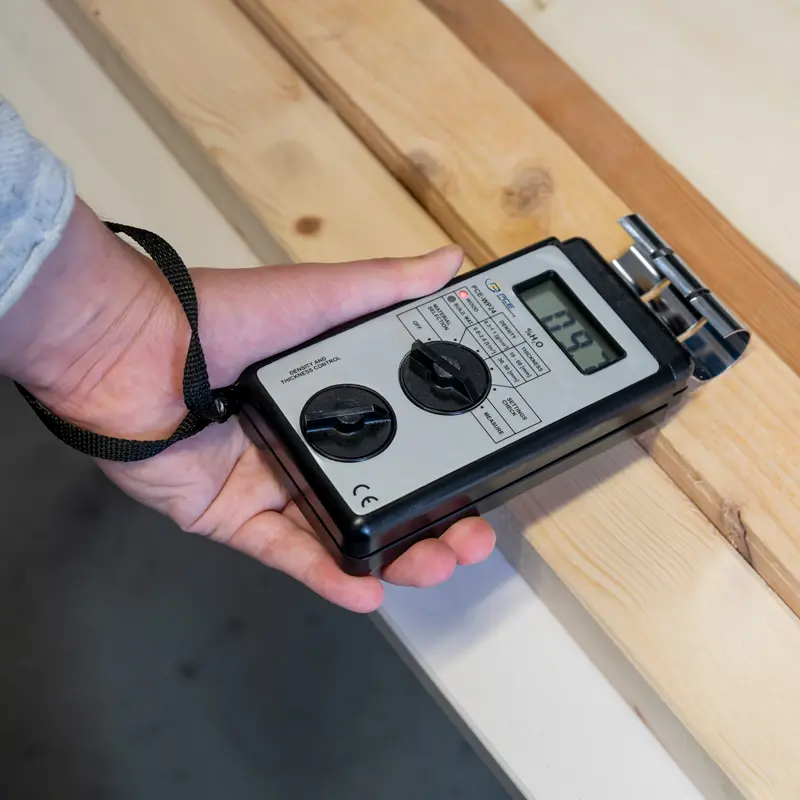

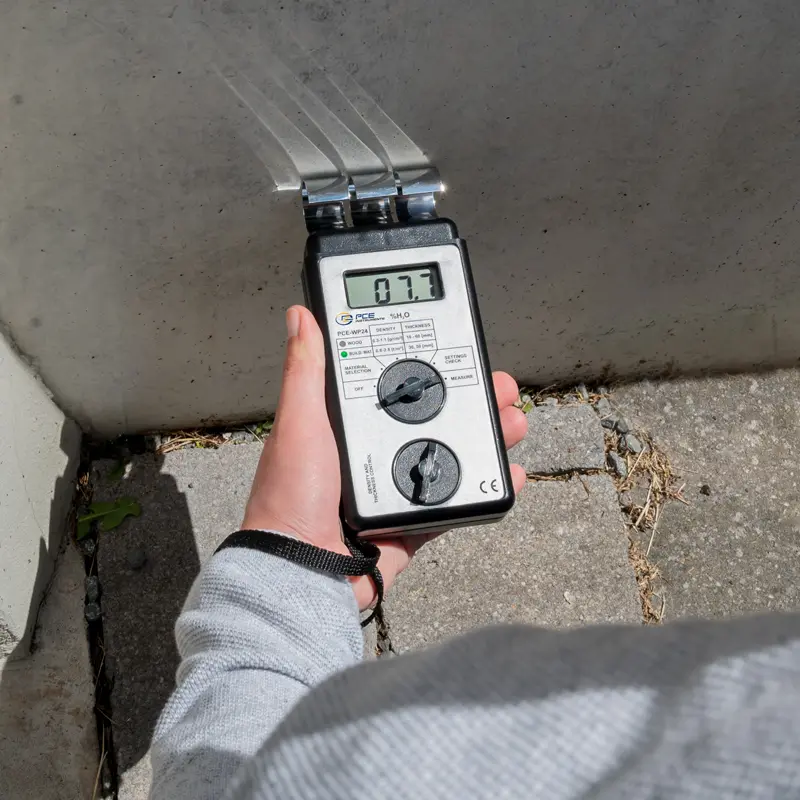

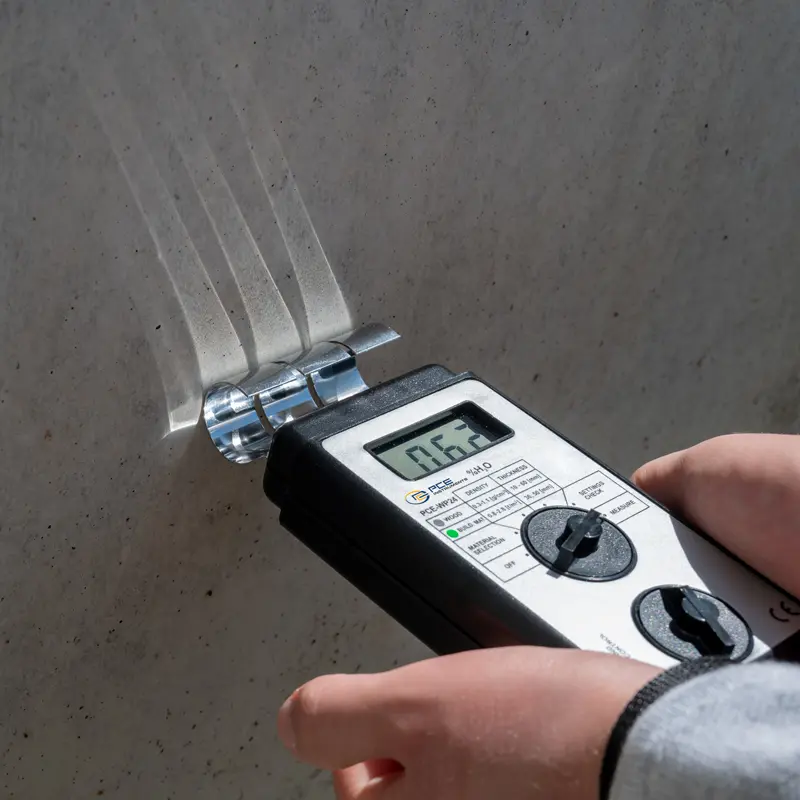

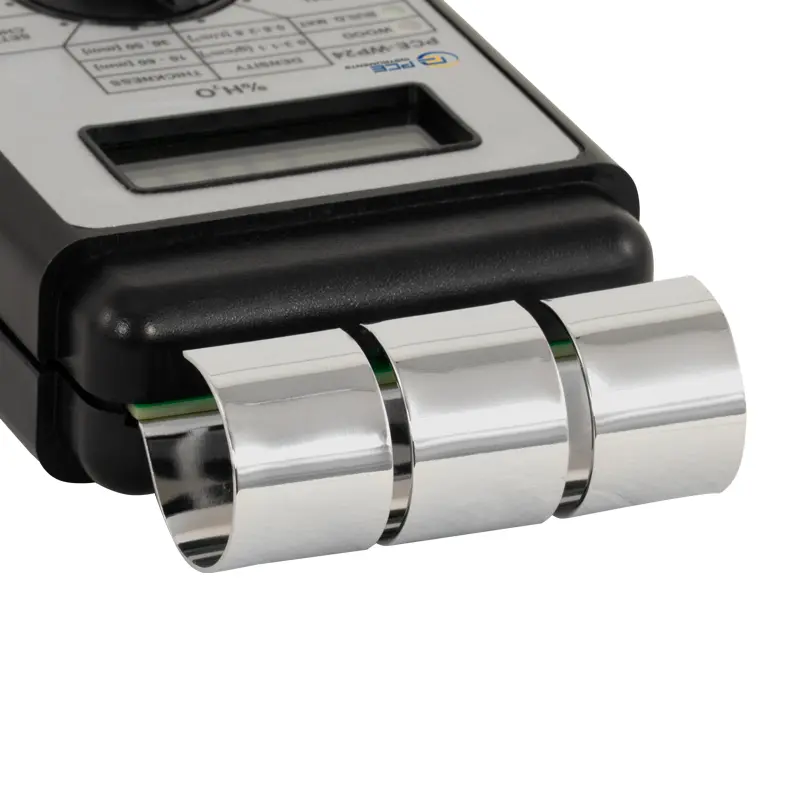

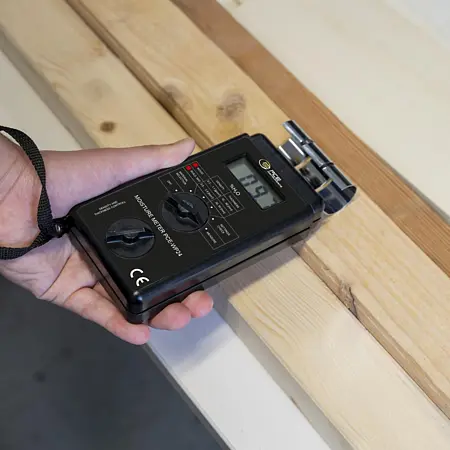

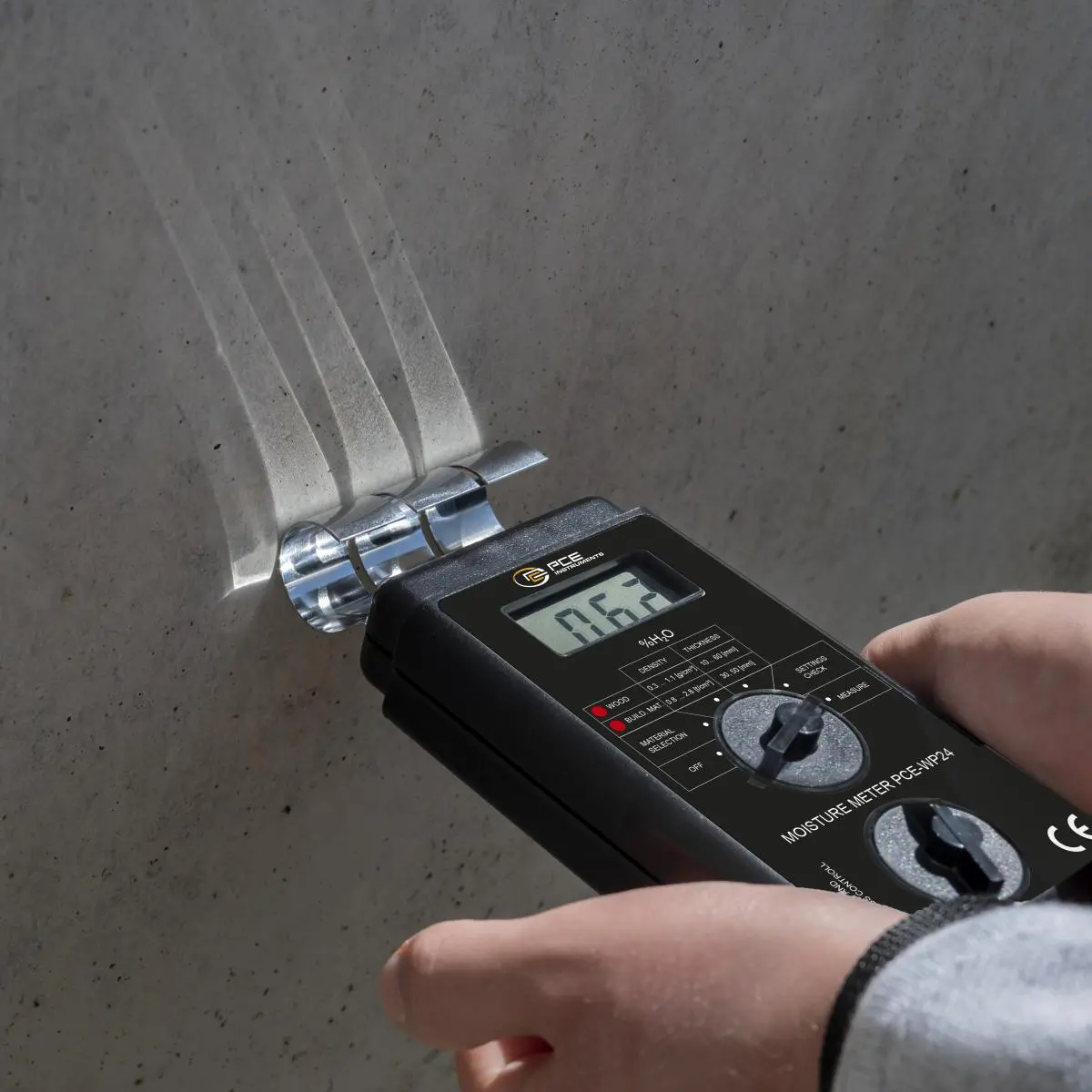

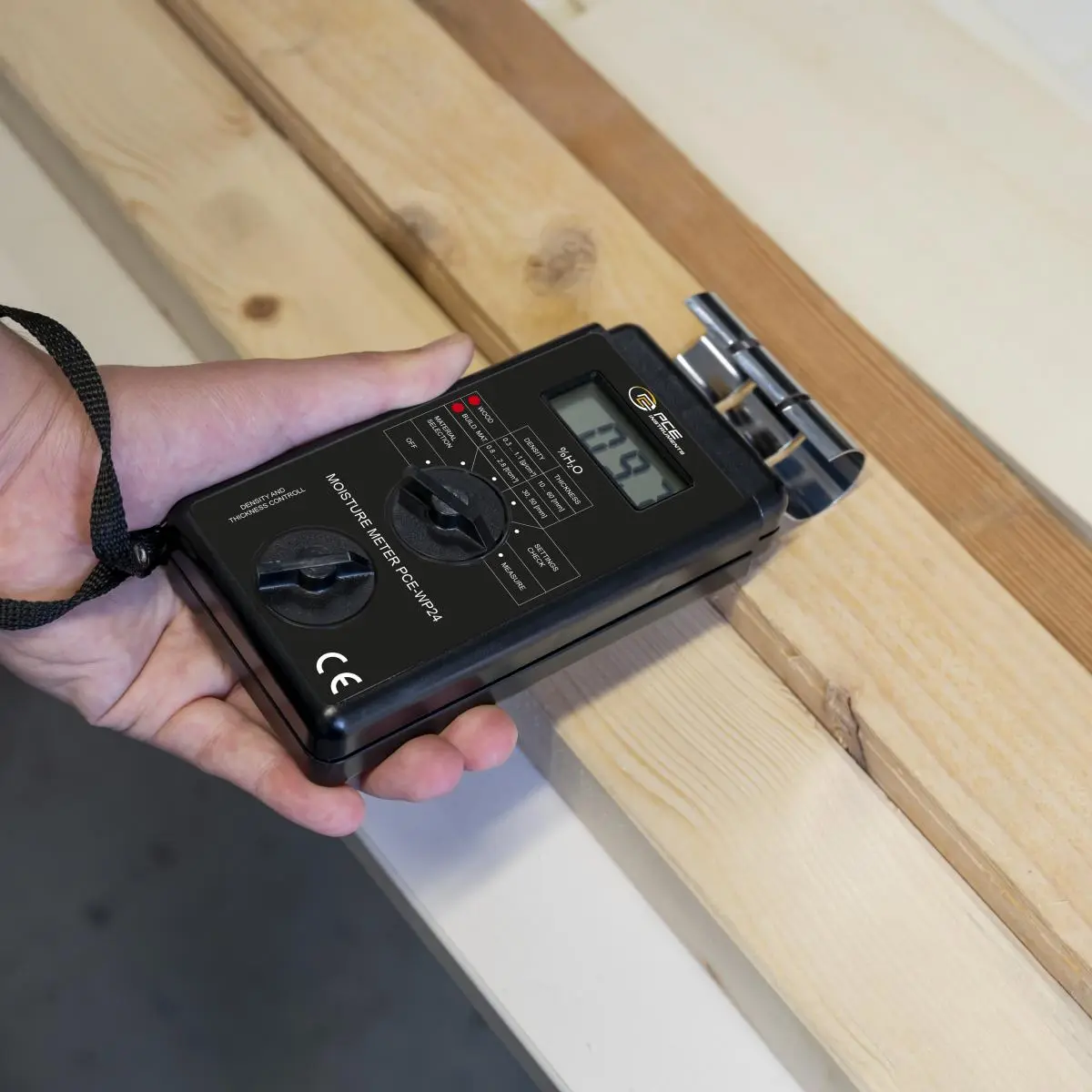

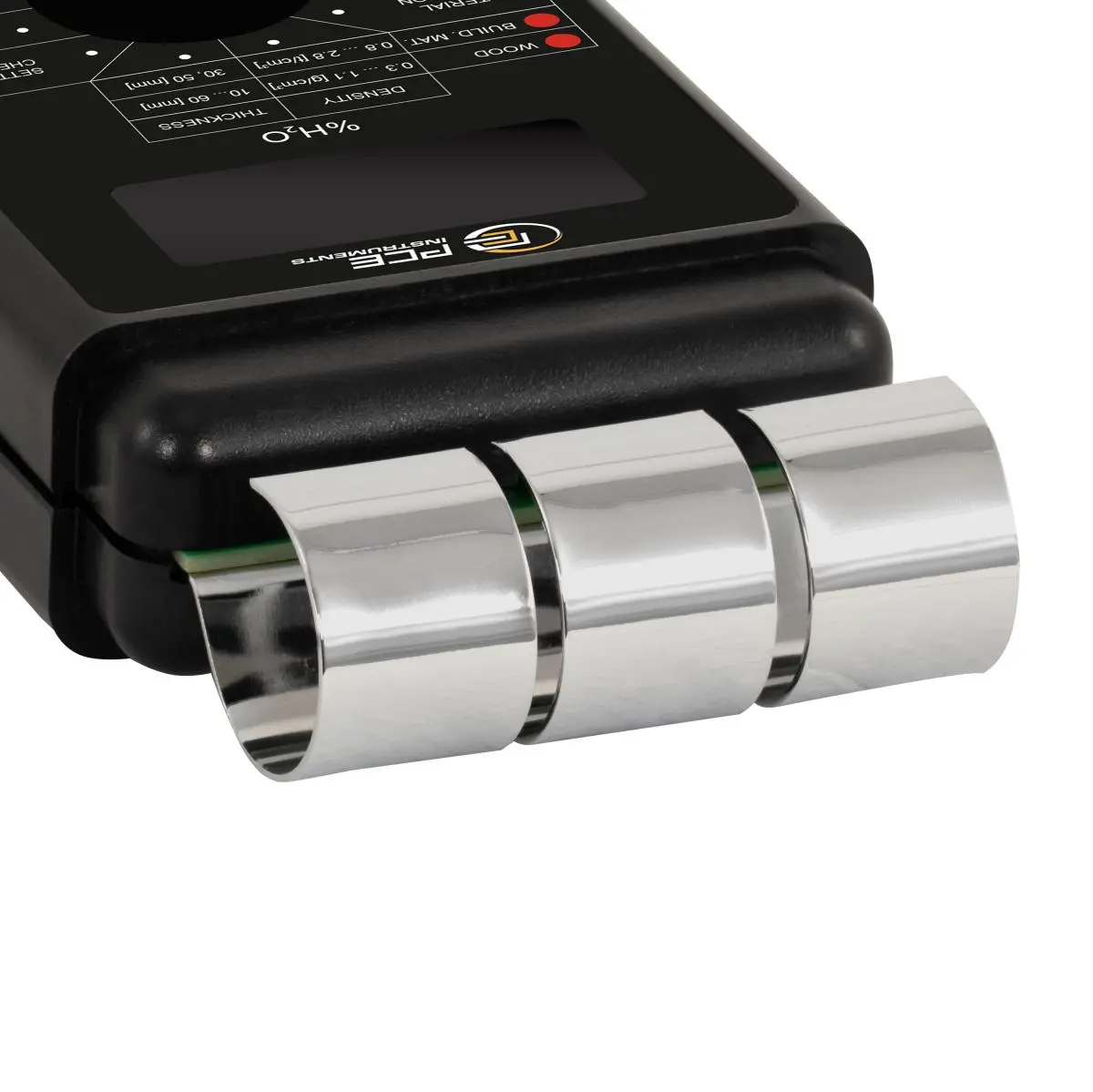

To measure, simply select either wood or building material (BUILD. MAT.) on the meter and place the meter's electrodes on the surface of the substrate. For accurate results, be sure to calibrate the instrument before each use according to the instructions outlined in the user manual.

Highlights

- For noninvasive, nondestructive moisture measurements of wood, timber, lumber

and other construction or building materials

- Displays results in seconds on the easy-to-read 3-digit LCD screen with

battery level indicator

- Electromagnetic waves penetrate approximately 50 mm / 1.96 inches to 60 mm /

2.36 inches deep (depending on substrate)

- No surface preparation required

- Safe for use in situ

Specification

Humidity
Material	Building materials
Measuring range	0 ... 10 %
Resolution	0,1 %
Accuracy	±0.7%

Humidity
Material	Wood
Measuring range	4 ... 60 %
Resolution	0,1 %
Accuracy	±0.7%

General technical data
Display type	LCD
Operating time	2000 Measurements
Housing	Plastic
Measuring depth additional information	- Wood approx. 60 mm - Building materials approx. 50 mm
Additional description	Setting range: - Density (wood): 0.3 ... 1.1 g/cm³ - Density (building materials): 0.8 ... 2.8 t/m³ - Thickness (wood): 10 ... 60 mm - Thickness (building materials): 30 or 50 mm Setting steps: - Density (wood): 0.02 g/cm³ - Density (building materials): 0.2 t/m³ - Thickness (wood): 2 mm - Thickness (building materials): omitted
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	Battery
(Rechargeable) battery	1 x 9 V 9V block , Zinc carbon
Capacity	500 mAh
Operating conditions	0 ... 40 °C , 0 ... 85 (non-condensing)% RH
Storage conditions	-10 ... 60 °C , 0 ... 85 (non-condensing)% RH
Dimensions ( L x W x H )	180 x 80 x 40 mm
Weight	230 g
