PCE-PA 8000 3-Phase-Power Meter / 3-Phase Power Analyzer
real time measurement with registration in the SD card / Integrated timer and calendar to record data / Active, apparent, and reactive power

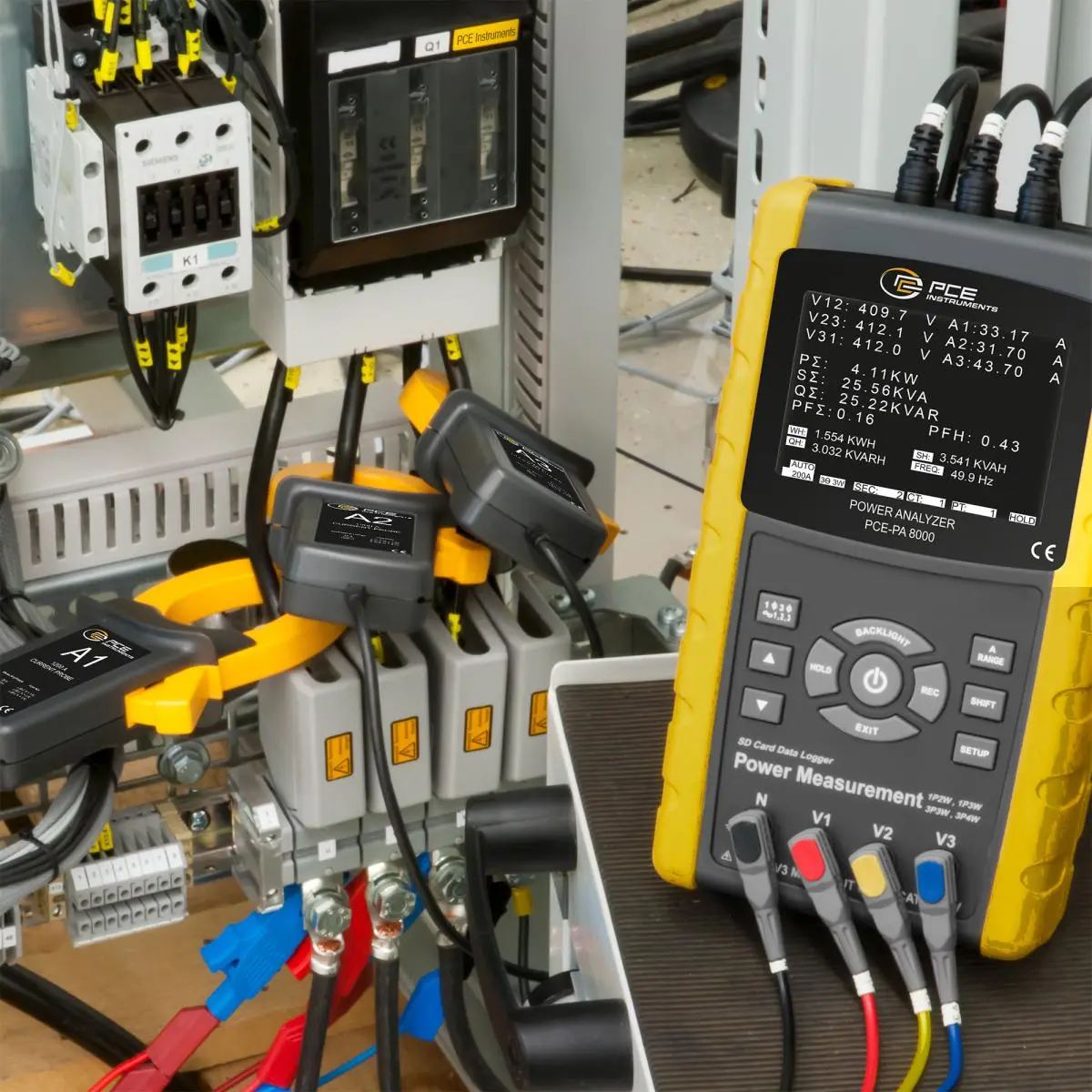

The 3-Phase-Power Meter / 3-Phase Power Analyzer is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 3-Phase-Power Meter you will be able to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of our 3-Phase-Power Meter to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 3-Phase-Power Meter can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 3-Phase-Power Meter can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power.
| AC voltage | |
| Measuring range | 10 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5 % +0.5 V) |
| Overload | 720 V RMS |
| Alternating current AC | |
| Measuring range | 0,2 ... 10 A |
| Resolution | 0,001 A |
| Accuracy | ±(0.5 % +1 A) |
| Overload | 1300 A with current clamp |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 10 ... 20 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +1 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 100 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 100 ... 200 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 1000 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 1000 ... 1200 A |
| Resolution | 1 A |
| Accuracy | ±(0.5% +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Active power | |
| Measuring range | 0 ... 9,999 kW |
| Resolution | 0,001 kW |
| Accuracy | ±(1 % +0.008 kW) |
| Active power | |
| Measurement range up to | 10 kW |
| Measurement range from | 99,99 kW |
| Resolution | 0,01 kW |
| Accuracy | ±(1% +0.08 kW) |
| Active power | |
| Measuring range | 100 ... 999,9 kW |
| Resolution | 0,1 kW |
| Accuracy | ±(1% +0.8 kW) |
| Active power | |
| Measuring range | 1 ... 9,999 MW |
| Resolution | 0,001 MW |
| Accuracy | ±(1 % +0.008 MW) |
| Reactive power | |
| Measuring range | 0 ... 9,99 kVAR |
| Resolution | 0,001 kVAR |
| Accuracy | ±(1 % +0.008 kVAR) |
| Reactive power | |
| Measuring range | 10 ... 99,9 kVAR |
| Resolution | 0,01 kVAR |
| Accuracy | ±(1 % +0.08 kVAR) |
| Reactive power | |
| Measuring range | 100 ... 999,9 kVAR |
| Resolution | 0,1 kVAR |
| Accuracy | ±(1 % +0.8 kVAR) |
| Reactive power | |
| Measuring range | 1 ... 9,9 MVAR |
| Resolution | 0,001 MVAR |
| Accuracy | ±(1% +0.008 MVAR) |
| Phase angle | |
| Measuring range | -180 ... +180 ° |
| Resolution | 0,1 ° |
| Accuracy | ±1 ° |
| Apparent power | |
| Measuring range | 0 ... 9,9 kVA |
| Resolution | 0,001 kVA |
| Accuracy | ±(1% +0.008 kVA) |
| Apparent power | |
| Measuring range | 10 ... 99,99 kVA |
| Resolution | 0,01 kVA |
| Accuracy | ±(1% +0.08 kVA) |
| Apparent power | |
| Measuring range | 100 ... 999,9 kVA |
| Resolution | 0,1 kVA |
| Accuracy | ±(1 % +0.8 kVA) |
| Apparent power | |
| Measuring range | 1 ... 9,99 MVA |
| Resolution | 0,001 MVA |
| Accuracy | ±(1 % +0,008 MVA) |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.01 |
| Accuracy | ±0.04 |
| Active energy | |
| Measuring range | 0 ... 9,9 kWh |
| Resolution | 0,001 kWh |
| Accuracy | ±(1% +0.008 kWh) |
| Active energy | |
| Measuring range | 10 ... 99,9 kWh |
| Resolution | 0,01 kWh |
| Accuracy | ±(1% +0.08 kWh) |
| Active energy | |
| Measuring range | 100 ... 999,9 kWh |
| Resolution | 0,1 kWh |
| Accuracy | ±(1% +0.8 kWh) |
| Active energy | |
| Measuring range | 1 ... 9,99 MWh |
| Resolution | 0,001 MWh |
| Accuracy | ±(1% +0.008 MWh) |
| Apparent energy | |
| Measuring range | 0 ... 9,9 kVAh |
| Resolution | 0,001 kVAh |
| Accuracy | ±(1 % +0.008 kVAh) |
| Apparent energy | |
| Measuring range | 10 ... 99,9 kVAh |
| Resolution | 0,01 kVAh |
| Accuracy | ±(1% +0.08 kVAh) |
| Apparent energy | |
| Measuring range | 100 ... 999,9 kVAh |
| Resolution | 0,1 kVAh |
| Accuracy | ±(1% +0.8 kVAh) |
| Apparent energy | |
| Measuring range | 1 ... 9,9 MVAh |
| Resolution | 0,001 MVAh |
| Accuracy | ±(1% +0,008 KVAH) |
| Reactive energy | |
| Measuring range | 0 ... 9,9 kVArh |
| Resolution | 0,001 kVArh |
| Accuracy | ±(1% +0.008 KVARh) |
| Reactive energy | |
| Measuring range | 10 ... 99,9 kVArh |
| Resolution | 0,01 kVArh |
| Accuracy | ± (1% + 0.08 KVARh) |
| Reactive energy | |
| Measuring range | 100 ... 999,9 kVArh |
| Resolution | 0,1 kVArh |
| Accuracy | ±(1% +0.8 KVARh) |
| Reactive energy | |
| Measuring range | 1 ... 9,99 MVARh |
| Resolution | 0,001 MVARh |
| Accuracy | ±(1% +0.008 KVARH) |
| Frequency | |
| Measuring range | 45 ... 65 Hz |
| Resolution | 0,1 Hz |
| Accuracy | 0.1 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 3,7 Inch |
| Storage medium | SD card |
| Storage capacity | 2 GB |
| Storage interval from | 2 s |
| Storage interval to | 120 min. |
| Interface | USB, RS232 |
| Standard(s) | IEC 1010 |
| Current consumption meter | 300 mA DC |
| Current consumption current clamp | 34 mA DC |
| Maximum cable diameter | 50 mm |
| Safety standard | CAT III 600V |
| Overload protection | Voltage AC 720 V / current AC 1300 A |
| Dimensions | Current clamp: 210 x 85 x 33 mm |
| Measuring range selection | Automatic, Manual |
| Menu language | English, English (GB) |
| Protection class (device) | IP21 |
| Power supply | 9V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 225 x 125 x 64 mm |
| Weight | 811,5 g |
