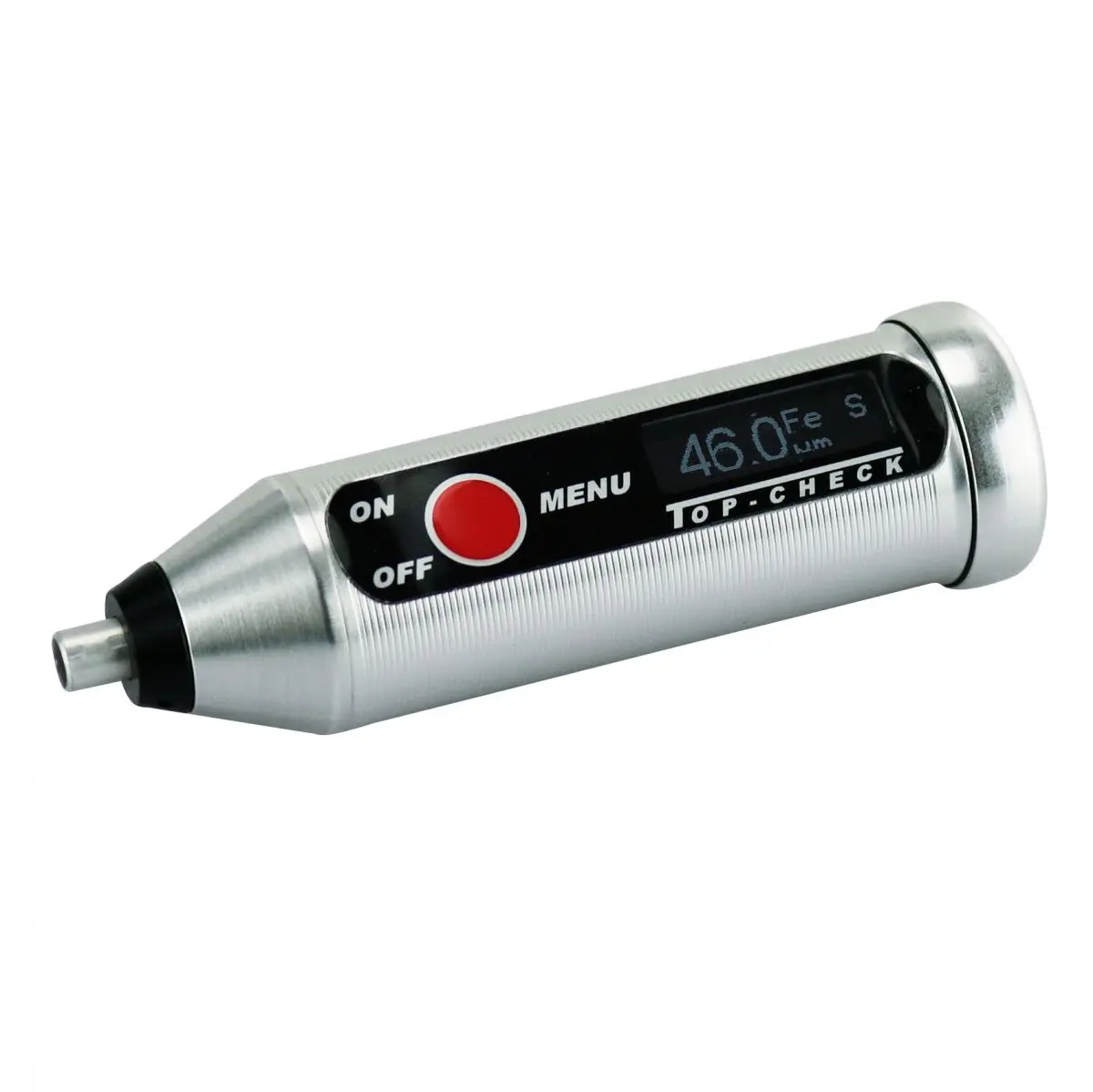

The Thickness Meter works with a measuring probe that only requires a small contact surface and low contact pressure. The compact device is barely larger than a measuring probe and is particularly suitable for measuring thin layers on uneven or complex surfaces, such as tin cans. The swiveling probe enables simple measurements even in hard-to-reach places. The handy metal housing is splash-proof to IP64 for interference-free measurements in harsh environments. The device is also optionally available with flowing water protection. For a long service life with frequent use on rough surfaces, the measuring probe has a wear-resistant ruby probe pole.

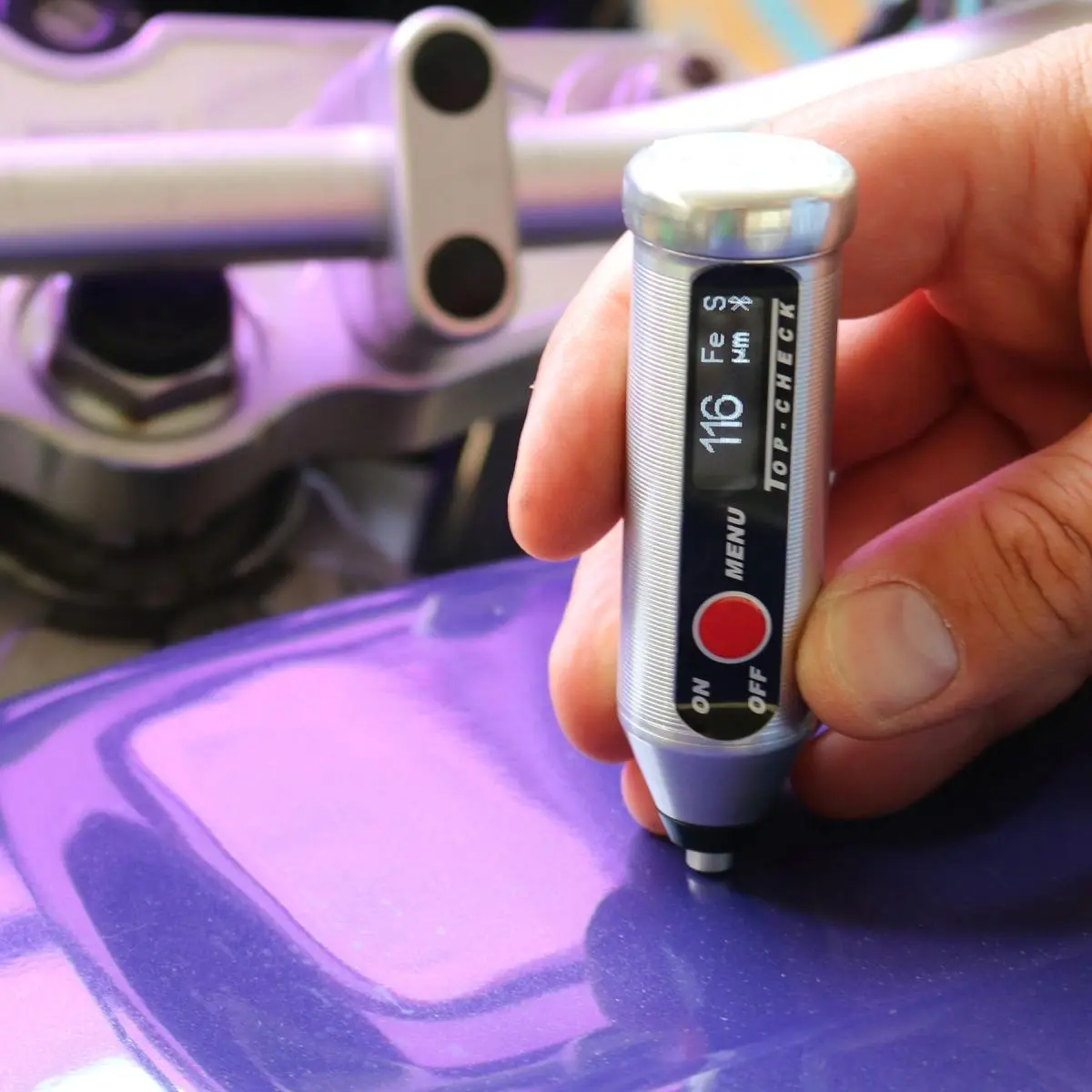

Thanks to the one-button operation and intuitive, multilingual menu navigation, the Thickness Meter is particularly user-friendly. A Thickness Meter is mainly used in the quality assurance of coating processes - for example to determine the paint thickness on vehicles, steel structures or fire protection components such as steel doors. In addition to paintwork, rubber coatings, anodized and galvanic coatings can also be reliably measured.

The device is specially designed for iron and steel substrates. It works with a magnetic-inductive probe and reliably measures layers of paint, varnish, plastic, rubber, ceramic, galvanization and galvanic coatings (except nickel) in accordance with ISO 2178. The device can be connected wirelessly to Android and iOS mobile devices as well as Windows PCs for further processing of your measurement data. The free "Lima Connect" app allows you to manage projects, assign measuring points to photos and statistically analyze and graphically display the results.
