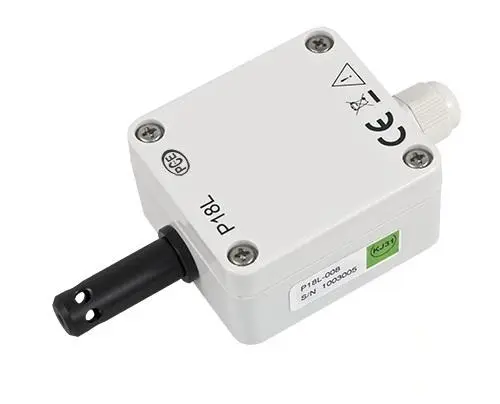

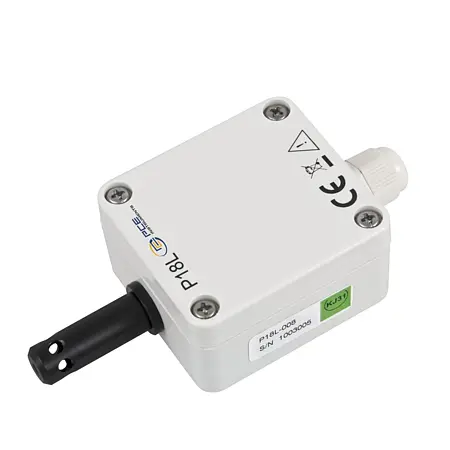

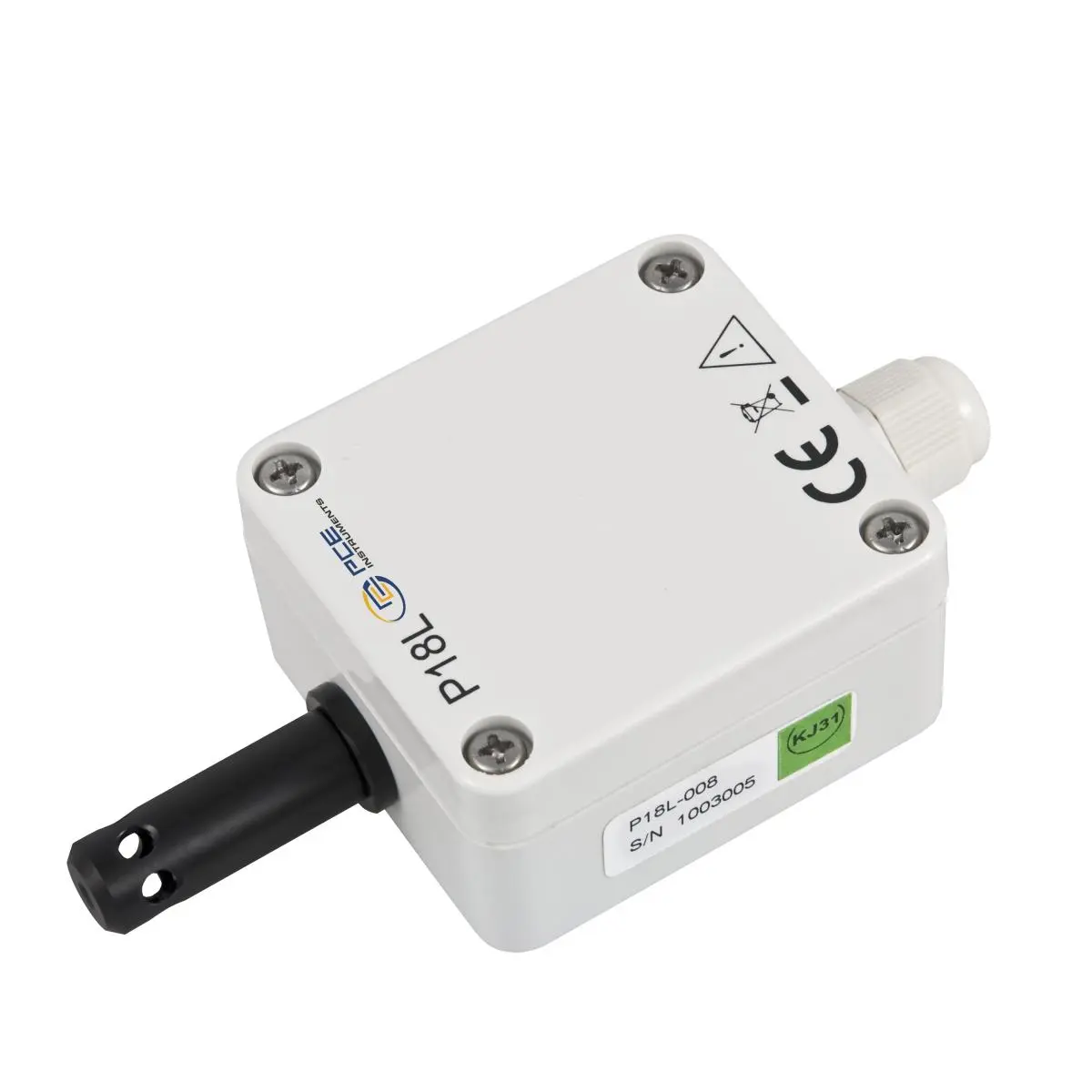

Thermo Hygrometer PCE-P18L

Order no.: PCE-P18L
£ 123.00
£ 147.60
PCE-P18L
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Hygrometer converts temperature or humidity to a 4 ... 20 mA signal / high precision / supply via current loop / wall mounting

The thermo hygrometer was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the thermo hygrometer are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted toa 4 ... 20 mA standard signal. The power of this measuring instrument is connected to a DC voltage into a current loop and is thus ideally suited for displays with transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmental conditions.

  • sensor for temperature and humidity
  • 4 ... 20 mA output
  • easy wall mounting
  • for permanent monitoring
  • various filters available
  • small size

Technical Data
Humidity
Measuring range0 ... 100 % RH
Accuracy

± 2 % (in the range 10% .... 90% RH)

± 3 % (remaining range)

Hysteresis± 1 % RH
Temperature
Measuring range- 20 ... 60 °C
Accuracy± 0.5 % of measuring range
Temperature effect± 25 % / 10 °C
Output current4 ... 20 mA
Max. connectable resistor at the output≤ 500 Ω
Supply voltage19 V ... 30 V  DC
Performance< 1.5 W
Setting the output sizevia DIP - switch
Ambient temperature- 30 °C ... 85 °C
Max. humidity≤ 95 % RH
Preheating15 minutes
Degree of protectionIP 65
MountingWall mounting
Dimensions (W x H x D)35 x 58 x 118 mm
Weight125 g

1 x Thermo Hygrometer PCE-P18L
1 x operating instructions
