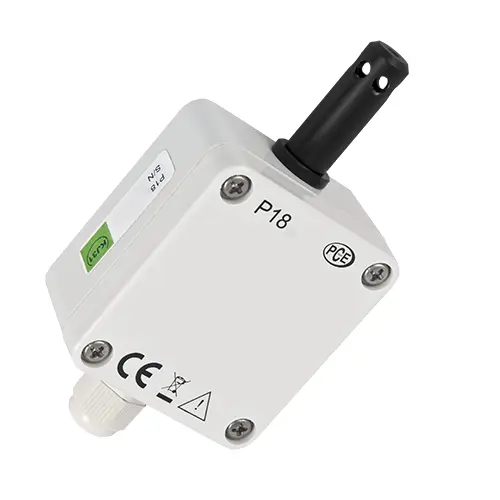

Thermo Hygrometer PCE-P18 4...20 mA

Order no.: PCE-P18-1A0E0

Question / Callback

Delivery time: 1-2 working days

Measures temperature and humidity / output as a 4 ... 20 mA signal / compact

Modbus RTU interface / wall mounting

The thermo hygrometer is used in HVAC technology to monitor humidity and temperature. The measured values are output by the thermo hygrometer as a standard signal 4 ... 20 mA. In this compact thermo hygrometer, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the thermo hygrometer is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. In addition to the output of the measurement signal as a 4 ... 20 mA signal, the measurement values can be output via the RS485 interface. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.

- Humidity and temperature sensors
- 4 ... 20 mA output
- simple wall mounting
- RS-485 interface
- for permanent monitoring
- various filters available
- small dimensions
- Modbus RTU

Technical data humidity sensor PCE-P18

humidity

measuring range

0 ... 100% RH

accuracy

± 2% (in the range 10% .... 90% RH)

± 3% (remaining range)

hysteresis

± 1% RH

temperature

measuring range

- 20 ... 60 ° C

accuracy

± 0.7% of the measuring range

temperature effect

± 25% / 10 ° C

Humidity sensor output

analog output

4 ... 20 mA

Max. connectable resistor at the output

≤ 500 Ω

Data Interface

RS-485 Modbus RTU

transfer mode

8N1, 8N2, 8E1, 8O1

baud rate

4800 bps

9600 bps

19200 bps

38400 bps

57600 bit / s

General technical data for humidity sensors

supply voltage

19 V ... 30 V DC

power

<1.5 W

ambient temperature

- 30 ° C ... 85 ° C

Max. humidity

≤ 95% RH

preheat

15 minutes

degree of protection

IP 65

Assembly

wall mounting

Dimensions (wxhxd)

> 35 x 58 x 118 mm

Weight

125 g

1 x Thermo Hygrometer PCE-P18-2
1 x instruction manual

man-temperature-meter-pce-p18-en-965324.pdf

Manual
