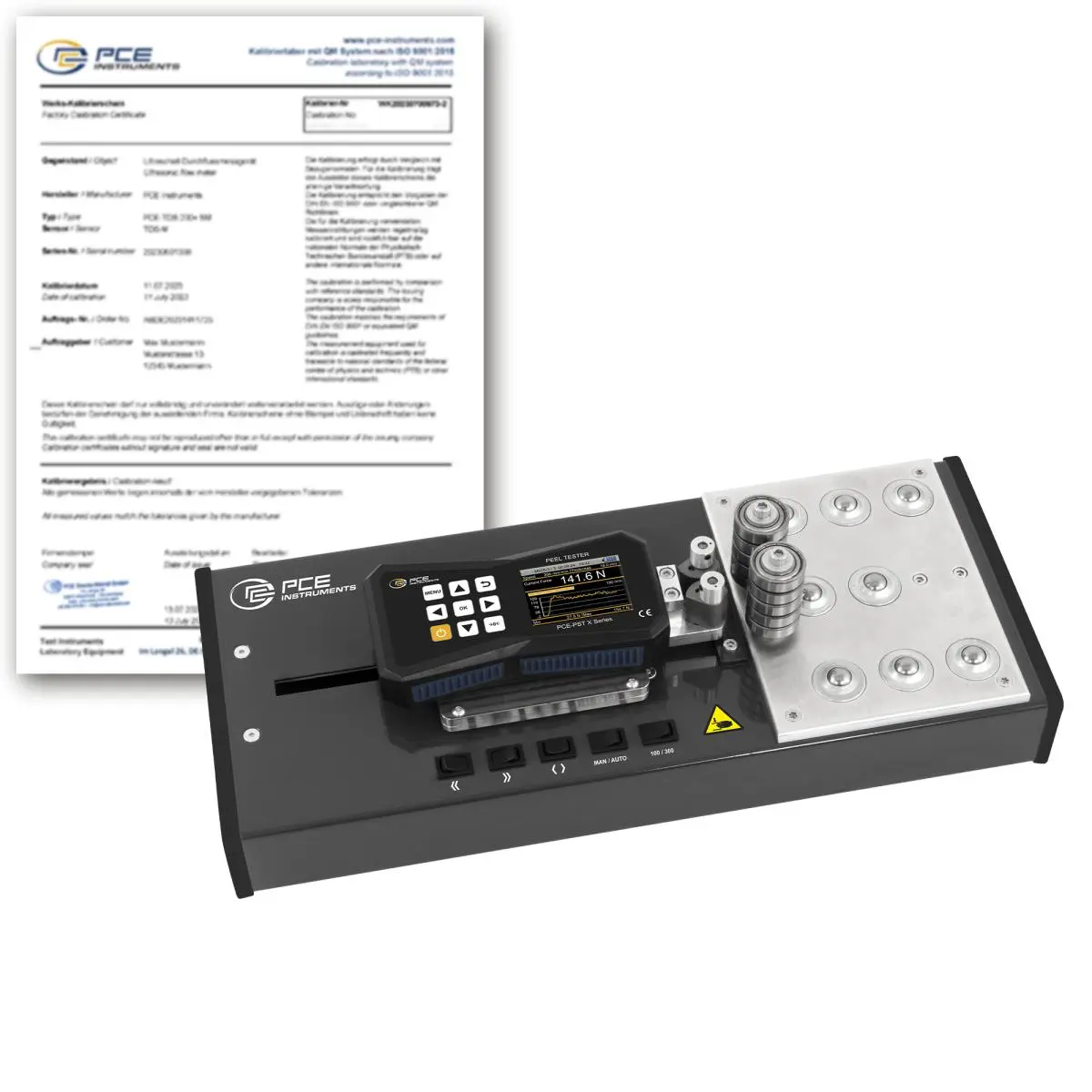

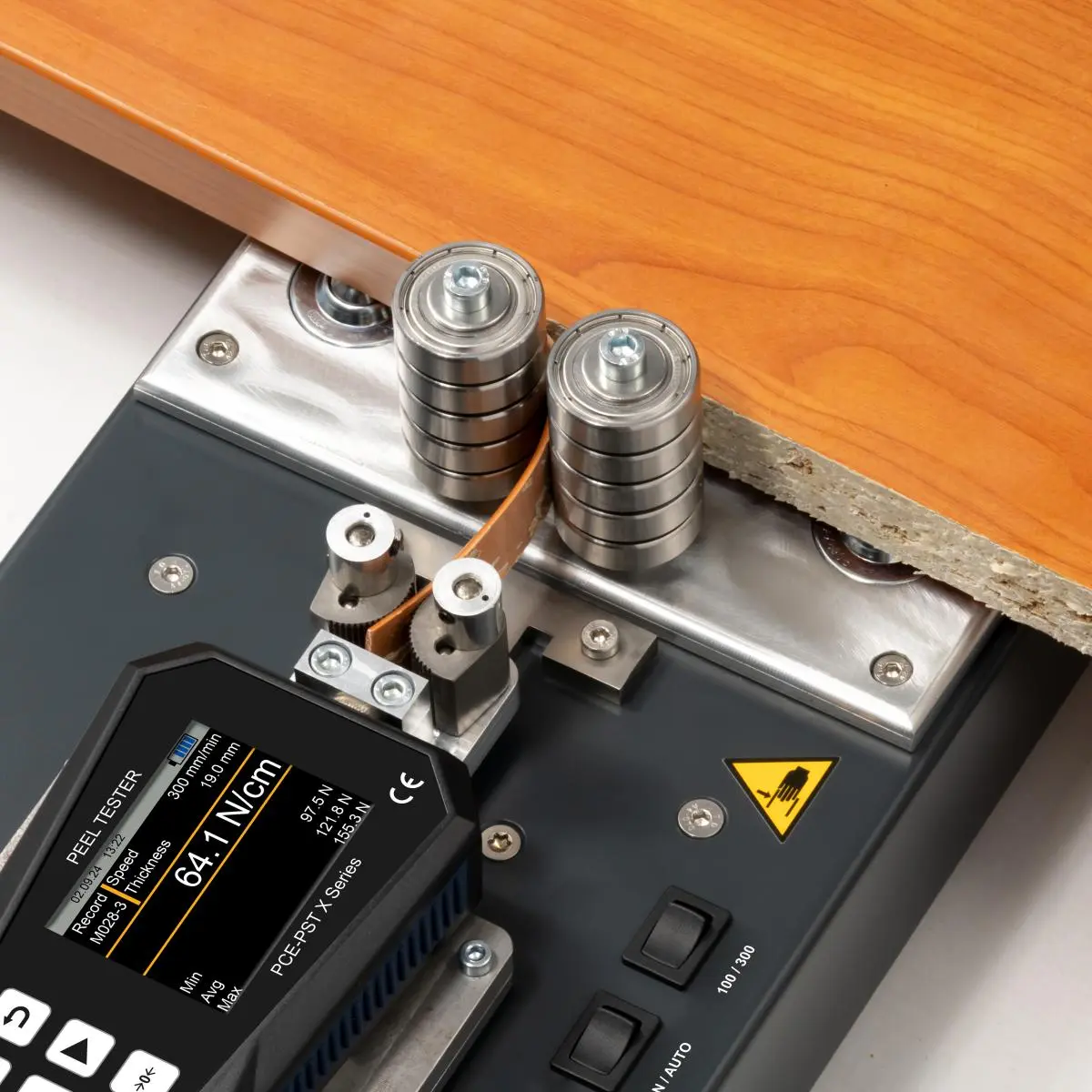

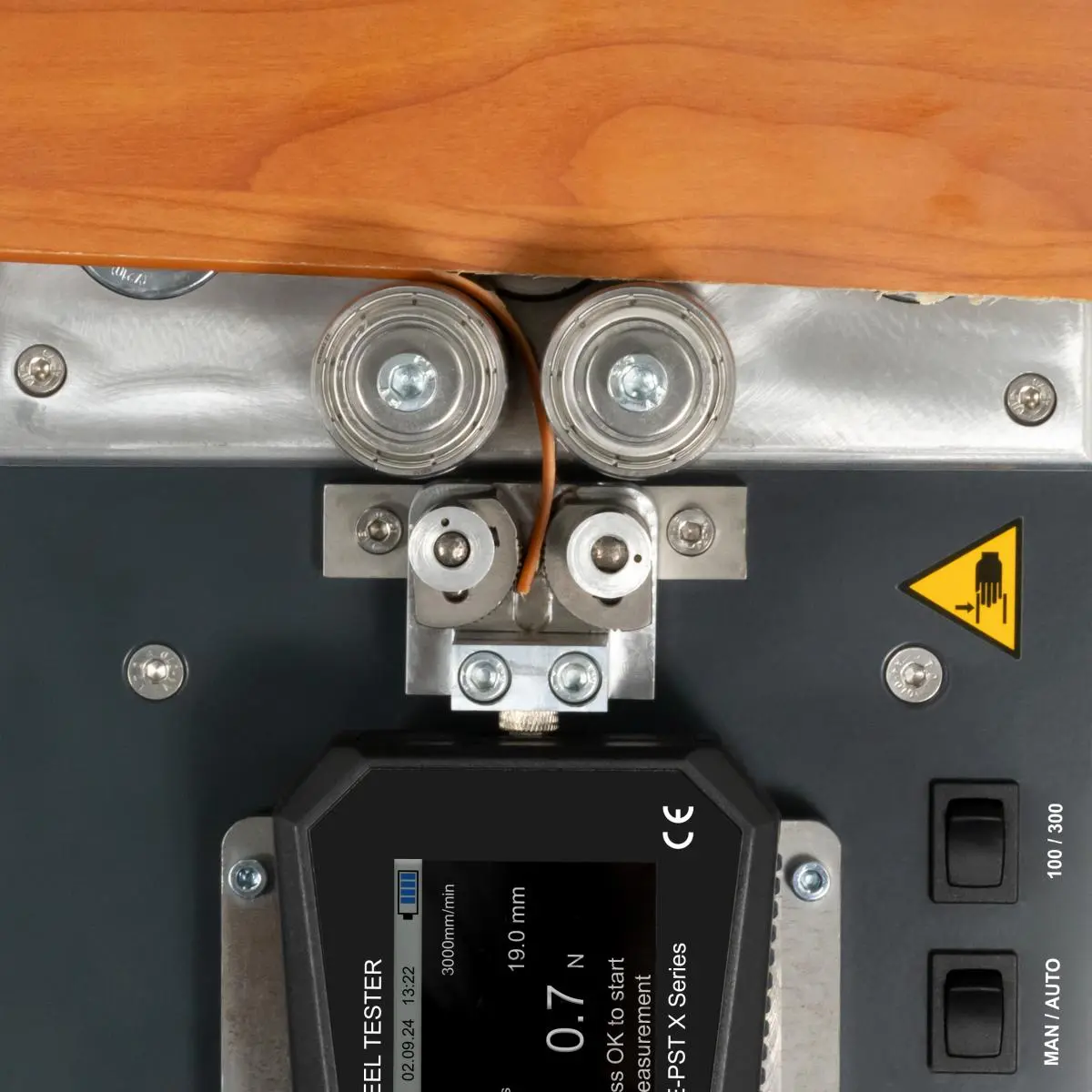

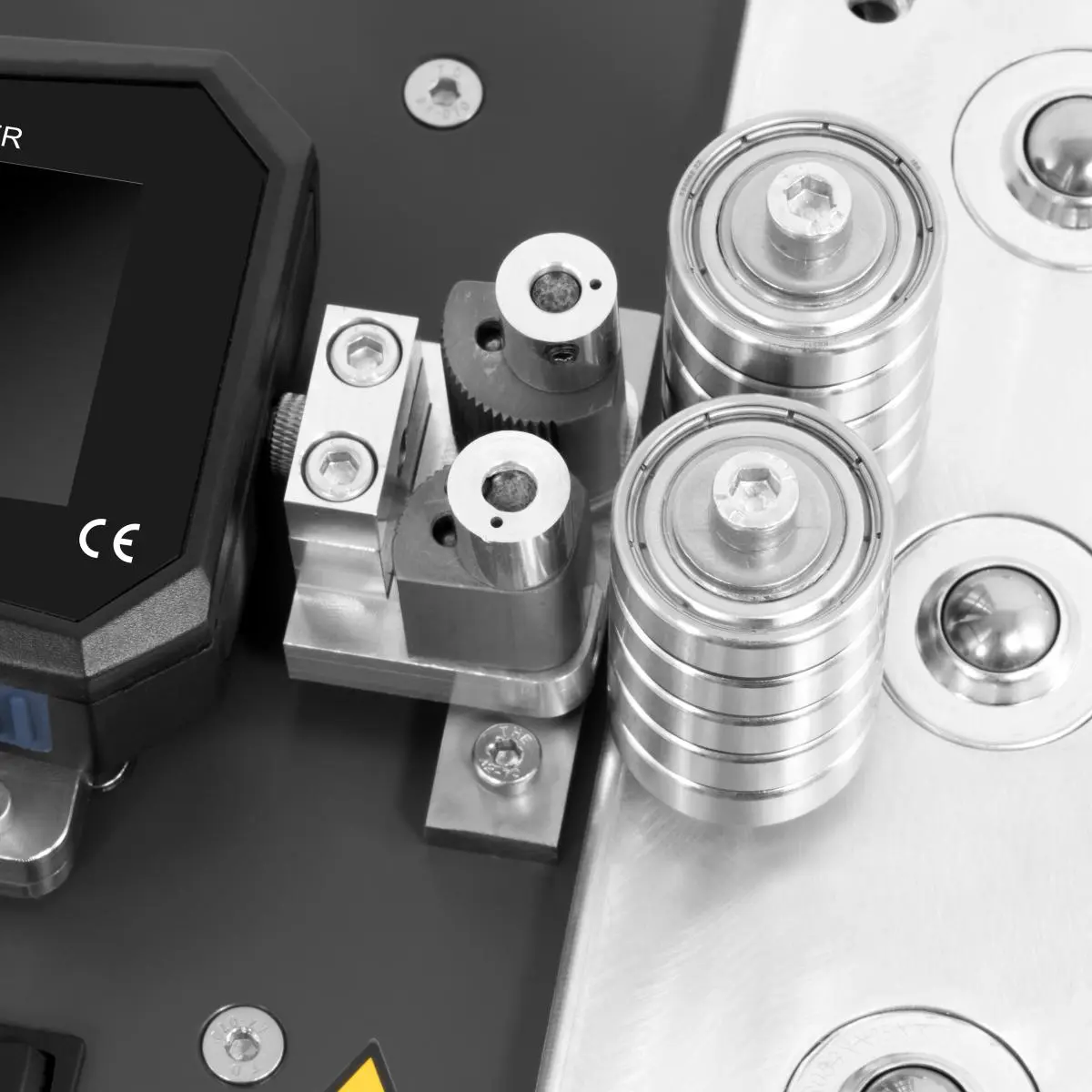

The Test Stand is a compact hand-held meter with an integrated load cell for the precise measurement of forces within a range of 0 to 500 N. The Test Stand has been specially developed for peel tests and enables a comprehensive assessment of the processing quality. Our Test Stand offers manual and automatic measuring modes, as well as ball rollers on the guide surface to reduce the coefficient of friction.

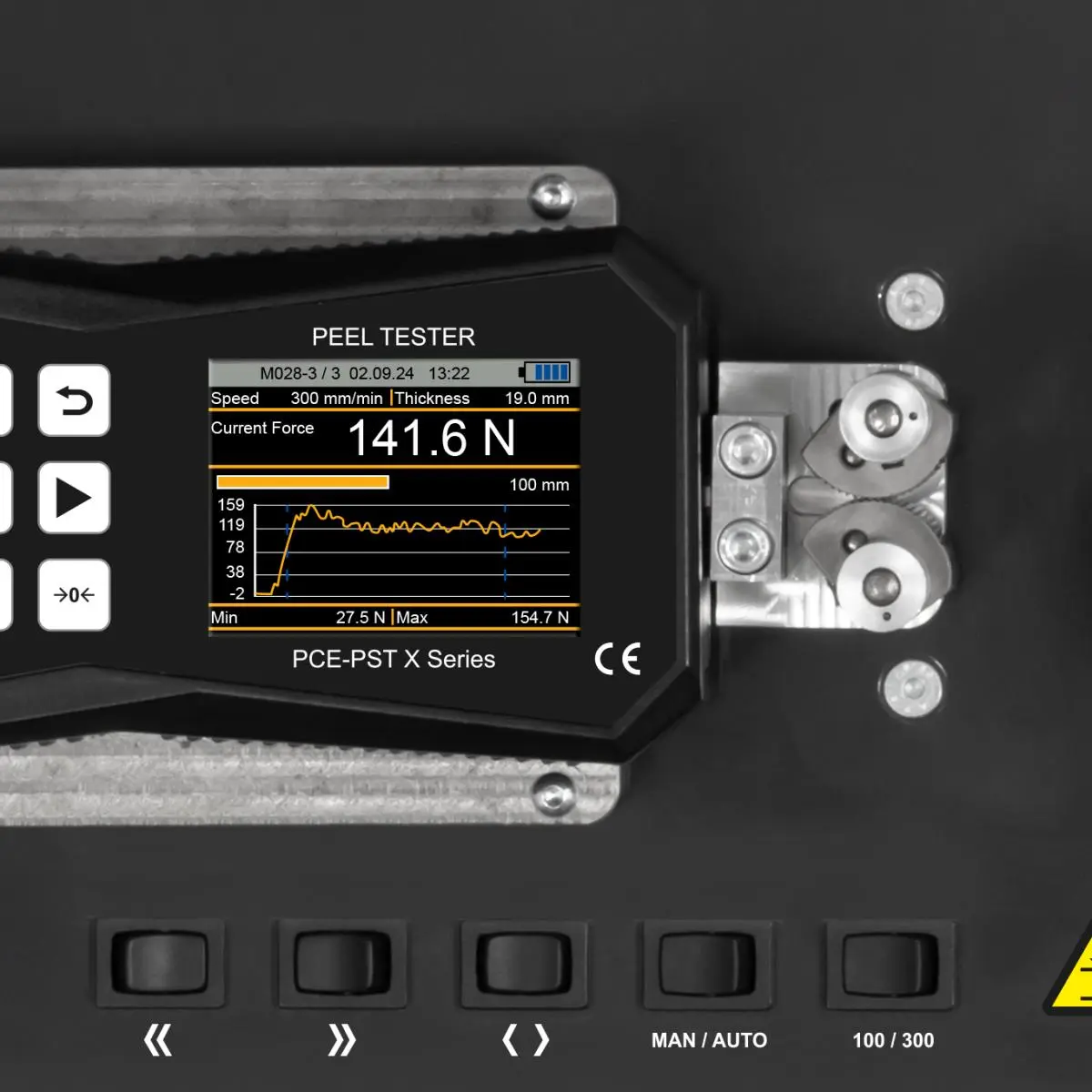

It has an adjustable sampling rate from 2 to 100 Hz and supports both metric and imperial units of measurement. The measurement duration consists of the pre-run time, measuring time, and post-run time, which can be individually configured from 0 to 10 seconds. The integrated data logger saves measurement series as well as individual measurements and displays statistical values such as average, minimum, and maximum values as well as graphical curves. With a maximum traverse distance of 150 mm and two traverse speeds (100 mm/min and 300 mm/min), the Test Stand is highly adaptable to different test requirements.

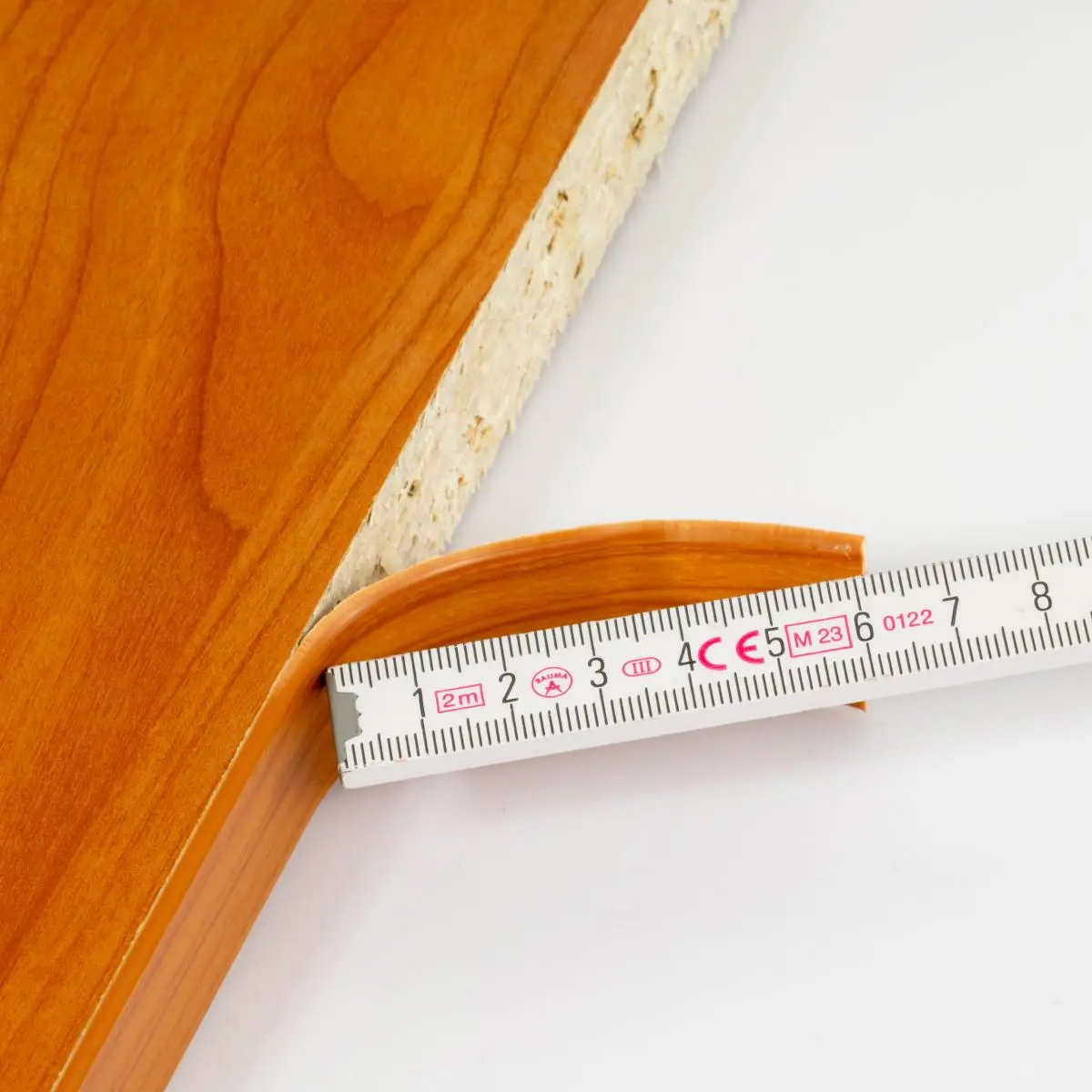

It is used for testing composite materials such as coated wood-based materials, laminated surfaces, or veneered panels as well as for measuring the adhesive strength in bonded joints of various components.
