Test Stand for Force Gauge PCE-MTS50

Order no.: PCE-MTS50
£ 1,335.00
£ 1,602.00
PCE-MTS50
price ex. (VAT / delivery)
Digital
Digital
Extern
Delivery time: Coming soon

PCE-MTS50 Test Stand for Force Gauge
Universal testing machine (UTM) for use with PCE-series force gauges
Measures compressive and tensile forces up to 500 N / 50 kg

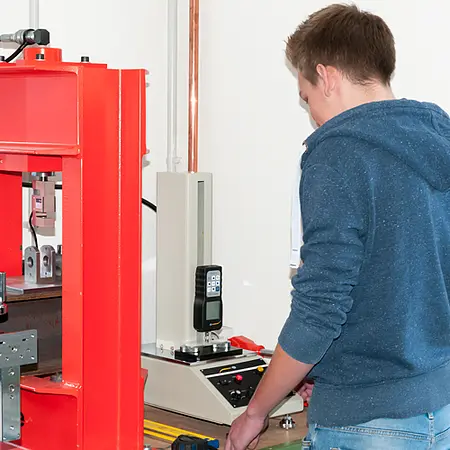

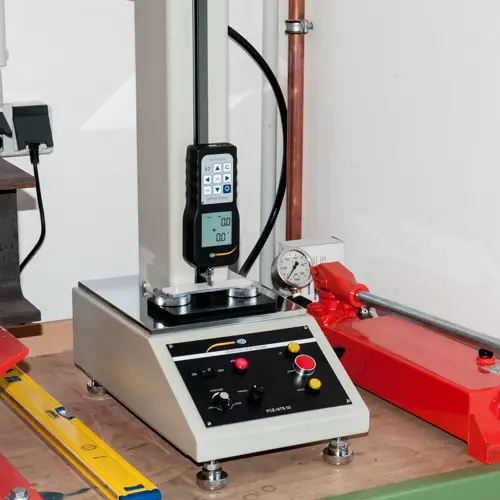

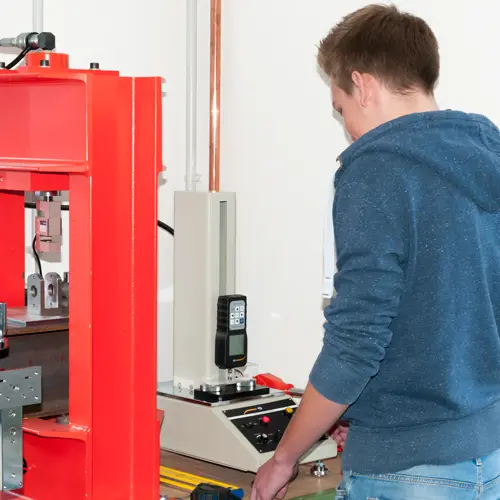

PCE-MTS50 is a motorized material test stand for use with all PCE-series force gauges. (Note: An adapter plate may be required for mounting the force gauge to the test stand - see accessories for details.) The motorized material test stand offers enhanced control and stability during force testing. It also helps to ensure the accuracy and repeatability of vertical tension and compression force test results.

Use of the motorized material test stand requires an AC power connection. The feed rate is adjustable between 50 ... 500 mm / min using the controls on the front panel. The traverse / distance also can be adjusted.

*** Test stand only. Force gauge and adapter plate (if necessary) sold separately. ***


- Compatible with all PCE-series force gauges
- Maximum force measurement: 500 N / 50 kg
- Automatic or manual (push-button) operation
- Adjustable feed speed: 50 ... 500 mm / min
- AC power connection (110 V or 220 V)
- Adjustable traverse / distance
- Heavy-duty steel design
Force measuring rangeMax. 500 N / 50 kg
TraverseMax. 315 mm / 12.4 in
Feed speed50 ... 250 mm / 2 x 9.8 in, min up to 200 N
250 ... 500 mm / 9.8 x 19.7 in, min up to 500 N
Power supply110V or 220V AC
Current consumption1.5 A
Optimal operating conditions20°C / 68 °F, ≤ 80 % relative humidity (RH)
DimensionsApprox. 430 x 240 x 570 mm / 16.9 x 9.4 x 22.4
WeightApprox. 24.2 kg / 54 lb

1 x PCE-MTS50 test stand for force gauge
1 x User manual
