Price excl. VAT &. delivery
2 year Warranty

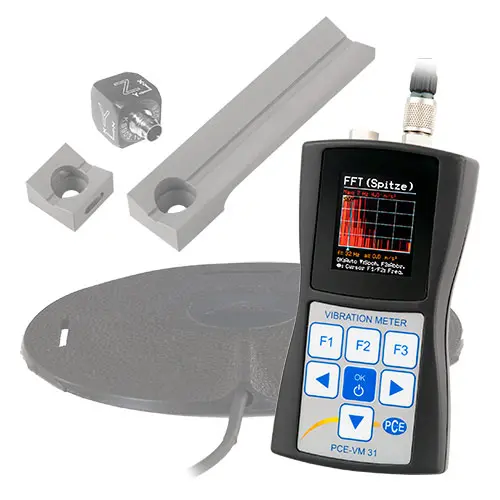

ISO 8041 calibration certificate for whole-body vibration measurement
Measuring range | Sensor with 1 mV/(m/s²) | Sensor with 10 mV/(m/s²) |
Acceleration | 1100 m/s² / 3609 ft/s² | 110 m/s² / 361 ft/s² |
Velocity | 100 mm/s ... 10,000 mm/s 4.0 in/s ... 394.0 in/s (1 kHz/1 Hz) |
10 mm/s ... 1,000 mm/s 0.4 in/s ... 39.4 in/s (1 kHz/1 Hz) |
Displacement (Peak) | 250 µm ... 15,000 µm 0.01 in ... 0.6 in (5 Hz/250 Hz) |
25 µm ... 1,500 µm 0.001 in ... 0.06 in (5 Hz/250 Hz) |
Display resolution (1 / 10 mV/(m/s²)) |
||
Acceleration | 0.01 m/s² / 0.4 in/s² | |
Velocity | 0.1 mm/s / 0.004 in/s | |
Displacement | 1 µm / 4 x 10-5 in | |
Linearity range |
> 75 dB for ±6 % error |
|
Noise | < 0.003 m/s² / 0.12 in/s² | |
Inputs | 4 Low-Power-IEPE inputs; 0.7 mA / 17 V; TEDS support, IEEE1451.4, Template 25 | |
Sensor sensibility | 0.8 - 120 mV/(m/s²) | |
Display units human vibration (acceleration) |
Interval RMS vector sum max. running RMS (MTVV) vibration dose value (VDV) |
|
Display units acceleration, velocity, displacement | running RMS maximum RMS vector sum peak value maximum peak value |
|
Filters | Weighting filters: Wb, Wc, Wd, Wh, Wj, Wk, Wm | |
Unweighted: 6.3 - 1259 Hz (H/A) / 0.4 - 100 Hz (G/K) | ||
Acceleration: 0.1 - 2000 Hz / 1 - 1000 Hz | ||
Velocity: 1 - 100 Hz / 2 - 1000 Hz / 10 - 1000 Hz | ||
Displacement: 5 - 250 Hz | ||
Frequency analysis (FFT) | 125 lines for X/Y/Z, peak spectrum of acceleration, 3 - 240 / 6 - 480 / 12 - 960 / 24 - 1920 Hz | |
Data memory | Flash, 10,000 measurements, 1,000 FFts, each with date, time and comment | |
Display | OLED, 128 x 160 pixels, coloured | |
Interface | USB 2.0, full speed, CDC-mode (virtual COM port), via cable VM2x-USB | |
Batteries | 3 x 1.5 V AAA batteries or accumulators (LR03 or HR03) | |
Environmental conditions | -20° C ... +60° C / -4° F ... +140° F < 95 % RH |
|
Approx. dimensions | 125 mm x 65 mm x 27 mm 4.9 in x 2.6 in x 1.1 in (without connectors) |
|
Approx. weight | 140 g / 0.31 lbs |
Price excl. VAT &. delivery
2 year Warranty

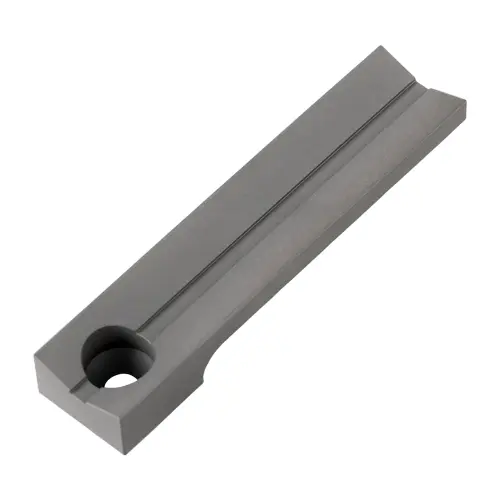

The handle adapter for curved surfaces is used for hand-arm vibration measurements with the PCE-VM 31. It is designed for use with the KS903.10 hand arm acceleration sensor. When performing a measurement, the adapter can be mounted by using a zip tie.
Price excl. VAT &. delivery
2 year Warranty

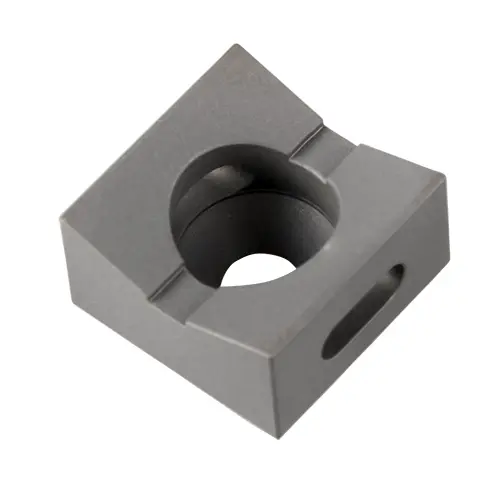

The handheld adapter for curved surfaces is used for hand-arm vibration measurements with the PCE-VM 31. It is is designed for use with the KS903.10 hand-arm acceleration sensor. When performing a measurement, you push the adapter against the handle with your hand.
