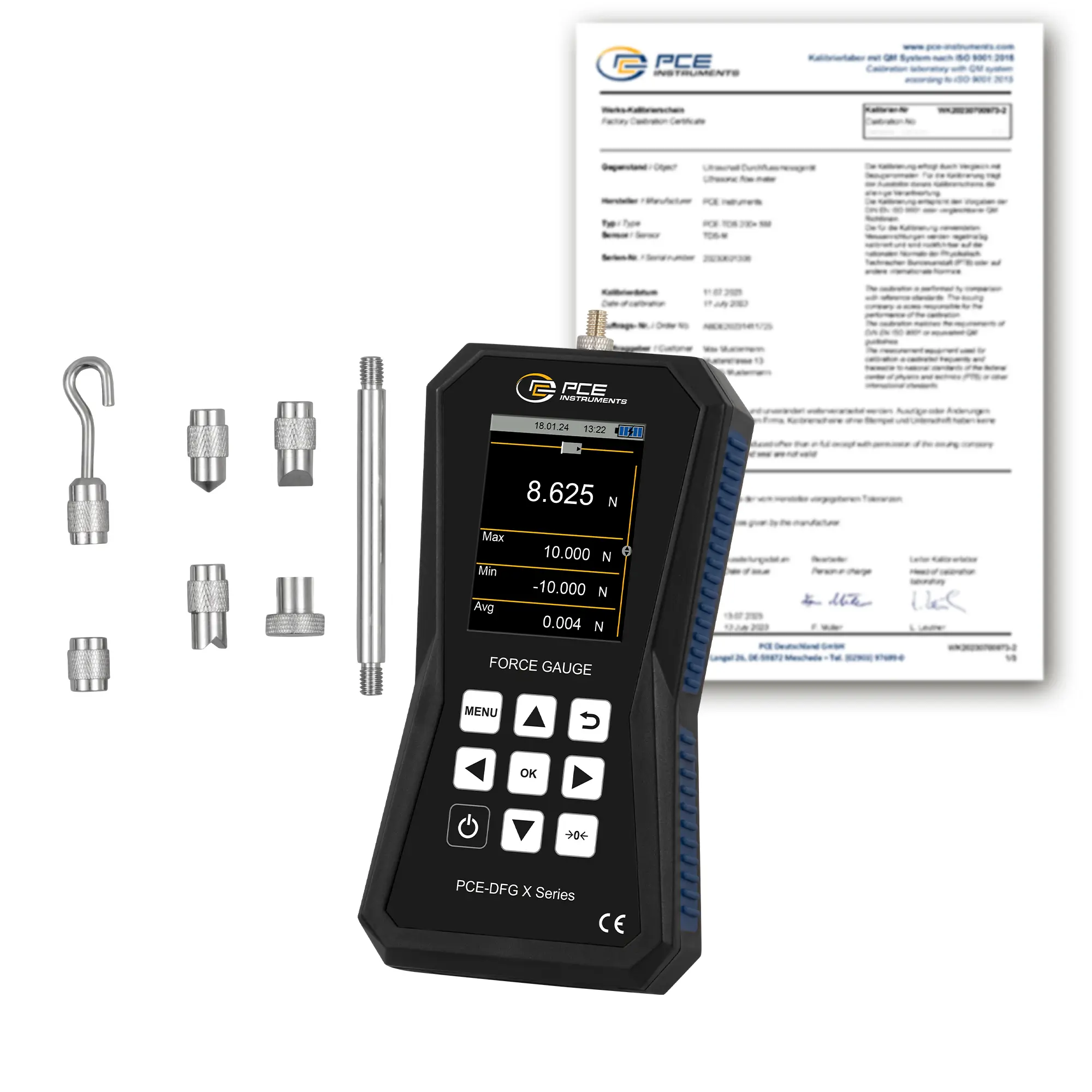

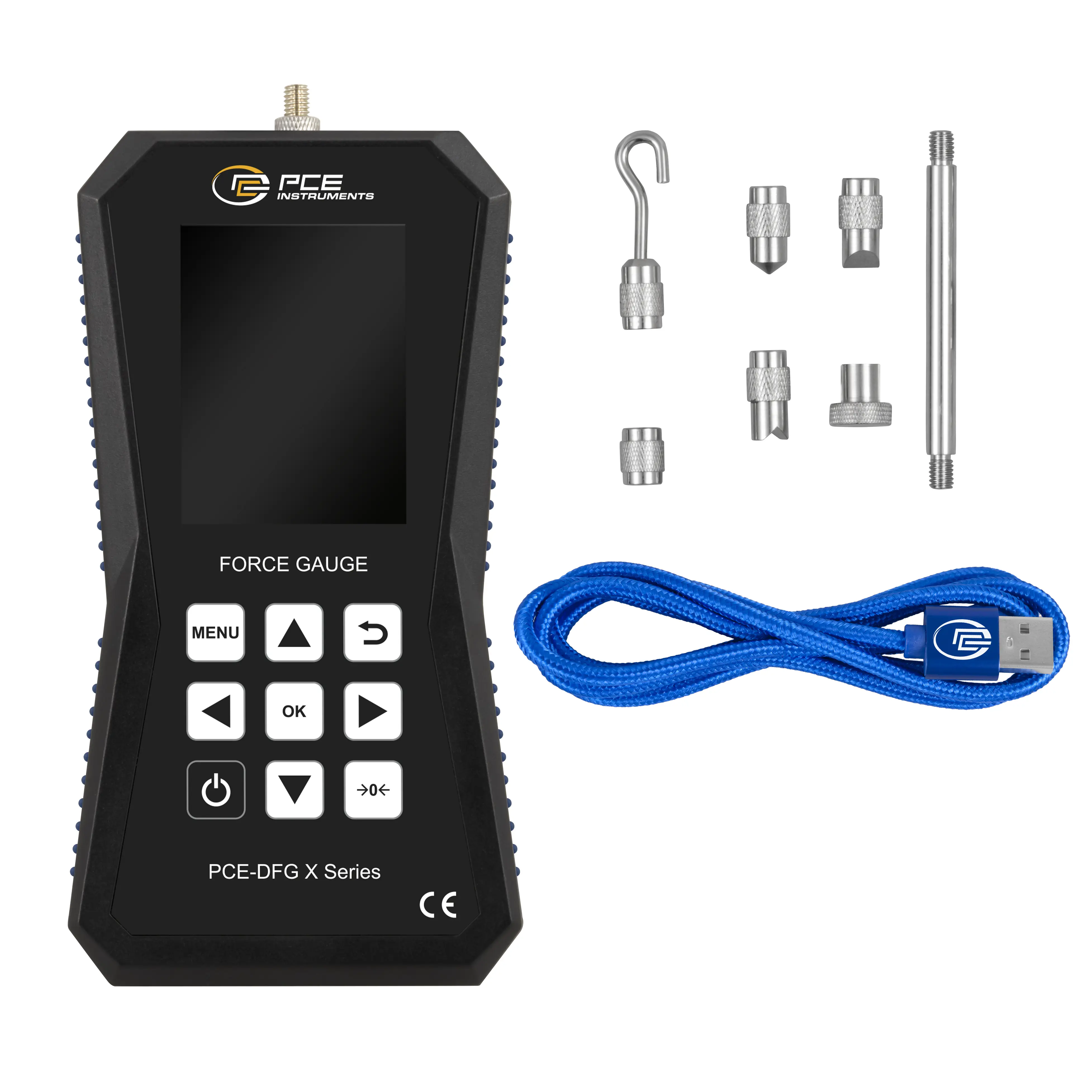

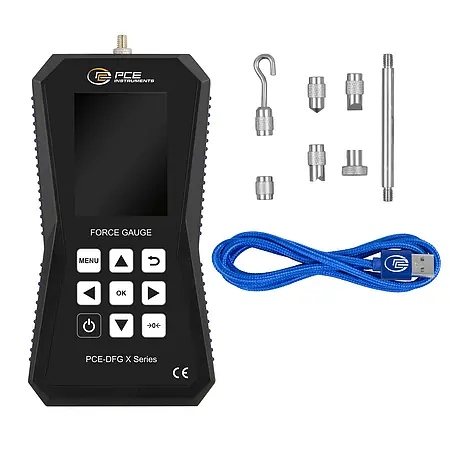

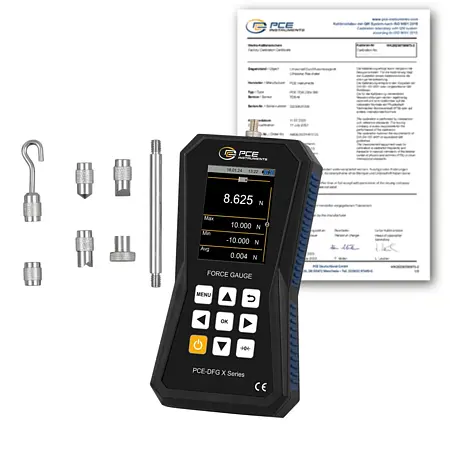

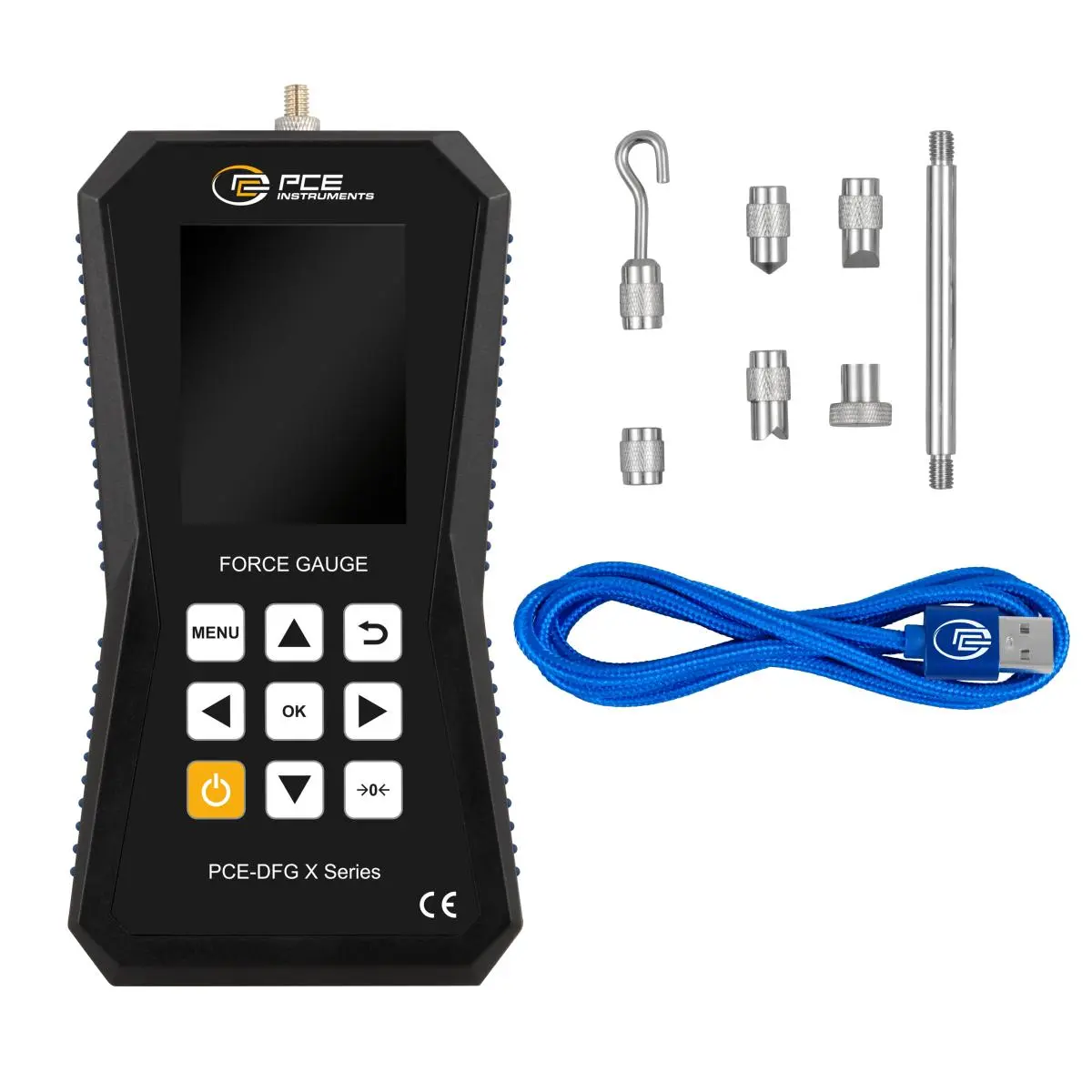

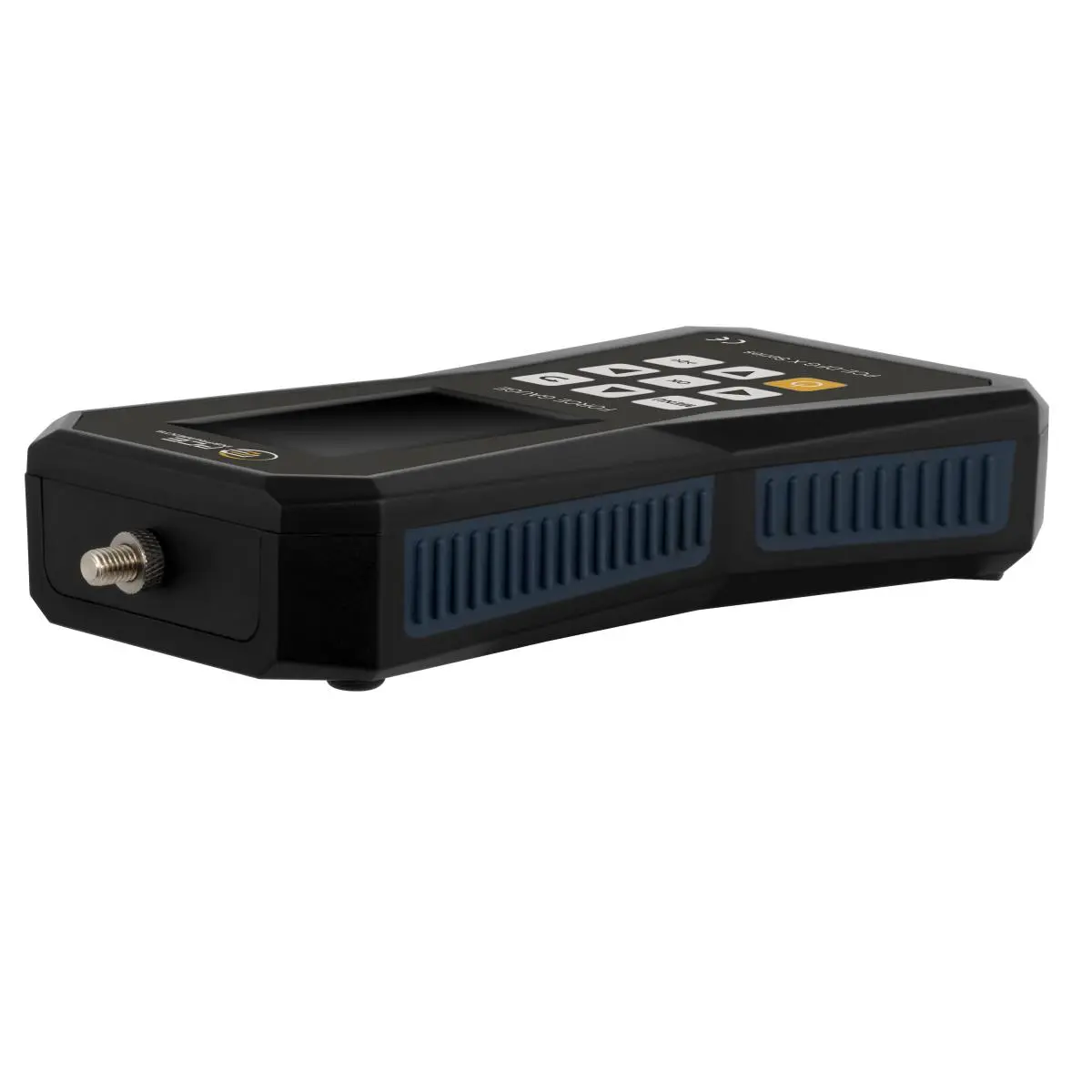

Both tensile and compressive forces can be measured with high accuracy using this Tension Dynamometer / Tension Load Cell. Tensile and compressive forces are frequently measured in test laboratories. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Tension Dynamometer / Tension Load Cell has an internal measuring cell and can measure forces up to 10 N. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

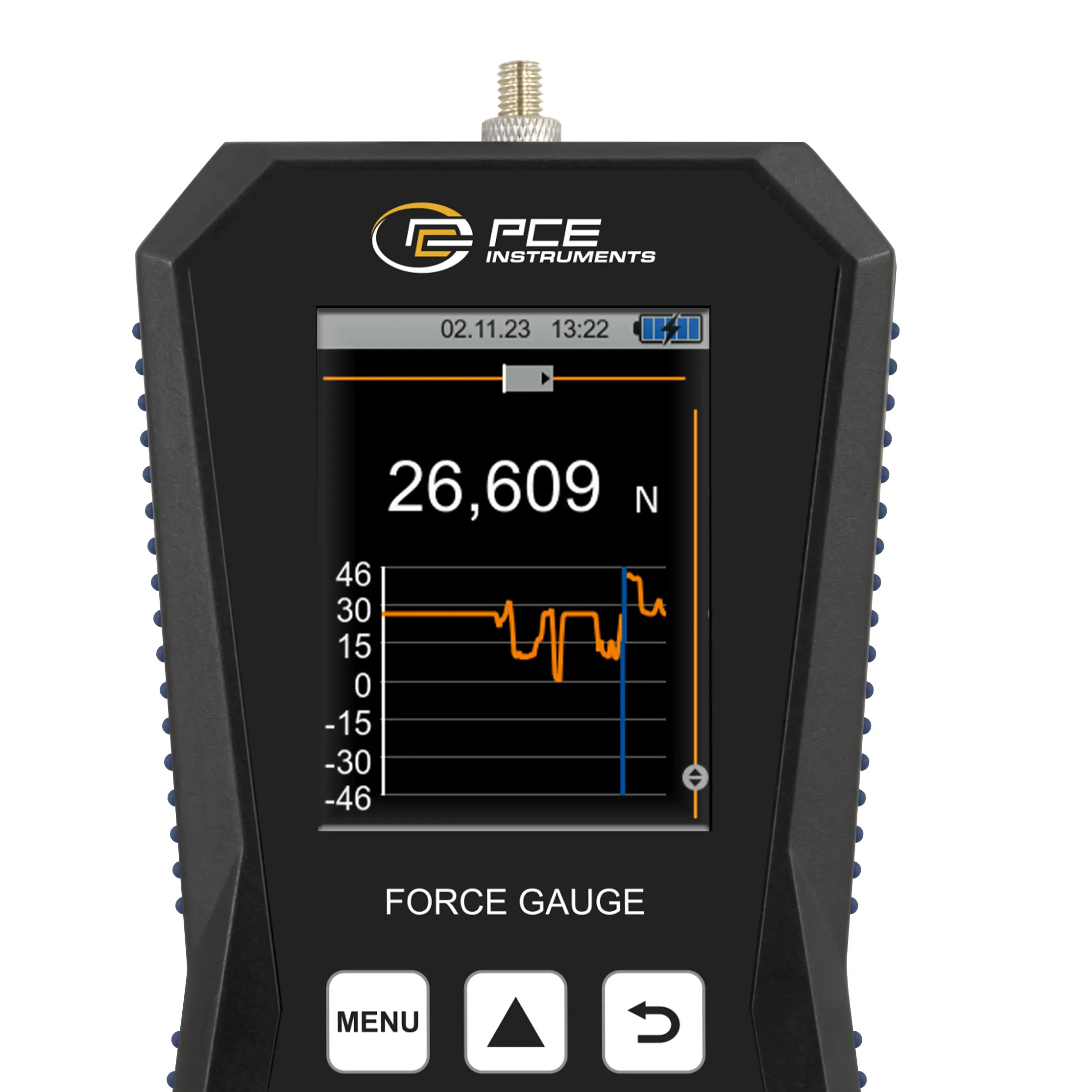

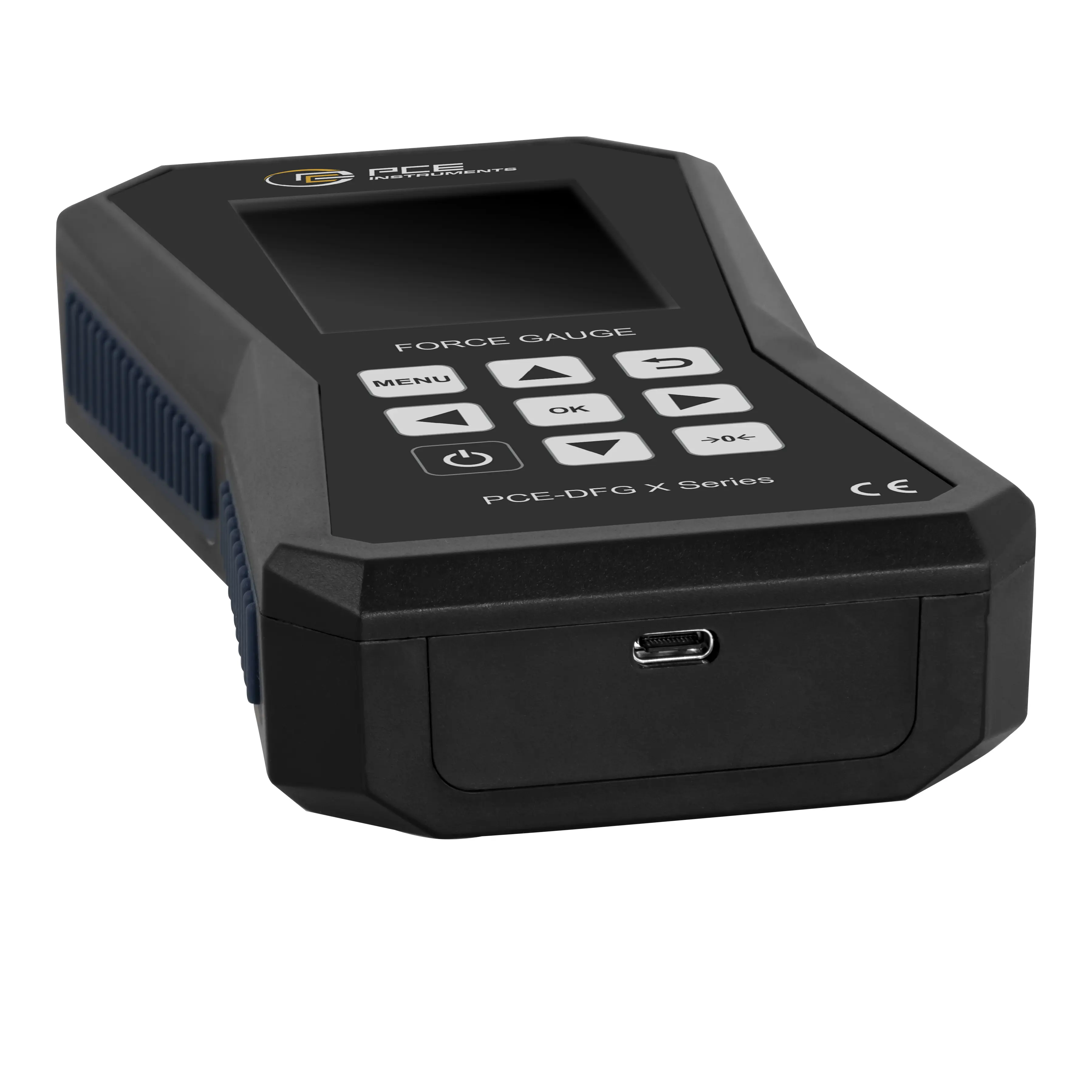

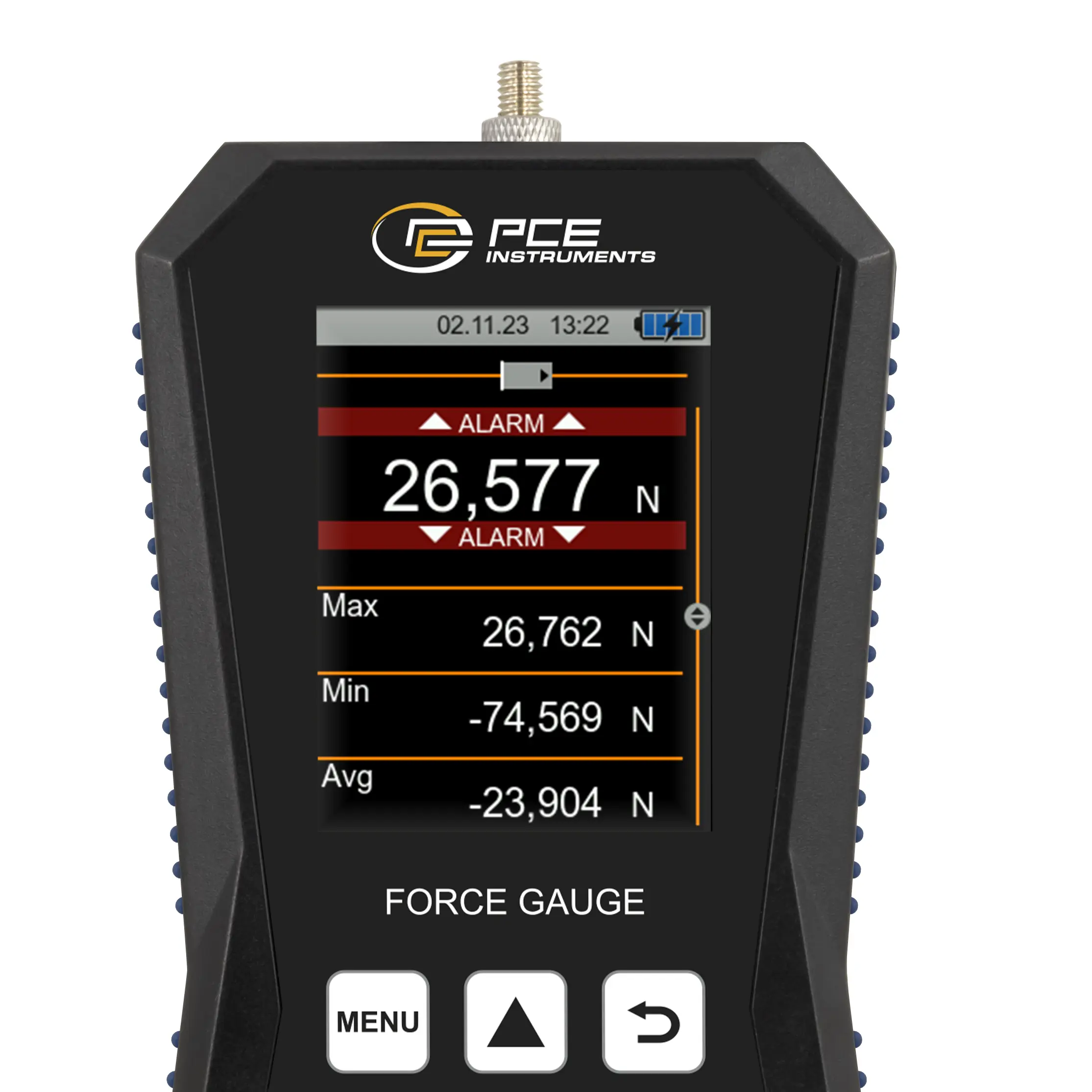

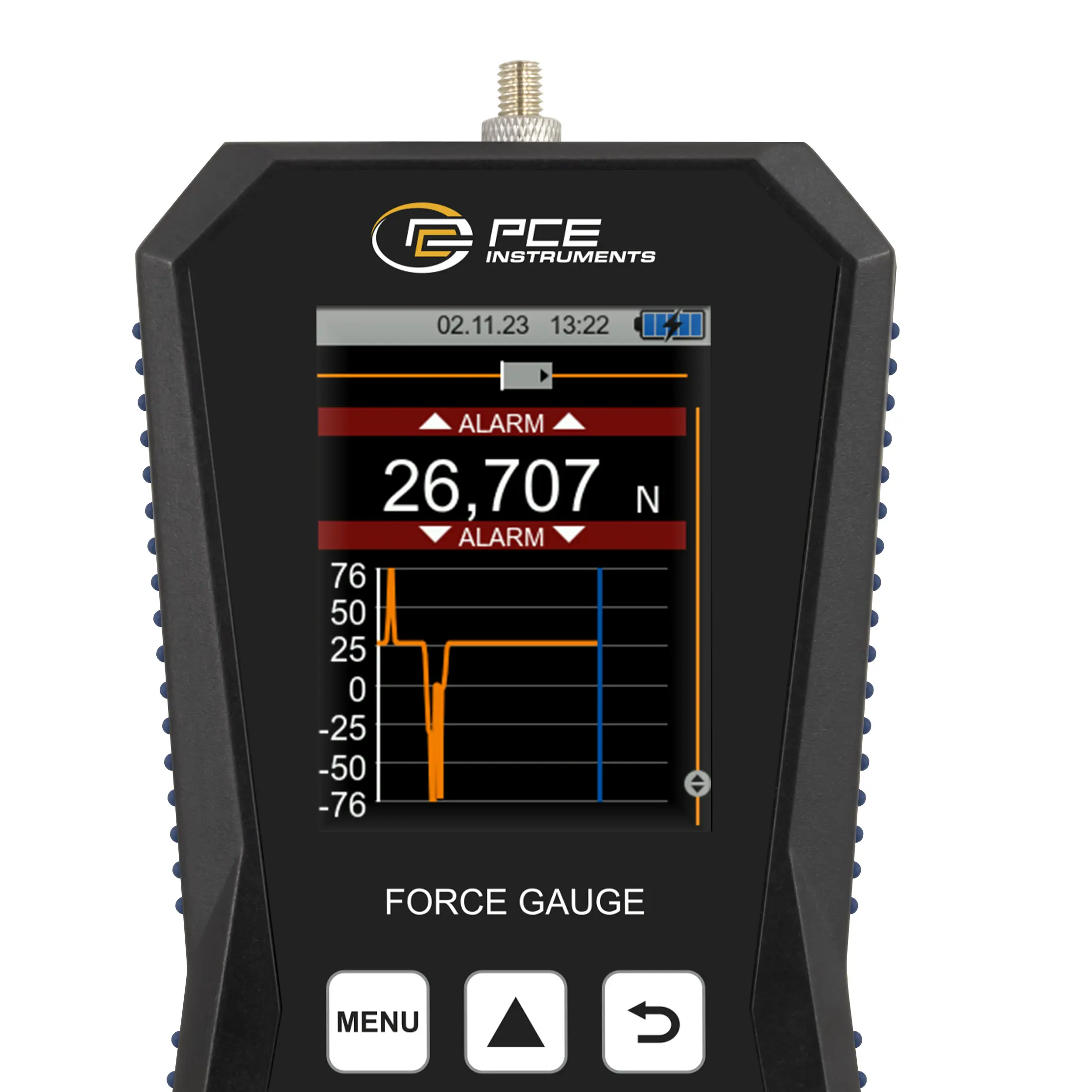

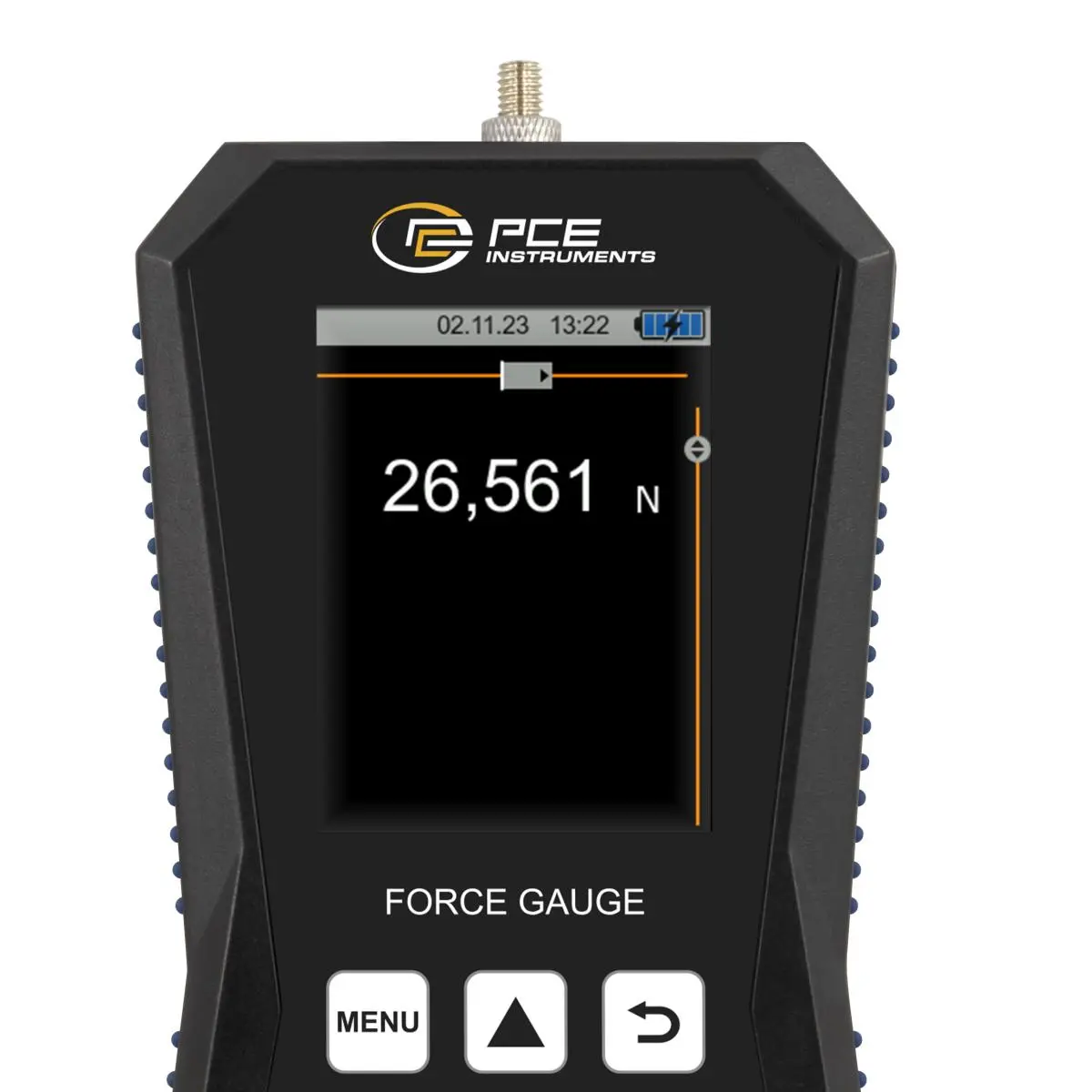

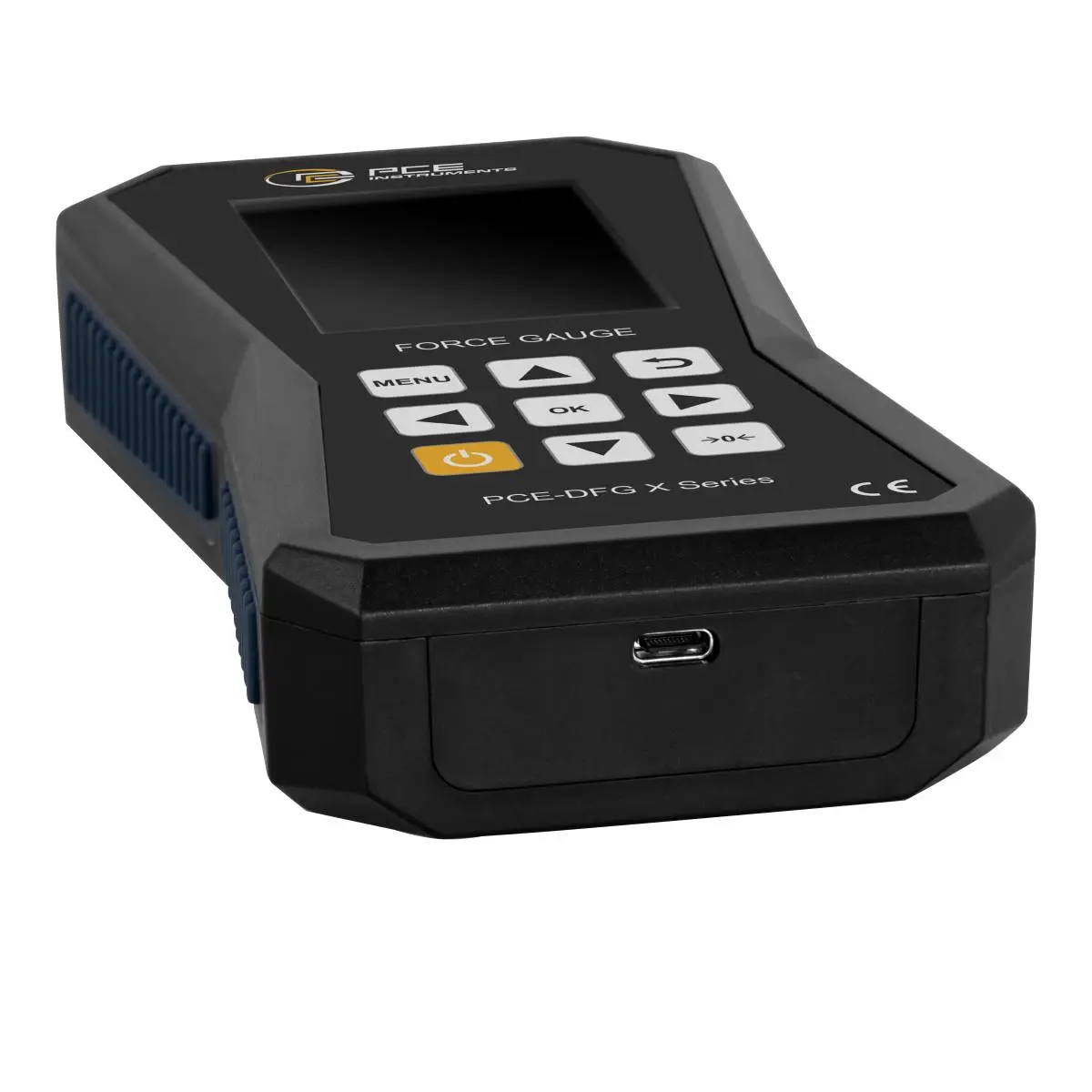

The internal memory of 32 GB offers space for 30 million measuring points. This can be used to create, save and export measurement logs. The Tension Dynamometer / Tension Load Cell has a USB-C interface that can be used to read the measurement data into the PC software. The Tension Dynamometer / Tension Load Cell is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range.

Various force test stands are available for adapting the Tension Dynamometer / Tension Load Cell.
