Tension Dynamometer PCE-FM 500N
Force gauge for tensile force measurement and pressure force measurement up to 500 N (112 lbs) / With internal load cell / USB interface for data transmission

The tension dynamometer is a microprocessor controlled dynamometer with fast and accurate readout of tensile and compressive forces in N, Kg and lb. The display of the force gauge is easily readable by the large numbers. The force gauge is equipped with an internal load cell for tensile and compression tests. The load cell of the force gauge PCE-FM 500N is equipped with a M6 threaded head. Thus, the force gauge can also be screwed into other brackets, test facilities and test stands and. The force gauge is operated with an internal battery or the external power supply.

The PCE-FM 500N force gage offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gage if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gage, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gage as well as the inspection of incoming goods.

This tension dynamometer also has a USB interface for data transmission. With the interface and the software of the force measuring devices, the data can be transmitted quickly and easily to a PC. With the help of the optionally available mounting plate, the load cell can be adapted to decaying test benches. These test stands are ideal for tensile and compressive force measurement in quality control and laboratory testing or product development.

- Differently shaped measuring adapters
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Power supply via charging adapter
- Delivery with extension rod
- Evaluation via USB interface
- Fast measured value display

Measuring range	5 ... 500 N / 1.1 ... 112 lbs
Resolution	0.1 N / 0.02 lbs
Pressure calibration	1 Mpa
Load cell	Integrated load cell with M6 connection
Measuring range	1 ... 100% of the full scale
Measurement accuracy	± 0.5%
Units	N, kg, lb
Display	LCD
Power supply	Internal battery, 12V / 1 A power adapter
Operating temperature	10 ... 30°C / 50 ... 86°F
Relative humidity	15 ... 80% relative humidity
Weight	1 kg / 2.2 lbs

Working conditions:
The device must not be near sources of vibration or corrosive substances

1 x Tension dynamometer PCE-FM 500N
1 x Downloadable evaluation software
1 x USB cable

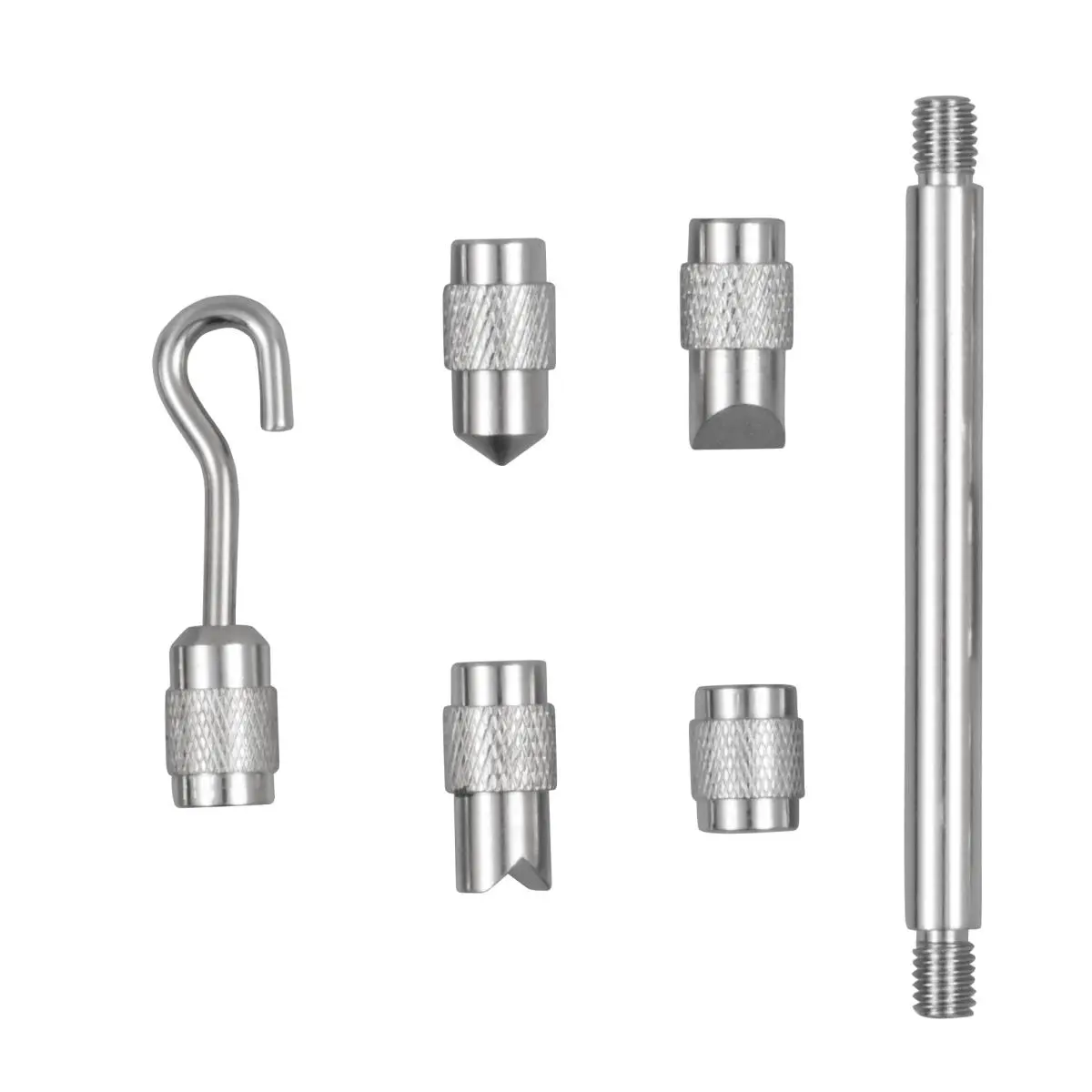

1 x Flat head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension bar (65 mm / 26 in)
1 x Charging adapter
1 x Device case
1 x User manual

man-force-gauge-pce-fm-200-pce-fm-50n-pce-fm-500n-en.pdf

Manual

Accessories

Order no.: PCE-FTS50

Force Test Stand PCE-FTS50

Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.

- with digital measuring distance display
- max. range of force 500 N
- maximum operating length of 236.36 mm / 9.30"
- the mounting plate ADP-UNI must be ordered at the same time!

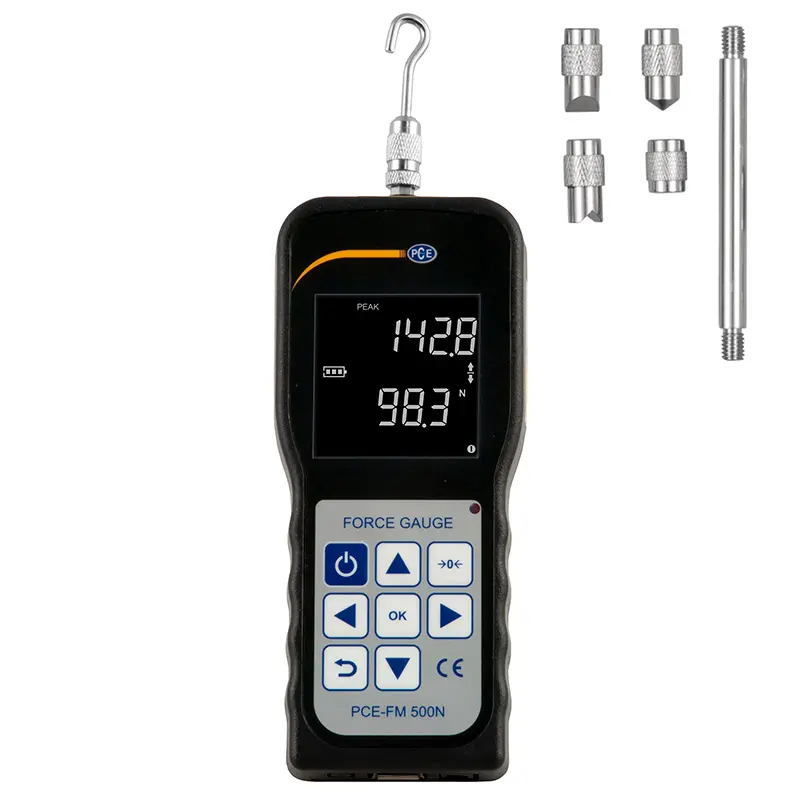

Tension Dynamometer PCE-FM 500N

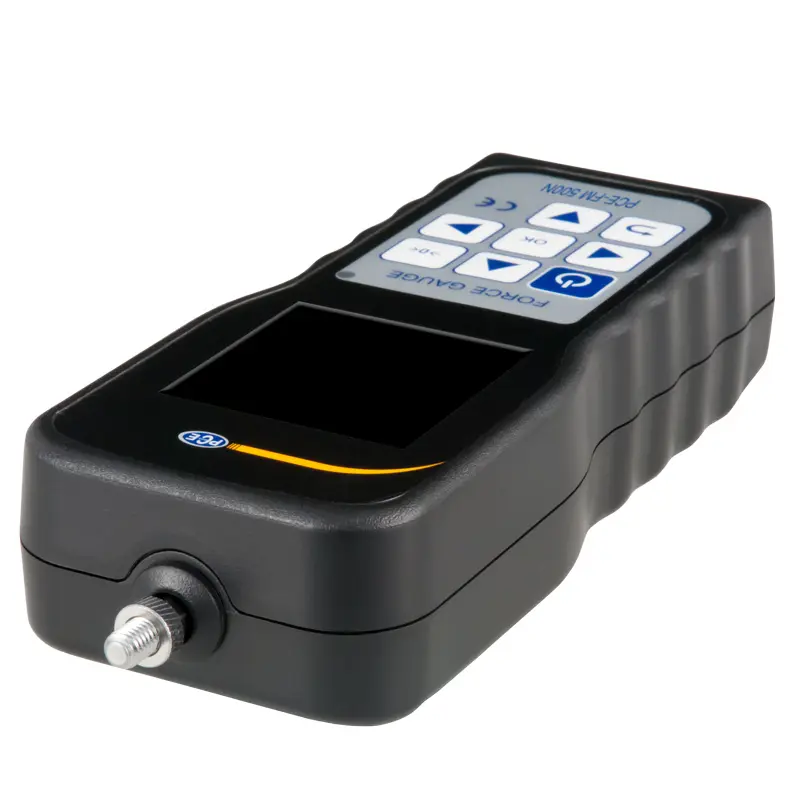

Tension Dynamometer PCE-FM 500N sensor

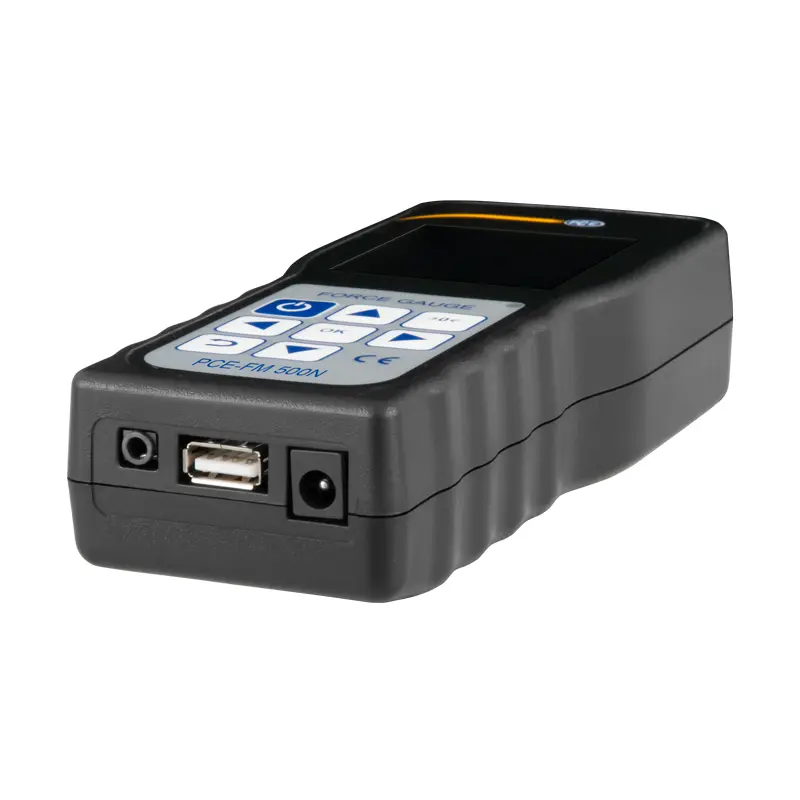

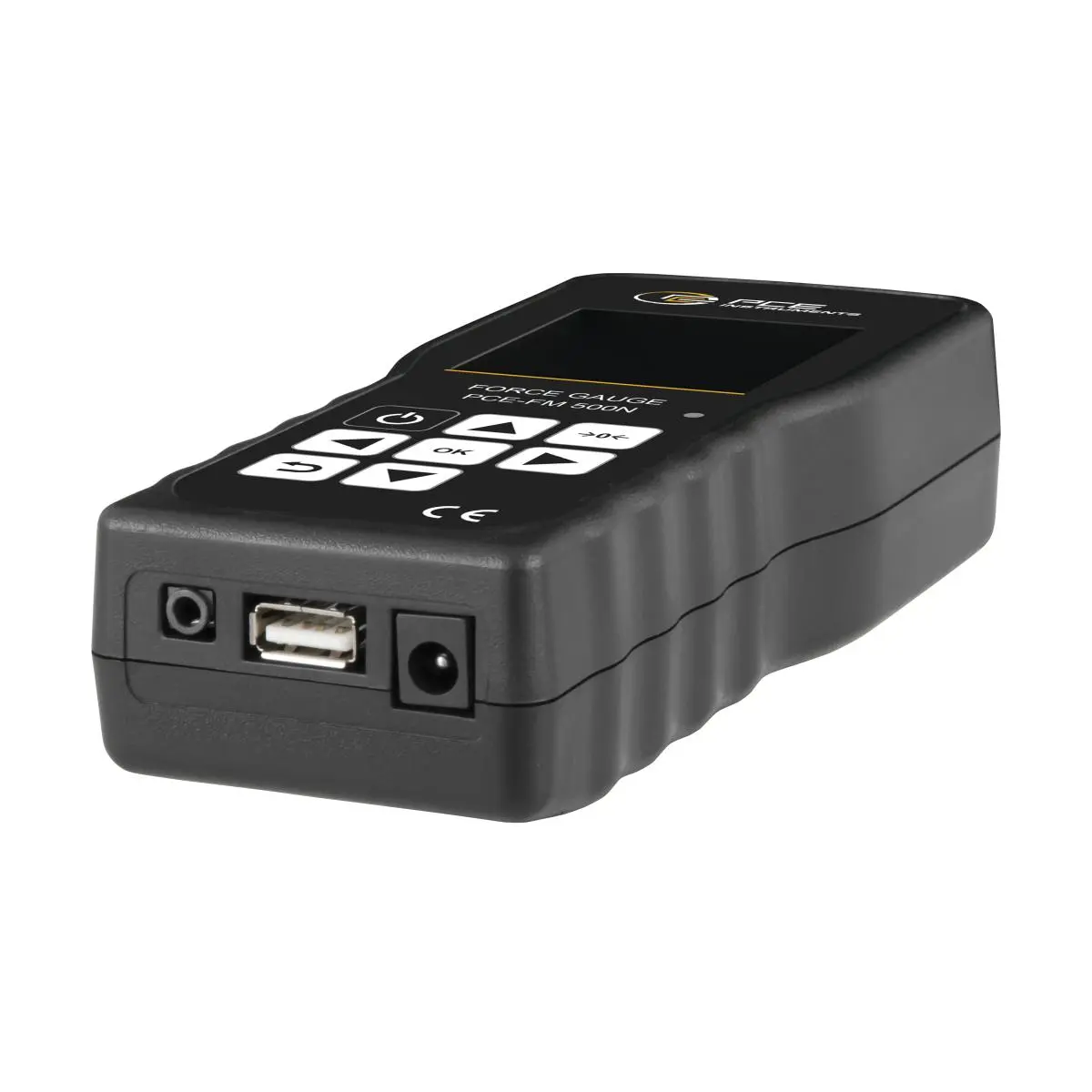

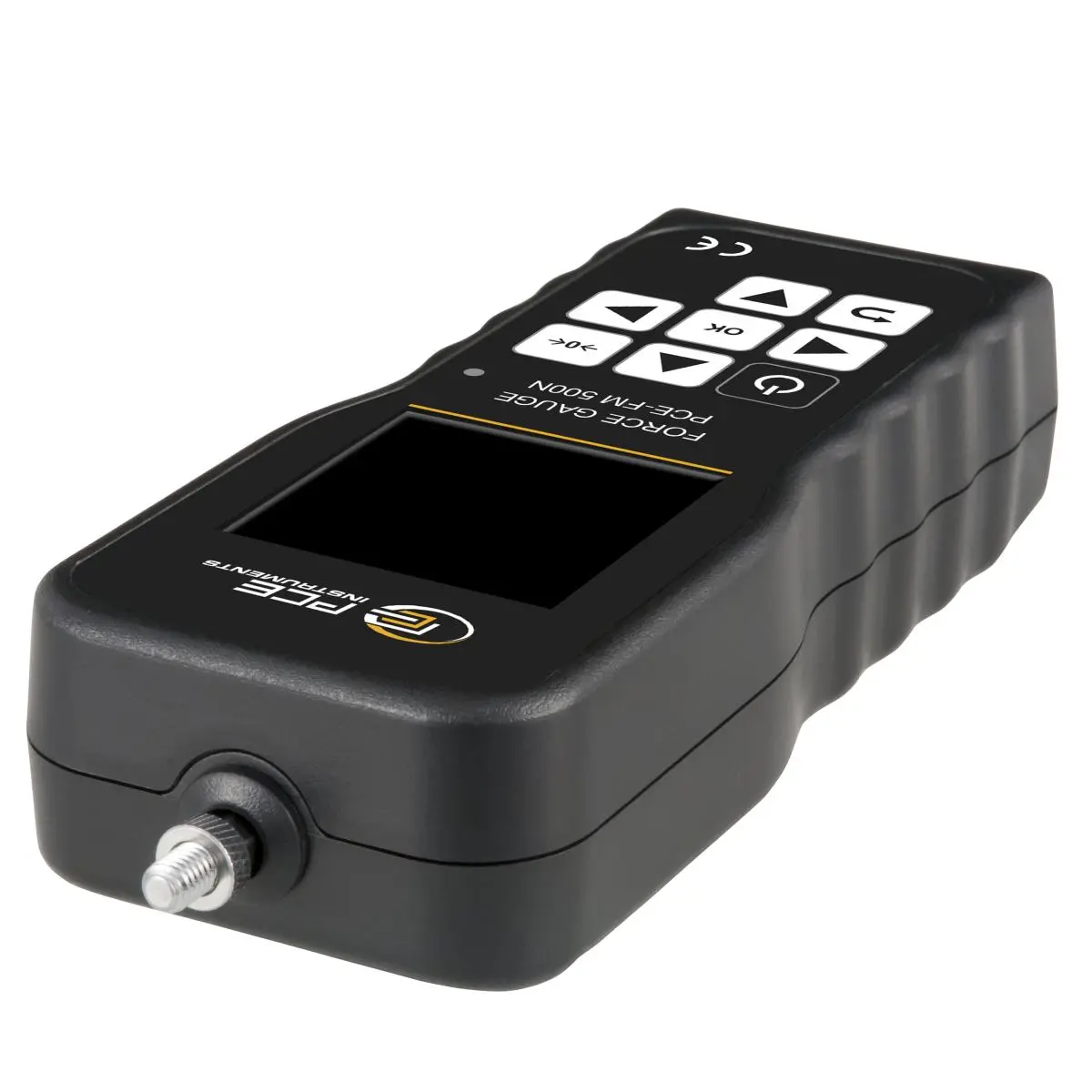

Tension Dynamometer PCE-FM 500N connections

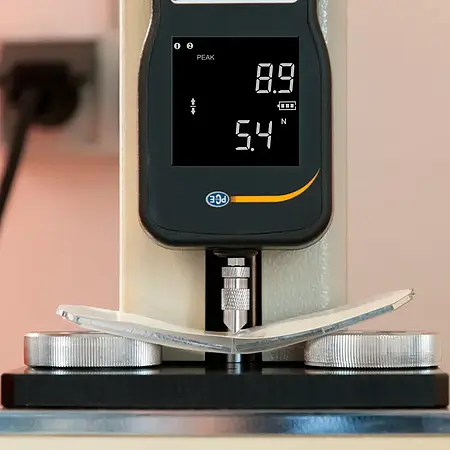

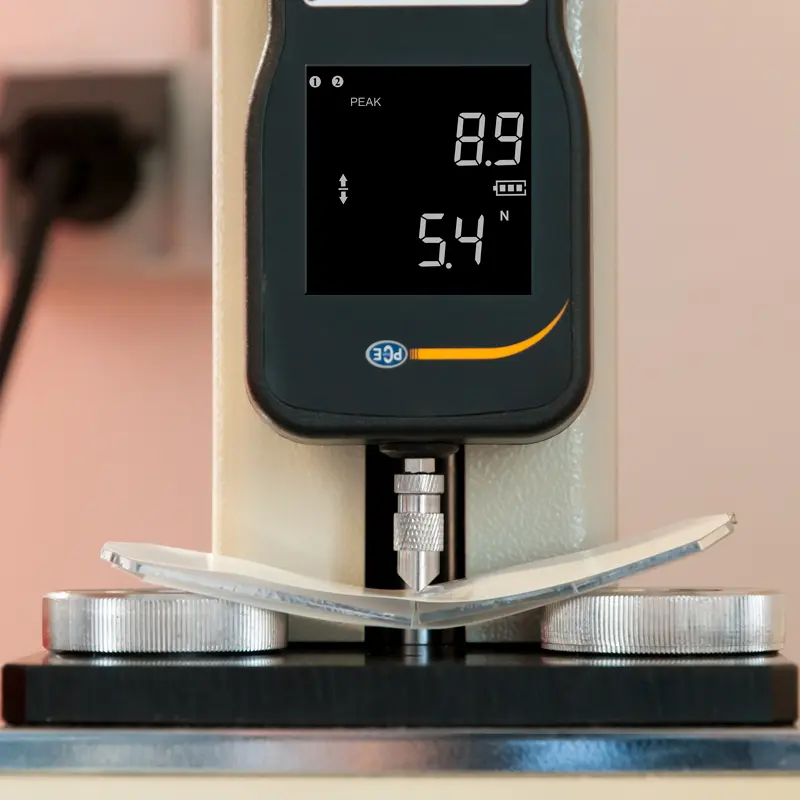

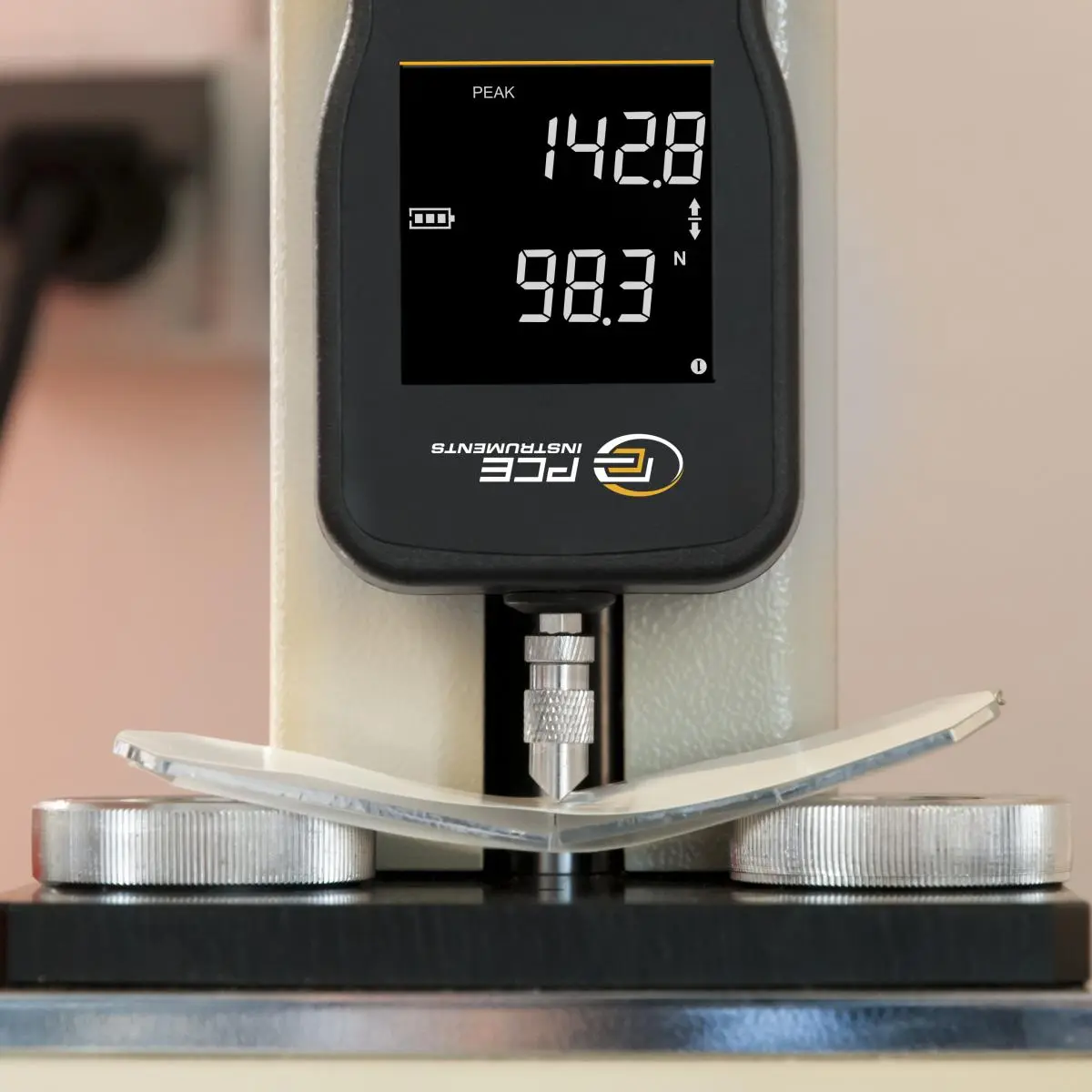

Tension Dynamometer PCE-FM 500N application

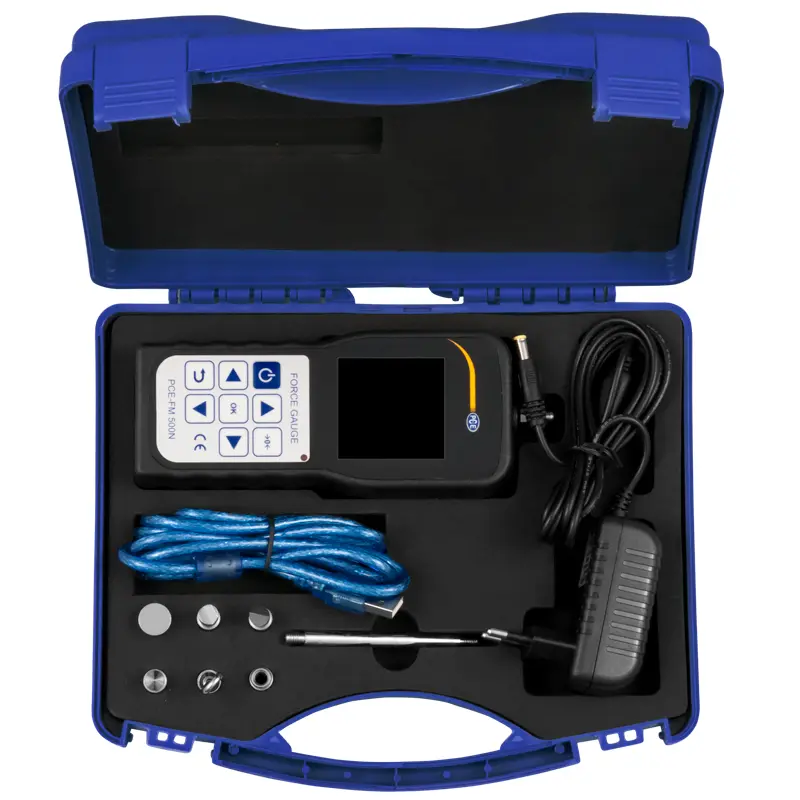

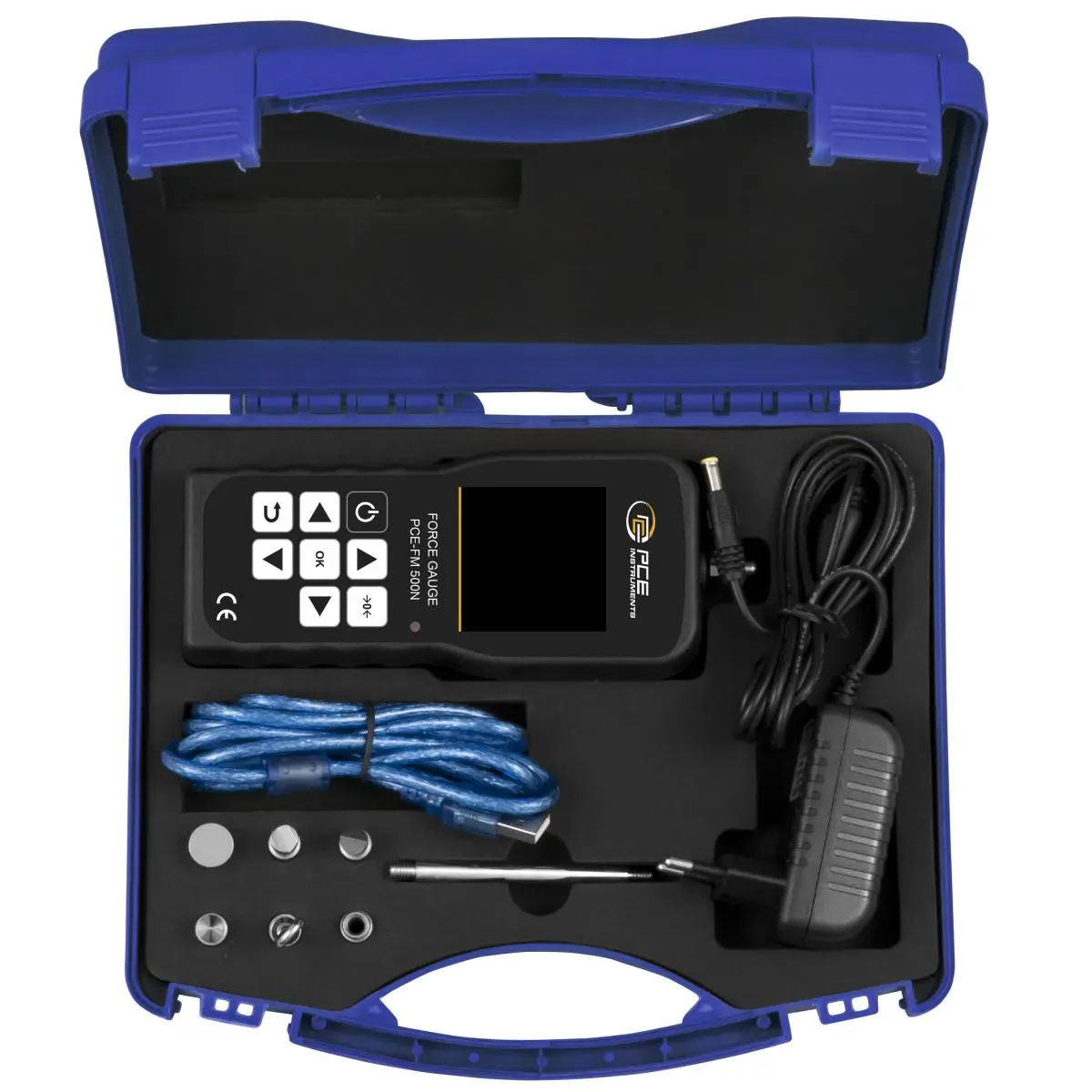

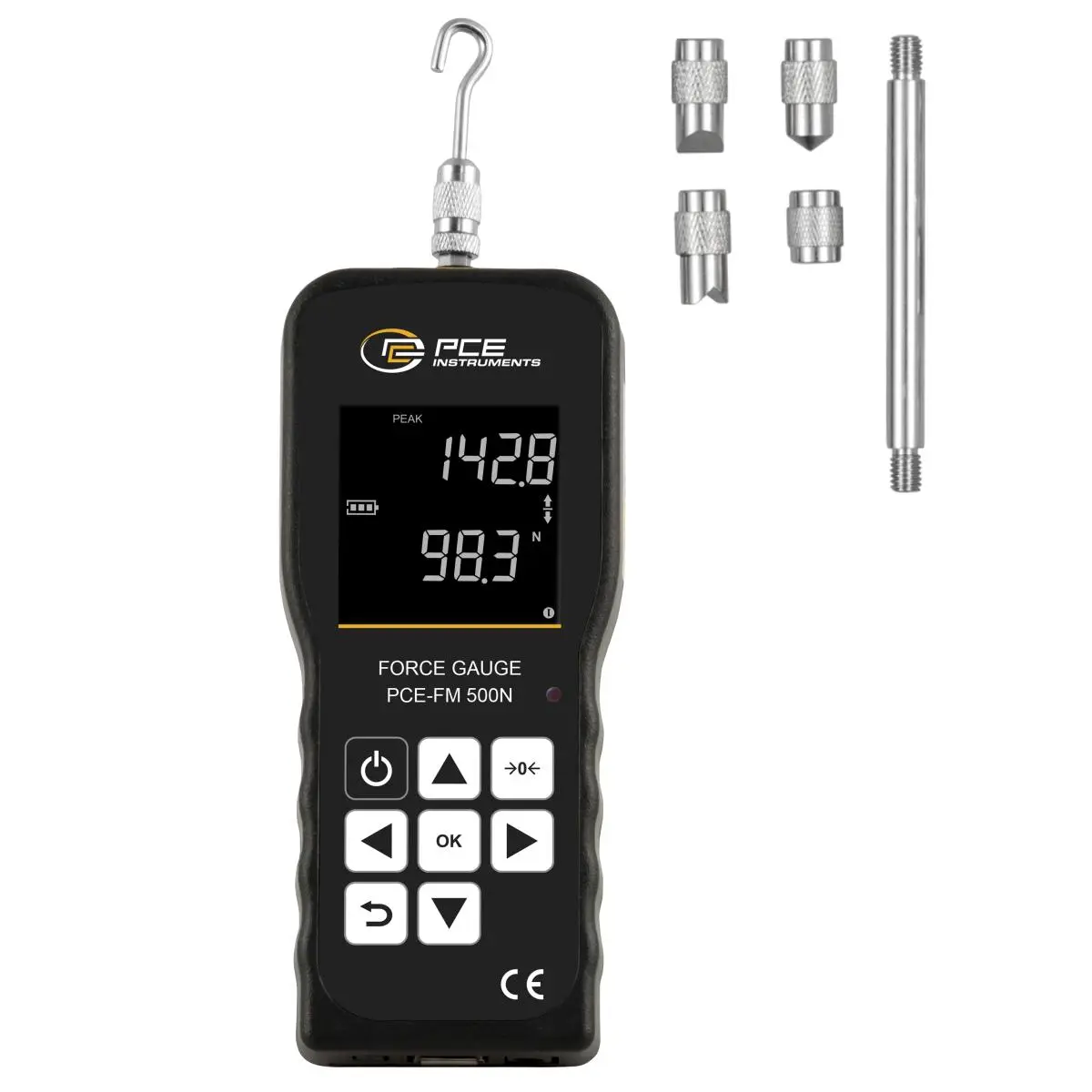

Tension Dynamometer PCE-FM 500N delivery
