Temperature Sensor PCE-IR 50-ICA for non-contact measurement of surface temperatures / | |||

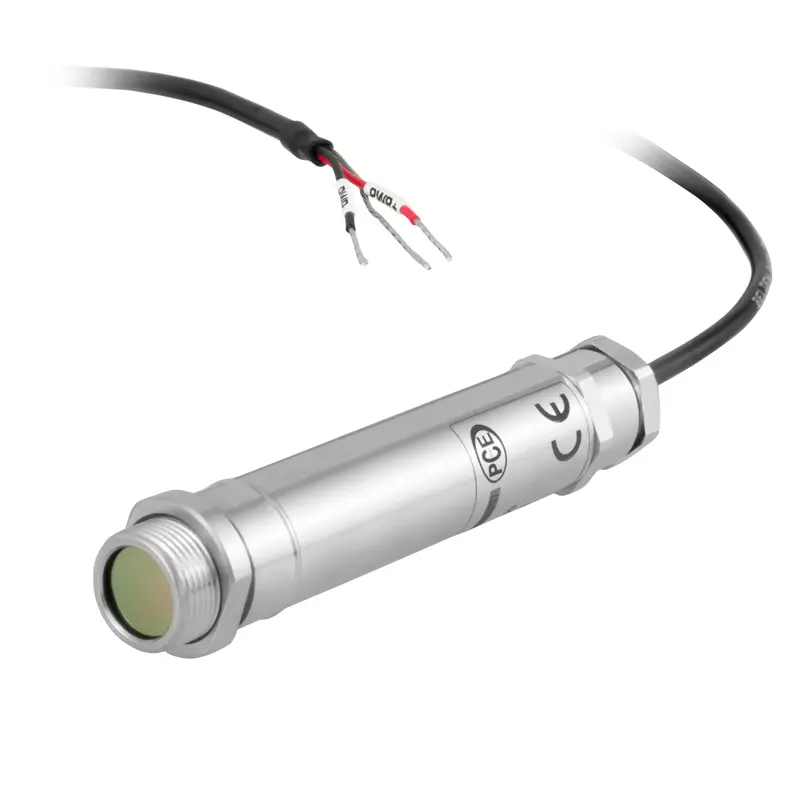

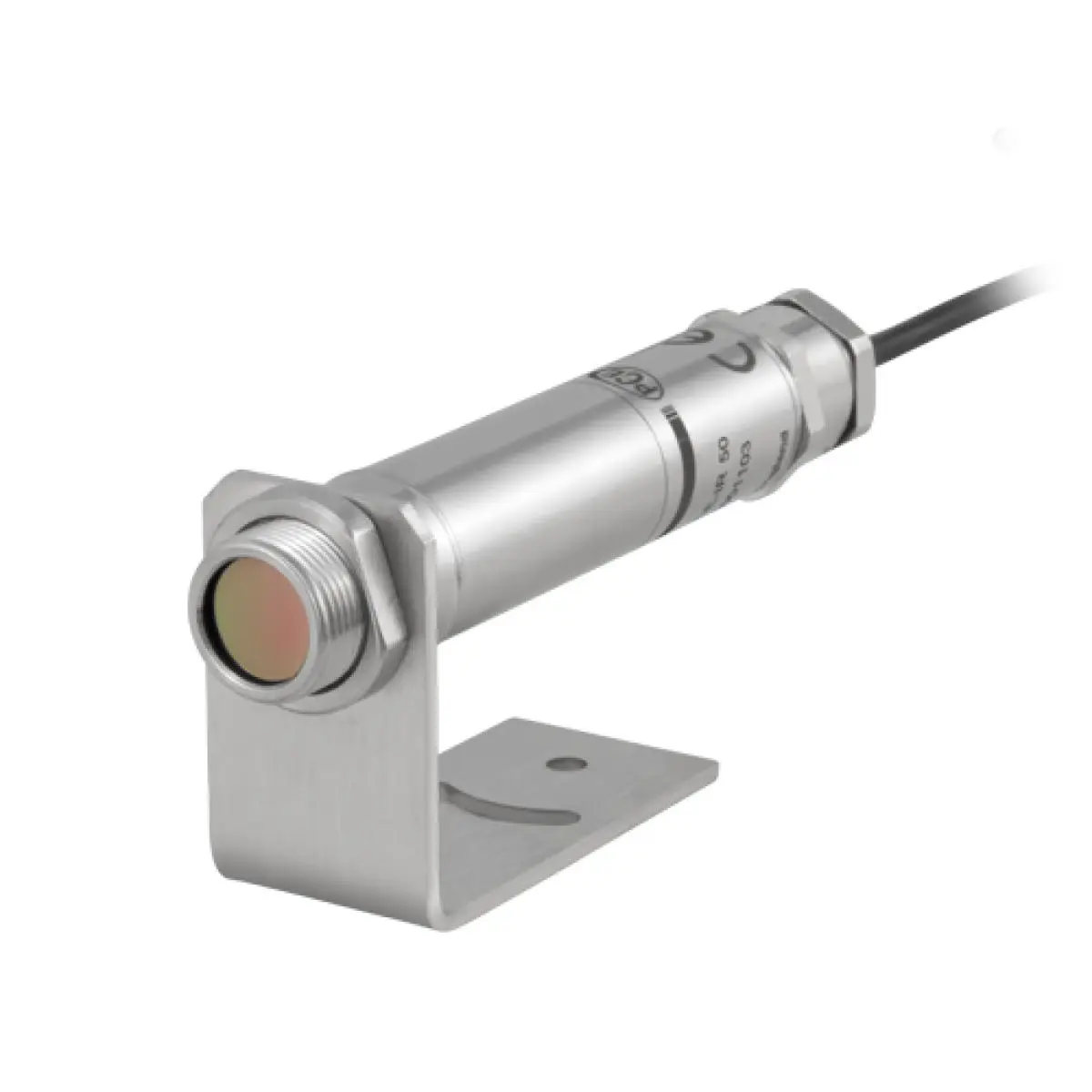

With the digital thermometer PCE-IR 50, surface temperatures can measured quickly and easily. The measuring range of the digital thermometer is 0 ...500°C / 32 ... 932°F. The measured temperature is provided as a 4 ... 20-mA standard signal which means that the digital thermometer can be easily integrated into different monitoring systems, including those in different production processes or food storage as well as the monitoring of electronic systems. The digital thermometer PCE-IR 50 comes with a mounting plate for fixed installation. The digital thermometer must simply be aligned with the heat source to be measured before starting the measurement. The 1.0 m cable of the digital thermometer PCE-IR 5 enables flexible use of the very robust device and even if the user opts for fixed installation, operation in areas which are hard to access will not be a problem at all as installation can be carried out quickly and easily. This type of digital thermometer is recommended when the areas to be measured are under high voltage. |
| Measuring range | 0 ... +500 °C / 32 ... 932°F |
| Measurement accuracy | ± 1 °C or 1% of the measured value, higher value applies |
| Repeatability |
± 0.5 °C or 0.5% of the measured value, higher value applies |
| Optical resolution | 15:1 |
| Output signal | 4 ... 20 mA |
| Spectral sensitivity | 8 ... 14 µm |
| Emissivity | fixed at 0.95 |
| Power supply | 24 VDC |
| Load |
900 Ohm |
| Protection class | IP65 |
| Material | stainless steel |
| Operating temperature | 0 ... +70 °C |
| Relative humidity | 10 ... 95 % |
| Measurement time | T90: 240 ms |

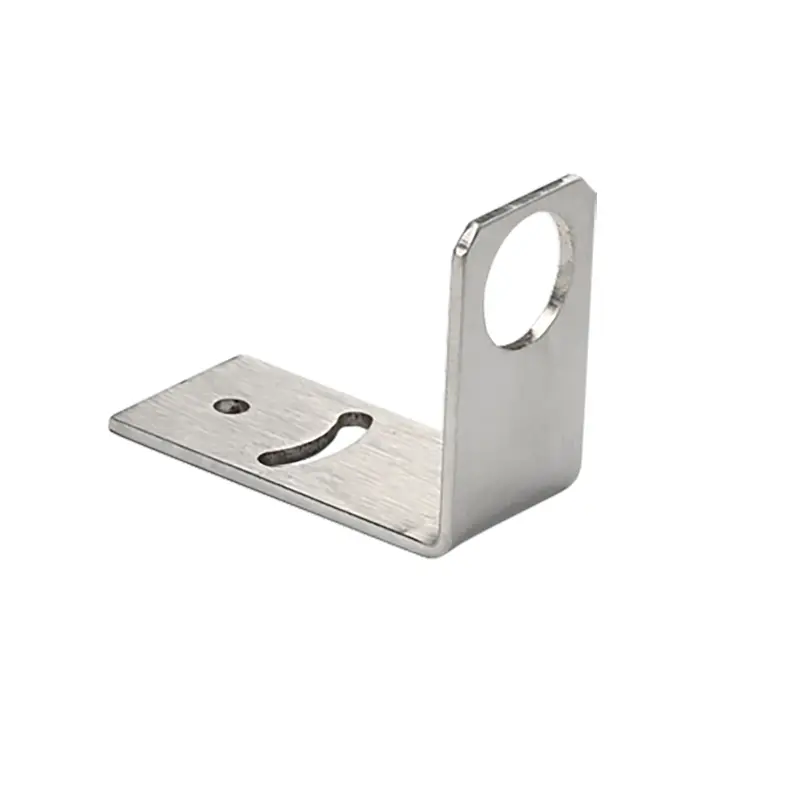

| Accessories | mounting plate included in delivery |
| Cable length | 1 m |
| Dimensions | Ø18 x 103 mm |

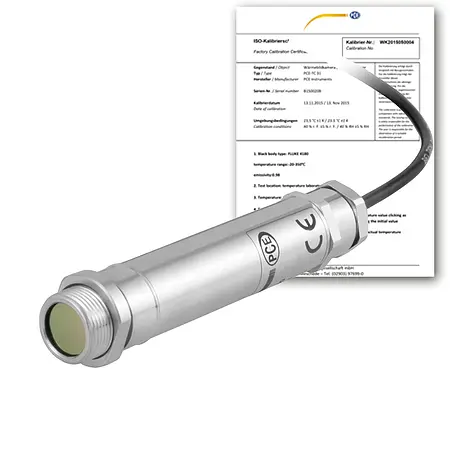

| 1 x Temperature Sensor PCE-IR 50-ICA 1 x Mounting bracket 1 x User manual 1 x ISO Calibration Certificate |
Measuring point stickers for pyrometers with measuring surface for E = 0.95 (25 pieces)
Price excl. VAT &. delivery
2 year Warranty
The PCE-P20 DIN rail measuring device was developed to convert the signal from various standard temperature sensors into a standard signal of 4 ... 20 mA. In addition to temperature sensors such as PT 100, PT 1000 and thermocouples, the DIN rail measuring device can convert various types of other standard signals. This means that the DIN rail measuring instrument can be used universally.
- Power supply: 85 ... 253 V AC / DC or 20 ... 40 V AC / DC (selectable)
- Input: In order selectable
Note: This item must be configured before ordering!
Price excl. VAT &. delivery
2 year Warranty
The temperature and signal Data Logger with memory PCE-P30U has a wide range of applications. Besides converting various signals, the Data Logger can be used with memory for easy data logging tasks. The Data Logger has an SD memory card and is suitable for use with SD and SDHC cards. These logging test instruments are calibrated by the manufacturer. An ISO calibration certificate is available as an option.
- SD memory card and internal memory
- Universal input
- Output galvanically isolated
- Alarm relay
- Memory size of 534,336 sets of data (internal memory)
