  5. Temperature Meter PCE-TC 32N-ICA incl. ISO Calibration Certificate
Order no.: PCE-TC 32N-ICA

Temperature Meter PCE-TC 32N-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 1,086.00
£ 1,303.20
:
4250348730503
PCE-TC 32N-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

Temperature meter with photo and video function / software for evaluating the recordings / measuring range -20 ... +550 °C / 1/4" inch photo tripod connection / 4 hours operating time.

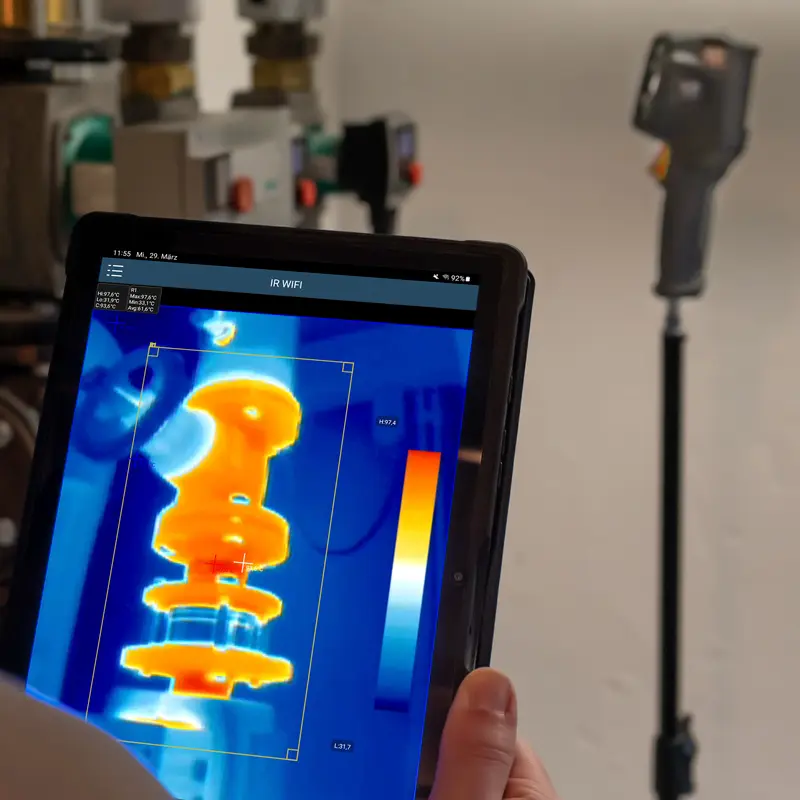

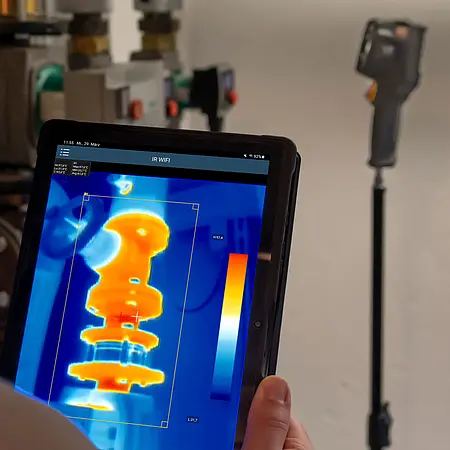

Wi-Fi interface and free Android and iOS app

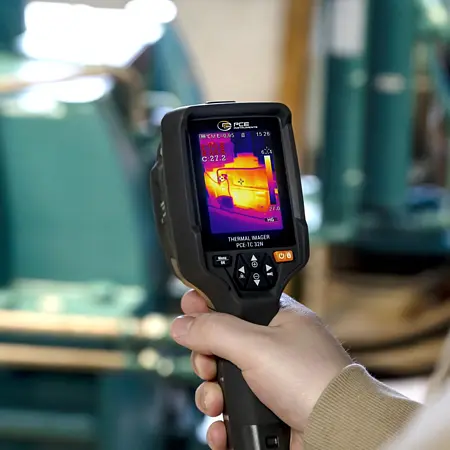

The temperature meter has a measuring range of -20 ... +550 °C. This means that the temperature meter already covers a wide temperature range of measuring tasks. With a frame rate of 25 Hz, problems can be quickly localised with the temperature meter. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the temperature meter.

When connecting the temperature meter to a PC, there are two different functions that can be selected in advance in the settings. With the "PC Connection" setting, the temperature meter is recognised as a mass data storage device. This allows all image, video and measurement data to be copied directly from the temperature meter. With the "PC Camera" function, the temperature meter is recognised as a webcam by the PC. This has the advantage that the current image from the temperature meter can be displayed on a PC, for example, during online meetings or training sessions. In both cases, the temperature meter is independent of the operating system.

Highlights

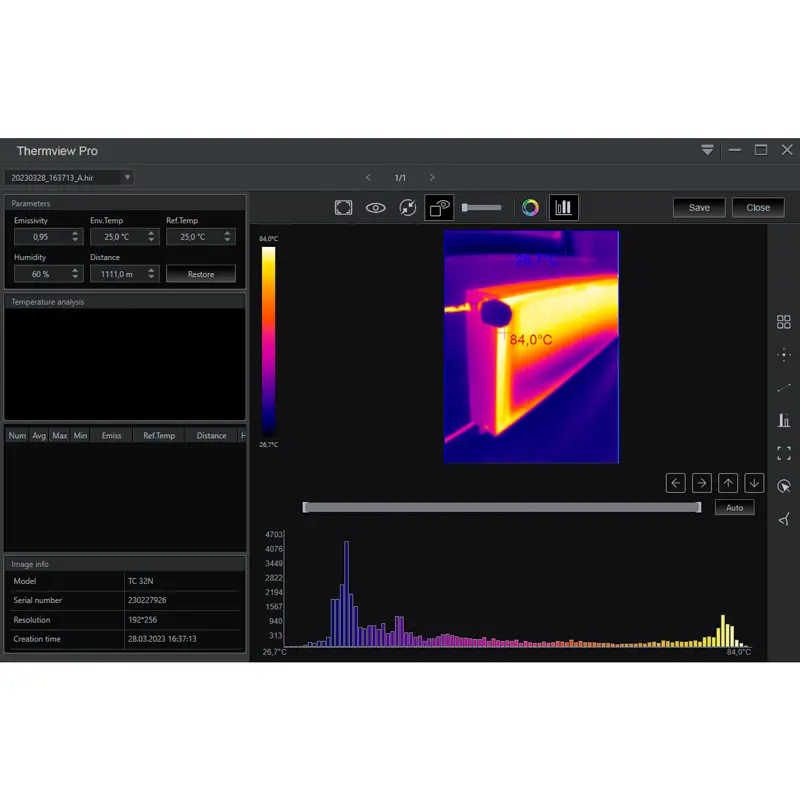

- Software for evaluating the recordings
- Measuring range -20 ... +550 °C
- Picture-in-picture function
- eight different thermal image representations
- video and photo recording


Specification

Measuring function
Measuring range -20 ... 550 °C / -4 ... +1022 °F
Resolution 0,1 °C / 0,1 °F
Accuracy ±2 °C / 3,6 °F at an ambient temperature
  between 10 ... 35 °C and an object temperature of >0 °C

Sensor characteristics
Field of view (FOV) 50° x 37°
Depth of field of view from 0.5 m
pixel density (IFOD) 7,6 mrad
Thermal sensitivity <0,06 °C bei +30 °C / 60 mK

Frame rate 25 Hz
Image sensor uncooled microbolometer
Spectral range 7,5 ... 14 µm
Infrared resolution 256 x 192 pixels
Measuring points Average point, automatic recognition
  of the hottest and coldest measuring point
Measurement correction      Reflection of temperature, adjustment of emission value
Image sensor 2 mega pixels
Field of view (FOV) 65°

Video recording
Storage capacity 8 GB on micro SD card, 3.4 GB internal memory
Recording time >30 minutes
Format Standard MPEG-4, 240 x 320 pixels, 30 Hz
Recording mode Infrared and/or real image recording

Image recording
Storage format .jpeg or .hir with measurement data.
Storage capacity  >6000 images
Interface

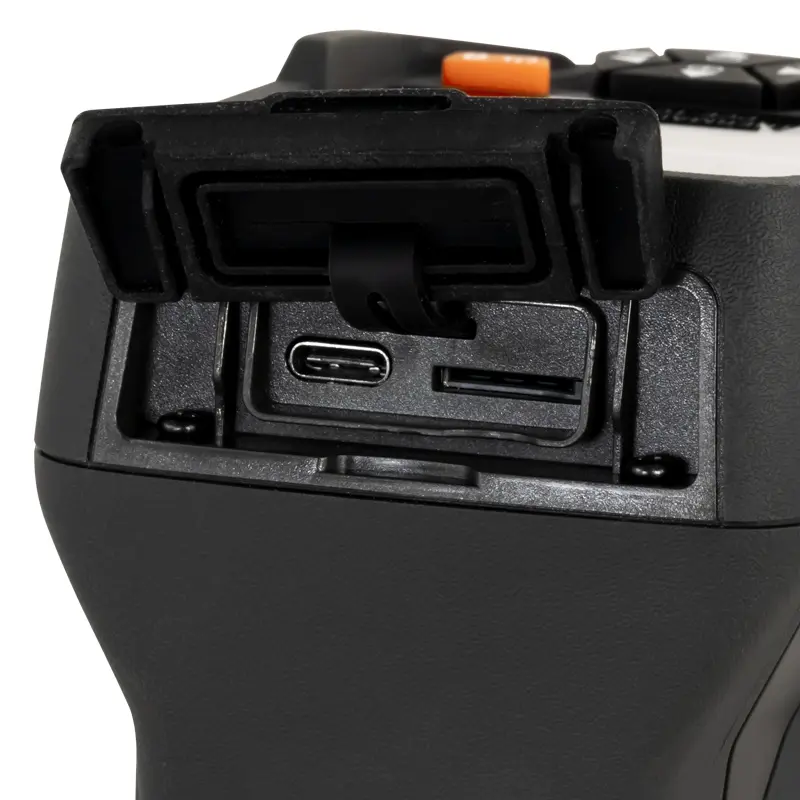

Cable connection USB-C with charging and for data transfer
Wireless Wi-Fi 802.11

Further specifications
Power supply 5 V DC, 1 A
Power supply (battery)     3,7 V DC, 2600 mAh, 9,62 W (18650)
Power off Automatic 5, 10, 15, 30 minutes or permanently switched on

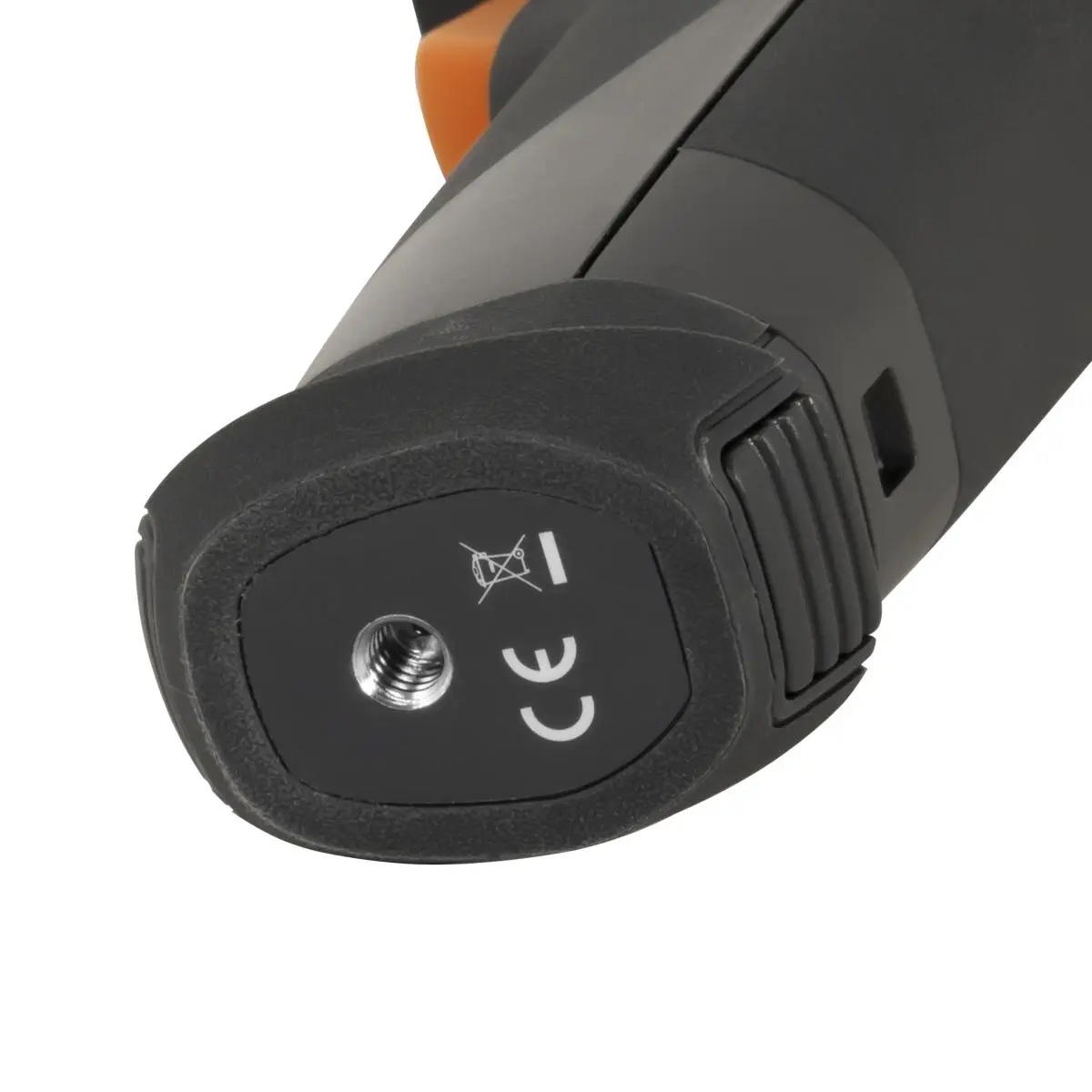

Connection thread 1/4" photo tripod
Display 2.8 " LC display
Display resolution 240 x 320 pixels

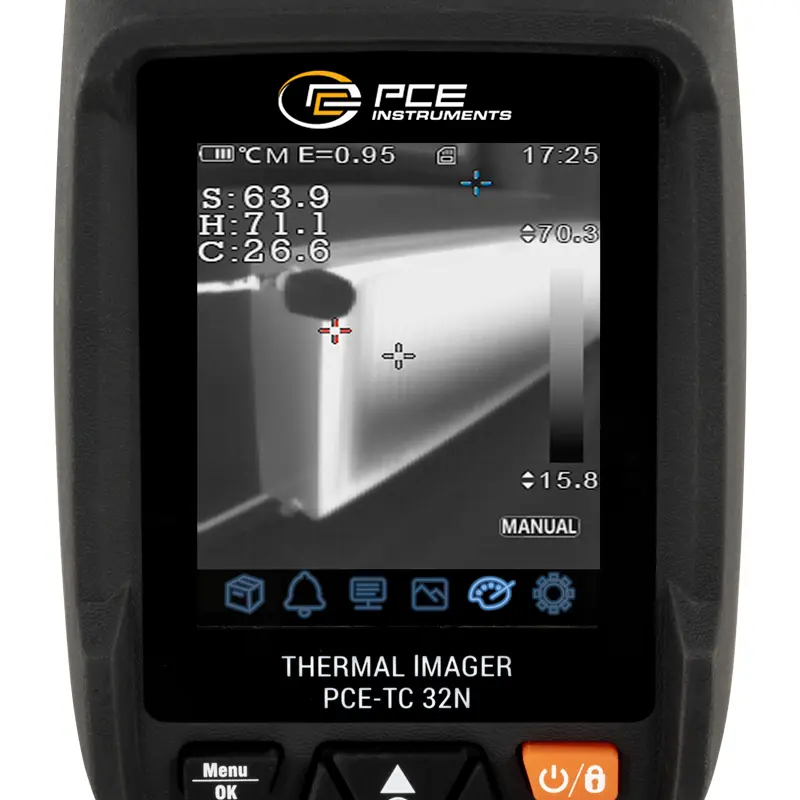

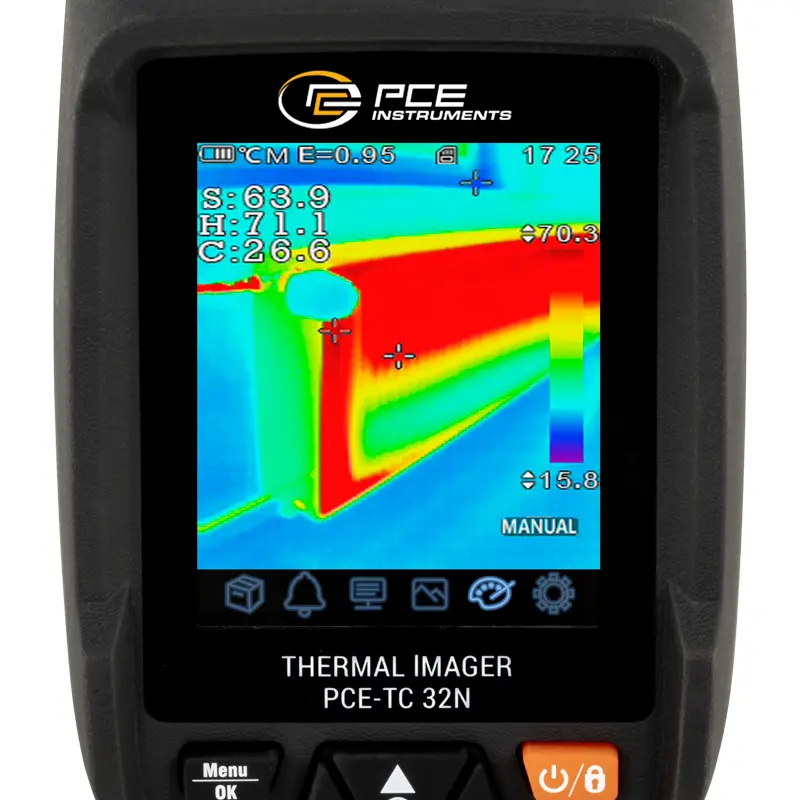

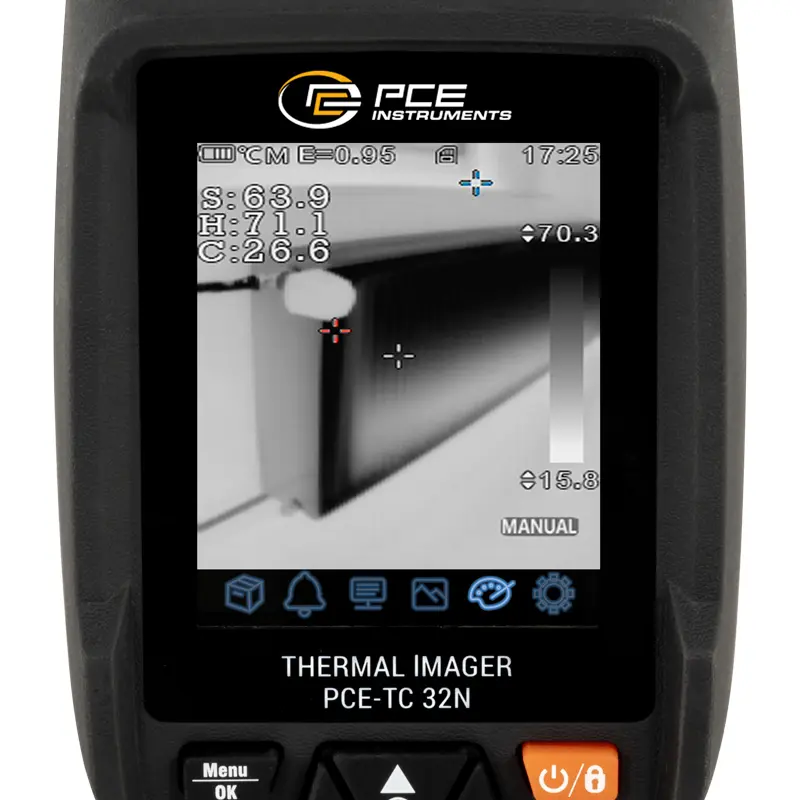

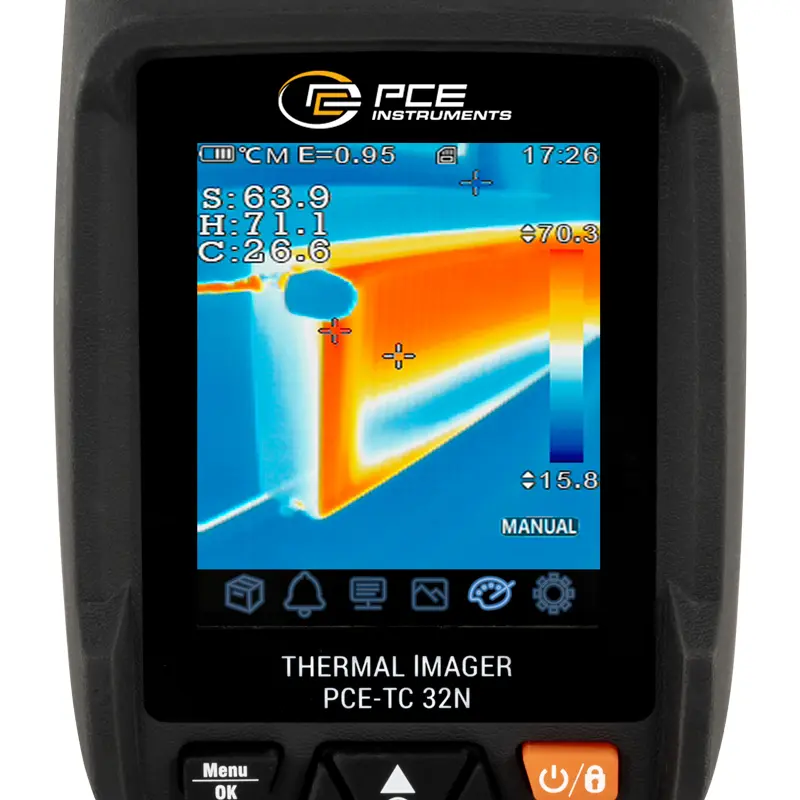

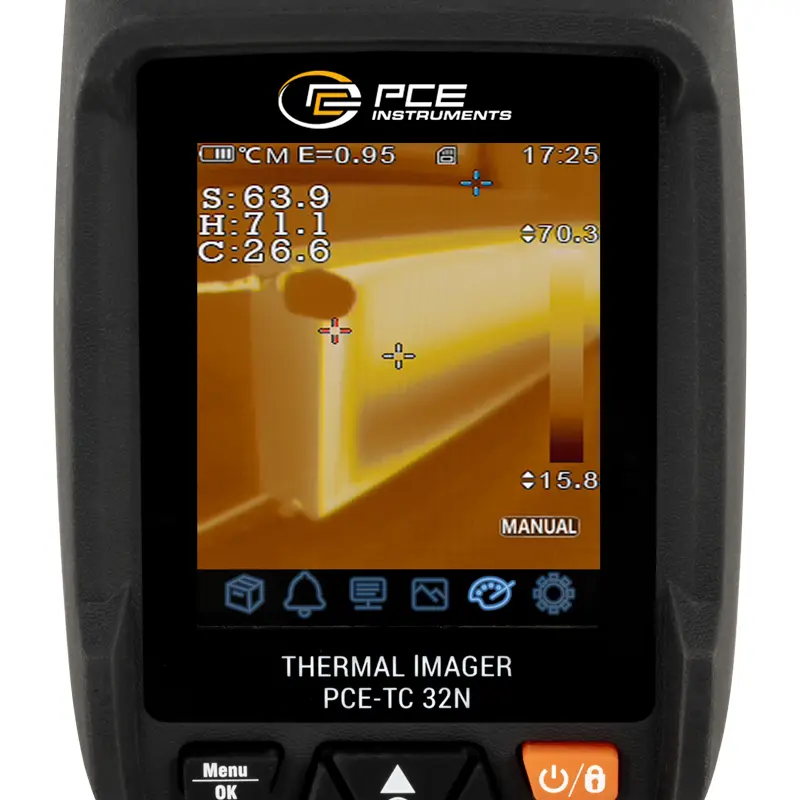

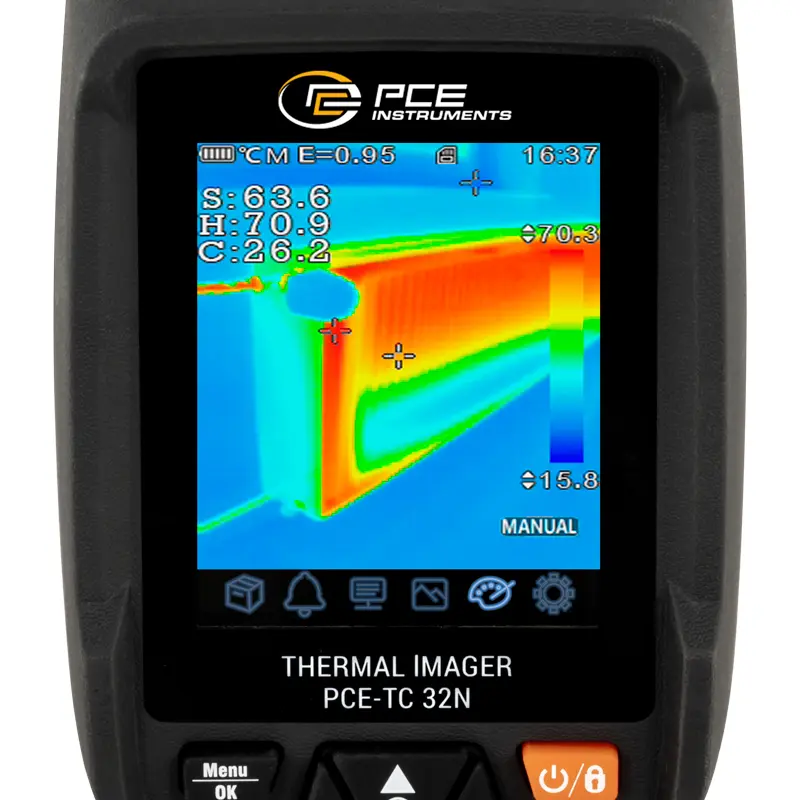

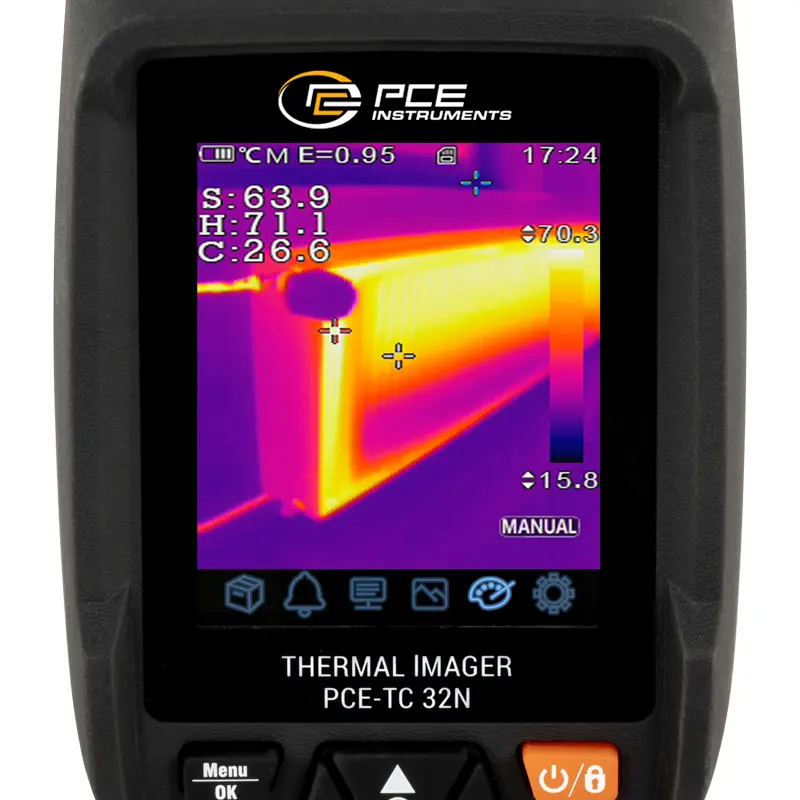

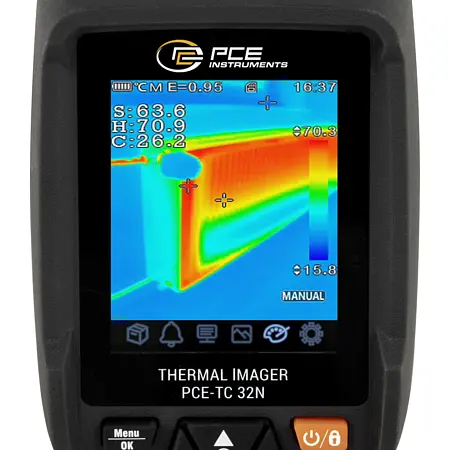

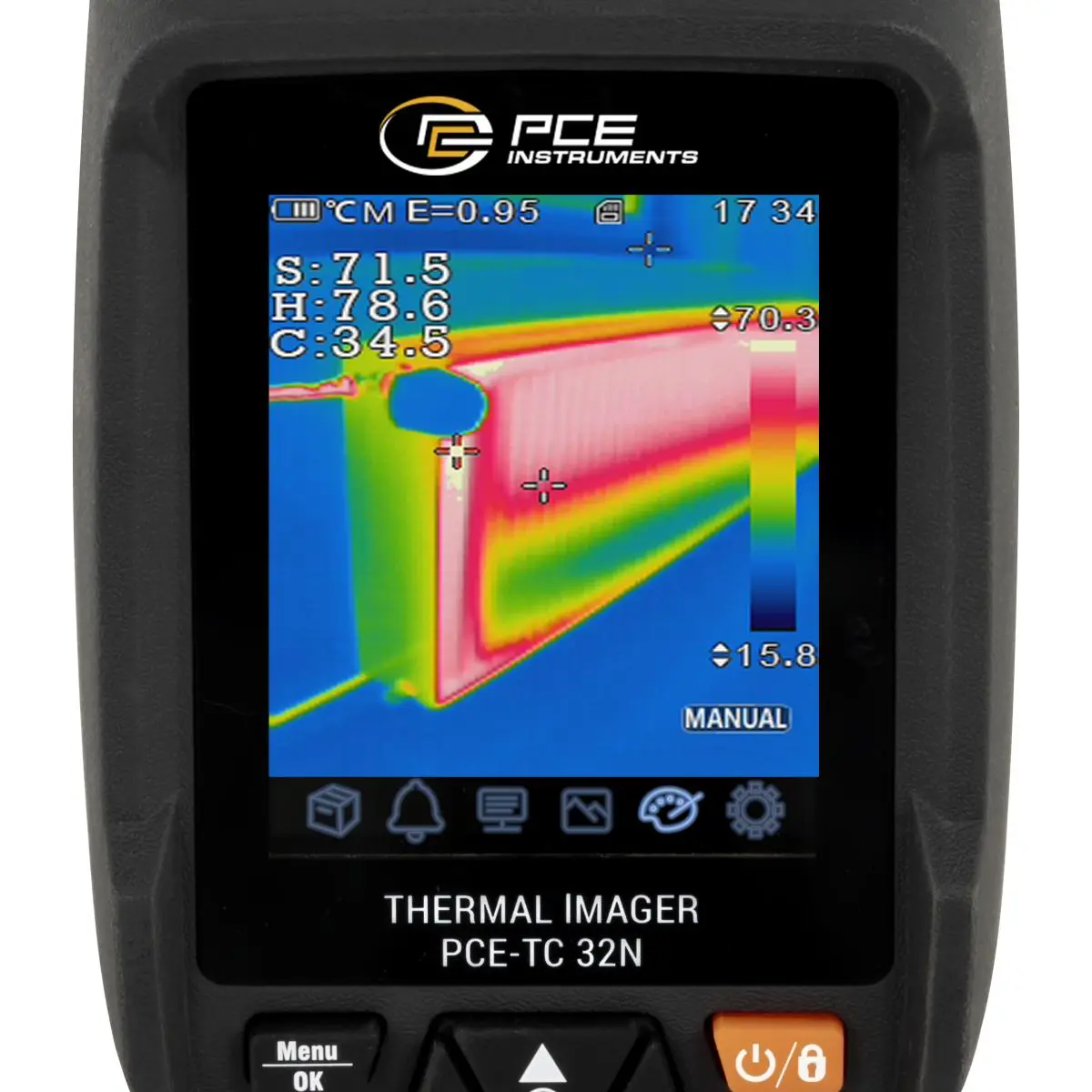

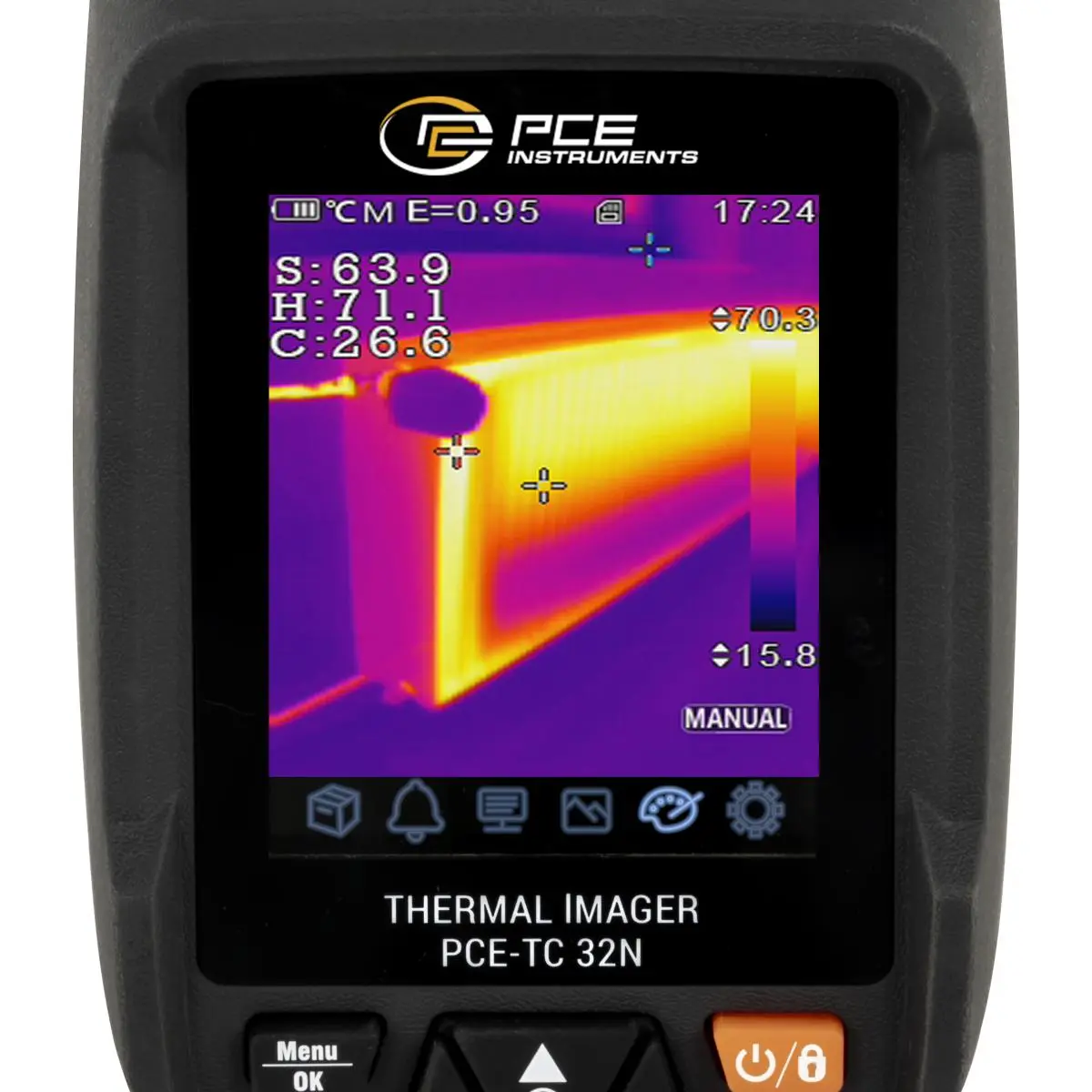

Colour palette Iron, rainbow, black white, black white (inverted)
  brown, blue red, hot-cold, feather
Zoom 1 ... 16x digital zoom
Operating conditions -15 ... + 50 °C, 5 °F ... 122 °F
Storage conditions -40 ... + 70 °C, -40 ... +158 °F
Ambient humidity 10 ... 90 % r. F., non-condensing
Dimensions 224 x 77 x 96 mm
Weight 423 g

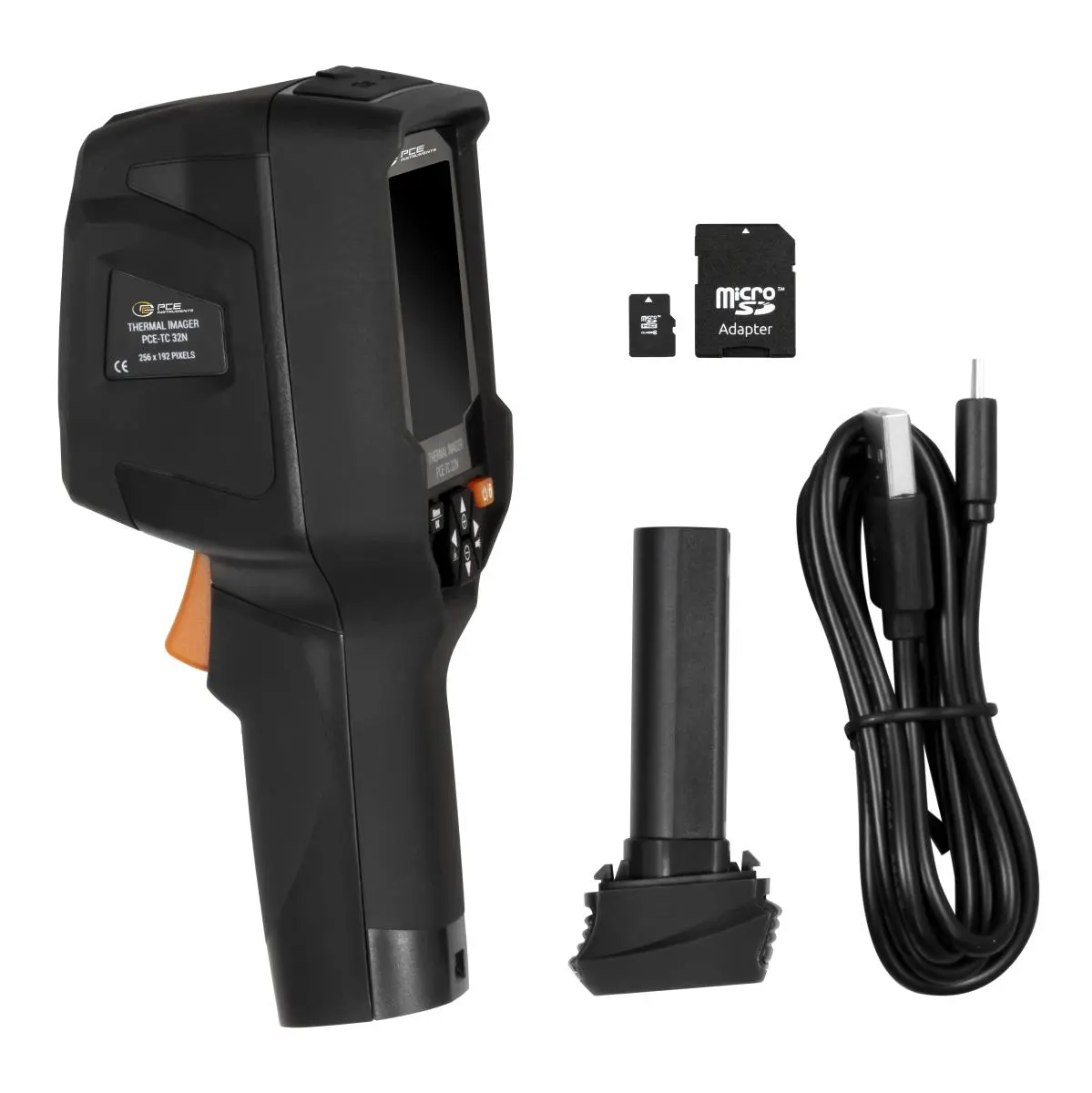

Delivery Scope

1 x Temperature Meter PCE-TC 32N-ICA
1 x USB-C cable
1 x rechargeable battery
1 x Software CD
1 x 32 GB micro SD memory card incl. adapter
1 x instruction manual

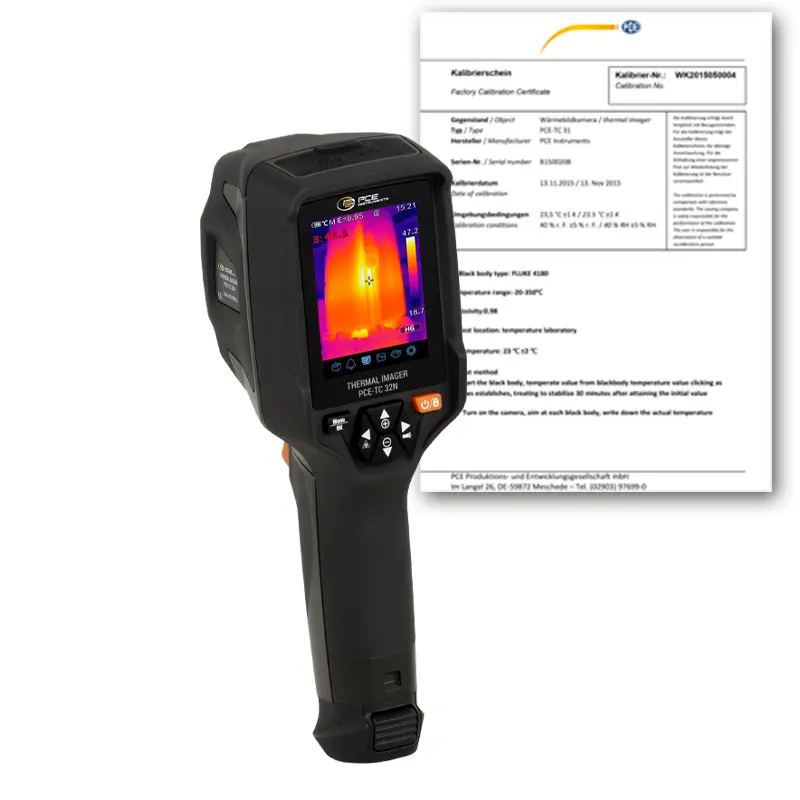

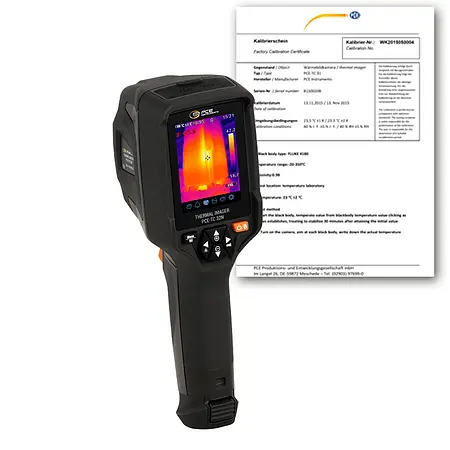

1 x ISO Calibration Certificate
