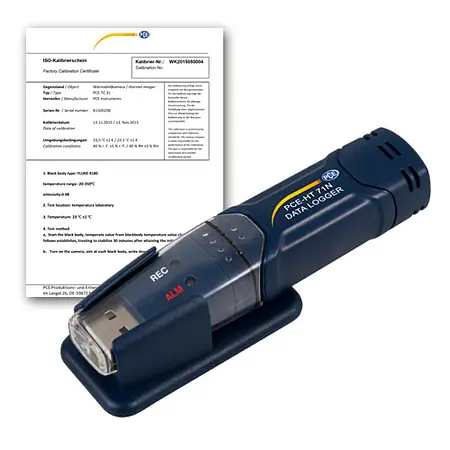

Temperature Data Logger / Temperature Logger PCE-HT 71N-ICA

Temperature Data Logger / Temperature Logger PCE-HT 71N-ICA incl. ISO-Calibration Certificate

Order no.: PCE-HT 71N-ICA
GTIN (EAN): 4250348726117
£ 220.00
£ 264.00
ISO Calibration
price ex. (VAT / delivery)
:
4250348726117
PCE-HT 71N-ICA
Delivery time:5-7 working days

Description

Temperature Data Logger / Temperature Logger Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port/ software to calculate dew point/ powered by a long-life lithium battery

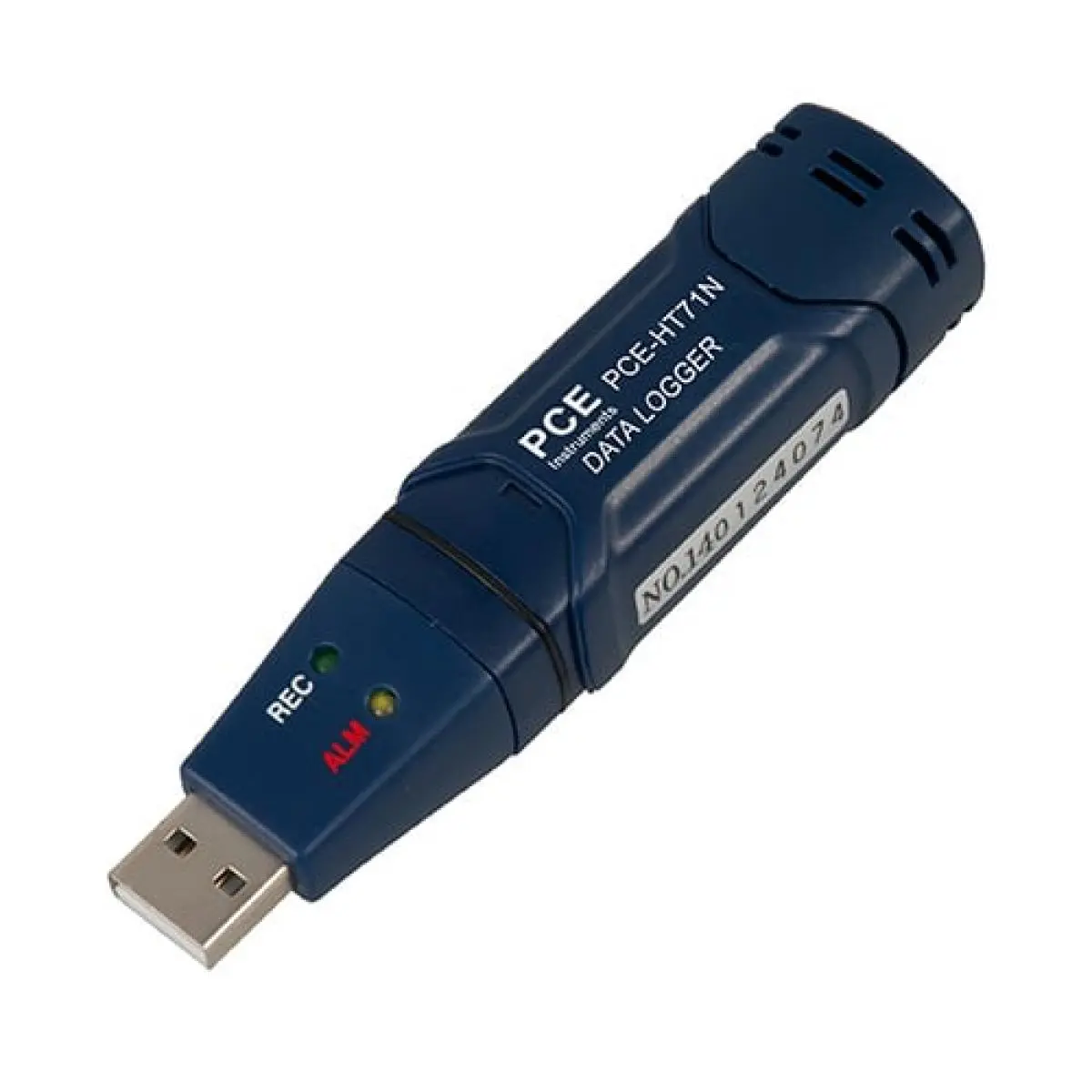

The PCE-HT 71N Temperature Data Logger / Temperature Logger detects air temperature and humidity and stores readings in its internal memory. The Temperature Data Logger / Temperature Logger has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a data logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature-controlled environments. The Temperature Data Logger / Temperature Logger works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N Temperature Data Logger / Temperature Logger can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6 V, long-life lithium battery. The battery life is approximately one year.


Highlights

- Storage capacity: 32 K
- USB port

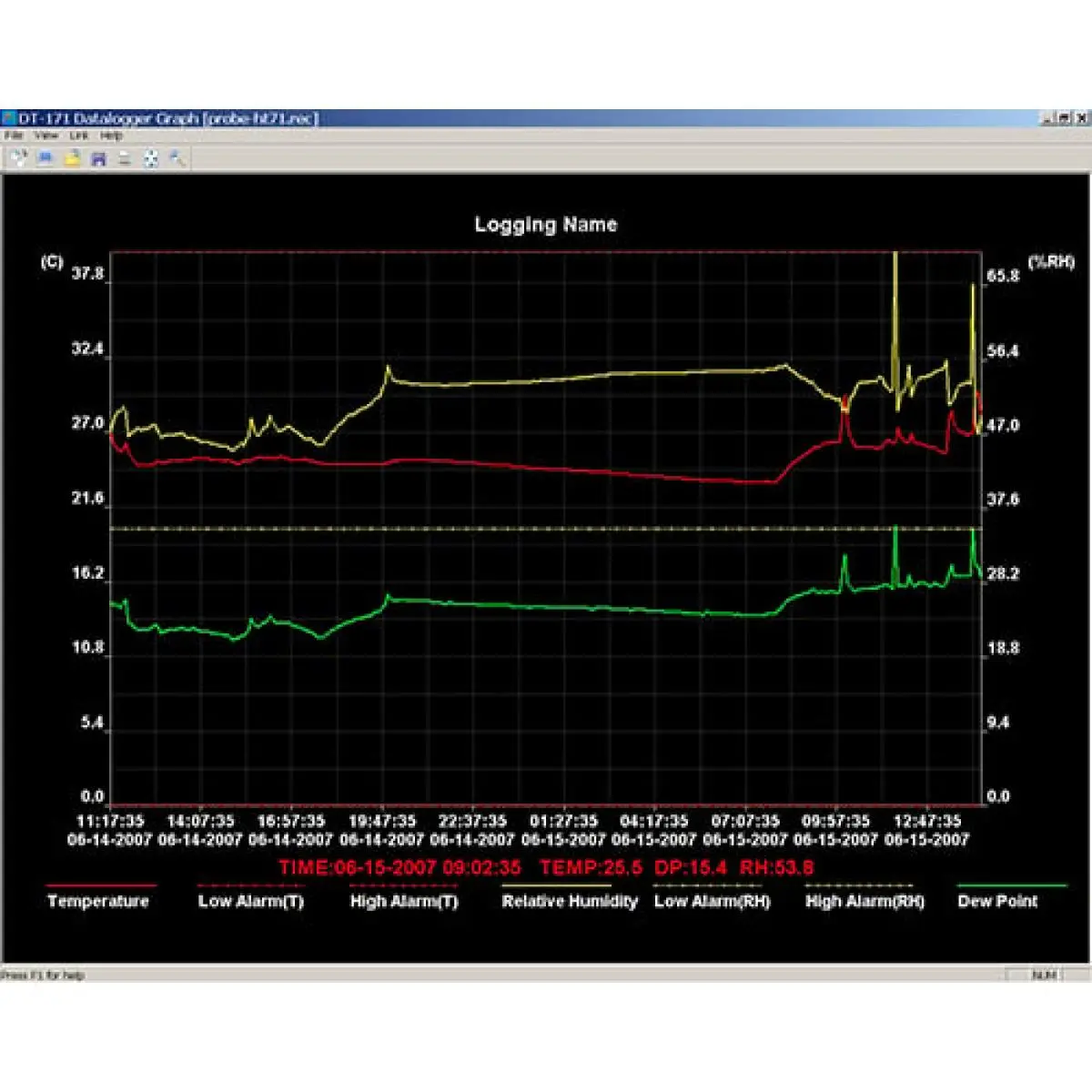

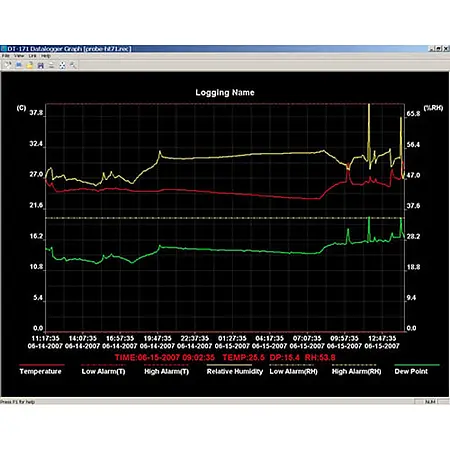

- A software for calculating dew point and analysing data in a computer is
included
- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- non-volatile EEPROM
- staus indicated by 2 LEDs (including alarm)
- programmable alarm limits across entire measurement range
- replacement battery
- incl. ISO-Calibration Certificate

Specification

Relative humidity
Measuring range  0 ... 100 % RH
Resolution  0,1 % RH
Accuracy  ±3 % RH

Temperature
Measuring range  -40 ... +70 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Display type  without display
Storage medium  Internal memory
Storage capacity  16000 Data records
Memory capacity (additional information)  A data record consists of one value for temperature and one for humidity.
Storage interval from  2 s
Storage interval to  24 h
Interface  USB
Operating time  1 Year(s)
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Protection class (device)  IP20
(Rechargeable) battery  1 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity  1200 mAh
Operating conditions  -40 ... 70 °C , 0 ... 100 % RH
Storage conditions  -40 ... 70 °C , 0 ... 100 % RH
Dimensions ( L x W x H )  130 x 30 x 25 mm
Weight  20 g

Delivery Scope

Delivery contents
1 x PCE-HT 71N-ICA Temperature Data Logger / Temperature Logger
1 x Wall mount
1 x Battery
1 x Software
1 x User’s manual
1 x ISO-Calibration Certificate
