Tachometer PCE-DT 65

Tachometer PCE-DT 65 [zoom]
Tachometer PCE-DT 65

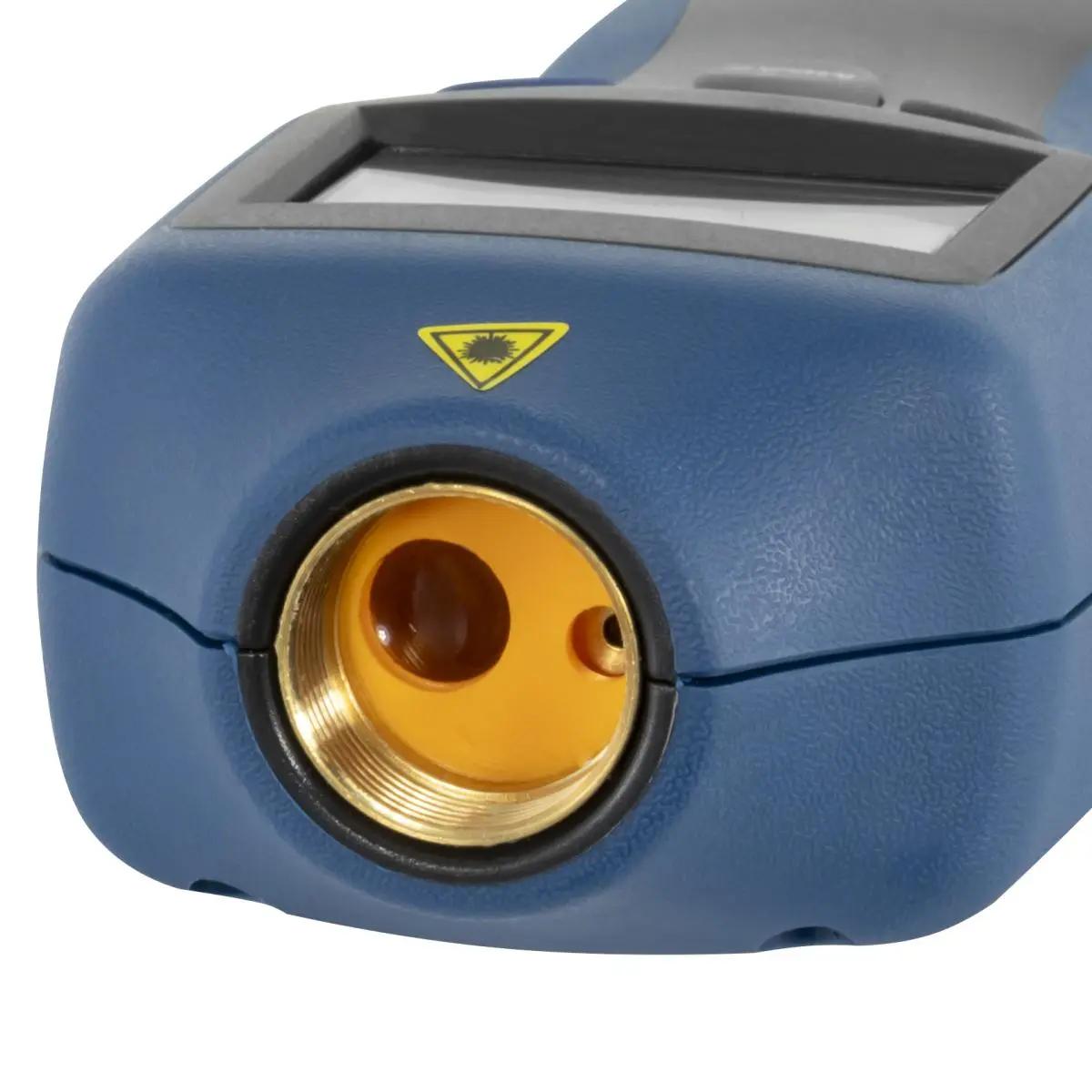

Tachometer Laser
Tachometer Adaptor
Tachometer Battery compartment

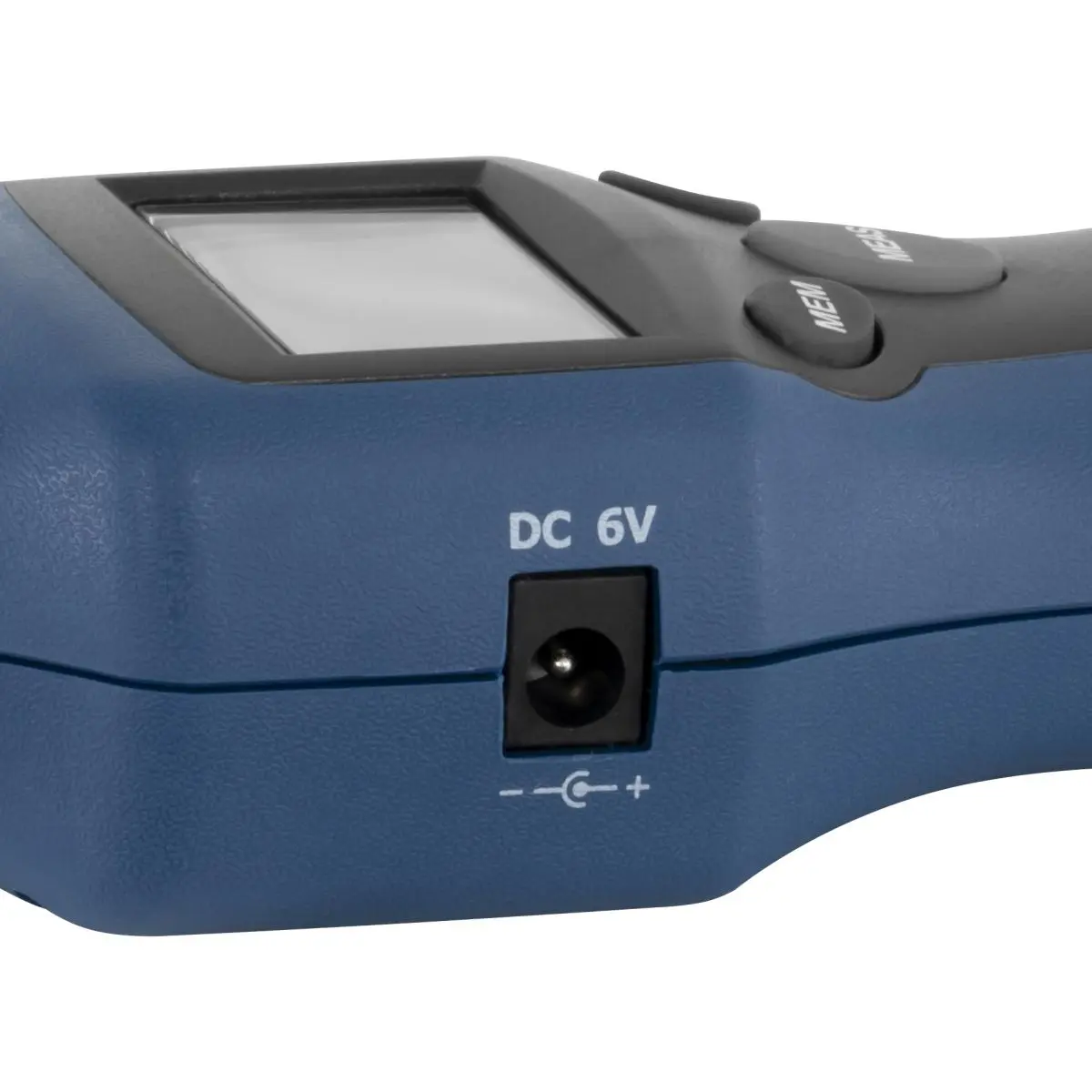

Tachometer Connections
Tachometer Application picture
Tachometer Application picture
Tachometer Application picture
Tachometer Application picture
Tachometer Delivery scope

Tachometer PCE-DT 65

Order no.: PCE-DT 65
GTIN (EAN): 4250348710475
£ 103.00
£ 123.60
price ex. (VAT / delivery)
:
4250348710475
PCE-DT 65
Delivery time:1-2 working days

Accessory

Description

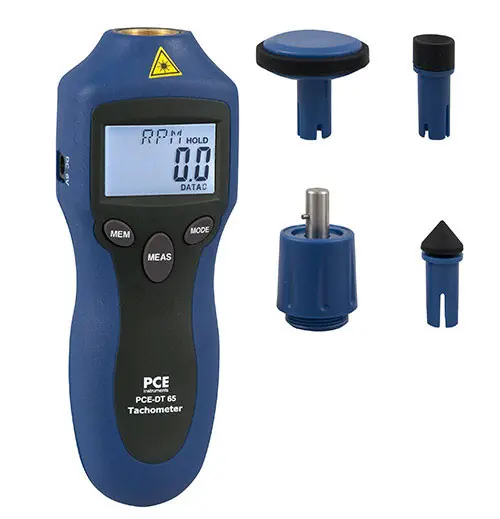

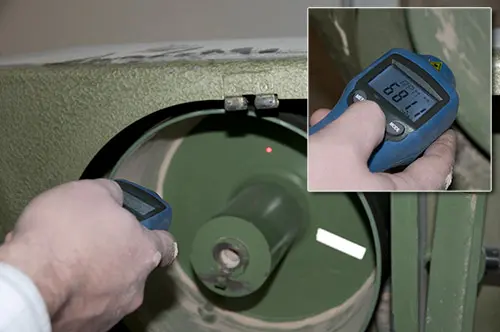

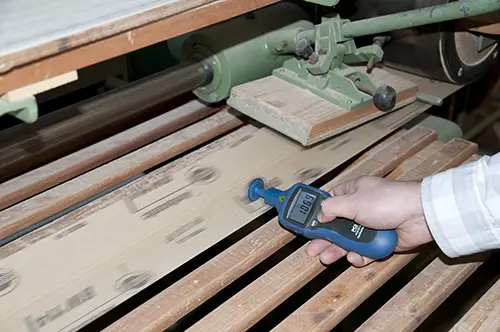

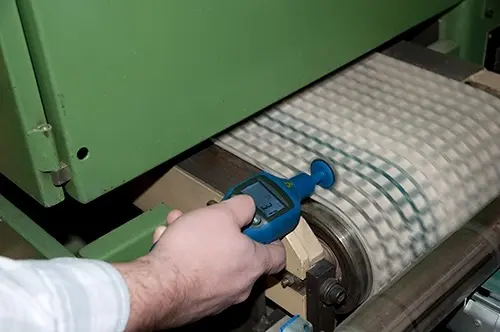

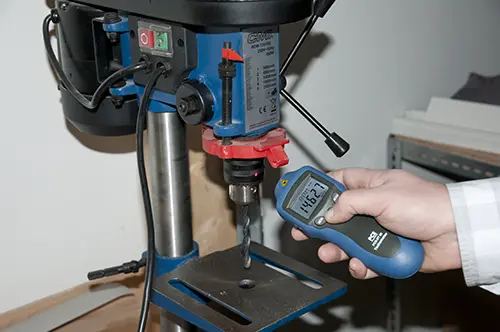

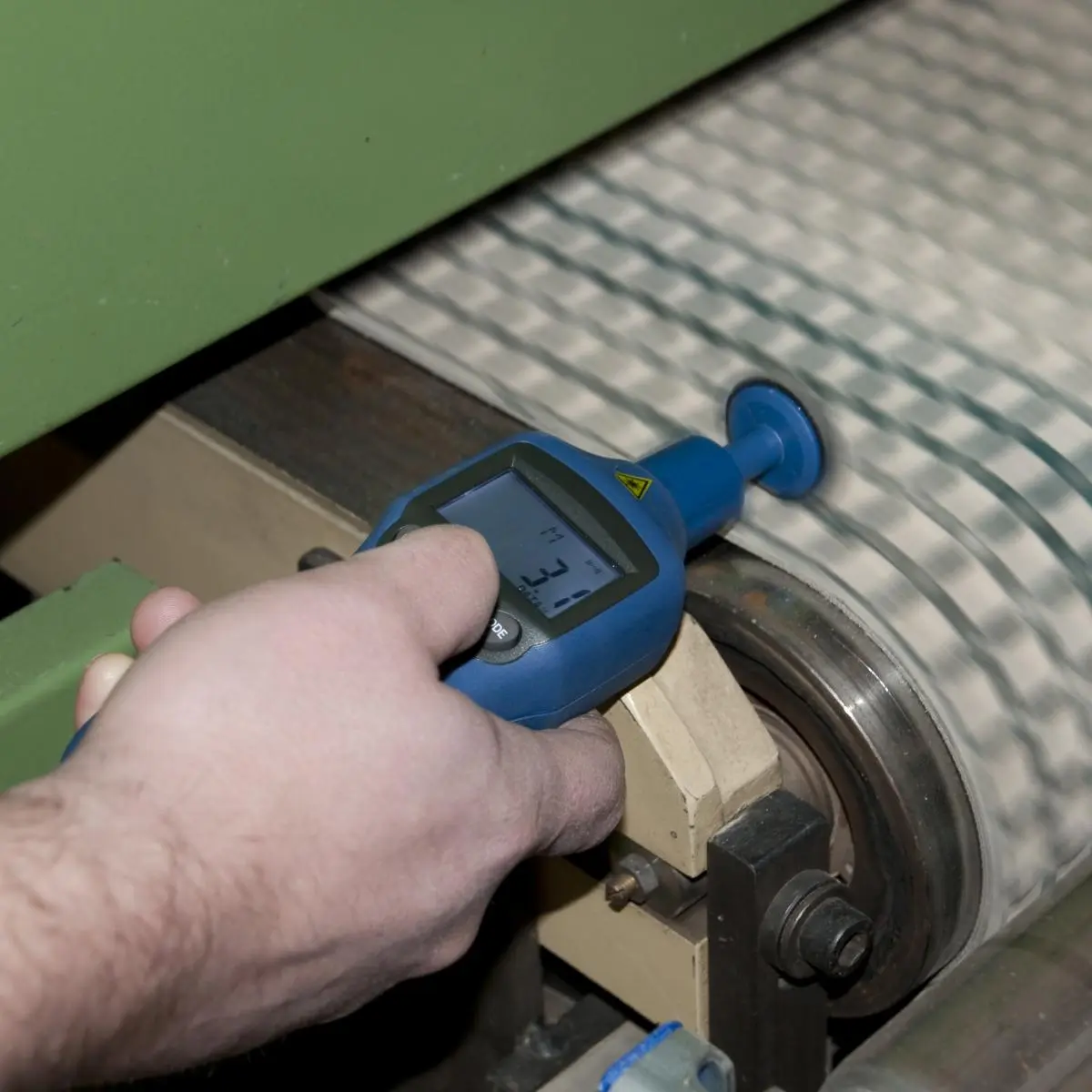

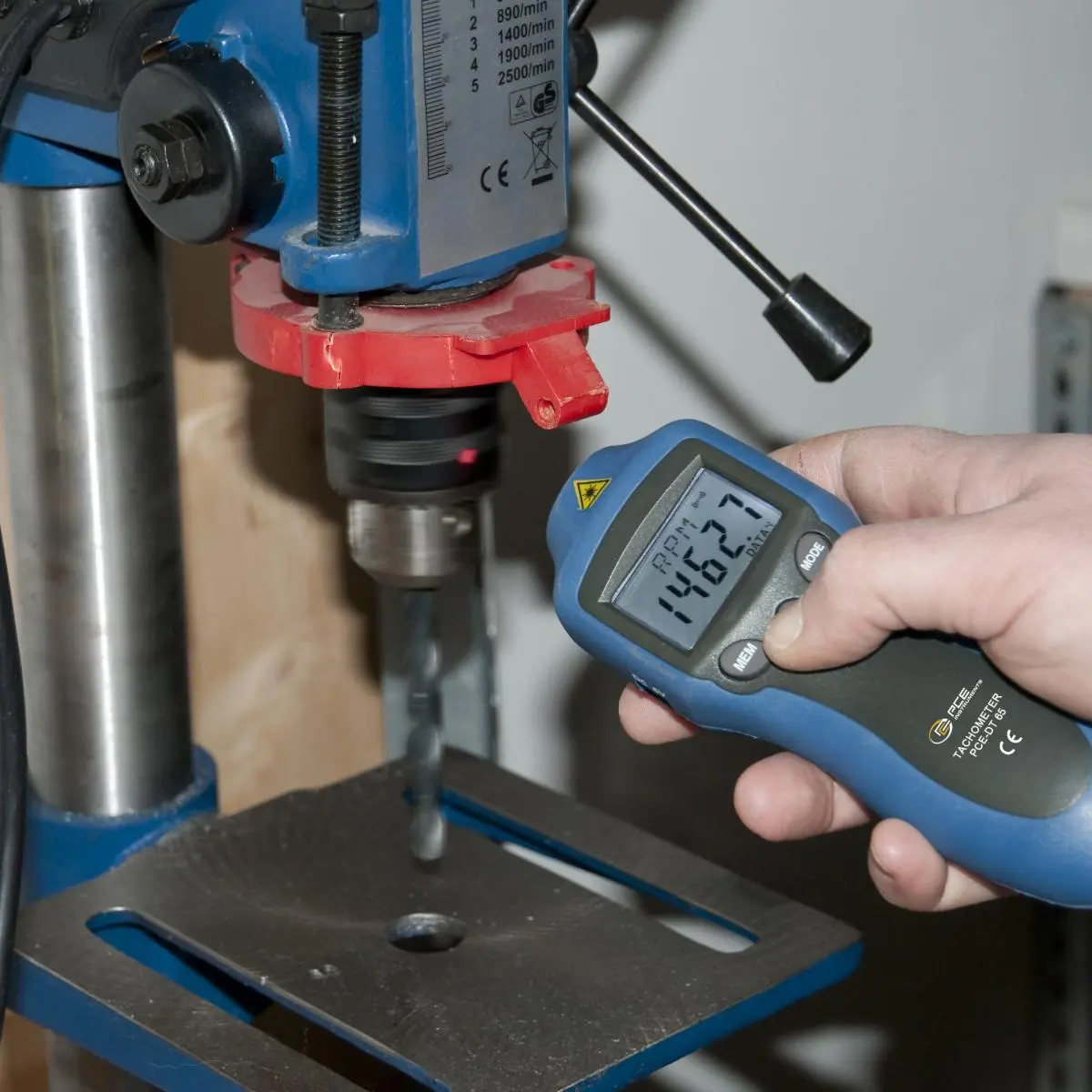

PCE-DT 65 is a digital handheld tachometer, or rotation meter, that can take both contact and non-contact measurements of rotation speed and linear speed. This handheld tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the included mechanical attachment and contact probes.


Highlights

- Speed measurement: rpm
- Surface velocity: m/min
- Number of rotations: counter
- Frequency: m, in, ft, yd
- Linear measurement: m, in, ft, yd
This tachometer comes factory calibrated.

Specification

Mechanical speed
Measuring range  2 ... 9999,9 rpm
Resolution  0,1 rpm
Accuracy  ±(0.05% v.Mw. ±1 Digit)

Mechanical speed
Measuring range  10000 ... 20000 RPM
Resolution  1 RPM
Accuracy  ±(0.05% v.Mw. ±1 Digit)

Optical speed
Measuring range  2 ... 9999,9 rpm
Resolution  0,1 rpm
Accuracy  ±(0.05% v.Mw. ±1 Digit)

Optical speed
Measuring range  10000 ... 99999 rpm
Resolution  1 rpm
Accuracy  ±(0.05% v.Mw. ±1 Digit)

General technical data
Measuring functions  AVG, MIN, MAX, HOLD
Display type  LCD with backlight
Measuring rate  0,5 s
Sampling rate (additional information)  over 120 rpm
Storage medium  Internal memory
Storage capacity  10 Data records
Automatic power-off  15 s
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Measuring distance  50 ... 500 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  6 V DC
(Rechargeable) battery  1 x 9 V 9V block , Zinc carbon
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  160 x 60 x 42 mm
Weight  124 g

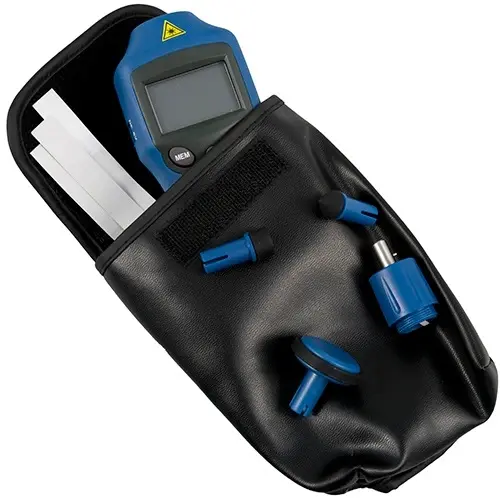

Delivery Scope

1 x Tachometer PCE-DT 65
1 x Mechanical attachment
1 x Adapter wheel
1 x Measuring probe (outer cone)
1 x Measuring hollow point (inside cone)
1 x Belt bag
1 x Battery
3 x Stripes reflective tape (each 20 mm or 0.78 in)
1 x User manual
