SPL Meter PCE-354

SPL Meter PCE-354

Order no.: PCE-354
GTIN (EAN): 4250348731104
£ 113.00
£ 135.60
price ex. (VAT / delivery)
:
4250348731104
PCE-354
Delivery time:1-2 working days

Description

SPL Meter with Leq value calculation / Peak measurement / Frequency weighting A and C / Measuring range 30 ... 130 dB / MAX-Hold function / memory for 99 measured values / display with background lighting

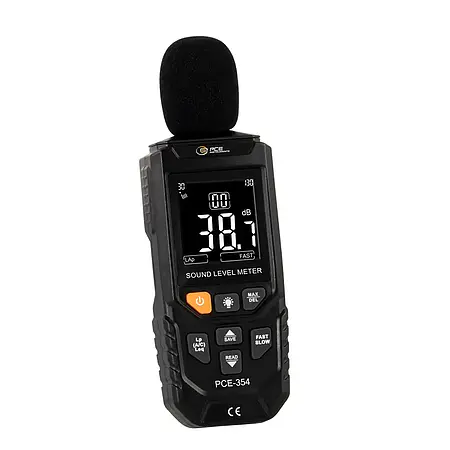

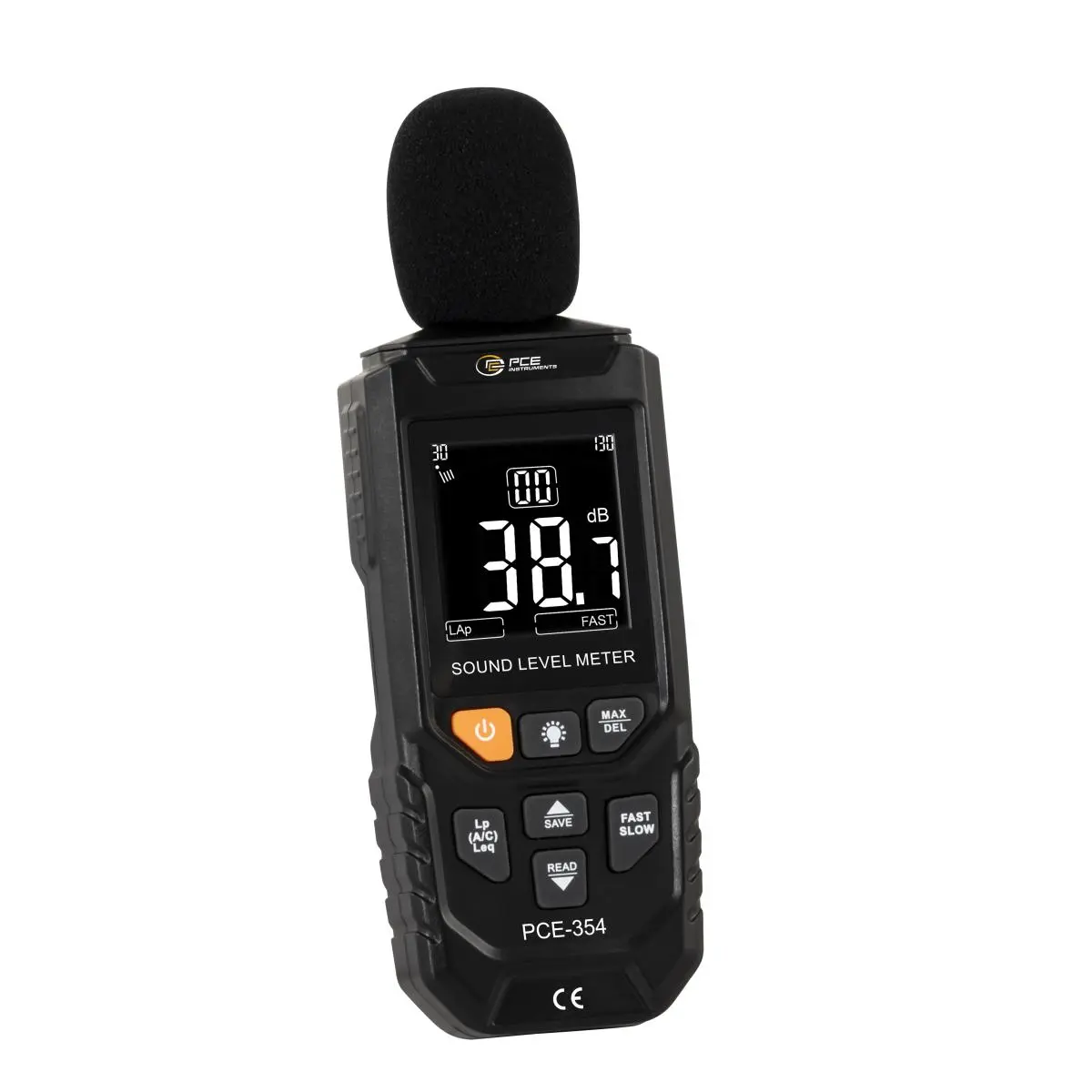

The SPL Meter is a small handheld device with many functions such as peak measurement, Leq value calculation and adjustable measuring ranges. In addition, the SPL Meter can freeze the largest measured value with the MAX function so that you can really judge whether a limit has been exceeded. The special feature of the SPL Meter is the Leq value which, after entering a time, displays the equivalent continuous sound level, i.e. the time average of all sound events within an observation period.

The memory function offers 99 locations which can only be called up via the SPL Meter. The backlight display makes reading easy, after 10 minutes without operation the sound level meter switches off automatically.

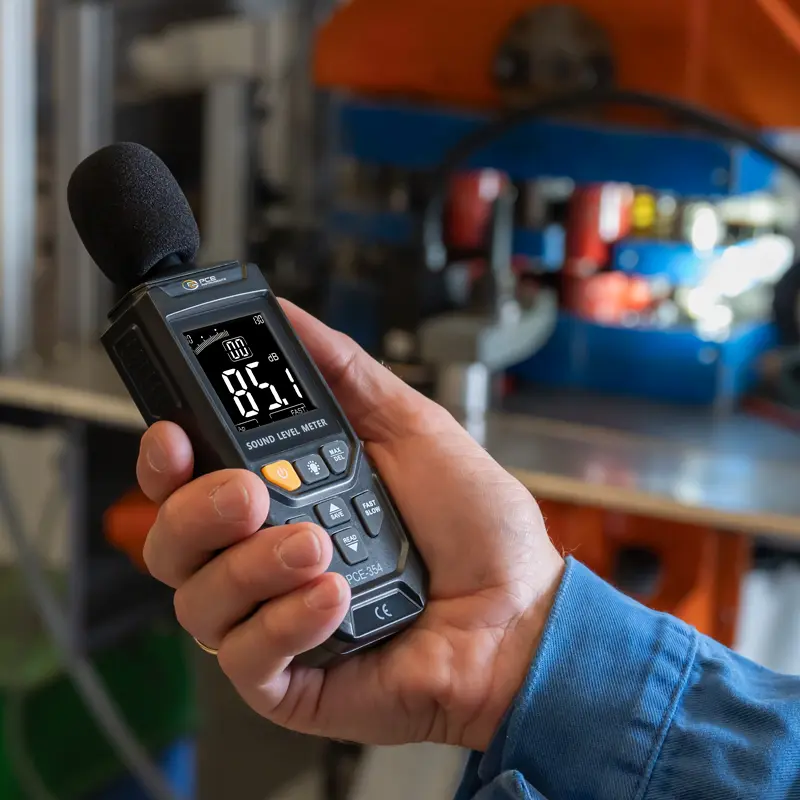

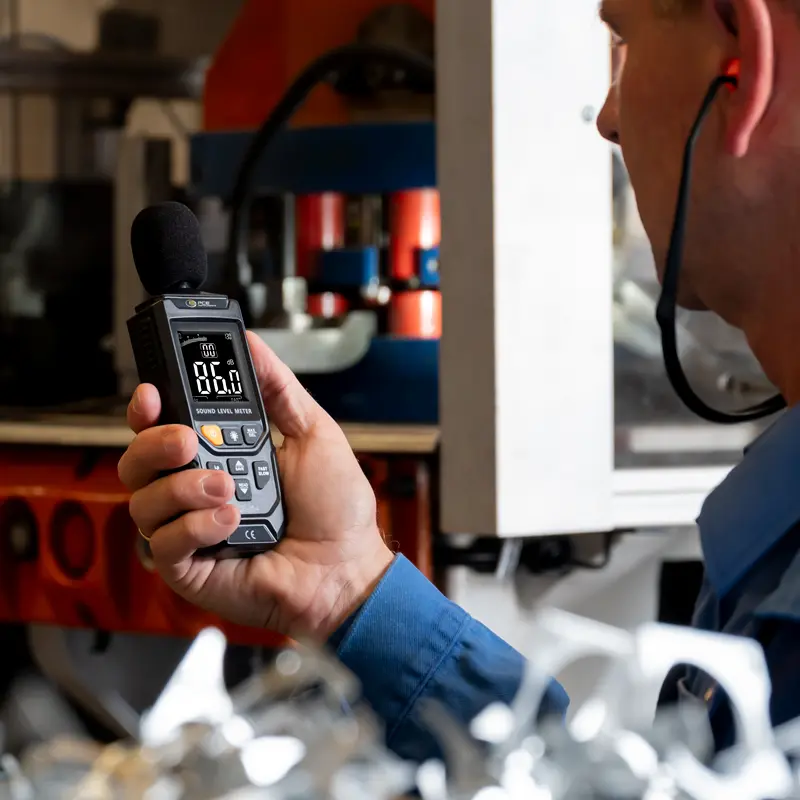

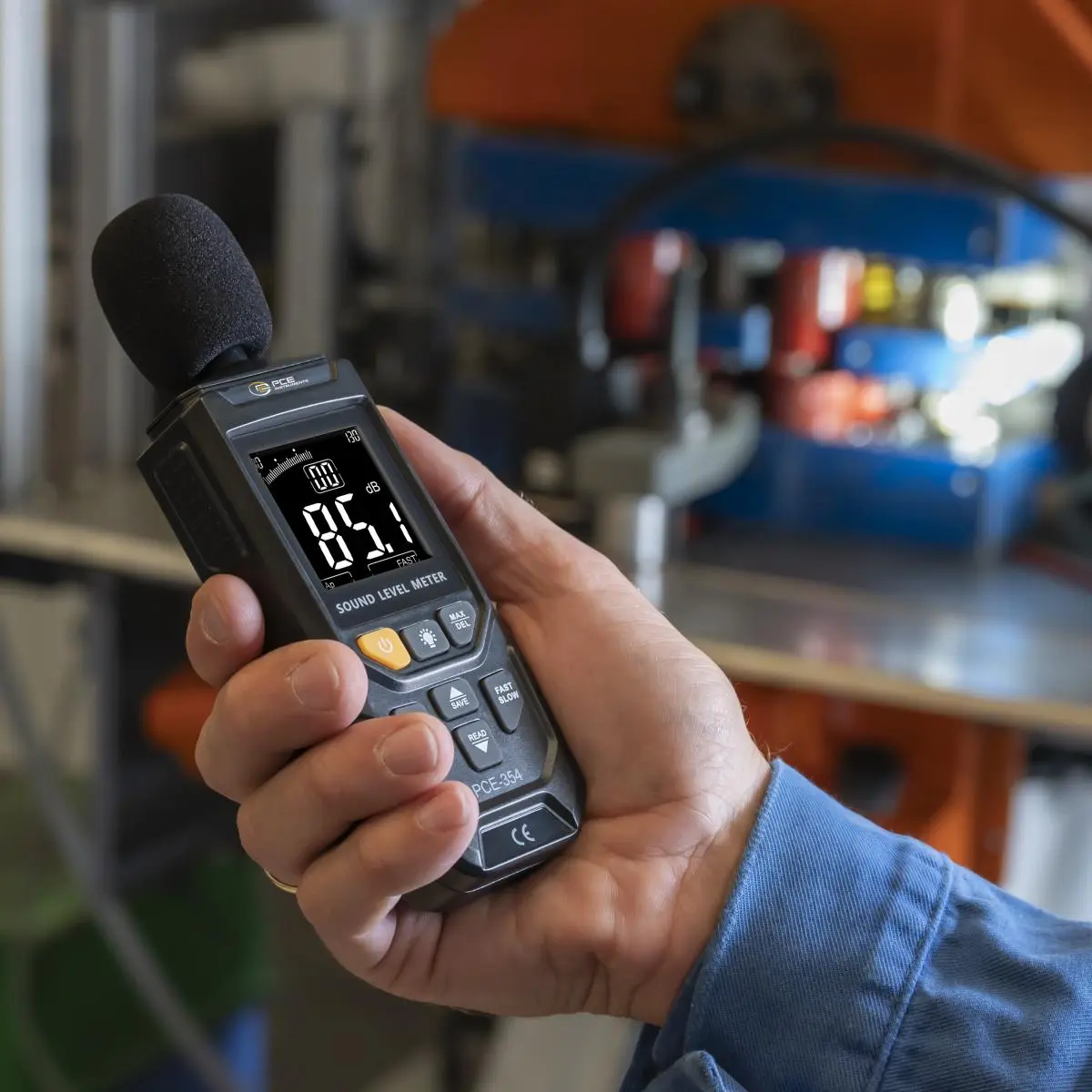

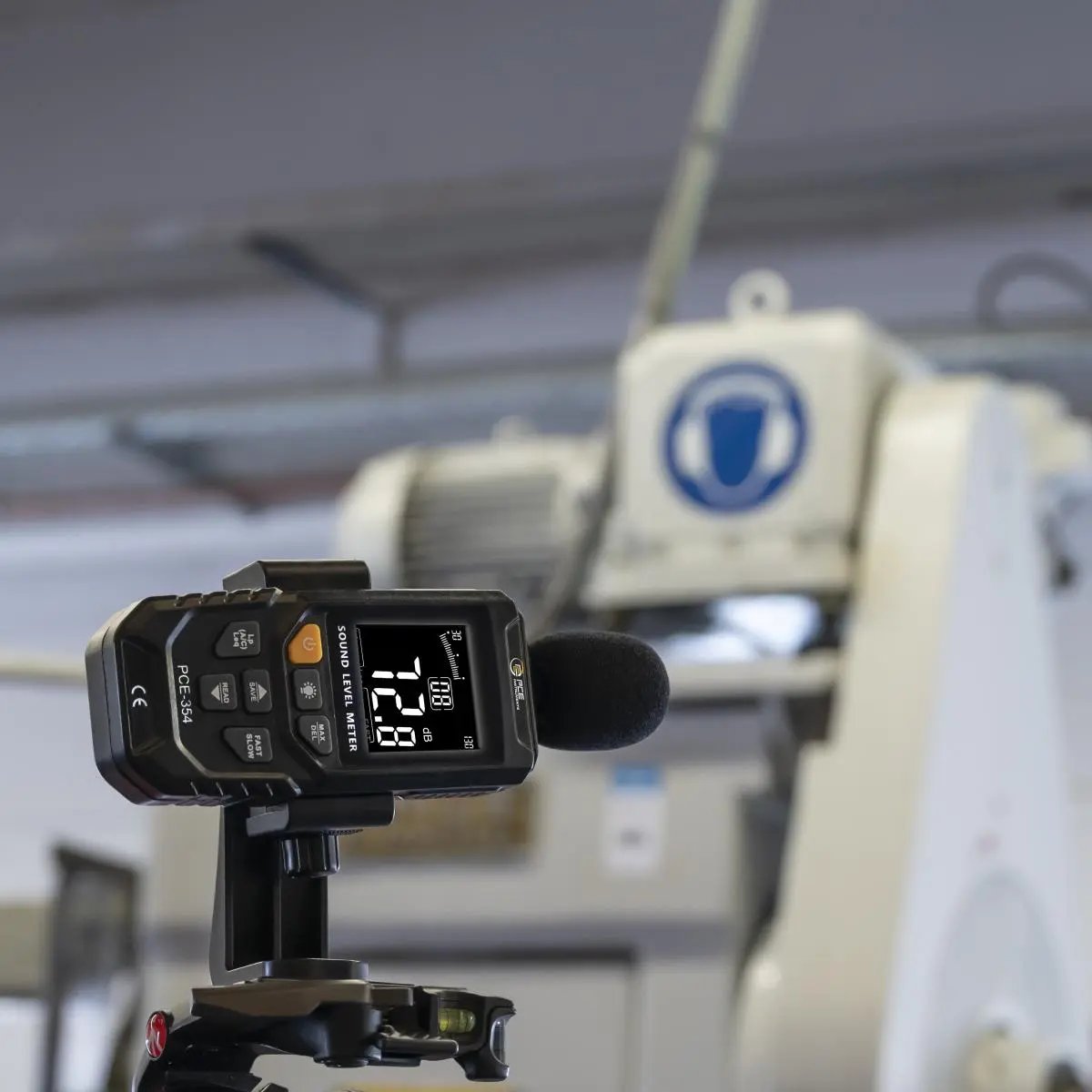

A battery symbol indicates when the three AAA batteries need to be changed. The class 2 SPL Meter is used in the workplace, e.g. for noise protection of employees or simply for quick measurement of ambient noise.

Highlights

- Measuring range 30 ... 130 dB
- Measuring function Leq, LAp and LCp
- Memory function 99 measured values
- Frequency range 20 ... 12500 Hz

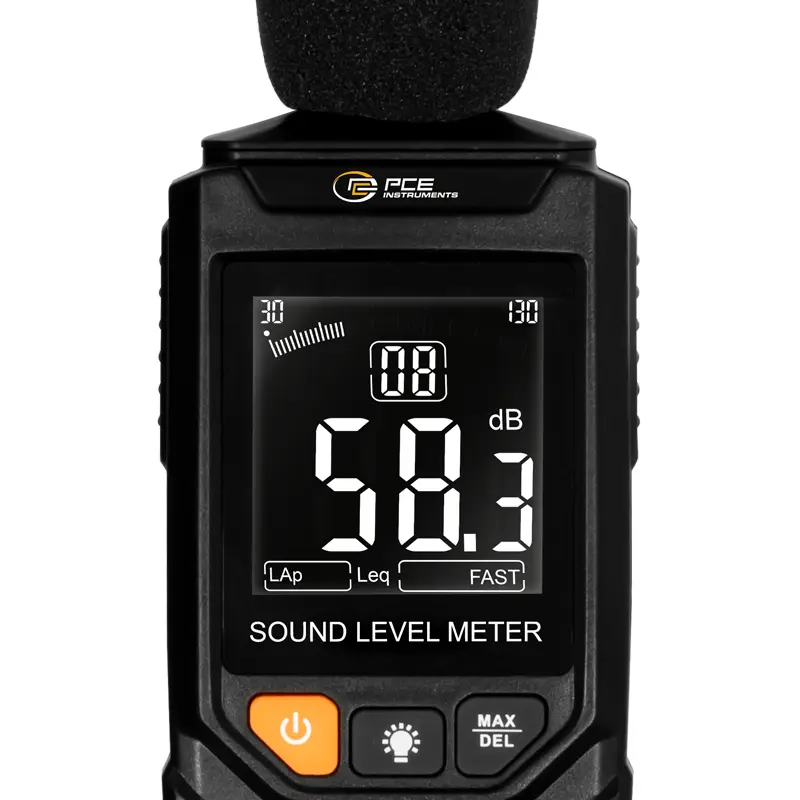

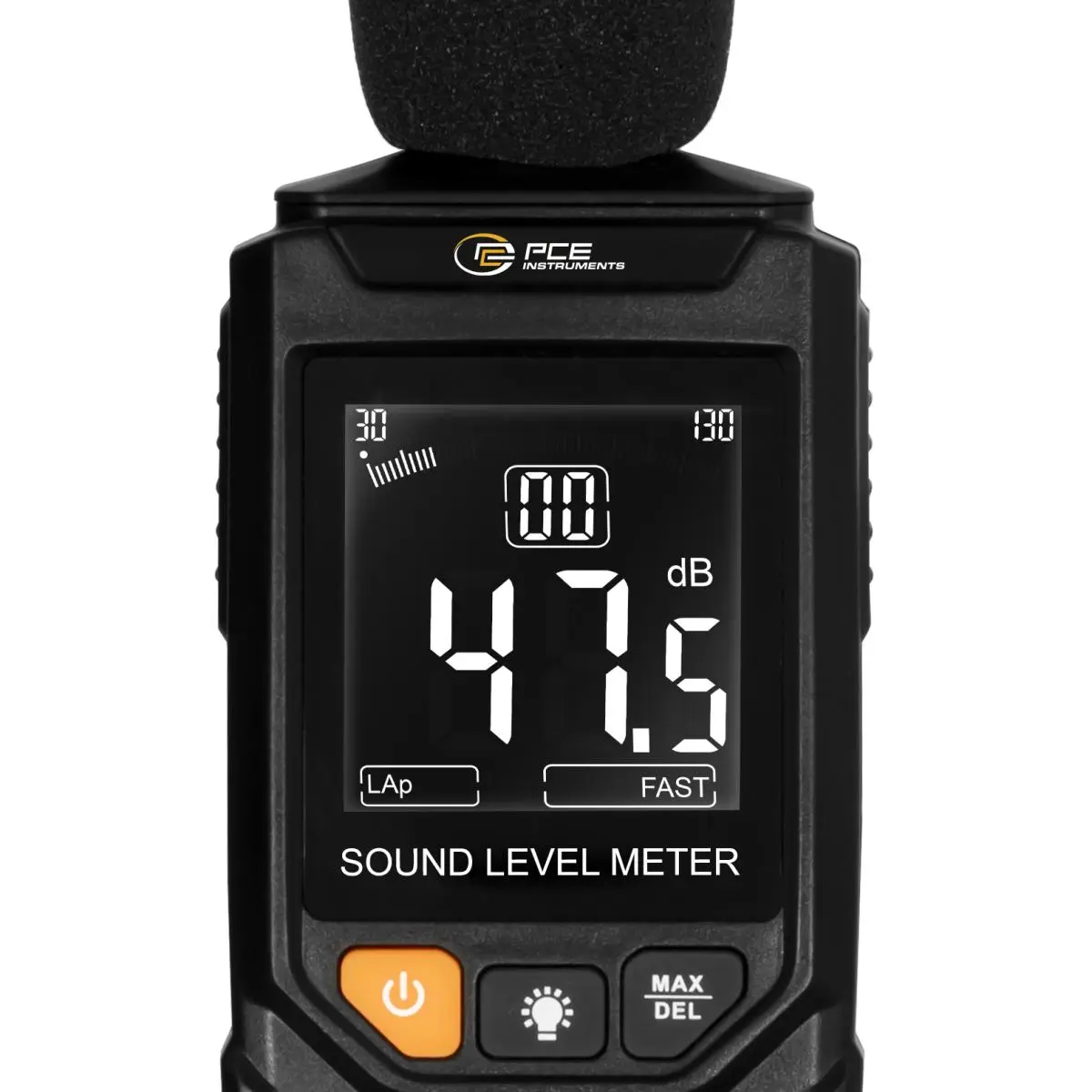

- Display with backlight

Specification

Sound level
Measuring range  30 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB of Rd

General technical data
Measuring functions  Lpeak, Leq
Time weighting  slow (1 s), fast (125 ms)
Frequency weighting  A, C
Frequency  20 ... 12500 Hz
Display type  LCD
Display refresh rate  3 x per second
Storage capacity  99 Values
Memory capacity (additional information)  Storage at a keystroke
Microphone type  Electret capacitor
Standard(s)  Class 2
Automatic power-off  10 min
Menu language  English
Protection class (device)  IP20
(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  0 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  177 x 60 x 35 mm
Weight  110 g

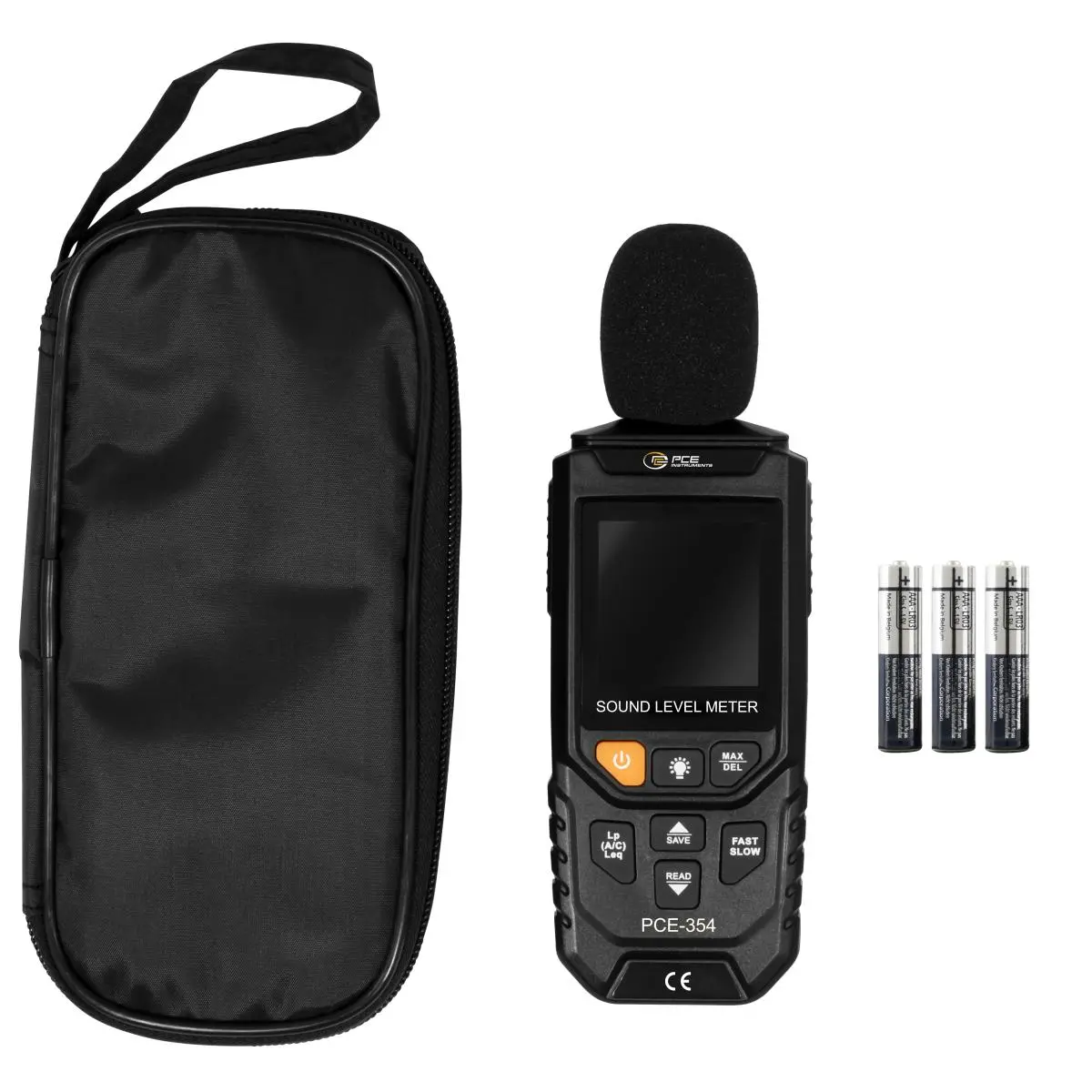

Delivery Scope

1 x SPL Meter PCE-354
3 x AAA batteries
1 x instruction manual
1 x instrument bag
