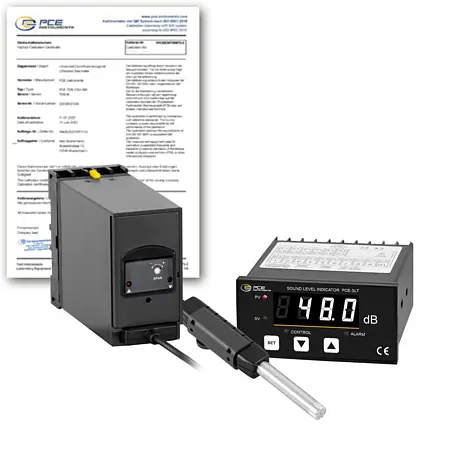

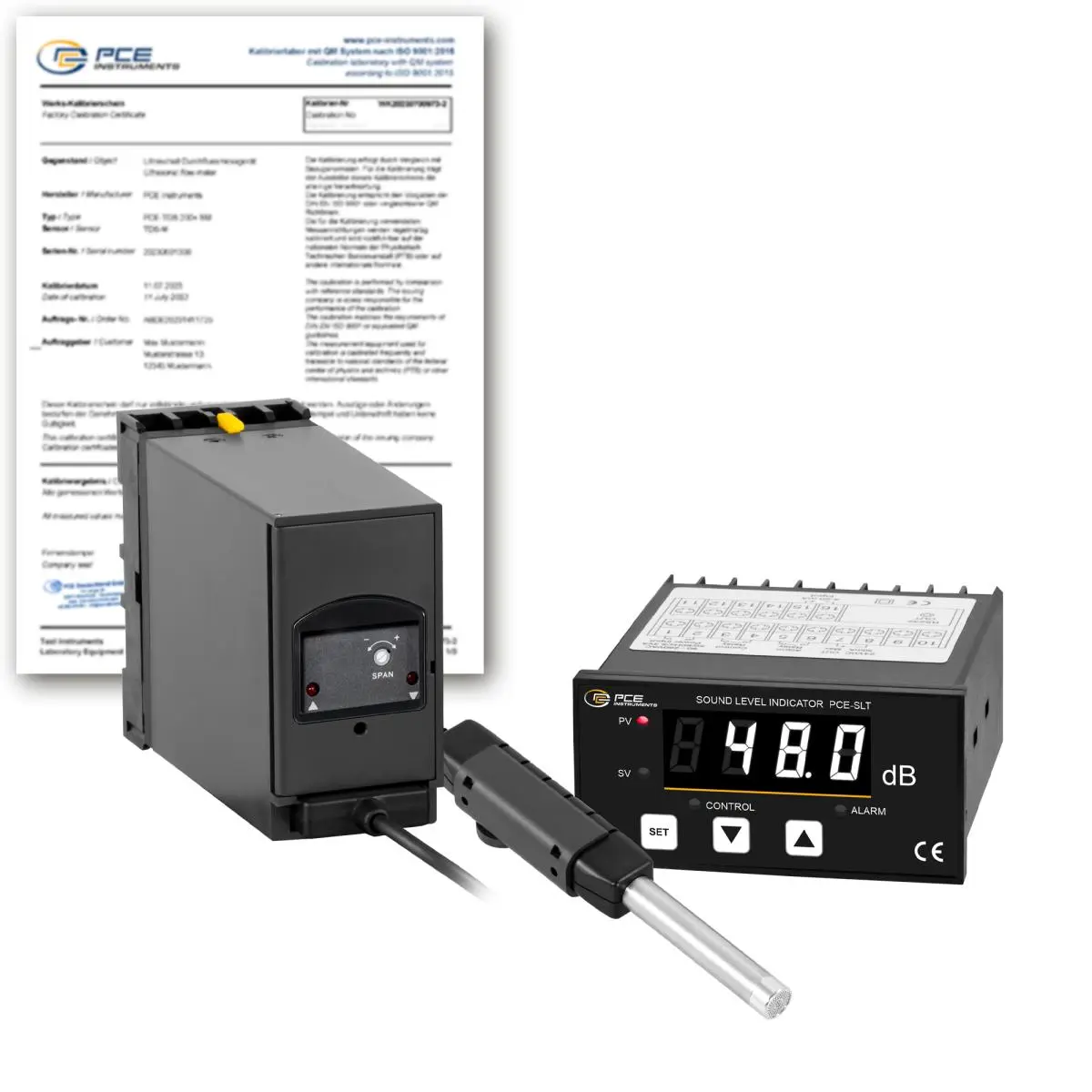

Sound Level Meter PCE-SLT-ICA incl. ISO Calibration Certificate

Order no.: PCE-SLT-ICA

GTIN (EAN): 4250348726698

Accessory

Class 2 Acoustic Calibrator PCE-SC 43

£ 129.00

Description

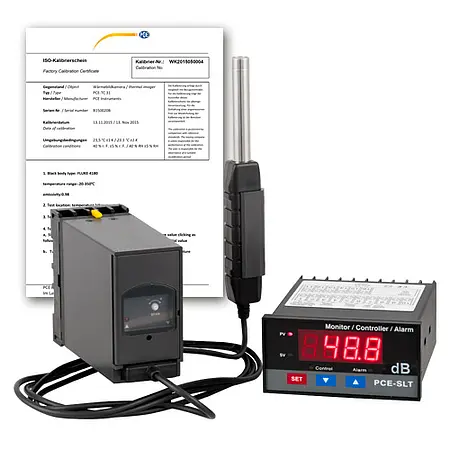

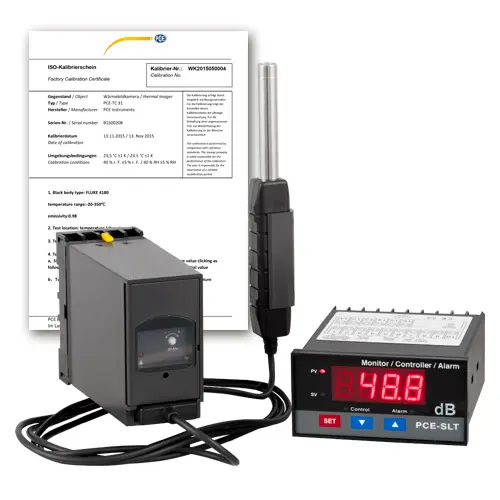

PCE-SLT-ICA sound level meter incl. ISO calibration certificate
For permanent installation with relay output and control output

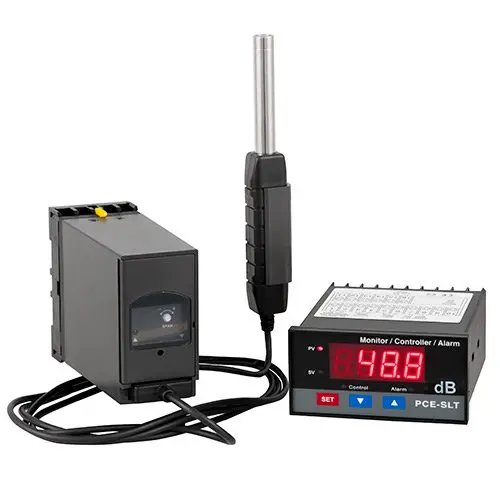

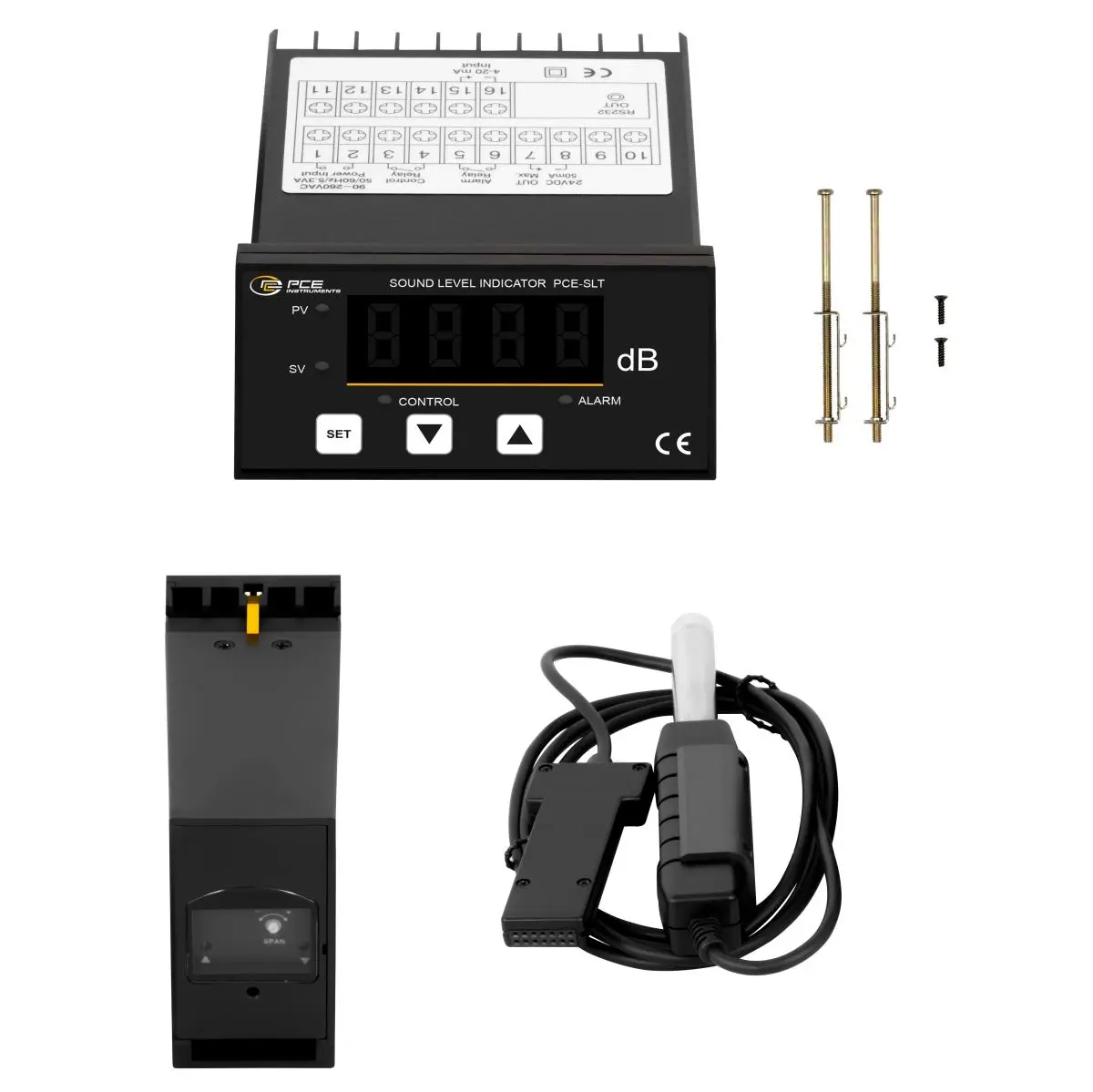

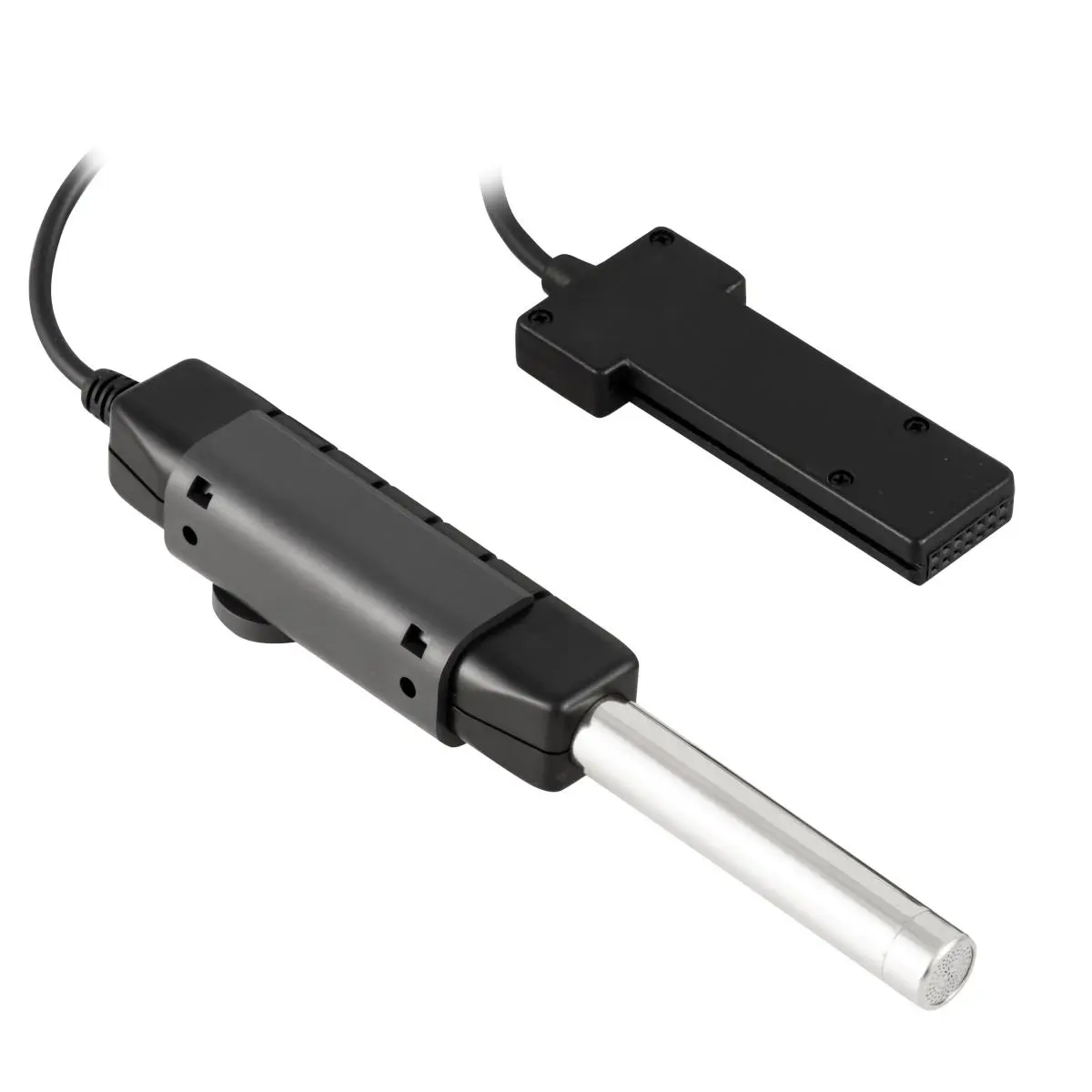

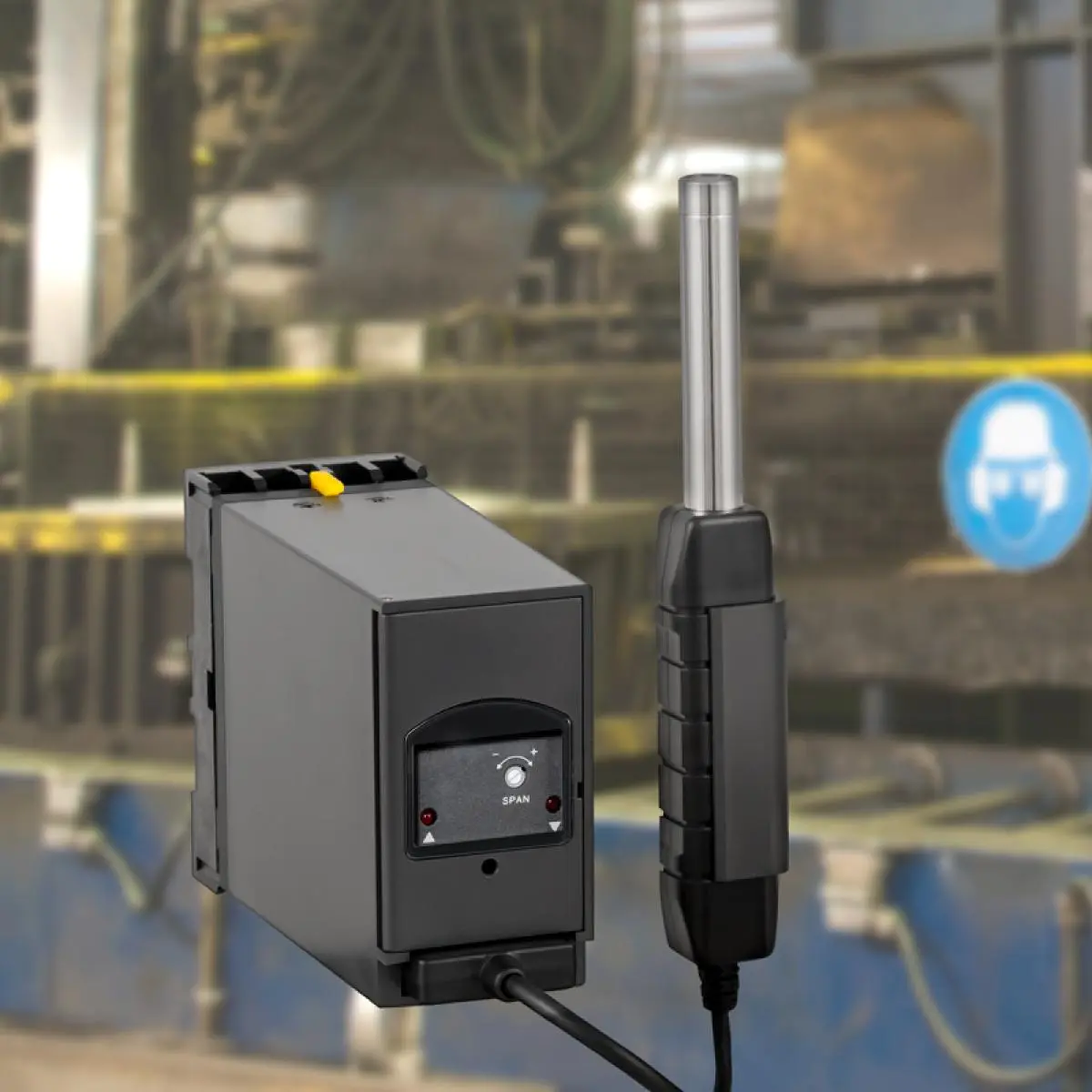

The safety device consists of a measuring microphone with handle and a wall bracket with 1.5 m / 4.9 ft cable, a noise transmitter and a digital display. The main field of application of this safety device is in the continuous noise measurement and noise monitoring of factory buildings, production areas and major events such as night clubs, folk festivals or kart tracks. The digital display has a relay output for controlling alarm horns, flashing lights for visual or audible warning and a control output.

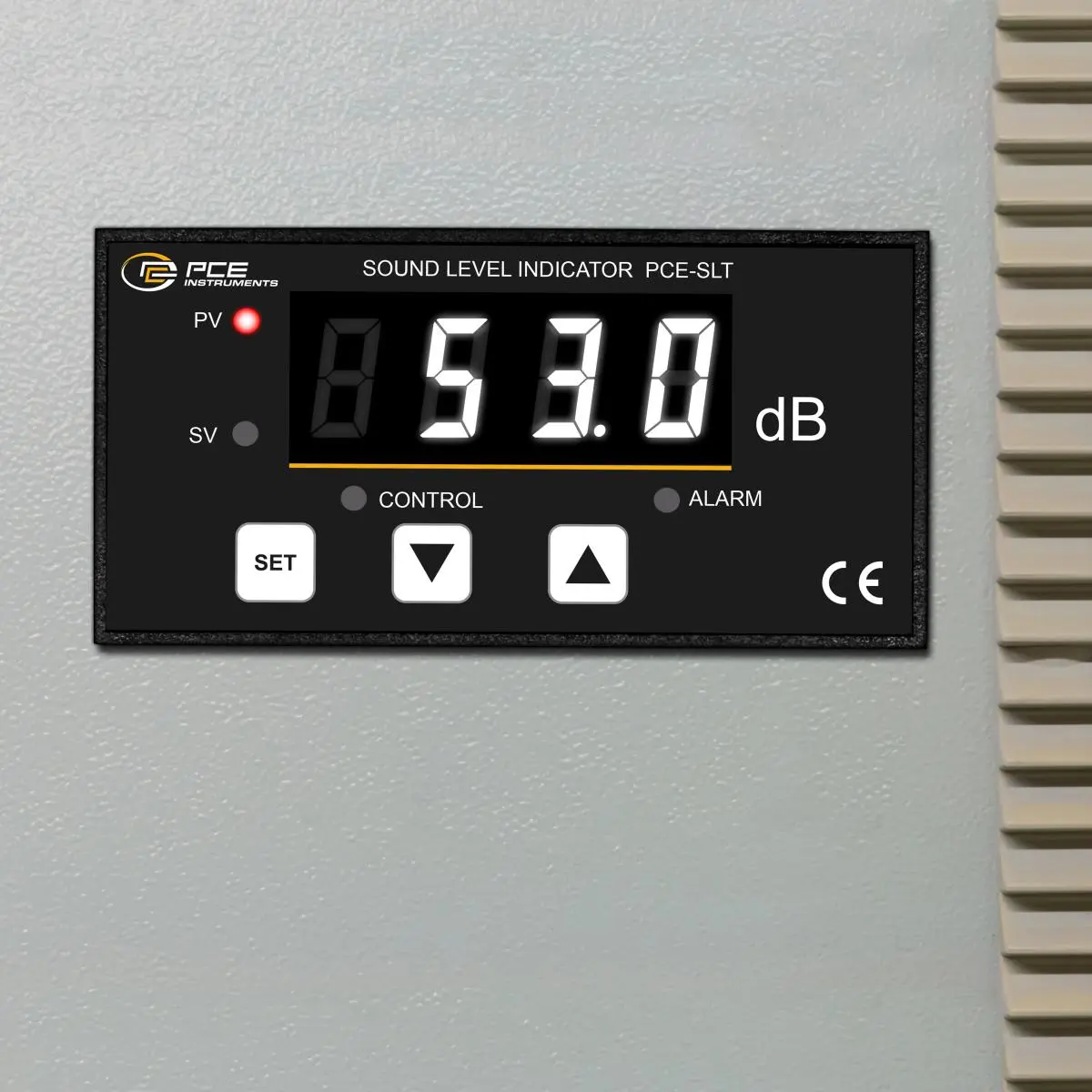

The limit for this alarm output can be programmed on the display. Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The noise warning device is very easy to connect and can be operated via 240V mains current. The digital display for the noise warning display is delivered preconfigured to the noise transmitter and can be used immediately.

Highlights

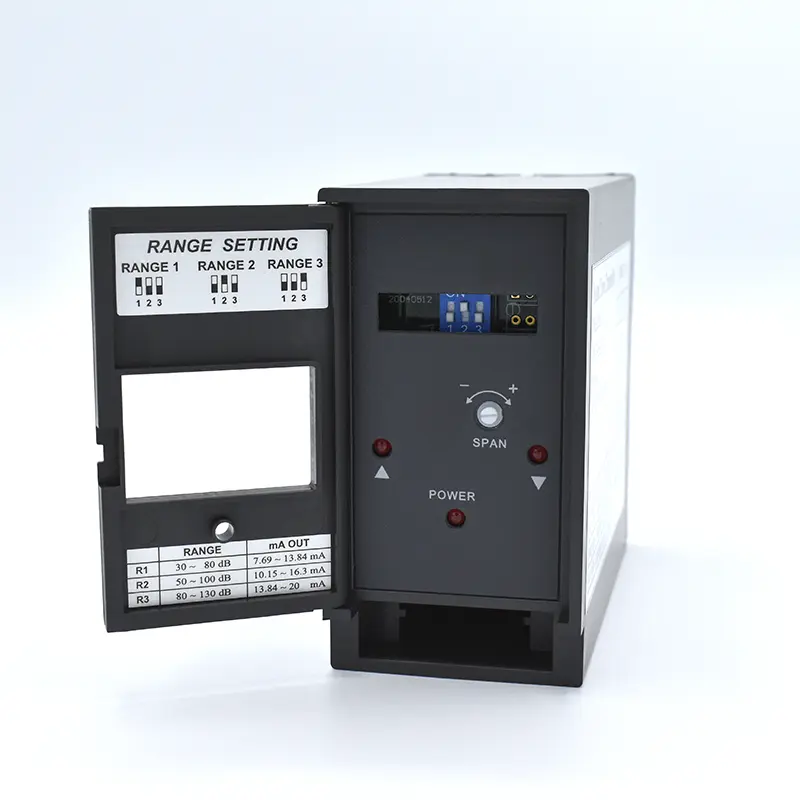

- Measuring range: 30 ... 130 dB in 3 ranges

- Resolution: 0.1 dB

- Accuracy: ± 1.5 dB

- IP 54 ingress protection rating on transmitter offers limited protection

against dust ingress (no harmful deposit) and protection against splashed water

from any direction

- IP 65 ingress protection rating on digital indicator offers total protection

against dust ingress and protection against low-pressure water jets from any

direction. Limited ingress permitted.

- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range	30 ... 80 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	50 ... 100 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	80 ... 130 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

General technical data

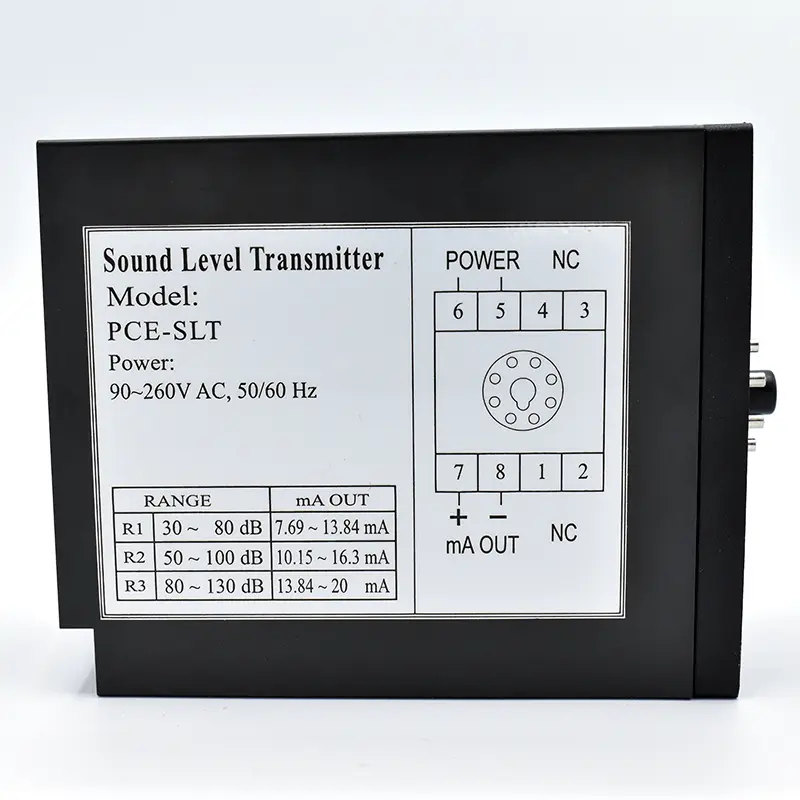

Outputs	4 ... 20 mA
Cable length	1,5 m
Connections	1/2 inch microphone
Frequency weighting	A
Microphone type	Electret capacitor
Standard(s)	IEC 942 (Class 1)
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)

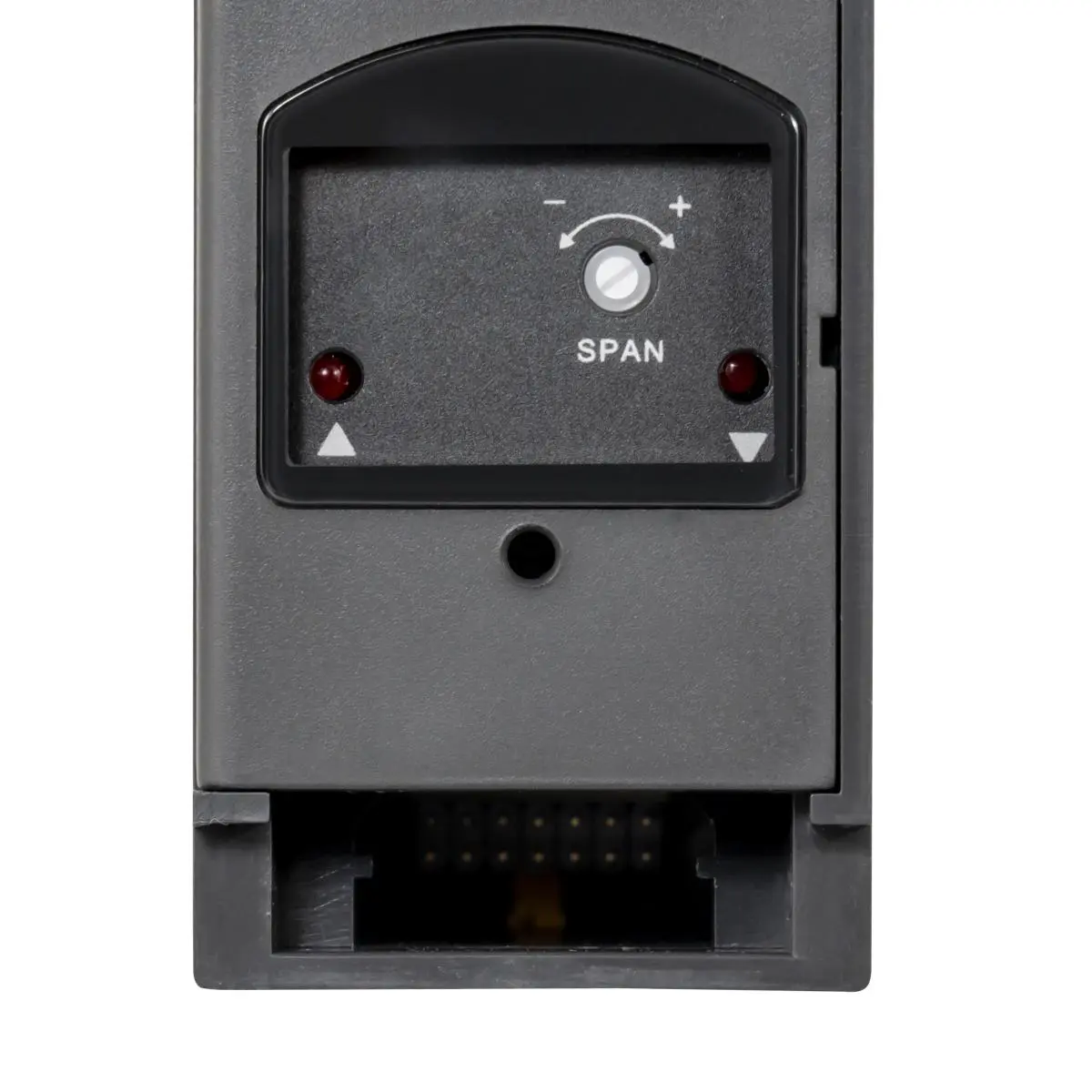

Calibration	adjustable via a grub screw
Weights	Transmitter: 314 g Sensor: 143 g
Display range	-1999 ... 9999
Protection class (device)	IP54, IP65
Power supply	Transmitter: 90 … 260V AC (max. 1.5 A) Digital display: 90 ... 260V AC / 50 ... 60 Hz
Operating conditions	-10 ... 50 °C , 20 ... 90 % RH
Storage conditions	-40 ... 65 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	105 x 96 x 48 mm
Weight	260 g
