Snake Camera PCE-PIC 40

Snake Camera PCE-PIC 40 [zoom]

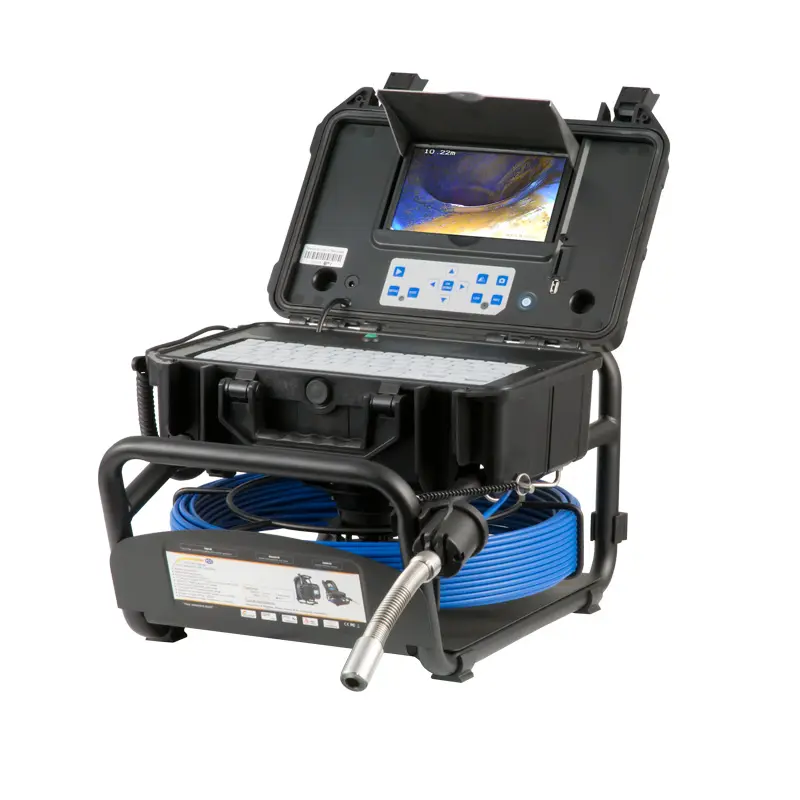

Snake Camera PCE-PIC 40

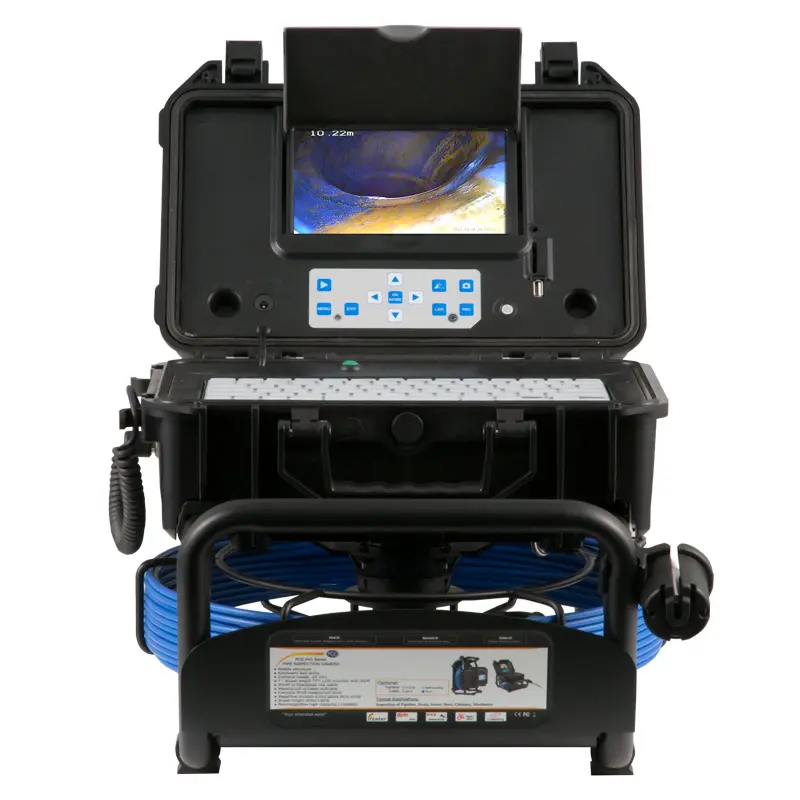

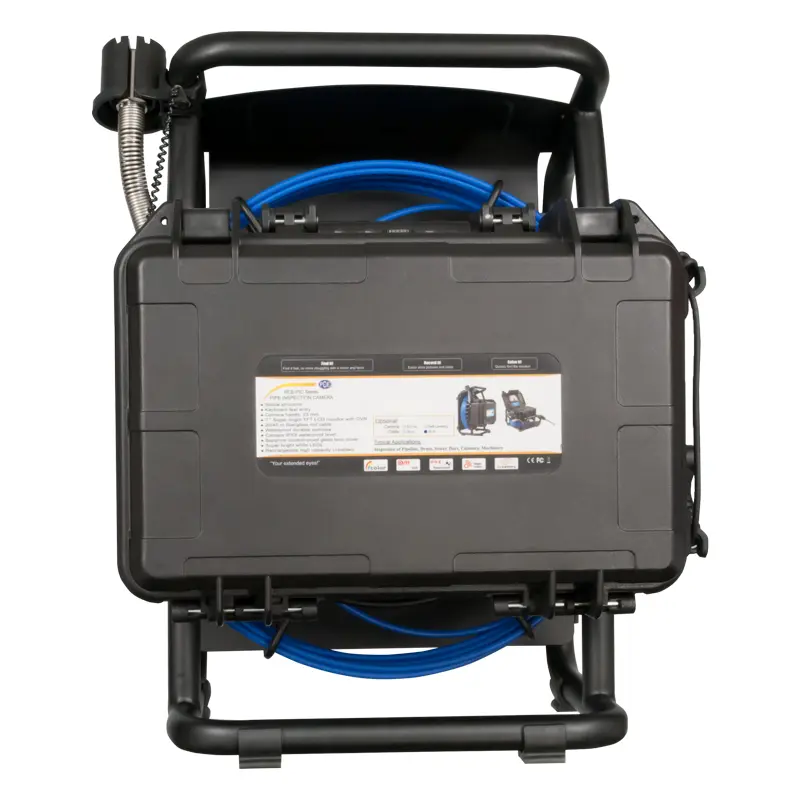

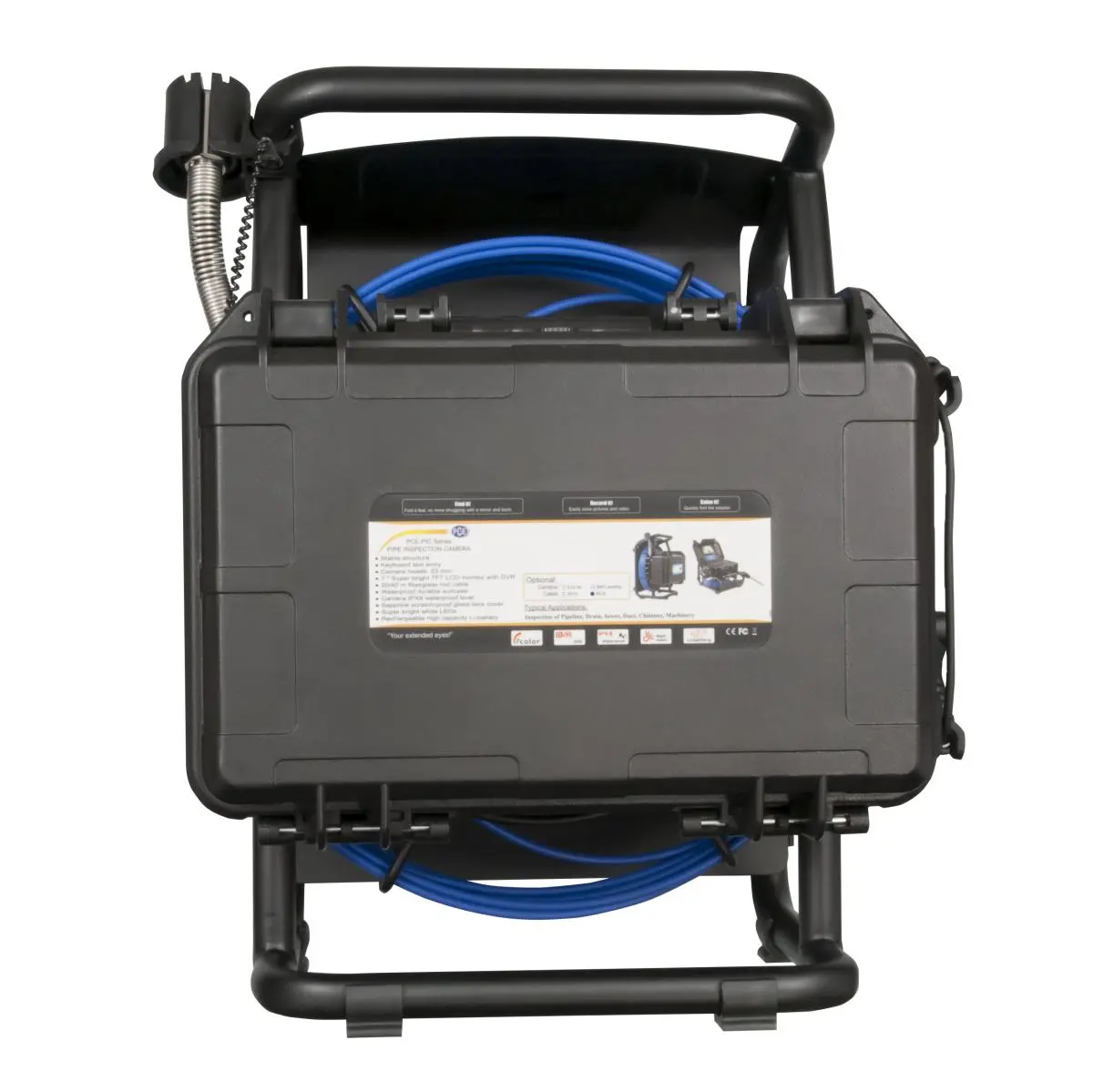

Snake Camera Frontal

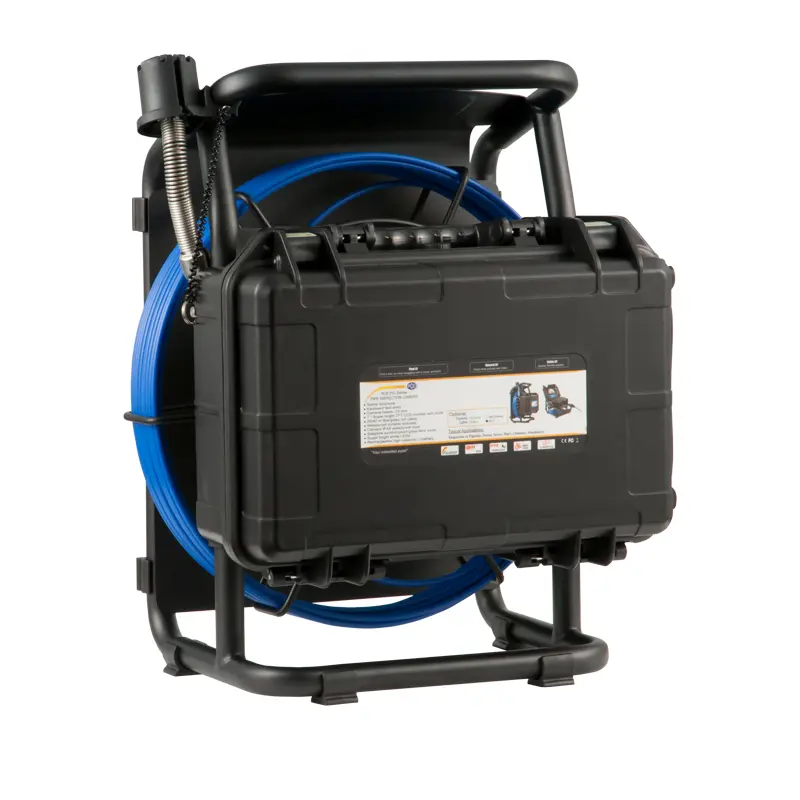

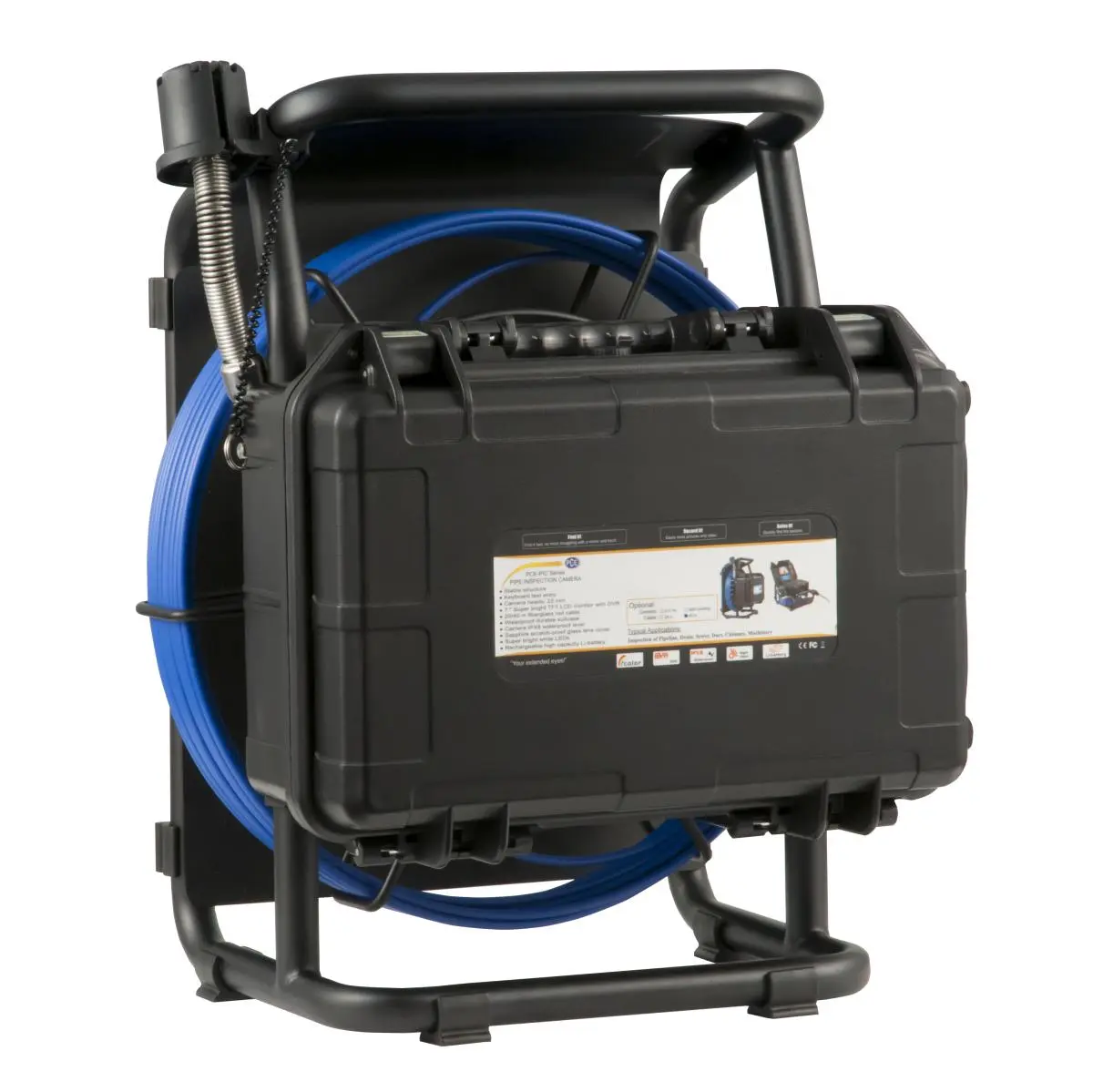

Snake Camera Carrying case

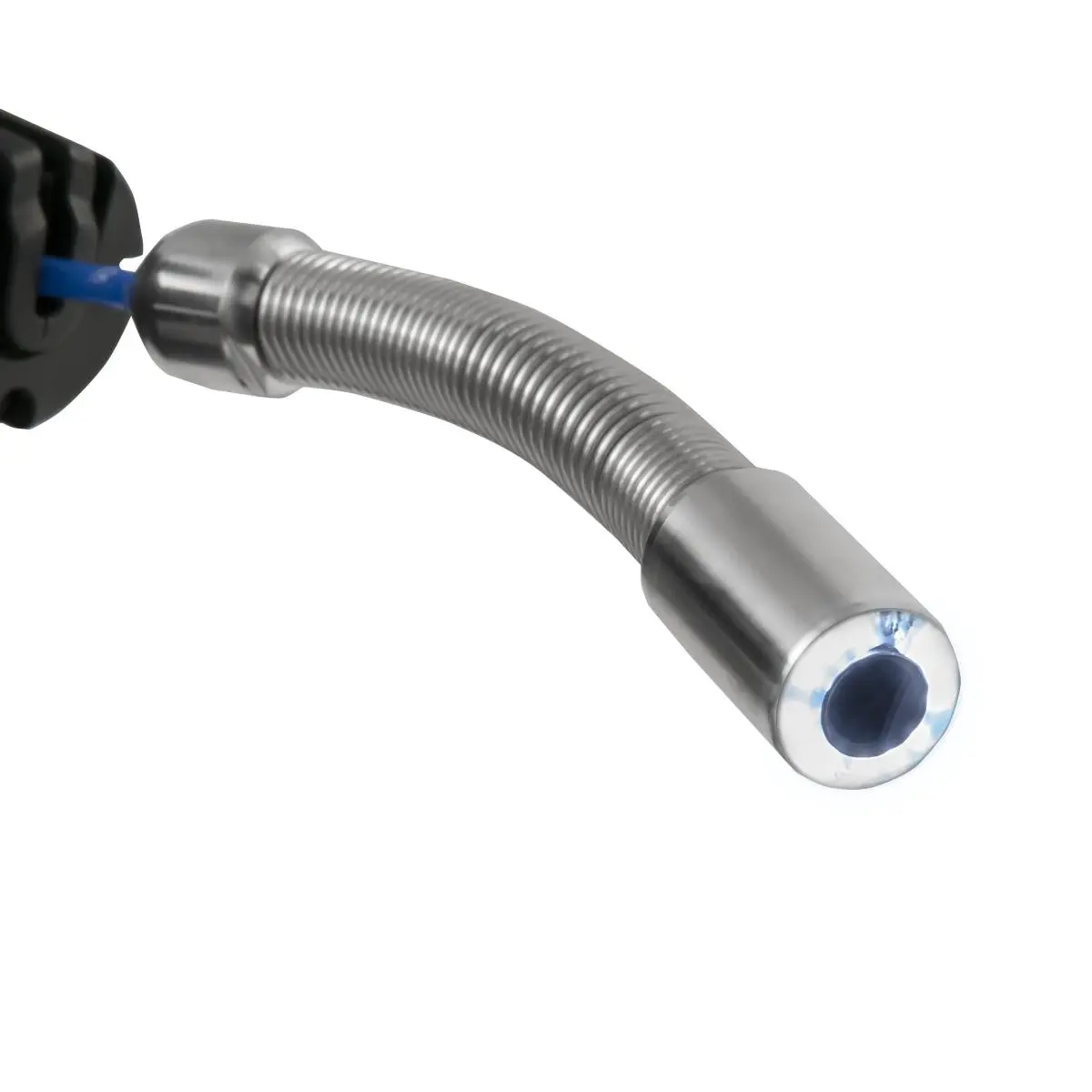

Snake Camera Camera head

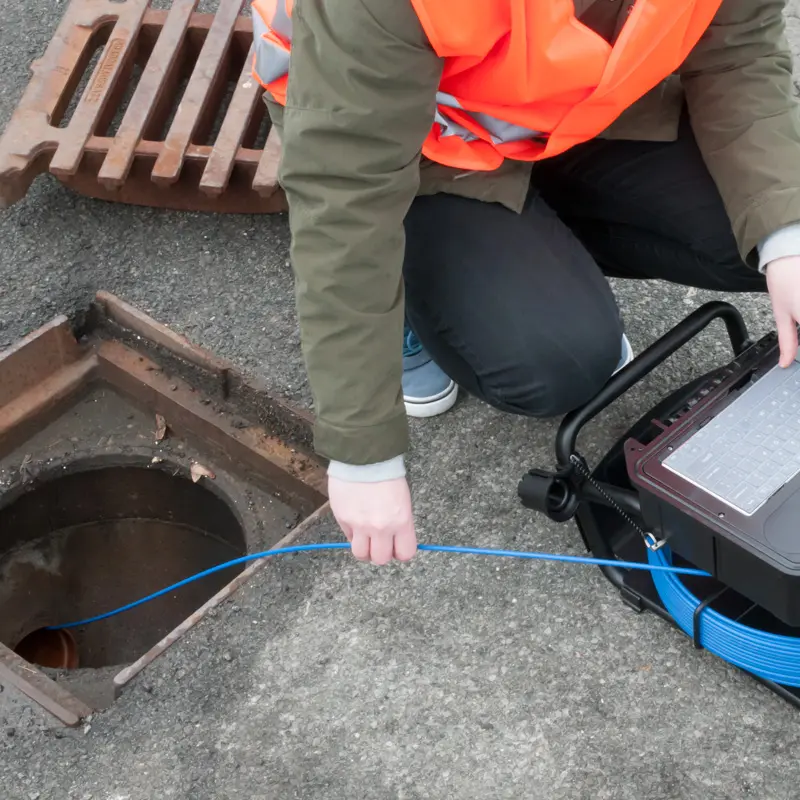

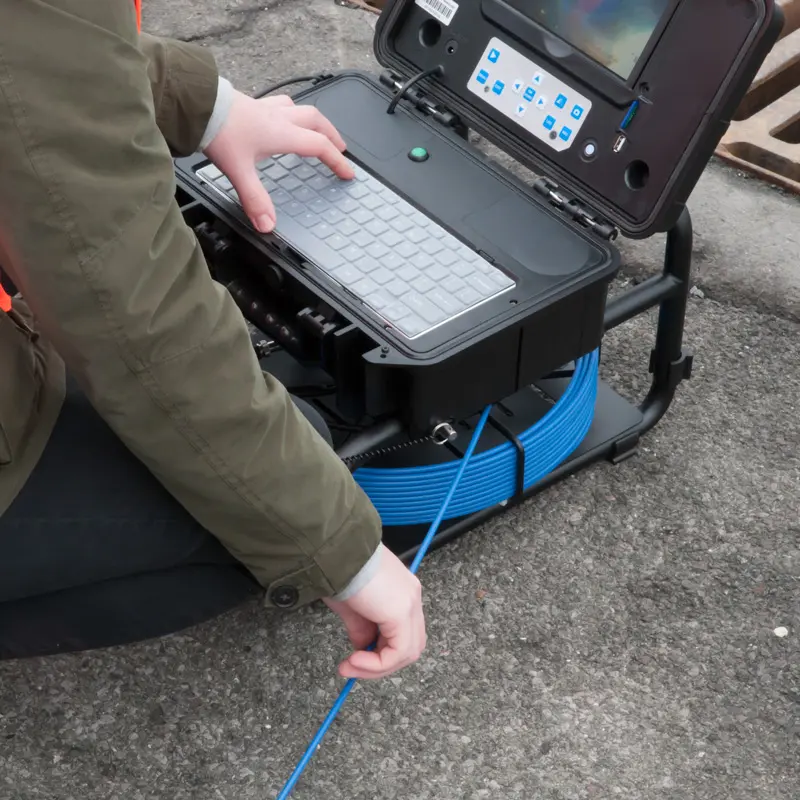

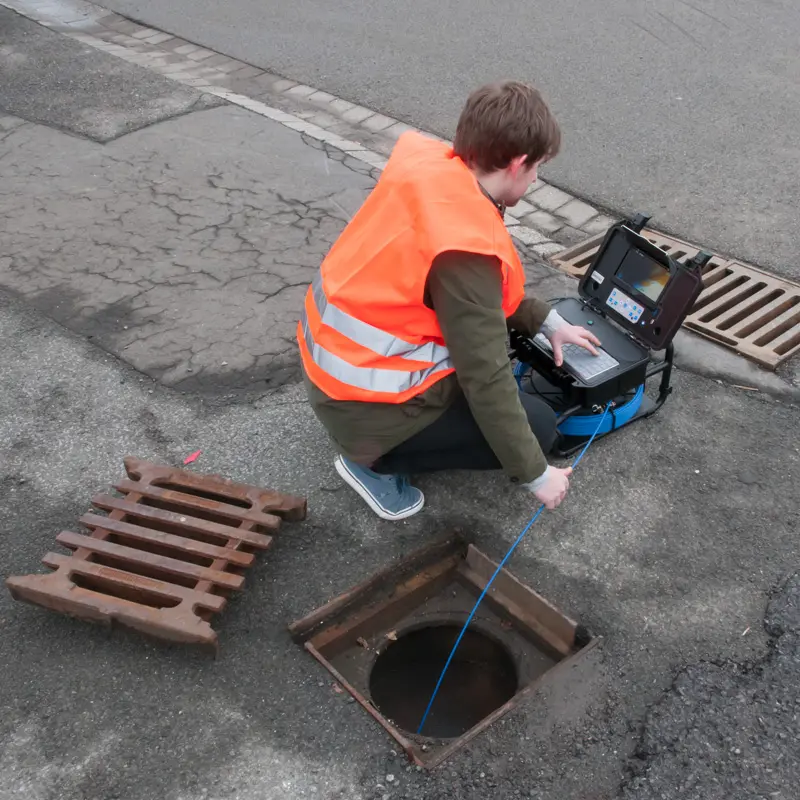

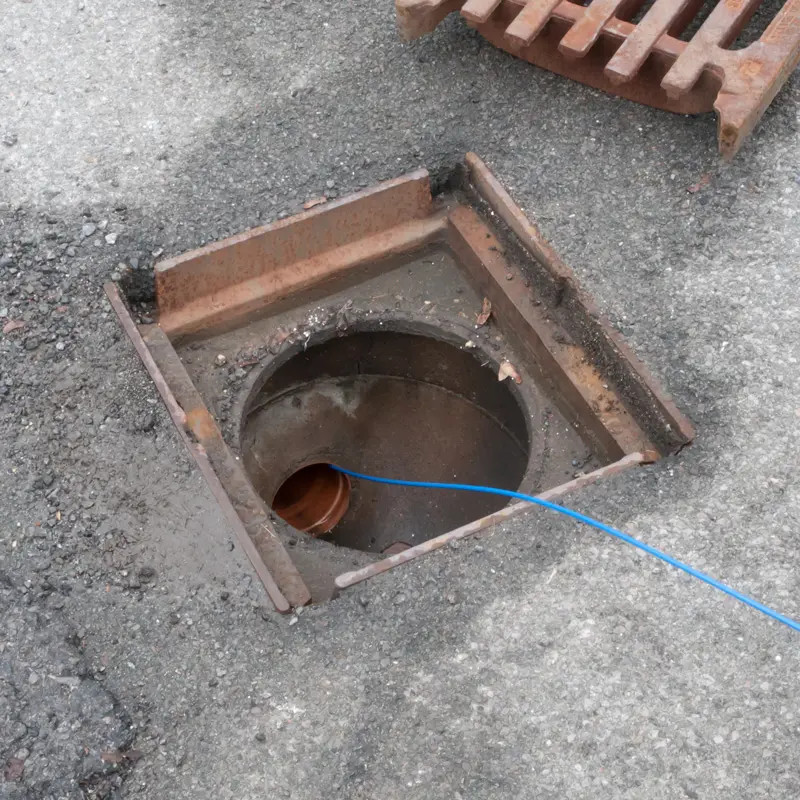

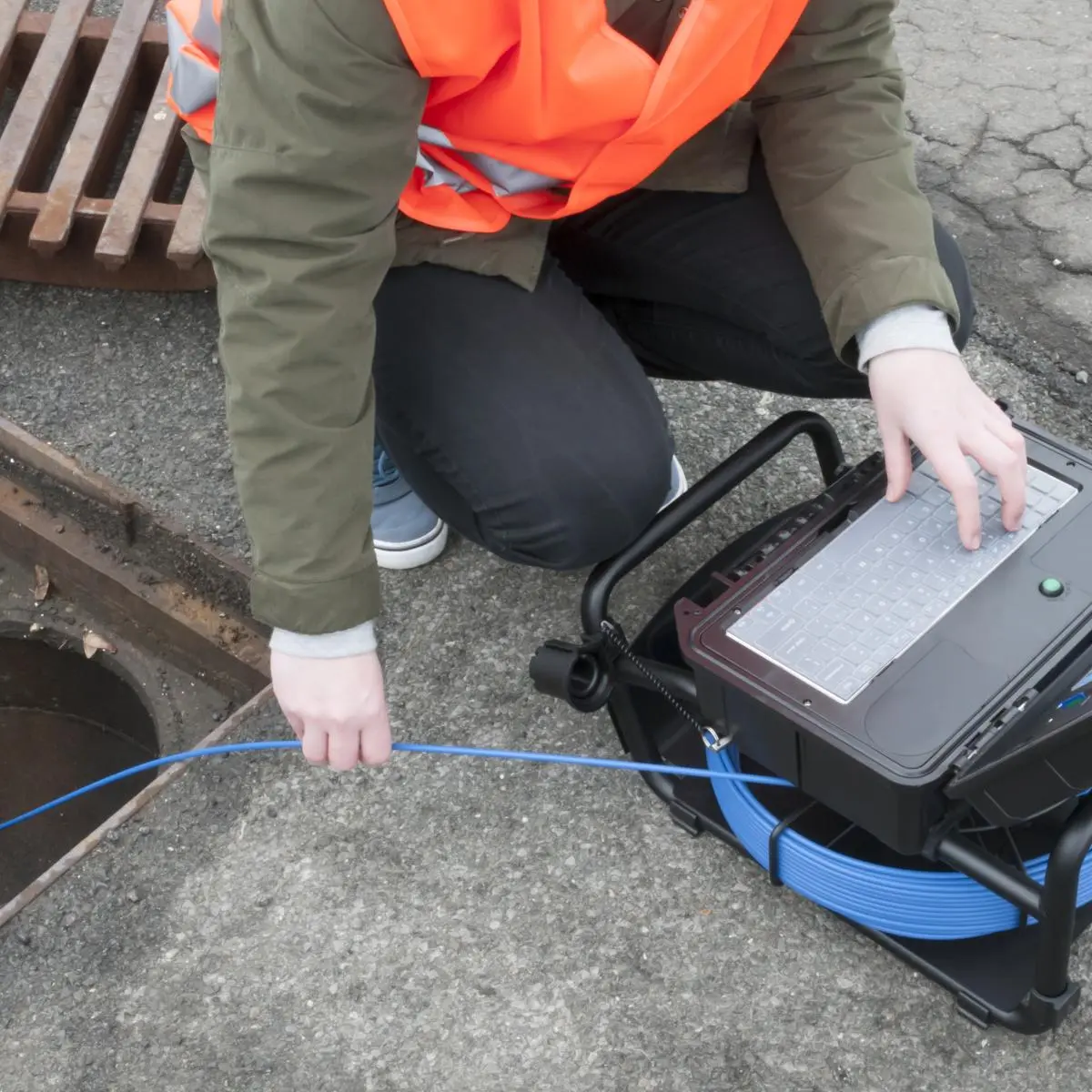

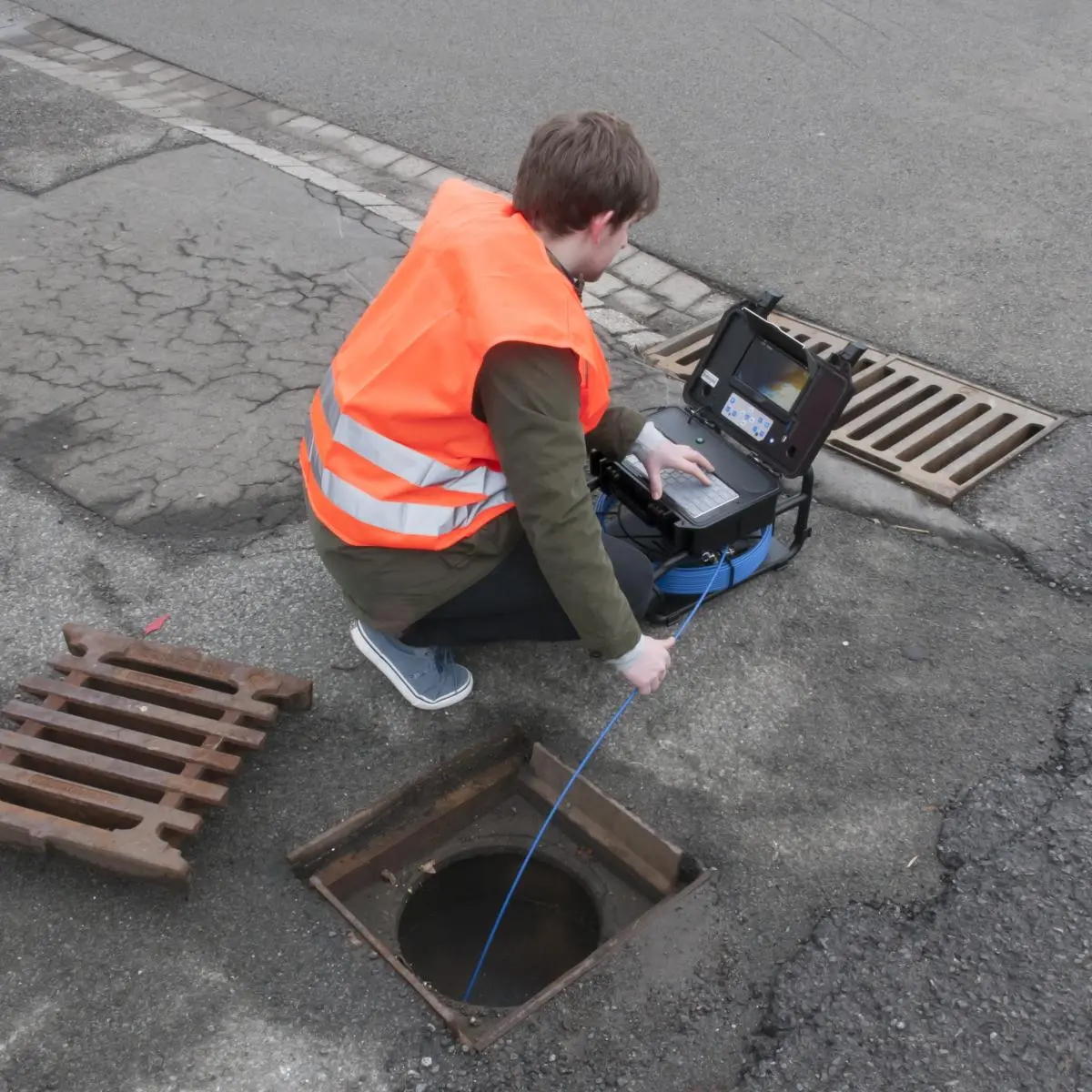

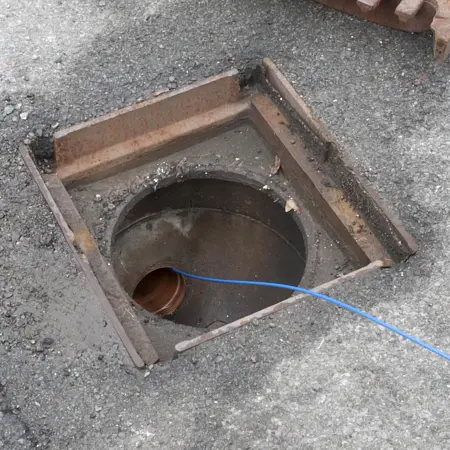

Snake Camera Application picture
Snake Camera Application picture
Snake Camera Application picture
Snake Camera Application picture

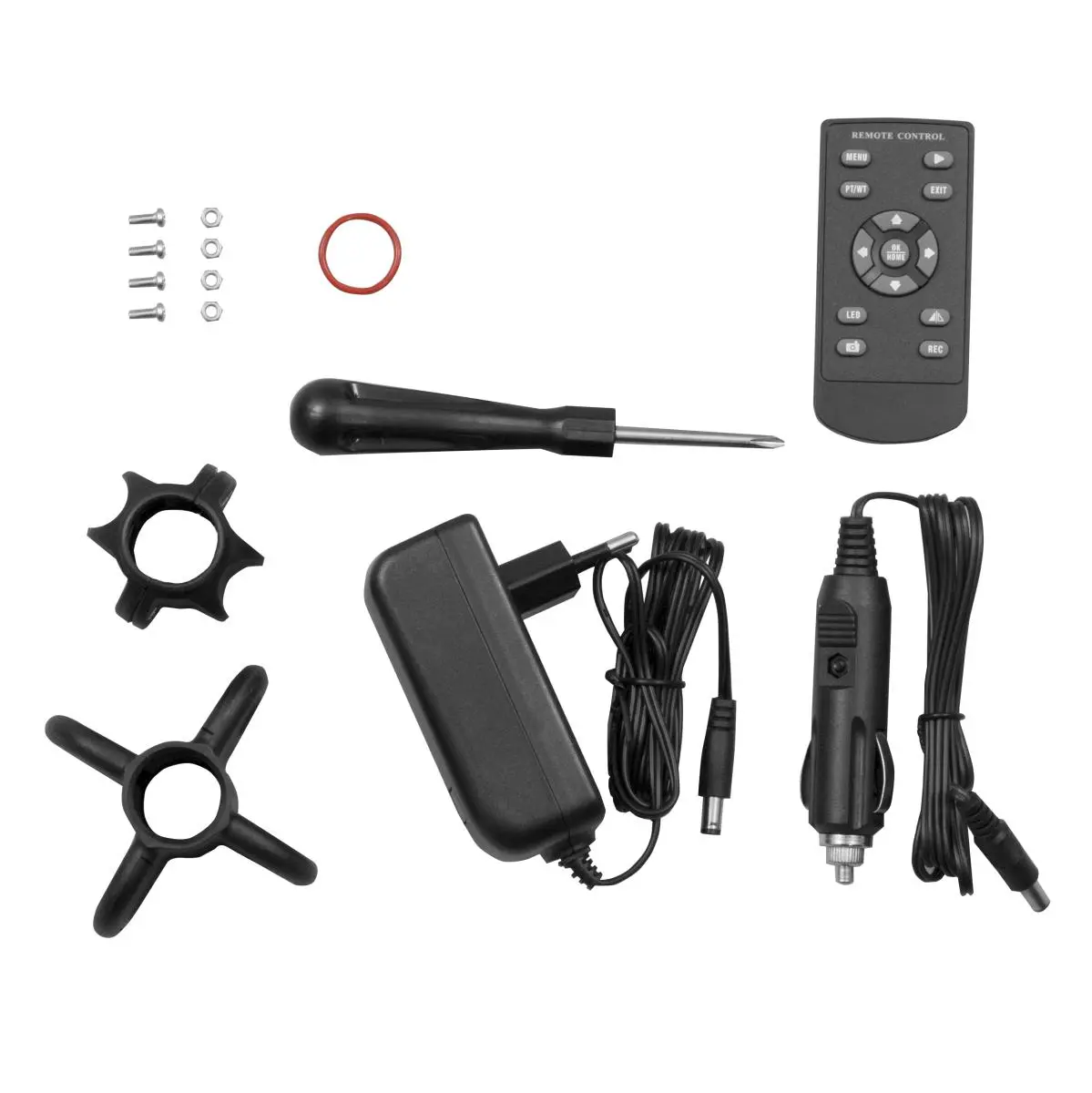

Snake Camera Delivery scope
Snake Camera Delivery scope

Snake Camera PCE-PIC 40

Order no.: PCE-PIC 40
GTIN (EAN): 4250348719324
£ 2,124.00
£ 2,548.80
price ex. (VAT / delivery)
:
4250348719324
PCE-PIC 40
Delivery time:1-2 working days
No
23 mm
40 m
–
No
–
Yes
yes

Accessory

Description

Snake Camera PCE-PIC 40
Inspection camera with 40 m (131 ft) push cable / Waterproof up to 20 m (66 ft) / Meter count / Keyboard input for comments possible / SD memory

The snake camera is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The snake camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The snake camera is optimally suited for pipes and ducts DN 40 ... 150 mm / 1.6 ... 5.9 in. The camera of the snake camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the snake camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the snake camera. For better documentation, comments can be added to the pictures and videos via the keyboard.

The snake camera is delivered in a waterproof case. The case of the snake camera is mounted directly on the cable roller. Thus, the snake camera takes up little space during transport. The snake camera is equipped with a rechargeable battery, which enables a mobile working. About a power supply or the car charger, the battery of the snake camera is charged.

Highlights

- 40 m / 131 ft push cable
- Electronic meter counting
- 23 mm / 0.9 in camera head
- Keyboard for comment input
- Braked endoscope line
- 12x LED lighting
- Battery and mains operation, A/C power adapter
- Waterproof up to 20 m / 66 ft
- IP66 Carrying Case
- 90° radius of curvature at min. Ø 45 mm / 1.8 in

Specification

General technical data
Resolution  Video format: PAL 720 x 576 pixels, NTSC 720 x 488 pixels
Cable length  40 m
Measuring functions (additional information)  Length measurement: 0 ...40 m
Display type  LCD
Display size  7 Inch
Storage medium  SD card
Storage capacity  32 GB
Memory capacity (additional information)  An SD card up to 32 GB can be used / memory options: video, image and sound
Interface  USB
Sensor  1/3 inch Sony CCD
Camera resolution  720 x 576 pixels
Camera orientation  frontal 0°
Camera head length  45 mm
Camera head diameter  23 mm
Camera probe length  150 mm
Camera probe movement  flexible
Protection class camera probe  IP66
Field of vision  120 °
Depth of field of vision  20 ... 100 cm
Bending radius  90 mm
Menu language  German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian, Korean, Thai, Swedish
Protection class (device)  IP66
Power supply  AC 100 ... 240 V | Hz 50/60
Connector type  Device-europlug
Capacity  6400 mAh
Operating conditions  -10 ... 50 °C , 30 ... 90 % RH
Storage conditions  -20 ... 60 °C , 30 ... 90 % RH
Dimensions ( L x W x H )  480 x 370 x 300 mm
Weight  10000 g

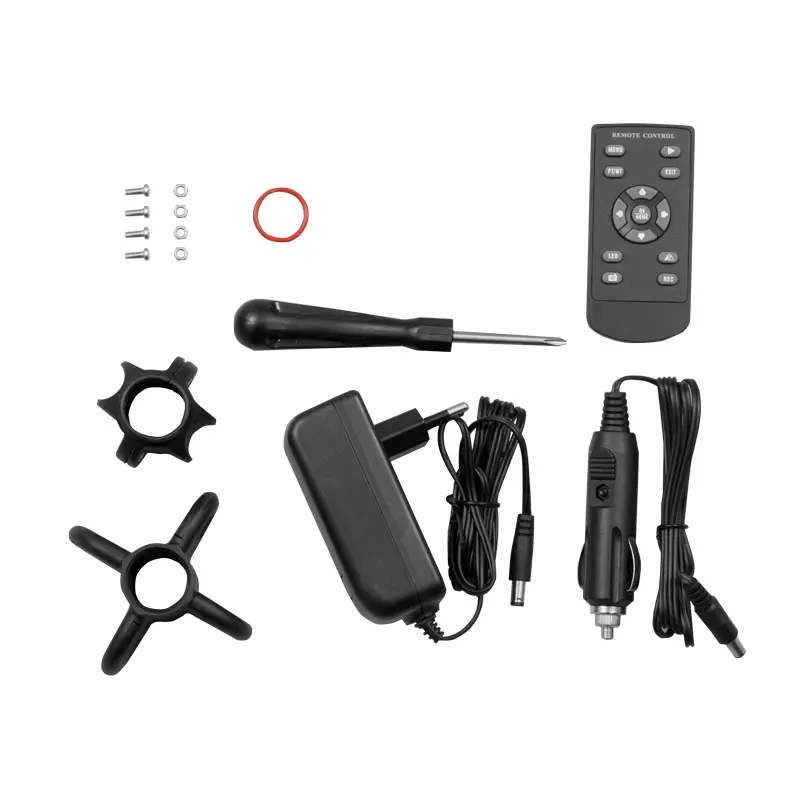

Delivery Scope

1 x Snake Camera PCE-PIC 40
1 x Standard camera head
1 x Main unit with case
1 x Cable roller and push cable
1 x Mains power adapter
1 x Car charger adapter
1 x Keyboard
1 x Remote control
1 x 46 mm / 1.8 in guide
1 x 80 mm / 3.1 in guide
1 x User manual
Please note: The video endoscopes are not suitable for medical purposes!
