£ 193.00

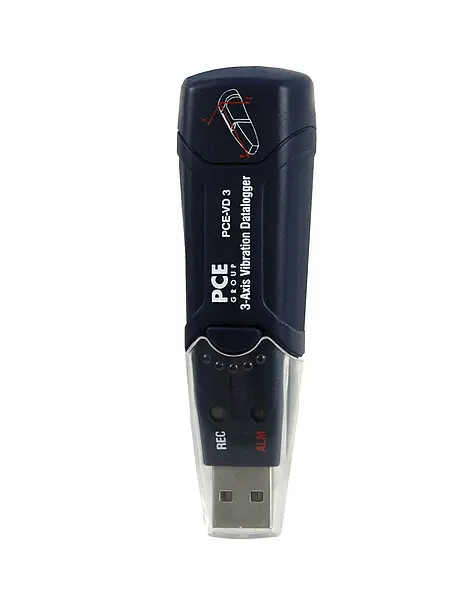

PCE-VD 3-ICA Shock Data Logger incl. ISO Calibration Certificate
Measures 3-axis shock / Built-in accelerometer sensor / Logs and stores up to 168,042 records / Adjustable recording interval from 50 ms ... 12 hours / Connects to PC via USB port

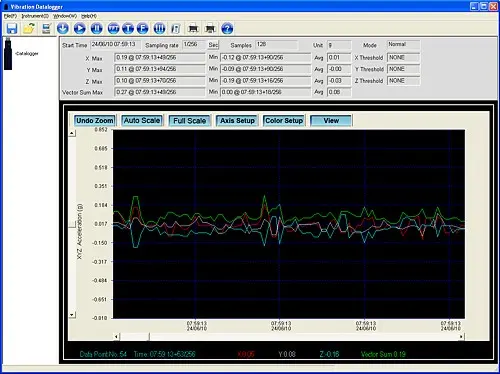

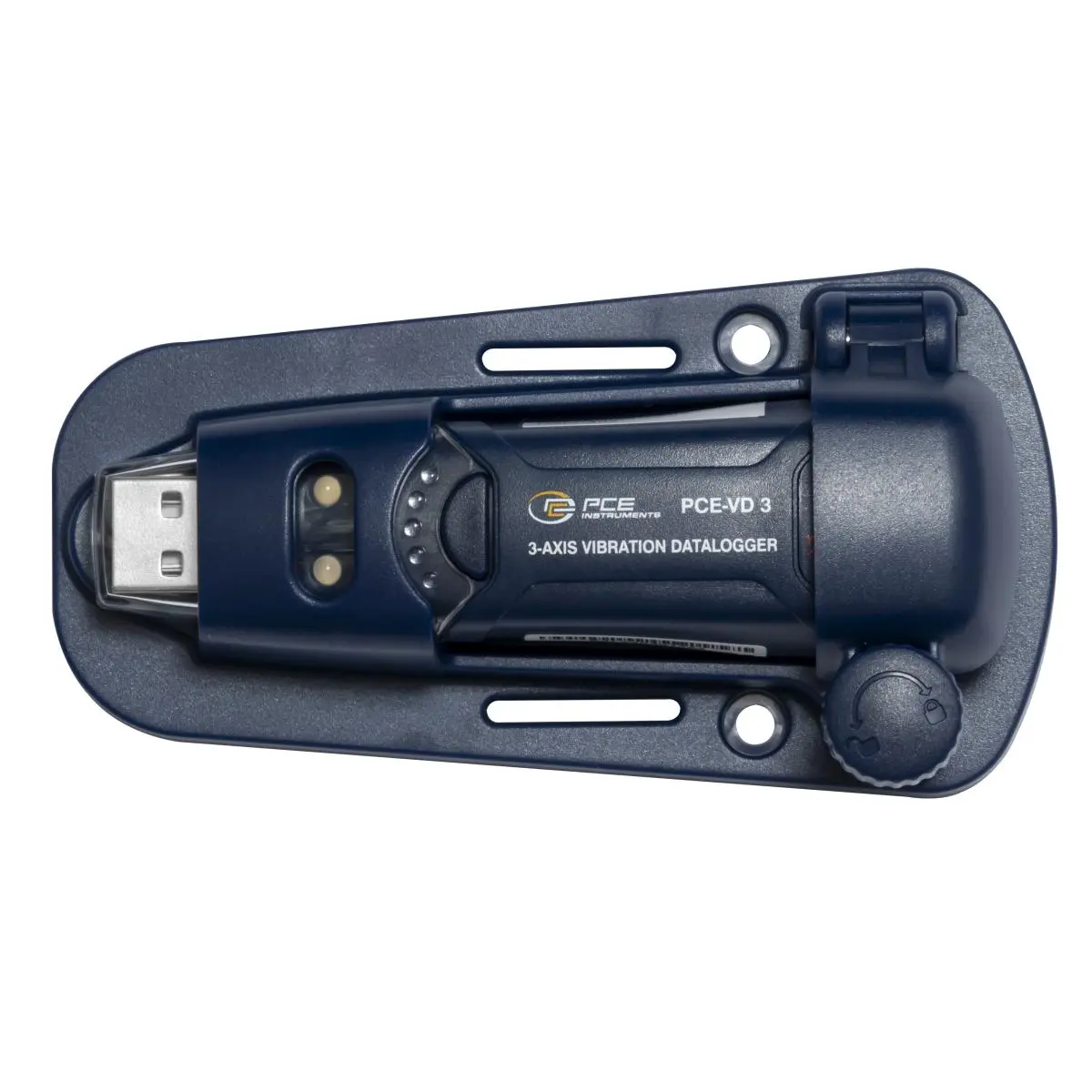

PCE-VD 3 is a shock data logger that measures 3-axis shock/vibration via a built-in accelerometer sensor. This vibration data logger records 3-axis acceleration (X, Y, Z) vibration measurement data for Fast Fourier Transform (FFT) waveform analysis. The vibration data logger connects to your PC via a USB port for configuration and for quick and easy data transfer.

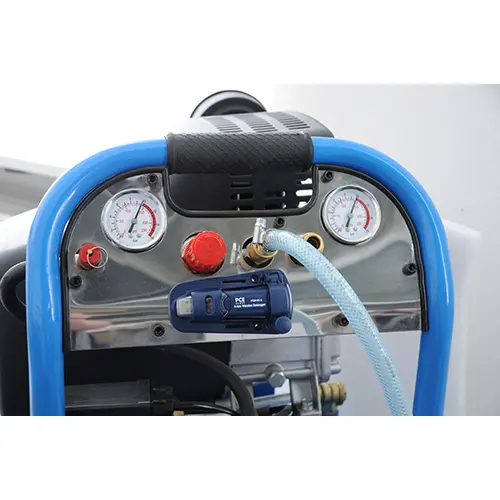

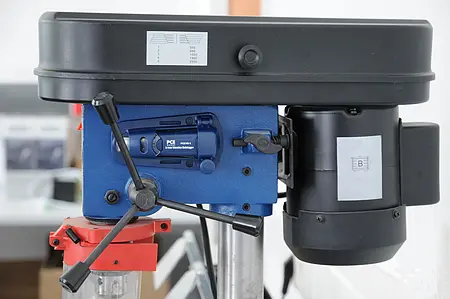

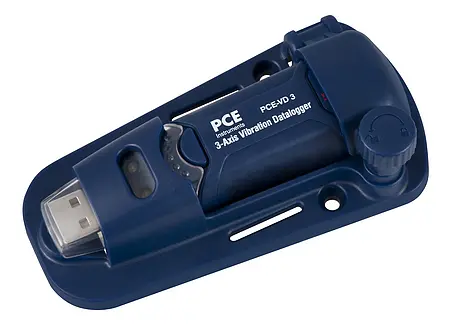

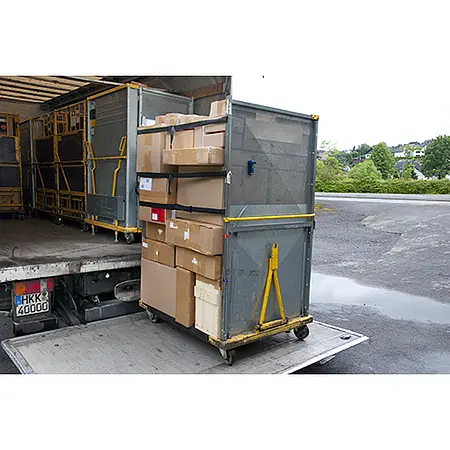

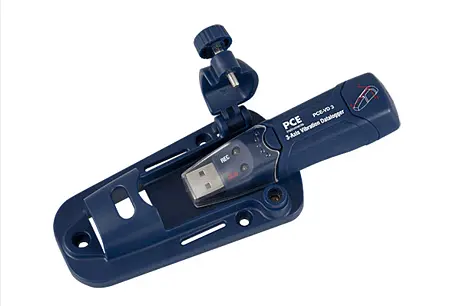

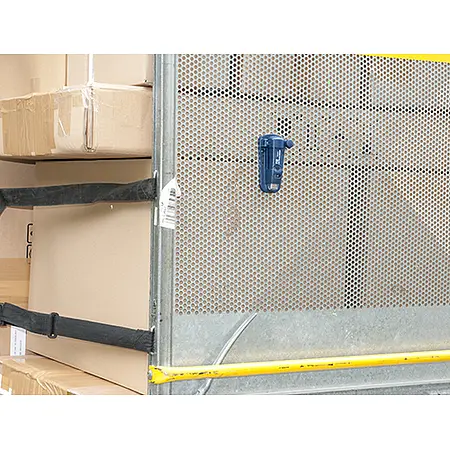

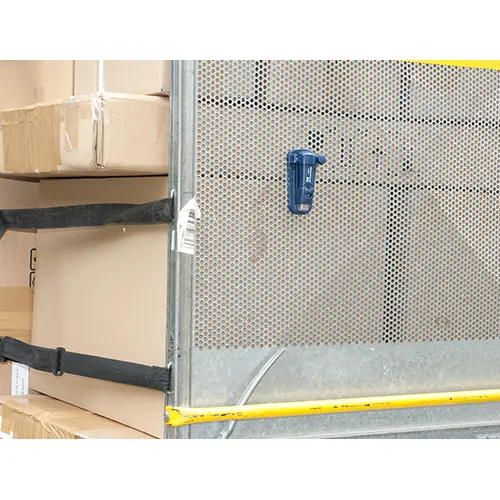

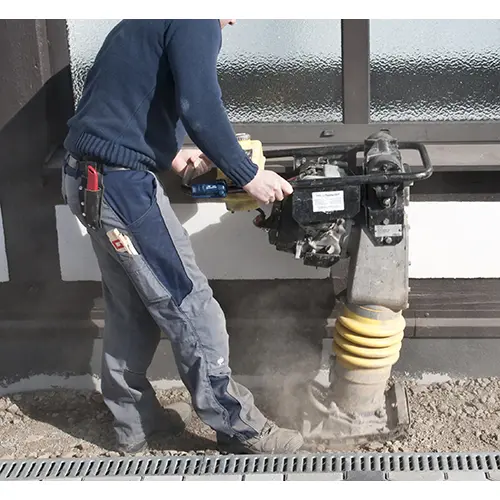

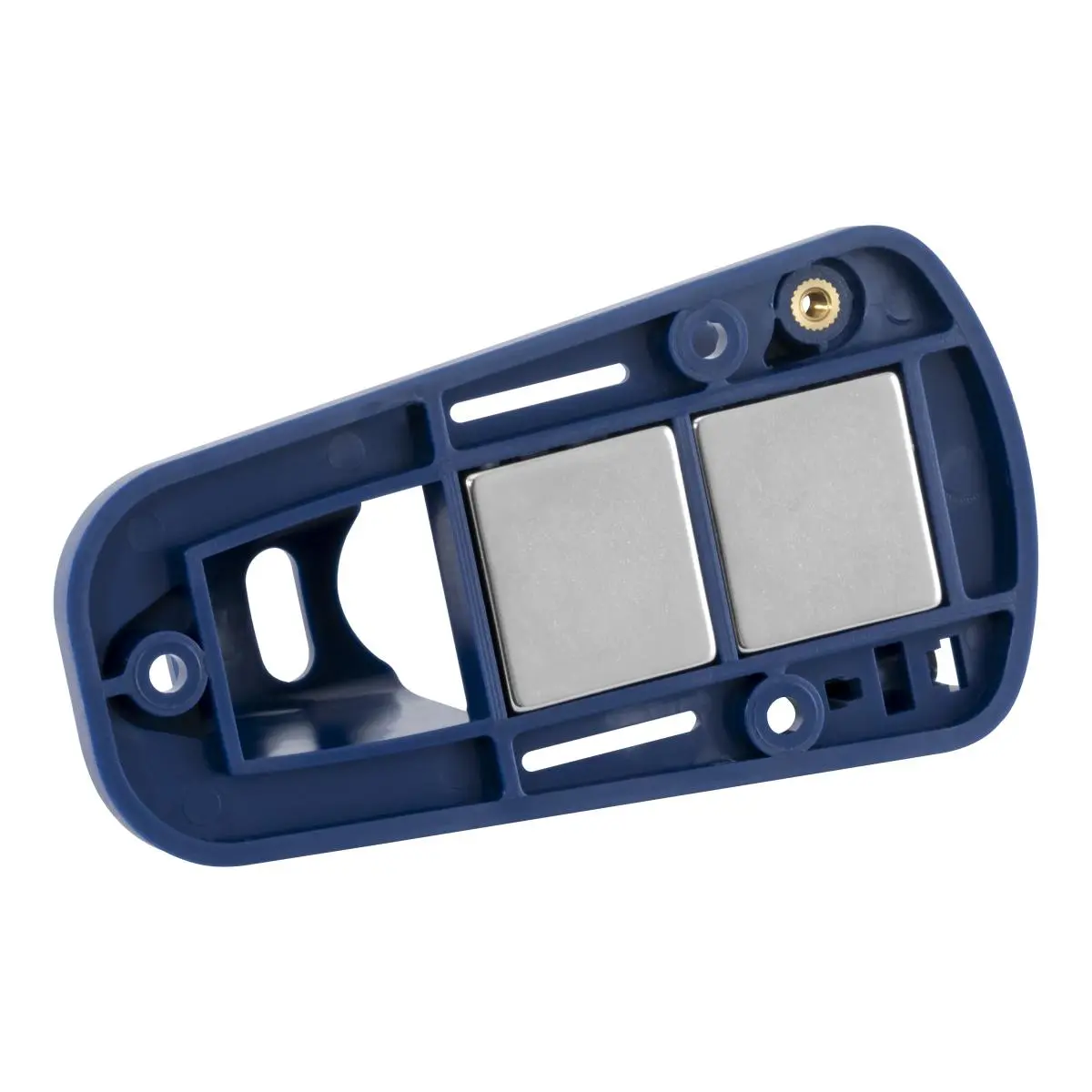

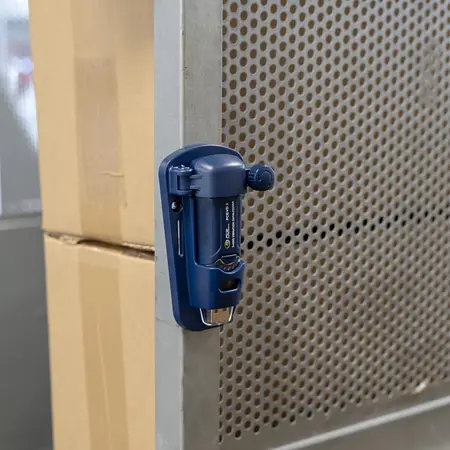

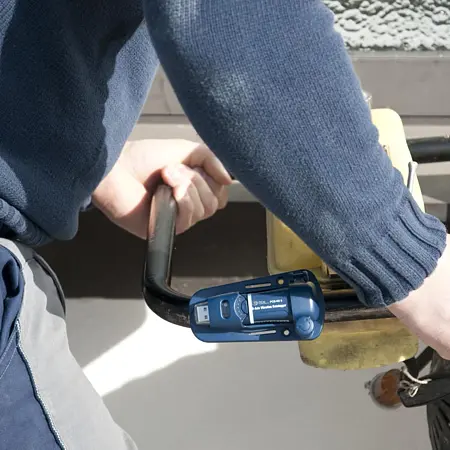

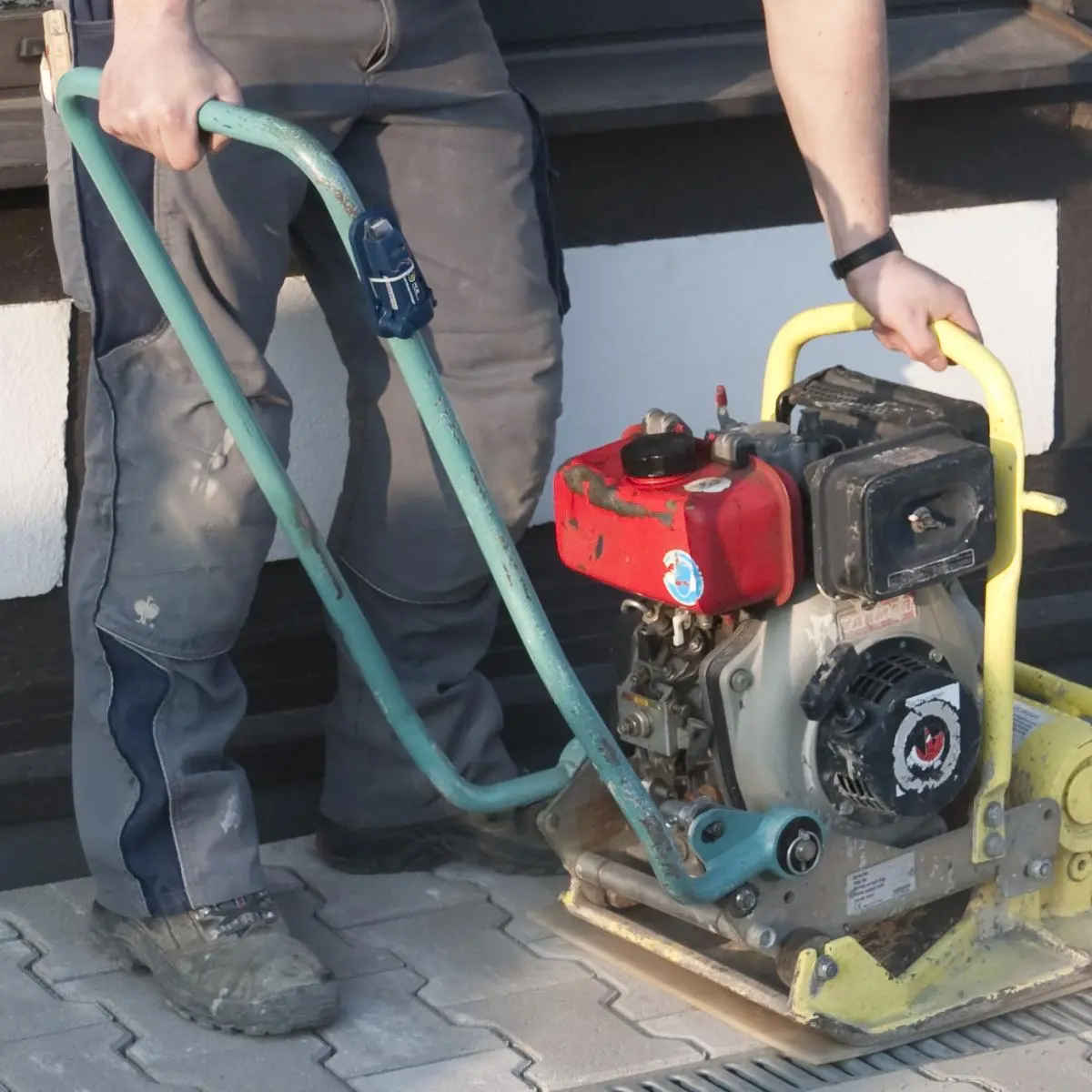

The vibration data logger can be placed almost anywhere due to its lightweight design and magnetic/wall-mounting bracket. The vibration data logger has many practical applications. It can be used for monitoring vibration during shipping, machine operation and more.
Note: The PCE-VD 3 vibration data logger must be configured with a PC before it will operate. Please follow the instructions in the user manual to program the device accordingly.
| Acceleration | |
| Measuring range | -16 ... +16 g |
| Resolution | 0,004 g |
| Accuracy | ±0.5 g |
| General technical data | |
| Frequency | 0 ... 60 Hz |
| Display type | without display |
| Storage medium | Internal memory |
| Storage capacity | 8 Mbit |
| Memory capacity (additional information) | normal measuring mode: 168042 memory points, motion detection: 112028 memory points |
| Storage interval from | 50 ms |
| Storage interval to | 12 h |
| Interface | USB |
| Operating time | 400 h |
| Dimensions | Bracket: 106 x 56 x 33.5 mm |
| Protection class (device) | IP20 |
| Connector type | USB-A |

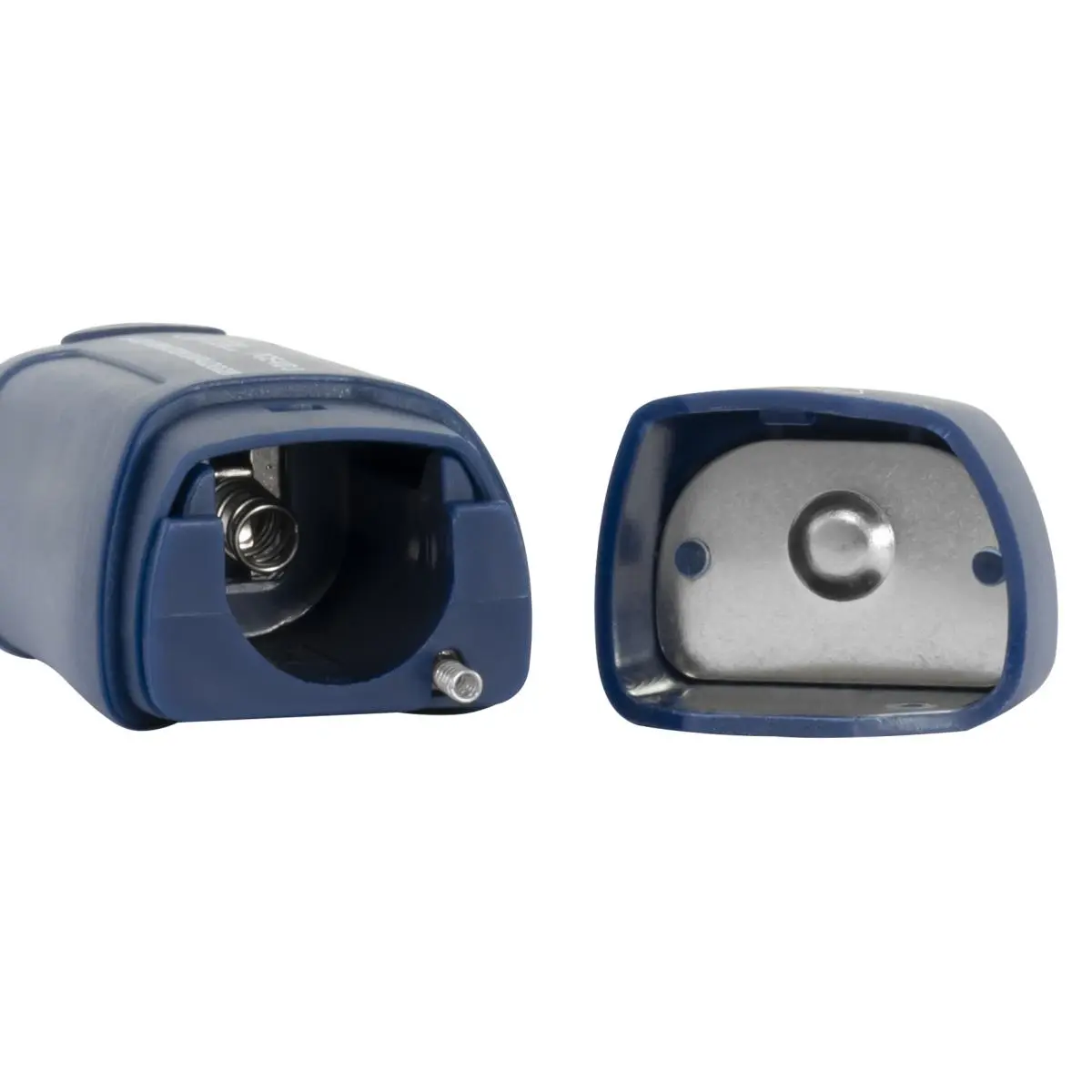

| (Rechargeable) battery | 1 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 40 °C , 10 ... 75 % RH |
| Storage conditions | -10 ... 60 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 95 x 28 x 21 mm |
| Weight | 25 g |
